Hardwire Ipod AUX

does anyone know how or whats the best way to wire a aux cable so can run an ipod on a stock 2003 ranger radio, i dont want to use the cigarette lighter jack anymore as crapy quality...

cheers
Reply With Quote
  #2
Old 02-21-2012
2006crfrider's Avatar
Member

Join Date: Apr 2011
Location: Spokane,WA
Posts: 424
Honestly your better off just getting a aftermarket deck with usb and aux.
Reply With Quote
  #3
Old 02-21-2012
Brandon97xlt's Avatar
Member

Join Date: Sep 2010
Location: Warsaw, Indiana
Posts: 280
^^^^ agreed. You need a new one

Last edited by Brandon97xlt; 02-21-2012 at 04:58 AM.
Reply With Quote
  #4
Old 02-24-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773

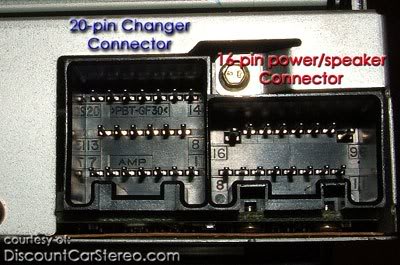

First check the rear of your radio and see if you have a large 20 pin connector.



If you do then there are options other than an aftr mkt replacement.






The USA Spec Unit plugs in the CD Changer port (20 pin Connector) and give you two connectors, one is an iPod Connector allowing complete transfer of the digital signal and the other is a 3.5mm Pin Connector to cover any other type of music making device.

I am using Pioneer Component SPeakers in the Doors of my Ranger and when the iPod plays you can here every little note, IMHO it sounds great.

There are two modes, one for plying off a list which you have to make and name FORD1 thru 5 and then there is the mode where you are suppose to be able to just play from the iPod Control. I have not used this mode because I set it up to run off the List Mode and you need to change some switches to run the other mode.

Again IMHO… I think this is the best alternative to a new radio, cost may not be too cheap over $100 but I think it is a great unit.

My daughter even mentioned to me one morning we were riding to breakfast, that the radio sounds great, I said its a FORD…

Hope this helps...
Attached Thumbnails
Hardwire Ipod AUX-ford20.jpg   Hardwire Ipod AUX-pa11ford1.jpg   Hardwire Ipod AUX-dicehowitconnects.jpg   Hardwire Ipod AUX-usaspechowitinstalls.jpg
Reply With Quote
  #5
Old 02-24-2012
2006crfrider's Avatar
Member

Join Date: Apr 2011
Location: Spokane,WA
Posts: 424
^For the price of all that you might as well get a aftermarket deck. Plus it will sound better than your stock deck.
Reply With Quote
  #6
Old 02-24-2012
Member

Join Date: Oct 2011
Location: riverview, MI
Posts: 86
aftermarket deck but use the usb port-it sounds better. but if not you could try the cassette that plugs into your headphone jack. not the best quality but it sounds ok
Reply With Quote
  #7
Old 02-24-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
BUT if you like the OEM Radio and don’t want to change anything, this unit is plug and play IF you have the 20 pin connector.

It comes with all of the parts needed and the instructions are more than adequate.

Here is one site, $119.95 with free shipping:

http://www.ipodcarpros.com/p64/PA11-...duct_info.html

If you like paying more and like Crutchfield then:

http://www.crutchfield.com/p_581PA11...nterface&avf=N

Not sure of this place: http://www.savinglots.com/lotprod.as...Fcjc4AodvTnXqQ $99 + shipping.

As always, prices vary.

Good Luck with this.
Reply With Quote
  #8
Old 03-02-2012
Ranger SVO's Avatar
Member

Join Date: May 2010
Location: abilene
Posts: 36
And many people like to keep their vehicle factory, no problem.

PAC Audio is another good source for iPod intergration. I've used PAC products many times with good results. For your truck you need the PXDP and the vehicle specific harness (so everything is plug and play) which should be part # PXHFD3.

My 10-cents worth
Reply With Quote
  #9
Old 03-03-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by vonner91 View Post
does anyone know how or whats the best way to wire a aux cable so can run an ipod on a stock 2003 ranger radio, i dont want to use the cigarette lighter jack anymore as crapy quality...

cheers
Have you done anything on this ?

Ranger SVO,
PAC stuff looks a lot like the USA Spec stuff or vice-versa.
Reply With Quote
  #10
Old 03-04-2012
Ranger SVO's Avatar
Member

Join Date: May 2010
Location: abilene
Posts: 36
It is similar stuff, I've personally used PAC Audio equipment a number of times and its always performed as advertised.

I also go to PAC audio for a AUX In. You would still need and want to use the vehicle specific harness for a simple install.

For many factory intergration installs, I've used PAC Audio many times and have always been happy with the results.
Reply With Quote
  #11
Old 03-22-2012
ghost792's Avatar
Member

Join Date: Mar 2012
Location: IL
Posts: 4
I just installed the USA Spec in my 2011 Ranger. Install was a snap and I can access the playlists on my iPod, with playlist and track info being displayed on the stock head unit. If you are considering going this route, be advised that the cable that connects the satellite tuner to the USA Spec box has to be at least 15' long. There were several spots I found for it under the dash, but I couldn't use any of them because there was no place to stash that much cable.
Reply With Quote
  #12
Old 03-22-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Mine went in really easy.
iPod/Radio sounds great.
You can have five Play Lists with a large amount of songs (I have approx 150 songs on each of the Play List) and on the last setting and with switches in the correct position, you can run it off the iPod itself.
Really good product...
Reply With Quote
