How to remove seat tracks in 99 ranger.

I picked up a pair of seats from a 2000 ranger today for 40 bucks. They are clean and in much better shape than what I have. I unbolted the seats out of my 99 ext cab and when I went to install the new seats the front bolts lined up perfect but the rears mounts didn't.

I had the understanding that any seat from a 98-current would bolt right in. So at this point I have taken to removing the seat track however I can't seem to get that off either. I'm an engine builder by trade, so I have mechanical skill. I just don't want to strip everything and start sheering off rivots if its not needed.

Can anyone shed some light on this for me?
Reply With Quote
  #2
Old 05-12-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
As you can see from this picture, the seat track is an assembly that houses the seat adjustments, supports the seat back (hence the adjustment), and bolts to the floor.

You'll need to remove the 4 bolts that mount the track to the seat bottom. Then you'll have to remove the metal L bar that runs along the back of the seat.

the underside of the handle(s) on the adjustments, you can easily remove them from the pin that sticks through the seat track frame.


After that, you need to remove the torx bolts that are slightly under the seat-back cover. The seat will remove in two parts, the bottom and the back.

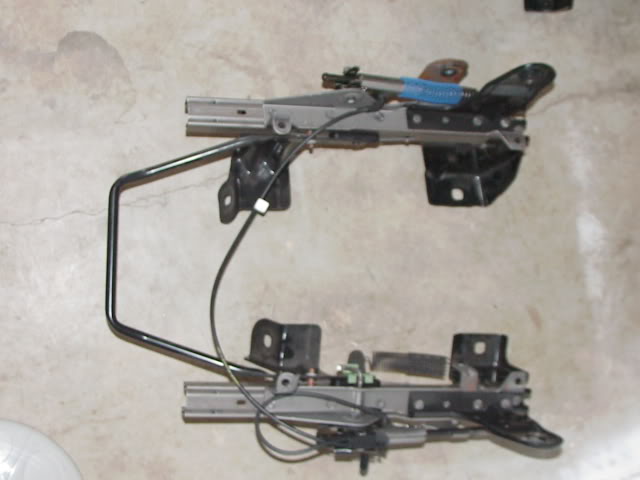

Name:  MVC00057.jpg
Views: 195
Size:  31.1 KB

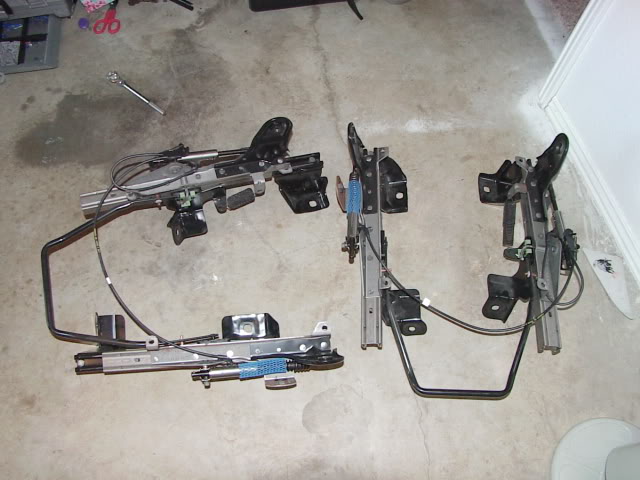

Name:  MVC00056.jpg
Views: 269
Size:  51.9 KB

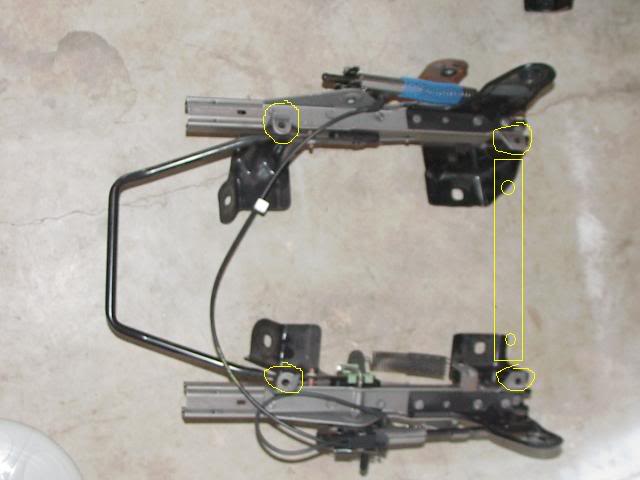

The yellow circles indicate the bolt locations that need to be removed, along with the metal cross bar and it's two bolts.
Name:  firstboltstoremove.jpg
Views: 342
Size:  29.4 KB
Reply With Quote
  #3
Old 05-12-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Great post STL.

So there's no rivets involved to remove the seat cushion/back off the tracks? EVerything all bolts and torx screws?
Reply With Quote
  #4
Old 05-12-2009
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
this is not good news for me since ill be getting 2002 seats a think....thanks for that post stl, that will help me also in the near future
Reply With Quote
  #5
Old 05-12-2009
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
I just put 02 seats in my 98 - bolted up just fine
Reply With Quote
  #6
Old 05-12-2009
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Quote:
Originally Posted by skier2880 View Post
I just put 02 seats in my 98 - bolted up just fine
him... ill have to check and see what happens when i put mine in
Reply With Quote
  #7
Old 05-12-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
I think it has to do with reg cab and extended cab. I've looked at some other year seat from a reg cab, and they were the same as mine, but when I went to swap out some seats from an extended cab, the rear mounts were different.
Reply With Quote
  #8
Old 05-13-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Ya you cant put ext cab seats n a regular cab without swapping the tracks
