Icon8 INstrument pannel

ok guys i have a problem. when im in park mi dial on the dash says im in R reverse N and so on.. how could i fix this. no matter how hard i try to jam it in its justoff... still have all the gears and stuff its just when i put it in drive it reads 2nd.
Reply With Quote
  #2
Old 06-25-2008
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
Cable could be strected out. Happend on my old Bronco.
Reply With Quote
  #3
Old 06-25-2008
moare91's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Port Saint Lucie, Florida
Posts: 61
Quote:
Originally Posted by herm59 View Post
Cable could be strected out. Happend on my old Bronco.
how could i check?
Reply With Quote
  #4
Old 06-25-2008
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
You need to take the steering column apart which tends to be a b***h (at least it was in the Bronco) and you might have to take open up the intsrument panel as well. I'm not positive as I havn't done it in a Ranger.

I just left it be, didn't bother me all that much and I knew what gear I was in.
Reply With Quote
  #5
Old 06-25-2008
moare91's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Port Saint Lucie, Florida
Posts: 61
i would just leave it but when you about to sell the truck to an illterit person, that tells you, "when u put it in drive its suposed to go" when really the truck is in neutral, and you try to explain that it is off, they think that the truck is only runing on 2nd gear because to be in drive it shows 2.
Reply With Quote
  #6
Old 06-25-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
On my 1990 truck there is an adjustment for it. I have no clue if it would be the same but might be worth looking at. On the bottom of the cluster there is a plastic cable that wraps around the steering column. On this plastic cable there is an adjustment screw that can be moved to align the indicator. Hope that helps some.
Reply With Quote
  #7
Old 06-25-2008
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
EASY FIX!

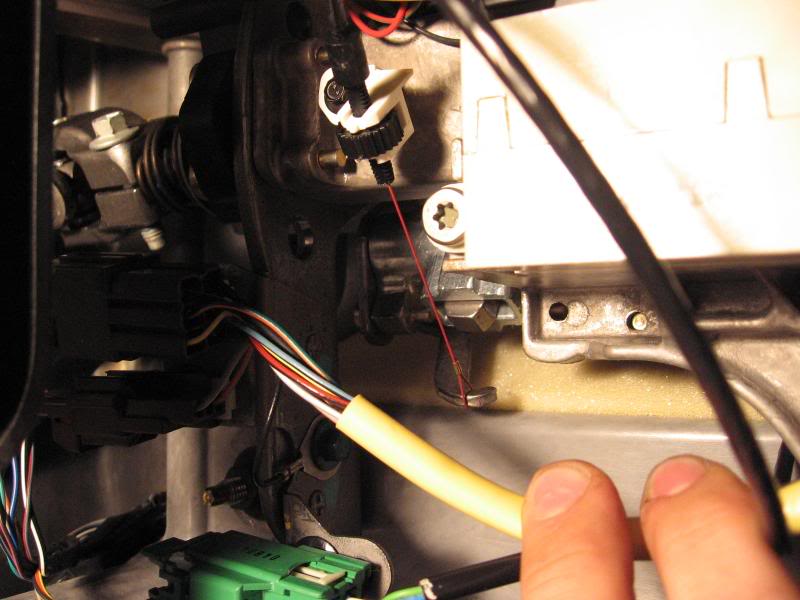

Take off the panel right below the steering column. 3 bolts on the bottom then pull the whole thing towards the back of the cab. Then remove the metal plate. Take a look and youll see something like this

Name:  IMG_0449.jpg
Views: 2
Size:  58.5 KB

rotate the **** (top center, NOT the thing my fingers are on) until you get it in the right position.

Last edited by malydeen; 06-25-2008 at 02:30 PM.
Reply With Quote
  #8
Old 06-25-2008
moare91's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Port Saint Lucie, Florida
Posts: 61
Icon14

THANKS GUYS!!! worked out perfect
Reply With Quote
  #9
Old 06-25-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Nice tip!
Reply With Quote
  #10
Old 06-25-2008
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Wow. That has been wrong with my truck since I bought it and I have just lived with it. Now I have a quick fix to do this weekend. Thanks for the fix pic malydee.
