led cluster conversion

im just trying to get some opinions on which color leds you feel look the best in a ranger, i am going to do the cluster and the hvac panel. I was originally aiming toward blue, but after viewing some photos red and white dont look all that bad either. some help would definally be appreciated.
Reply With Quote
  #2
Old 09-10-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
IMHO… blue doesn’t look too bad after removing the green off of the back of the panels but most other colors look a little washed out.
If your gauges are now green, once the coloring is removed you are left with a translucent white color, when either LEDs or paint is applied the color is washed out some. RED and White = Pink, Purple and white = light purple, etc.
I would buy new gauge faces in the color face & numerals you want and be done with it.
The final piece will look better and maybe more even in color too.

I tried the red, didn’t work for me so I purchased new gauge faces, now it looks the way I want.

luck,
Reply With Quote
  #3
Old 09-10-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
here are two i have done. i bought leds off ebay, have about 3-4 hours each, and less than $20 in it.

white ex sport cluster in red:
Name:  P6250518.jpg
Views: 151
Size:  33.2 KB

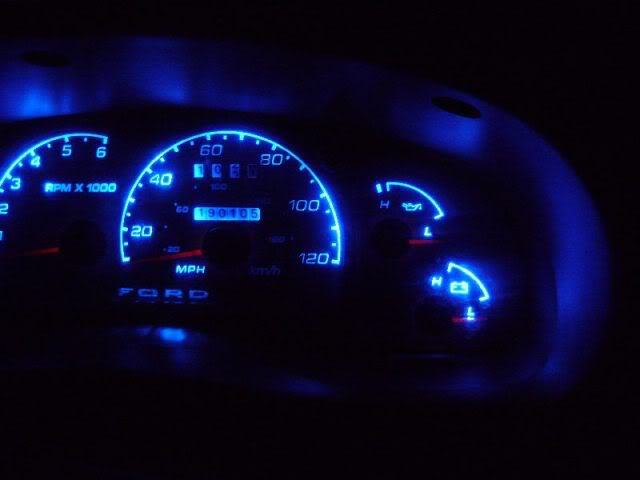

an ex sport in blue:
Name:  P1060217.jpg
Views: 25
Size:  33.0 KB
Reply With Quote
  #4
Old 09-10-2010
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
You should always sand the filtering paint from the back of the faces regardless which color you use.

Check my threads for LED cluster conversions that look brighter, more even, more vivid and more colorful than any OEM LED cluster.
Reply With Quote
  #5
Old 09-10-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Jp7 View Post
You should always sand the filtering paint from the back of the faces regardless which color you use.

Check my threads for LED cluster conversions that look brighter, more even, more vivid and more colorful than any OEM LED cluster.
The white faced gauges tend to be more clear than the black faced gauges so the color is more true.
Reply With Quote
  #6
Old 09-10-2010
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Scrambler82 View Post
The white faced gauges tend to be more clear than the black faced gauges so the color is more true.
does not matter when you use enough SMD's placed correctly
Reply With Quote
