My OHC MODS!!!

Well I wanted to put 3 switches somewhere where they are hidden from my girlfriend. so she cant mess around with my hella's and neon's and l.e.d.'s when im driving. because once before when we were driving together. she decided to put my hella's on but they had their covers on, so she no longer has switch privileges.
So I thought my OHC garage door compartment would be a good place to have them. but then i thought i could have left the hellas, neon's, or l.e.d.'s on. so i wanted to have a visible light indicator showing that my lights were on or off. so i decided to take out the garage door button and construct a 3 l.e.d. light indicator, one for every switch. so i can see if the lights were on or off.

so to sum it up...
3 switches in ohc
3 l.e.d. light indicator for each switch.

and i got also got a new ohc led light from superbrightleds.com
T10 PCB series LED Lamps Specifications

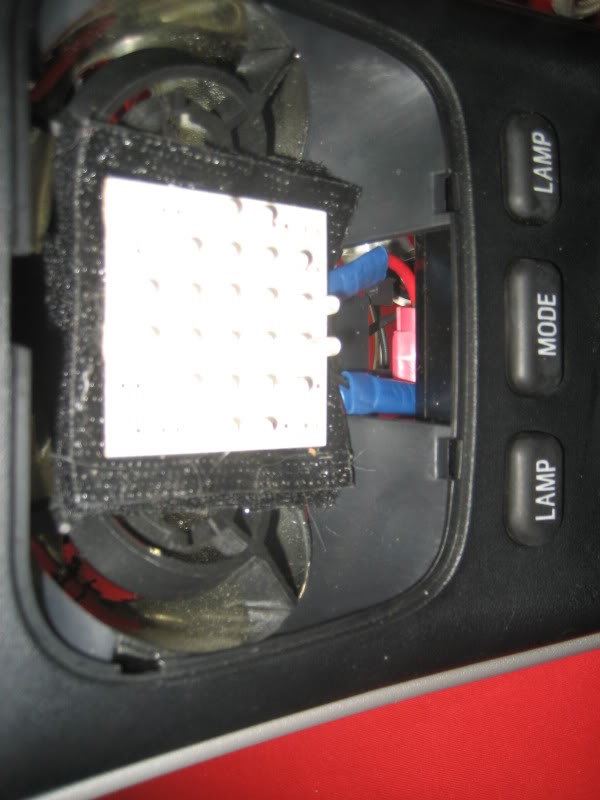

i got the 24 led board.

here the pics... hope you like it... not complete yet. still need to wire up leds and hella and neons and led light indicators

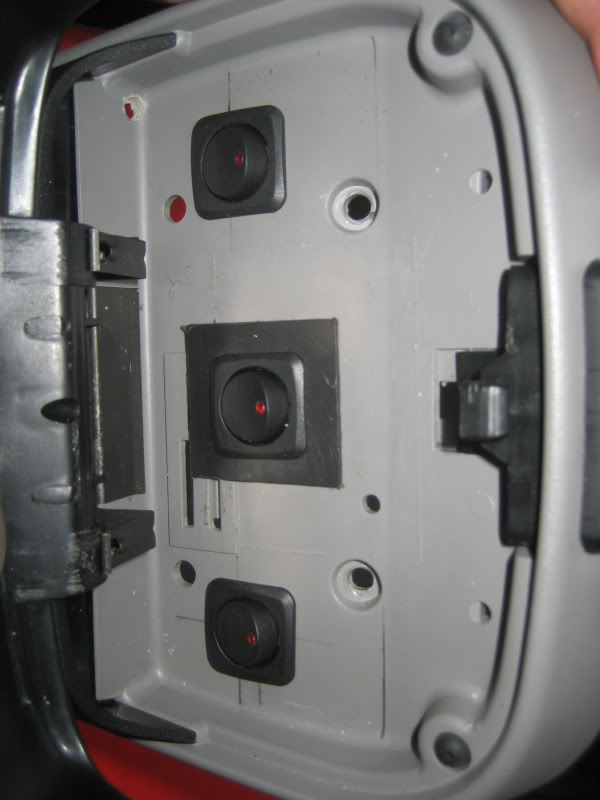

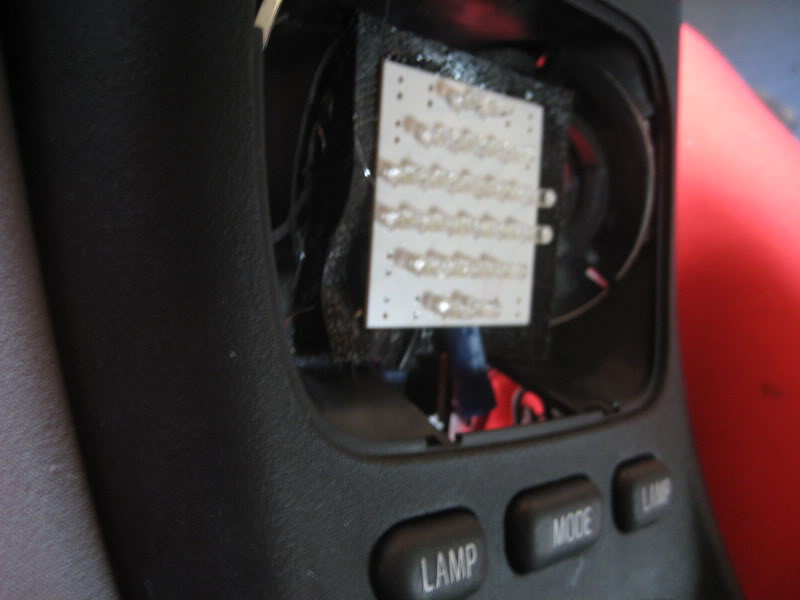

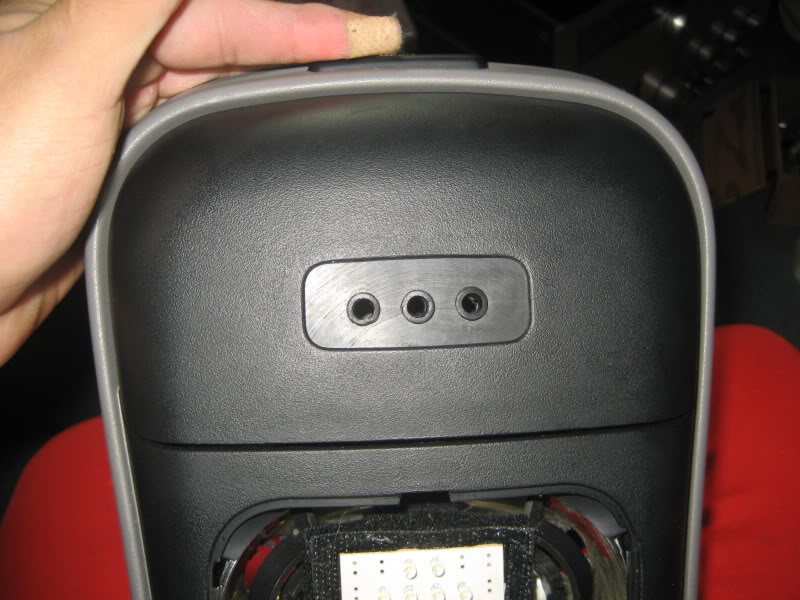

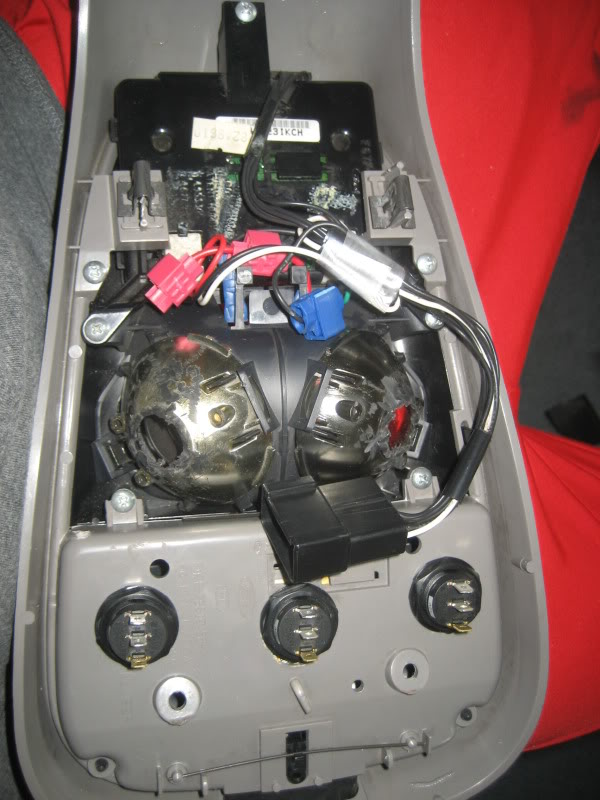

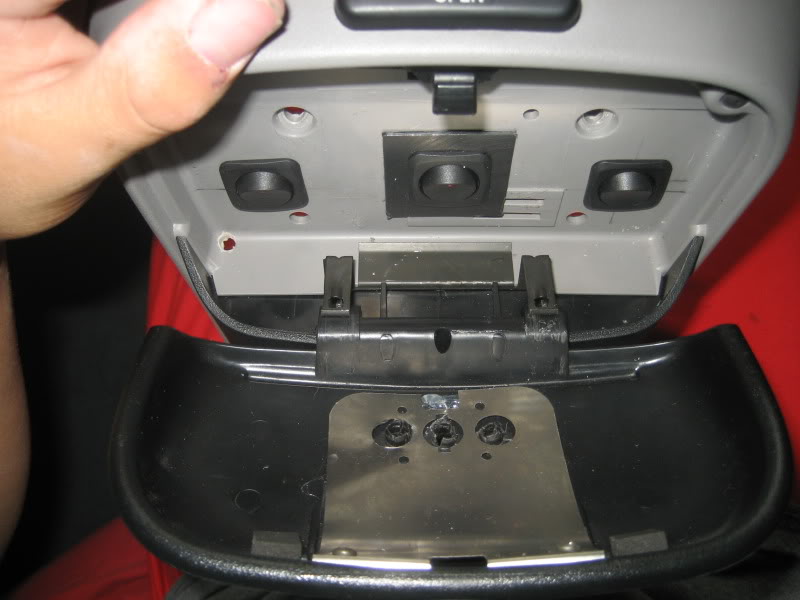

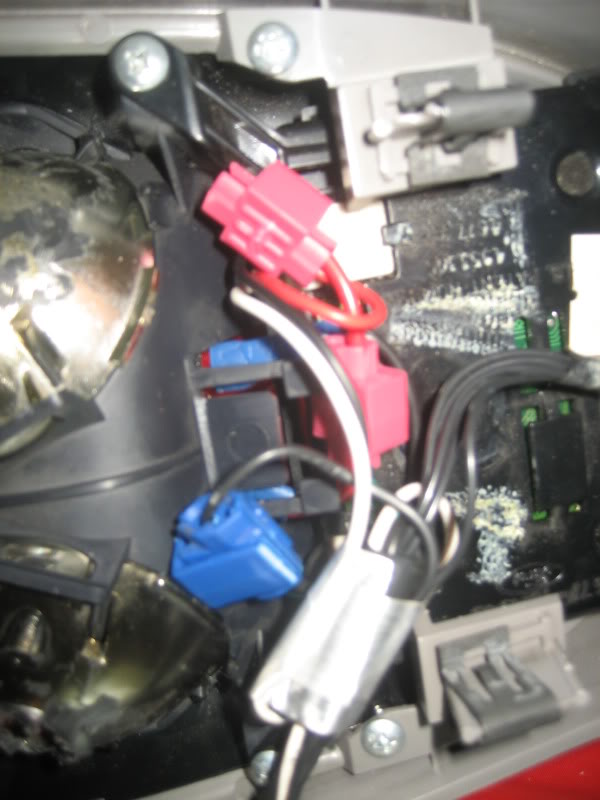

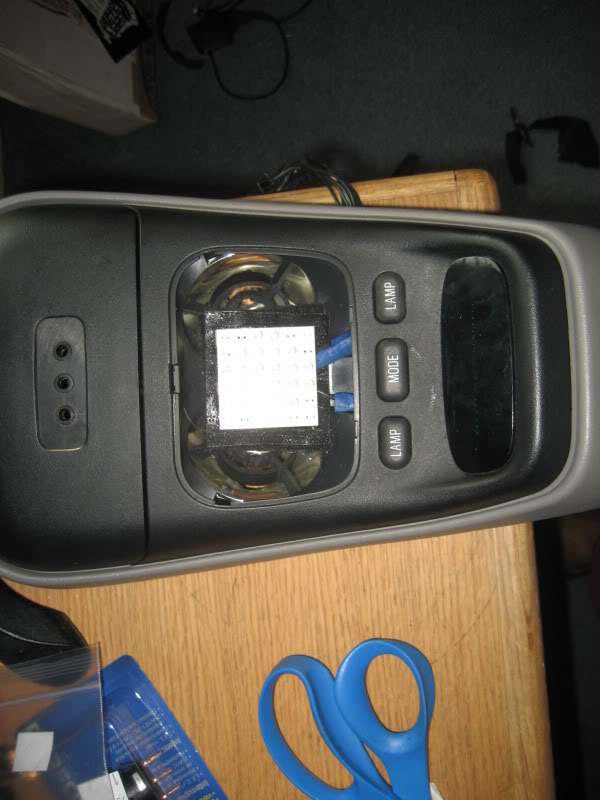

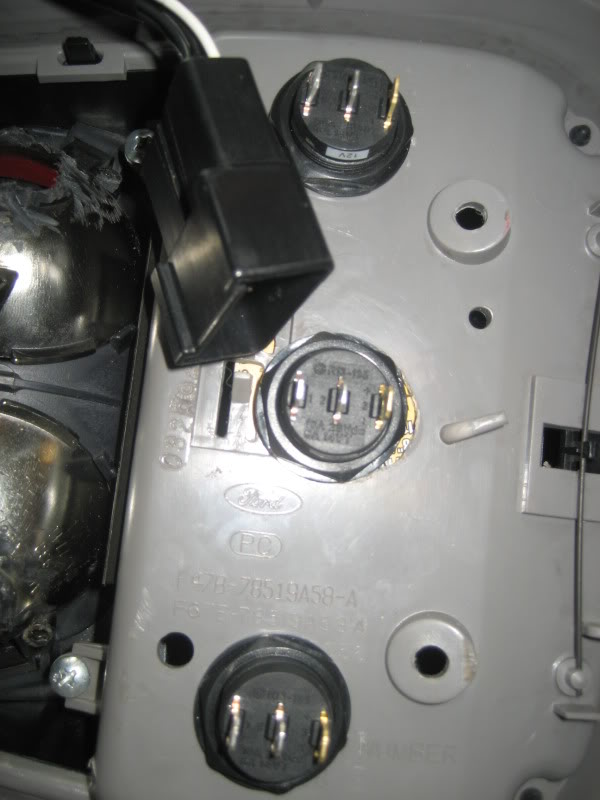

Name:  OHCswitch001.jpg
