new seats - Ranger-Forums - The Ultimate Ford Ranger Resource


Interior Semi-Tech General discussion of interior for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 06-22-2007
revo2k11's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: MA
Posts: 124
new seats

i got two power leather mountaineer seats and a center console from a 2000 mountaineer for 75 bucks and was wondering if they were a direct bolt in or if i have to drill holes for the console. also i was wondering the best way to get corroded and rusted bolts out without drilling because i just sheared my torx bit trying to get them loose.
Reply With Quote
  #2
Old 06-24-2007
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
You will need to drill a couple of holes for the coneole and the seats should be a direct bolt, but you will have to do some wiring for them to work.
Reply With Quote
  #3
Old 06-24-2007
klc317's Avatar
Member

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
You will need to open up the mounting holes on one of the front seat track openings (can't remember which one, right or left) on the Explorer/Mountaineer seats to accept the larger Ranger seat bolts, but besides that it's a direct swap.
Reply With Quote
  #4
Old 06-24-2007
revo2k11's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: MA
Posts: 124
im gonna get some pb blaster and so i can get the last two bolts out and then i should be able to finish it pretty quickly.
Reply With Quote
  #5
Old 06-25-2007
revo2k11's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: MA
Posts: 124
i soaked teh bolts in pb blaster and they are still not budging. is there anything else that i can do?
Reply With Quote
  #6
Old 06-25-2007
RentonRanger's Avatar
Member

Join Date: Mar 2007
Location: Walla Walla, WA
Posts: 705
Dynamite. Might leave a mark though.
Reply With Quote
  #7
Old 06-26-2007
klc317's Avatar
Member

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
What bolts are you talking about?
Reply With Quote
  #8
Old 06-26-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by klc317
You will need to open up the mounting holes on one of the front seat track openings (can't remember which one, right or left) on the Explorer/Mountaineer seats to accept the larger Ranger seat bolts, but besides that it's a direct swap.
nope....he has an extended cab, the seat tracks are a direct bolt in.....the only thing that will have to be swapped/modded is the lower seat belt bracket because the Explorer/Mountaineer part is shorter than a Ranger's....
Reply With Quote
  #9
Old 06-26-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by RentonRanger
Dynamite. Might leave a mark though.
AND you wont have to find a place to dispose of your old seat if you do it that way
Reply With Quote
  #10
Old 06-26-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by revo2k11
i soaked teh bolts in pb blaster and they are still not budging. is there anything else that i can do?
impact wrench.......but i can't believe they are not coming out......mine broke lose like they were brand new...
Reply With Quote
  #11
Old 06-26-2007
revo2k11's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: MA
Posts: 124

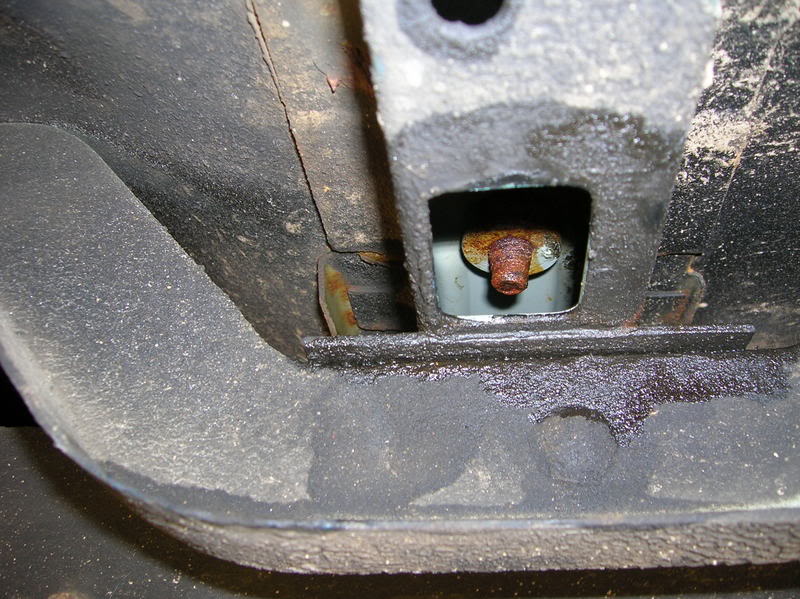

did they look like this?
Name:  004.jpg
Views: 1
Size:  107.6 KB
I hate new england!! why do they have to go all the way through the floor, the other two dont


and by the way, i stripped the one on the passenger side
Reply With Quote
  #12
Old 06-26-2007
rangerkidSHSU's Avatar
Member

Join Date: Nov 2005
Location: Huntsville/Dallas
Posts: 411
all that for 75 dollars...damn
Reply With Quote
  #13
Old 06-27-2007
klc317's Avatar
Member

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Quote:
Originally Posted by lifted97ranger
nope....he has an extended cab, the seat tracks are a direct bolt in.....the only thing that will have to be swapped/modded is the lower seat belt bracket because the Explorer/Mountaineer part is shorter than a Ranger's....
yup...I also have an extended cab. One of the bolt holes on the front of the seat base (where it bolts into the floor) DO require opening up a bit at lease in my case. The Explorer I got my leather/power seats from (a 2001 model with FX interior code seats) used a slight smaller bolt on one location (one of the fronts) than what the four that came from my stock Ranger buckets. The other 3 on each seat were the same as my Ranger bolts. Some years may be different, I'm not sure. Other than that, besides the seat belt bracket as Lifted97Ranger mentioned it is a direct bolt in. When you swap on the seat belt bracket, use a high quality bolt. I used Grade 8 stainless and a nylon lock washer. Overkill is a good idea here.

Last edited by klc317; 06-27-2007 at 12:42 PM.
Reply With Quote
  #14
Old 06-27-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by klc317
yup...I also have an extended cab. One of the bolt holes on the front of the seat base (where it bolts into the floor) DO require opening up a bit at lease in my case.
must be a case to case bases.....mine bolted directly in......no modification to the Explorer seat brackets what so ever.......
Reply With Quote
  #15
Old 06-27-2007
RangERVT's Avatar
Member

Join Date: Jun 2007
Location: East Wallingford, VT
Posts: 48
rusted bolts

I used cold chisel and hammer to knock loose my seatbelt bolts, weren't quite as rusty looking as yours. Spray with break free penetratring oil or whatever, whack head of bolt with hammer and chisel in counter clockwise direction, apply wrench with cheater bar. If, no luck wait a few hours and try again, day after day.
Reply With Quote
