It's either a sunroof model or it will have the garage door opener, its easy to find one with the garage door opener.
Reply With Quote
  #77
Old 03-02-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by mbushnell View Post
I was thinking about doing the OHC in my '05 Ranger?
If you do it the wiring will be diffrent. Gray/Black (GY/BK) - speed sensor you have to find in a bundle of wires coming through the firewall. Easy to find though
Reply With Quote
  #78
Old 03-02-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
this might be possible now that I got my wiring diagram book... cause the 07 has new wiring, colors etc...
Reply With Quote
  #79
Old 03-17-2008
johns43081's Avatar
Member

Join Date: Feb 2008
Location: westerville, ohio
Posts: 2
i have a 2000 rwd and i looked at my gem to connect the vss and i dont have a black plug just the one behind the black plug any help would be wonderful its staying at 49 deg and its driving me nutz
Reply With Quote
  #80
Old 03-17-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Hiya,

The wire from the GEM you want is Gray with a Black stripe as per Mr. John Griggs excellent post. You may have already seen it at:

http://www.cardomain.com/ride/296394/4

I tapped into it with the gray/blk wire from the console harness. Its not too hard to find, its right there in the front as you look at it.

Hope this helps ya.
Reply With Quote
  #81
Old 03-30-2008
Briggslite's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: St. Paul, MN
Posts: 70
Does anyone know how to hook up an OHC with the auto dimming mirror? Specifcally, what do I hook the mirror wires up to? Thank
Reply With Quote
  #82
Old 03-30-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
The mirror and the console don't work together, but you can use some of the power wires and so forth.

There's a thread here, but it's missing pics and diagrams which I am supposed to replace, lol -- but I haven't gotten around to it I'm afraid. When I'm SLIGHTLY less busy I'll go through my picture archives and dig them out and maybe post them on my Cardomain site so the pictures hang around. This board has has a couple of accidents that deleted my pictures that were in threads, and I changed hosting without thinking about it and lost a cache of pics I had that were linked to older threads as well.
Reply With Quote
  #83
Old 04-01-2008
Member

Join Date: Jan 2008
Location: Gahanna, Ohio
Posts: 7
When you cut in to your head liner then does the OHC bult to the roof for screw...also some of you said you can find them on ebay cheap....anyone find a black one let me know. Also you just wire it to you dome light then run the wire where to the back then down to the floor and either to the fire wall or what? Where to you run the wires. The OHC on ebay most come with all the parts needed??? let me know... thanks.
Reply With Quote
  #84
Old 04-01-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
cardomain.com/id/n3elz pages 3 and 4 will tell you everything you need to know. You'll need the OHC with a little bit of wiring, mounting bracket and temp sensor.
Reply With Quote
  #85
Old 04-01-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Try not to get a sunroof model, the mounting plate on them is different and it doesn't sit as far back as the garage door ones so it won't look as nice.
Reply With Quote
  #86
Old 04-01-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah, I think the garage door ones like nicer anyway. You can always paint it too mine was originally tan:

Reply With Quote
  #87
Old 04-01-2008
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
x3 on not getting a sunroof model. The mod really isnt that hard if you follow directions.
Reply With Quote
  #88
Old 04-01-2008
Briggslite's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: St. Paul, MN
Posts: 70
I'm still wondering what kind of paint you used on your OHC, that looks like it turned out real nice. Does it match the middle part that is OE color well?
Reply With Quote
  #89
Old 04-01-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah it looks OEM, I don't have the paint cans anymore but I'm pretty sure its just Interior Paint from Autozone with some adhesion promoter first.
Reply With Quote
  #90
Old 04-05-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ok. I am a nooby but have done a lot of research on this. I plan on doing this upgrade. My truck is a 99 Ranger. When I go to the junkyard, what is everything that I need? Of course the console, but where is the temp gauge and stuff like that. I am not scared of wiring. I have just got done restoring a 69 F100 and adding cd player, dixie horns, sirius radio, fog lights, installing speakers, whatever. I have read alot of peoples cardomain how-to's. Are there already sesnors built in or something? You guys are talking about cutting into the GEM? I'm 18 and learning still. Thanks guys.
Reply With Quote
  #91
Old 04-05-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Quote:
Originally Posted by cghstrojan08 View Post
Ok. I am a nooby but have done a lot of research on this. I plan on doing this upgrade. My truck is a 99 Ranger. When I go to the junkyard, what is everything that I need? Of course the console, but where is the temp gauge and stuff like that. I am not scared of wiring. I have just got done restoring a 69 F100 and adding cd player, dixie horns, sirius radio, fog lights, installing speakers, whatever. I have read alot of peoples cardomain how-to's. Are there already sesnors built in or something? You guys are talking about cutting into the GEM? I'm 18 and learning still. Thanks guys.
You will need:

1. The console itself, with all the electronics inside;

2. The console mounting bracket;

3. The wire harness. The wire harness runs underneath the headliner over to the driver's side and down the A-pillar. The more of it you grab, the better;

4. The temperature sensor, located up front near the radiator, driver's side . It will have a 2 wire-harness connector hanging out the back. Be sure the wire colors are blue/white and blue/yellow.
Reply With Quote
  #92
Old 04-05-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ok, thanks! I am gonna go to the junkyard this week. Hopefully next weekend I can put one in.
Reply With Quote
  #93
Old 04-05-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Quote:
Originally Posted by cghstrojan08 View Post
Ok, thanks! I am gonna go to the junkyard this week. Hopefully next weekend I can put one in.
Good luck. Post some pics when you're done.
Reply With Quote
  #94
Old 04-19-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Went to the junkyard today and got everything I needed. I got a blue shell so I need to paint it. What prep work needs to be done to paint it?
Reply With Quote
  #95
Old 04-19-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Make sure its really clean and dry. Use adhesion promoter to help the paint stick to plastic. Use a coupla even, light coats to avoid dripping and let dry. Then paint with your interior color. Take your time and it will come out nice!
Reply With Quote
  #96
Old 04-19-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I also rubbed mine down with some sand paper first to scratch it up some to give the paint something to grab on too. Then 2 coats of adhesion promoter and a lot of light coats of paint. Runs are the enemy.
Reply With Quote
  #97
Old 04-19-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ok, gonna go to the auto parts store this evening. I think I am gonna paint it black. Tat looks nice even though the interior is greay. Oh ya, I got everything for less that $10.
Reply With Quote
  #98
Old 04-19-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
I am gonna hopefully try to at least install the metal plate tomorrow depending on what I am doing. If I remember, I will try to take some pics.
Reply With Quote
  #99
Old 04-20-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ok, got the thing painted today and that is about it. Looks really good. That adhesive promoter really helped. I really do not know when though I can get to putting in it. Busy all this week and then going camping next weekend.
Reply With Quote
  #100
Old 05-04-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
I want to thank 04blackedge for the tutorial on doing it. Here is a pic of what it looks like.
Name:  IMG_2992.jpg
Views: 0
Size:  57.1 KB

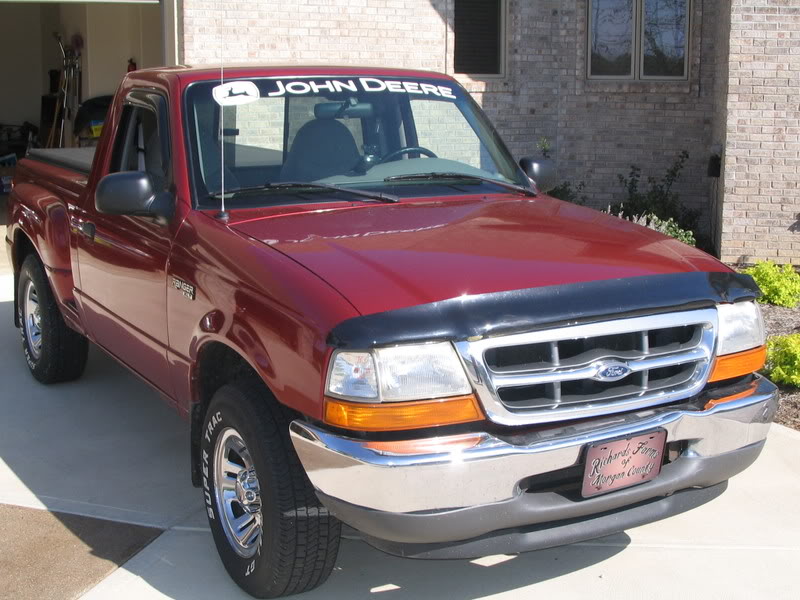

And one of the truck
Name:  IMG_2994.jpg
Views: 0
Size:  95.8 KB
Reply With Quote
