Way to go man that looks fantastic.
Reply With Quote
  #102
Old 05-04-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ok, I know you can calibrate the compass but can you the temp? For some reason it seems that it might be reading a little high. The sensor is in the right spot away from everything. I haven't really drove it yet though so hopefully it will go down.
Reply With Quote
  #103
Old 05-04-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Um I don't think so. Mine reads 10 degrees colder then it should, idk why though.
Reply With Quote
  #104
Old 05-11-2008
Hops440's Avatar
Member

Join Date: Mar 2008
Location: Detroit,Mi
Posts: 9
I just put one in my son's Ranger and the display doesn't work at all. It's a unit I got from e-bay, member with 176 feedback, 100% positive. I know it's wired correctly, I quadruple checked that. The dome lights work, but no display whatsoever. It's supposedly out of a 1998 Eddie Bauer Explorer, and came with a good chunk of wiring, bracket, and temp sensor. I followed the excellent instructions of Mr. John Griggs, and thought it went pretty smooth. Any one have any ideas before I try to contact the seller?
Reply With Quote
  #105
Old 05-11-2008
rideabikenick's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
looks good man
Reply With Quote
  #106
Old 05-11-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by Hops440 View Post
The dome lights work, but no display whatsoever. It's supposedly out of a 1998 Eddie Bauer Explorer, and came with a good chunk of wiring, bracket, and temp sensor. I followed the excellent instructions of Mr. John Griggs, and thought it went pretty smooth. Any one have any ideas before I try to contact the seller?
It is not uncommon for the display to go out due to solder joint problems. Take a look at this thread:

http://www.explorerforum.com/forums/...d.php?t=187953
Reply With Quote
  #107
Old 05-12-2008
Hops440's Avatar
Member

Join Date: Mar 2008
Location: Detroit,Mi
Posts: 9
Thanks, man, I think I'll give that a shot!



Quote:
Originally Posted by rwenzing View Post
It is not uncommon for the display to go out due to solder joint problems. Take a look at this thread:

http://www.explorerforum.com/forums/...d.php?t=187953
Reply With Quote
  #108
Old 05-18-2008
Hops440's Avatar
Member

Join Date: Mar 2008
Location: Detroit,Mi
Posts: 9
After going through this link http://www.explorerforum.com/forums/...d.php?t=187953 I didn't feel too comfortable doing this repair. I've never soldered on a circuit board and probably would have made matters worse. I contacted the seller, Your Part Source Inc., and asked if they wanted me to try to fix it myself (with a link to this thread) or send the unit back to them for replacement. The reply was Christopher Kerico <[email protected]> wrote:
I just got another one in, I will send it to you today. If you want to fix that one and keep it for a spare that's okay with me. Sorry about the trouble! I will send this one via Priority so I would expect it by Monday. Thanks again for the link and your understanding!
Elliot
Your Part Source Inc.
Another overhead console was already on it's way!!! Big thanks to Your Part Source Inc and Eliot for A-One customer service and going above and beyond!!
Reply With Quote
  #109
Old 05-18-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I've had some vendors of stuff like that in the past too. It's a case where a problem actually leaves you feeling better, lol. It's nice when folks take care of business like that.

With regard to calibration, there's a couple of things to look at. First consider this:

1. On these sensors, resistance goes DOWN as temperature goes up. If your sensor is reading too cold, it could be wiring resistance. Make sure you clean all connections and if you did any poor splicing anywhere, redo it.

2. With that in mind, a sensor reading too high is either a wire leaking to ground (unlikely but remotely possible) or an out of cal sensor or OHC unit. The sensor is the easiest thing to replace and I don't have the numbers handy but that sensor was used for other purposes and is available as an aftermarket replacement part.

Actually calibrating the setup, if you think about it, would be impractical. To do it right you need to get the sensor to a known temperature -- actually it should be two different temperatures to do it right.

Those of you who say it's off, find some kind of thermometer of known accuracy and check the temperature where the sensor is. It might not be as far off as you think.

Last, as I've said many times: if you don't hook up the VSS, your readings will periodically freeze and lag.
Reply With Quote
  #110
Old 05-18-2008
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047

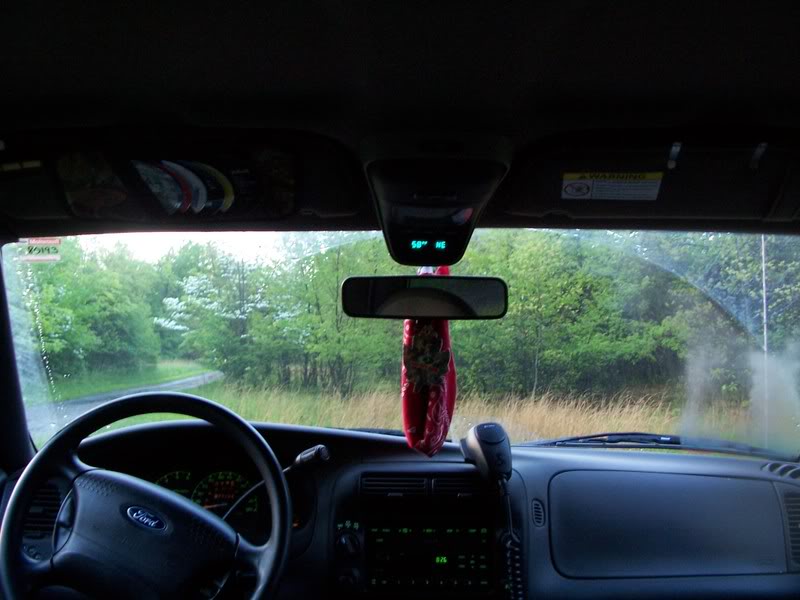

Hey Griggs thanks for having the great write up on your cardomain. Worked out great and came in handy.

Name:  100_3760.jpg
Views: 2
Size:  79.5 KB

Name:  100_3764.jpg
Views: 3
Size:  65.2 KB
Reply With Quote
  #111
Old 05-29-2008
Member

Join Date: May 2008
Location: Puyallup
Posts: 31
Any idea where the *GEM* is located on a 94' ??????
Reply With Quote
  #112
Old 05-29-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Quote:
Originally Posted by thinkglad View Post
Any idea where the *GEM* is located on a 94' ??????
Your '94 does not have a GEM. If you are trying to find the VSS signal wire (GY/BK) you can pick it up off the cruise control amplifier located behind the PS dash, just above the glove box (remove the glove box door to access).
Reply With Quote
  #113
Old 05-29-2008
Member

Join Date: May 2008
Location: Puyallup
Posts: 31
PS dash.......????
Ok behind the glove box, got it.....do you know is the Vss signal wire also (GY/BK) at the cruise amplifer then ??
Thanks
Reply With Quote
  #114
Old 05-29-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Quote:
Originally Posted by thinkglad View Post
PS dash.......????
Ok behind the glove box, got it.....do you know is the Vss signal wire also (GY/BK) at the cruise amplifer then ??
Thanks
Yes, same (GY/BK) color. Pin #3 on the amplifier harness connector.
Reply With Quote
  #115
Old 05-29-2008
Member

Join Date: May 2008
Location: Puyallup
Posts: 31
That is great....I really thank you for the info, So is the Temp sensor located on the firewall of the explorer ??
Reply With Quote
  #116
Old 05-29-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
No the temp sensor is sort of behind the headlight on the radiator support or header panel. It looks kinda cigar looking and has a blue/white and a blue/yellow wire coming off of it. Those wire colors might be backwards but you'll tell when you see it.
Reply With Quote
  #117
Old 05-29-2008
Member

Join Date: May 2008
Location: Puyallup
Posts: 31
Ok cool so the same colors that are at the console........sounds simple enough
Reply With Quote
  #118
Old 05-29-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Haha yeah
Reply With Quote
  #119
Old 05-29-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Still a popular mod so many years later. Well, some have criticized Ford for keeping the Ranger's interior design for so long -- but sometimes it works out for the best, lol.
Reply With Quote
  #120
Old 05-29-2008
Member

Join Date: May 2008
Location: Puyallup
Posts: 31
Yeah for sure it works out, although I wish I had the 95 and newer dah, I cant stand mine, but what the hell I picked up the truck at a great deal, I just need to sddress the interior now and this console will be one of the mods
Reply With Quote
  #121
Old 06-18-2008
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
I installed this while I was waiting for my clutch parts to come in via UPS... I got it all wired up but now I can't calibrate the compass...

BTW it looks awesome.
Reply With Quote
  #122
Old 11-26-2008
Brian's Avatar
Member

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
Sorry to bring up an old topic but I am contemplating this. So does any one know if the ohc does gas mileage, trip time, or anything other than temp and direction?
Reply With Quote
  #123
Old 11-26-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Nope it does not
Reply With Quote
  #124
Old 11-26-2008
rideabikenick's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
but you can pick them up a junk yard for cheap
Reply With Quote
  #125
Old 11-26-2008
Member

Join Date: Mar 2005
Location: Wichita, KS
Posts: 1,301
You would need the Explorer Info Center or whatever its called. Its part of the center console, doesn't mount on the roof like the OHC. Rwenzing (Bob) put one in his truck. His cardomain is sick!!.
Reply With Quote
