Shorty cosole mount help

So, I recently purchased this center console (finally!! a center console!!!)

Name:  IMG00239-20110307-2028.jpg
Views: 6
Size:  51.1 KB

The console didnt come with any mounting hardware, and I dont know what I need.

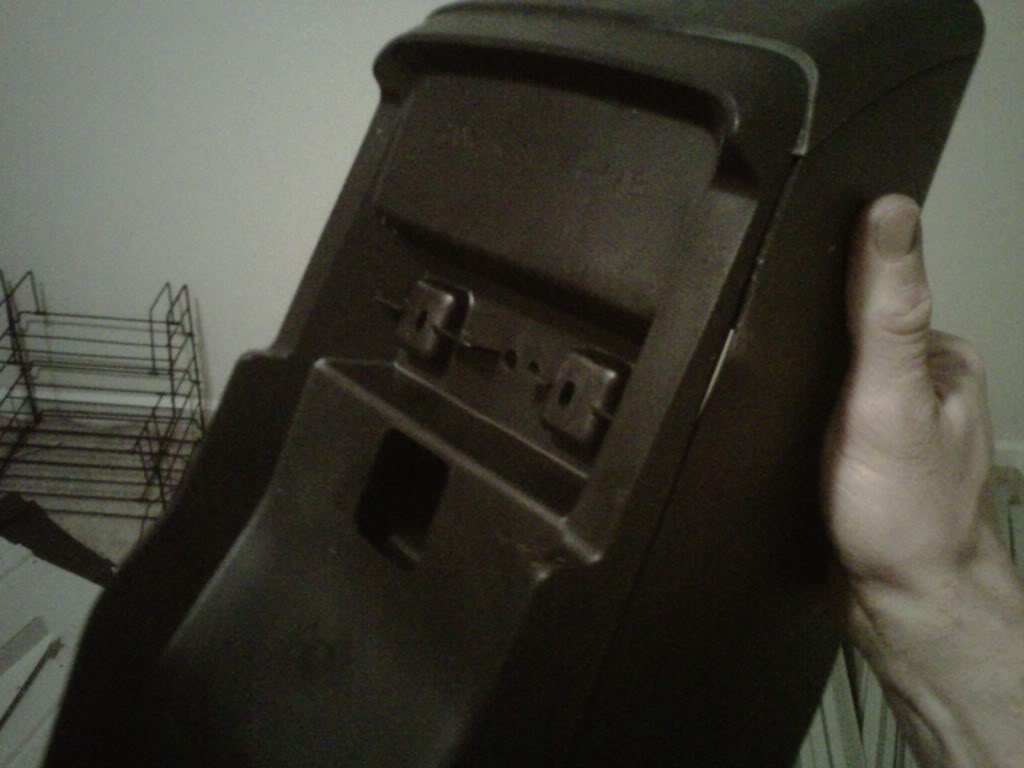

Here is a picture of the front/bottom.

Name:  IMG00240-20110307-2030.jpg
Views: 5
Size:  51.3 KB

I dont know if the mouting hardware from the explorers are mix and match with the rangers. If so, I can go to the local JY and get the mounting stuff. I searched, but didnt get much.

Thanks guys.
Reply With Quote
  #2
Old 03-07-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
There is a cast metal bracket that bolts to the floorpan and then your plastic pieces slide over the bracket. It looks like you are missing the armrest and hinge that bolt to the top of the bracket. A couple of sheet metal screws go through the front bottom of the console into the floor and a few other screws hold the plastic parts together.

Reply With Quote
  #3
Old 03-07-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
If you are missing the armrest and bracket, i have one here just needs to be recovered.
Reply With Quote
  #4
Old 03-08-2011
Taylor's Avatar
Ive been dubbed....an old volk
Thread Starter
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Thanks Bob!!

I MIGHT get the bracket from you Troy if you are willing to part with it.

I say might b/c I'm not going to use a stock arm-rest. Hehehe
Reply With Quote
  #5
Old 03-08-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
let me know. however, i don't think there is an easy way to separate the two parts.
Reply With Quote
  #6
Old 03-08-2011
Taylor's Avatar
Ive been dubbed....an old volk
Thread Starter
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by drppdyllwrngr View Post
let me know. however, i don't think there is an easy way to separate the two parts.
Hehehe....there is a way lol. It might not be pretty though hahaha
Reply With Quote
  #7
Old 03-08-2011
kthomas515's Avatar
Member

Join Date: Jan 2006
Location: Cullman, AL
Posts: 43
I think the newer ones use the white plastic clips. This is from a '99.

Reply With Quote
  #8
Old 03-10-2011
Taylor's Avatar
Ive been dubbed....an old volk
Thread Starter
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by kthomas515 View Post
I think the newer ones use the white plastic clips. This is from a '99.

So I need the front two little plastic pieces?

Also, will ANY explorer metal bracket work? I plan on going to the JY tomorrow, and they have plenty of expos.
Reply With Quote
  #9
Old 03-11-2011
kthomas515's Avatar
Member

Join Date: Jan 2006
Location: Cullman, AL
Posts: 43
The above clips are from a 99 expo. It uses the screws (lower RH corner of pic) to flare the plastic clips like a wall anchor to hold the console to the floor. I'm sure the medal bracket will work also, Ford haven't changes the base of console since first produced that I know of.
Reply With Quote
  #10
Old 03-13-2011
Member

Join Date: Jun 2010
Location: allentown pa
Posts: 77
Quote:
Originally Posted by kthomas515 View Post
I think the newer ones use the white plastic clips. This is from a '99.

did you add that center console? did u have to cut your carpet to mount the aluminum armrest bracket? also are the holes for the plastic clips already there under the floor?
Reply With Quote
  #11
Old 03-13-2011
kthomas515's Avatar
Member

Join Date: Jan 2006
Location: Cullman, AL
Posts: 43
Yes I added it. Had to cut the carpet for both clips and armrest bracket. The holes were already there for the front clips, but had to drill for the armrest bracket. But the trans. hump had the spots marked where to drill. See pic below.

Reply With Quote
  #12
Old 03-13-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
i just drilled self tapping screws through the carpet and down through the floorboard and sealed them up and for the front i just used high strength velcro and it didnt move
Reply With Quote
  #13
Old 03-13-2011
Member

Join Date: Jun 2010
Location: allentown pa
Posts: 77
Quote:
Originally Posted by 99offroadrngr View Post
i just drilled self tapping screws through the carpet and down through the floorboard and sealed them up and for the front i just used high strength velcro and it didnt move
that is my main question....do i really need to cut a square out of the carpet or can i just drill and put self tapping screws thru it..and mount the bracket OVER the carpet?? if i mount the bracket OVER the carpet, will it make it sit up higher and then not fit right where it meets up at the top of the console?

im just wondering if mounting it over the carpet will cause the armrest not to fit right
Reply With Quote
  #14
Old 03-13-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
it will work fine i didn't cut any carpet out.
Name:  IMG_0295.jpg
Views: 5
Size:  66.7 KB
Reply With Quote
  #15
Old 03-21-2011
Taylor's Avatar
Ive been dubbed....an old volk
Thread Starter
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by kthomas515 View Post
Yes I added it. Had to cut the carpet for both clips and armrest bracket. The holes were already there for the front clips, but had to drill for the armrest bracket. But the trans. hump had the spots marked where to drill. See pic below.

So, you already had the holes for the front two clips?

I just went today to the JY and picked up a cast bracket and the two front clips.

Will I have the two holes for the front clips? I dont want to cut into the carpet to see and there be nothing there.
Reply With Quote
  #16
Old 03-21-2011
Member

Join Date: Jun 2010
Location: allentown pa
Posts: 77
i ripped the carpet up on a '96 ranger extended cab with the 60/40 seats at the junkyard and it had the holes for the front clips already in the metal floor as well as the embossed circles for the armrest bracket mount
Reply With Quote
  #17
Old 03-22-2011
Taylor's Avatar
Ive been dubbed....an old volk
Thread Starter
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Ok, I just went cutting away at the carpet (not without measuring first lol) and found the spots.

Yay, no cutting holes for front clips.

Thanks a lot guys.
Reply With Quote
  #18
Old 03-25-2011
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by 99offroadrngr View Post
it will work fine i didn't cut any carpet out.
That WAS a nice looking interior !
Reply With Quote
  #19
Old 04-18-2011
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Taylor View Post
Ok, I just went cutting away at the carpet (not without measuring first lol) and found the spots.

Yay, no cutting holes for front clips.

Thanks a lot guys.
How did the back brkt mtg go ?

What did you use for hardware ?
Reply With Quote
  #20
Old 04-18-2011
Taylor's Avatar
Ive been dubbed....an old volk
Thread Starter
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Back bracket mounts lined up with the little circular indents on the floor under the carpet.

If you are asking about the position of the bracket, it should be angled towards the rear of your truck.

Used self tapping screws and some washers. Tada.

For the front tabs, I snagged the long screws from the JY.
Reply With Quote
