swapping full length consol

okay, so i saw the other thead and started wondering...

how much work is it to swap out the standard consol from my 2006 ranger with the full length variant?

what about the air bag switch?

do all the newer full length consols have a sub in them? that would be a plus, i would like a little more bass, but don't want a sub box cluttering up my cab.

is the rest of the dash (the ash tray and all such things in that neighborhood) still the same, just covered up?

anything else to add?

************
EDIT: i should add that i have an auto trans, and electric shift T case.
Reply With Quote
  #2
Old 11-07-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Are you talking about a Explorer or Ranger full length?
Reply With Quote
  #3
Old 11-07-2008
Member
Thread Starter

Join Date: Jul 2007
Location: alberta
Posts: 457
the factory ranger consol.
Reply With Quote
  #4
Old 11-07-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
The airbag switch mounts on the console and everything, it replaces the ash tray and everything. The sub isn't in everyone and you need the special radio to run the factory sub as well. The swap is super easy.
Reply With Quote
  #5
Old 11-08-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
The airbag plugs right in. Only thing is you have to cut the factory tape to extend it further out.

It's easier to just remove all the other factory stuff that way you can make a bracket to attach the new console to the dash

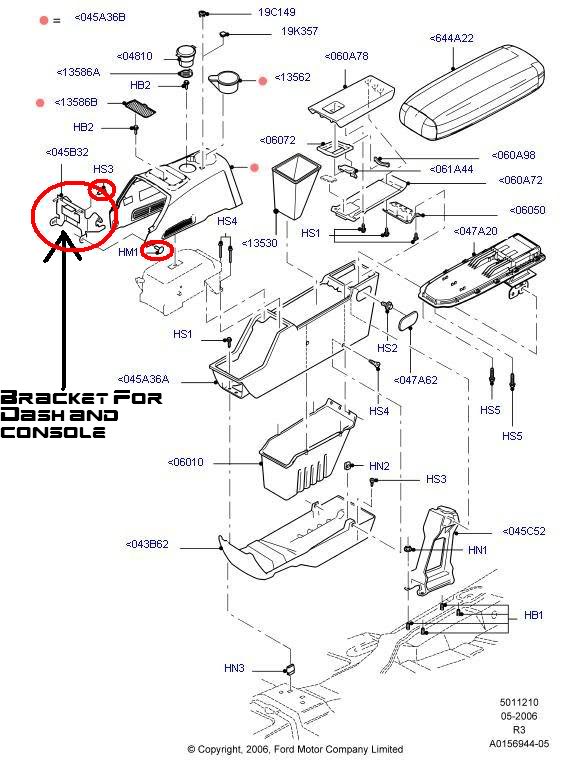

If you can get your hands on these parts circled in red will make it work a lot better. If you dont attach it to the dash with these parts is will want to slide when making sharp turns.

Name:  console.jpg
Views: 0
Size:  78.6 KB

Last edited by Mykhael; 11-08-2008 at 10:02 AM.
Reply With Quote
  #6
Old 11-09-2008
Member
Thread Starter

Join Date: Jul 2007
Location: alberta
Posts: 457
thanks for the info and the pic. very helpful!

are those vents on the side of the consol towards the front?

does anyone have a pic of the consol in their truck? i've looked at the junkyard truck a while back, but but i don't remember exactly what it looks like, refresh my memory! thank you!
Reply With Quote
  #7
Old 11-09-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Does anyone have a picture of this thing?
Reply With Quote
  #8
Old 11-09-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197

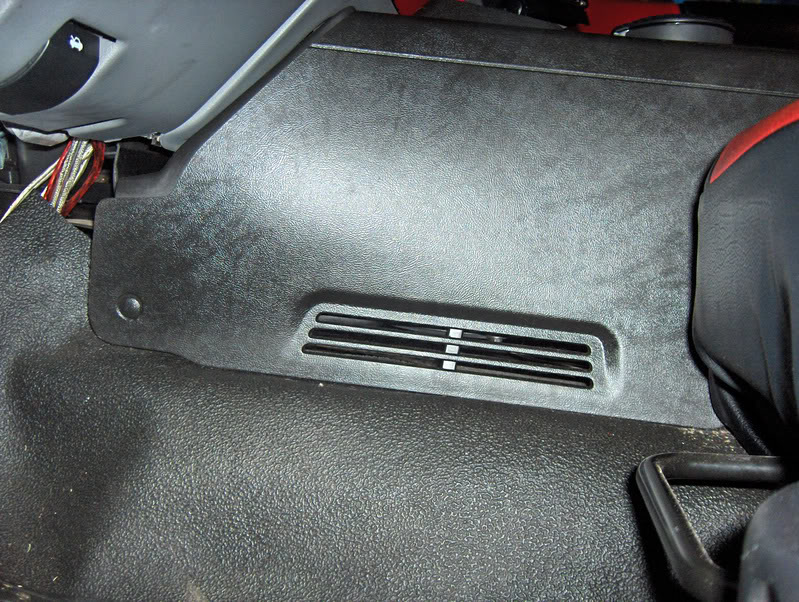

It is kinda like a vent but no air duct connects to it.

Think it's more for the sub that goes in there.

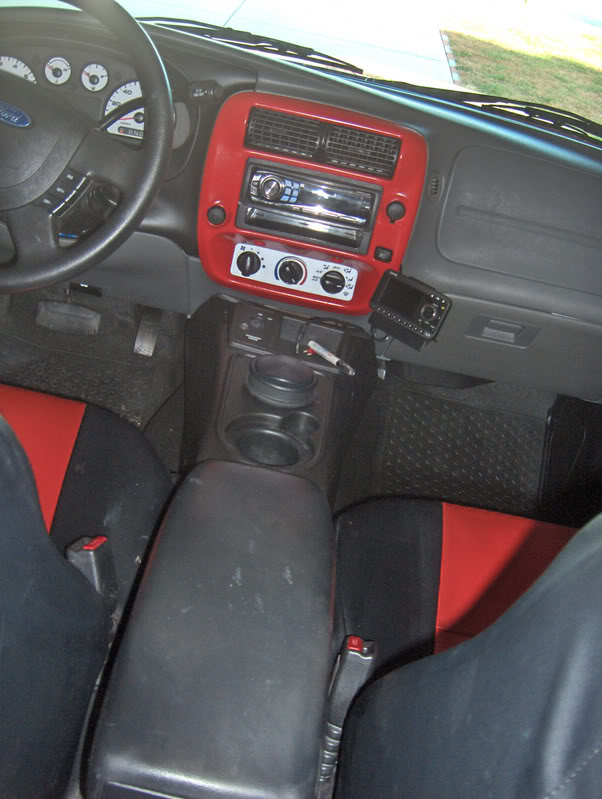

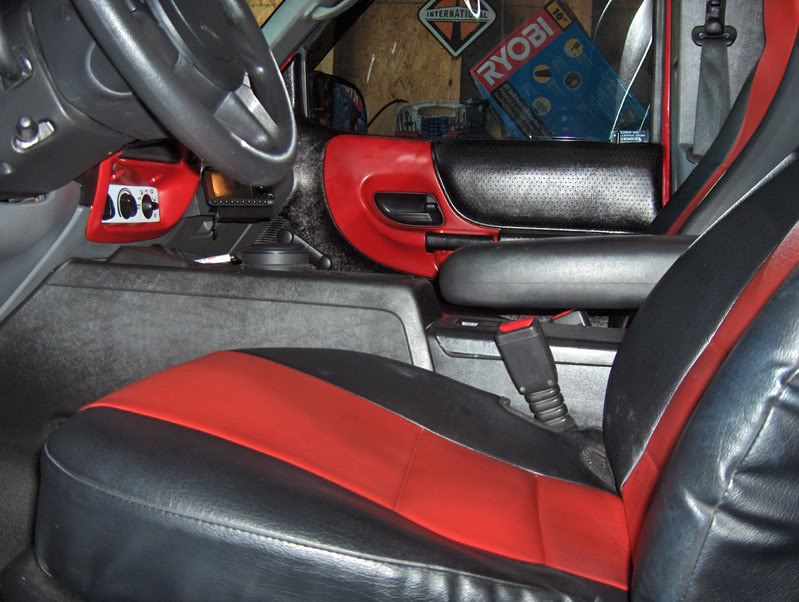

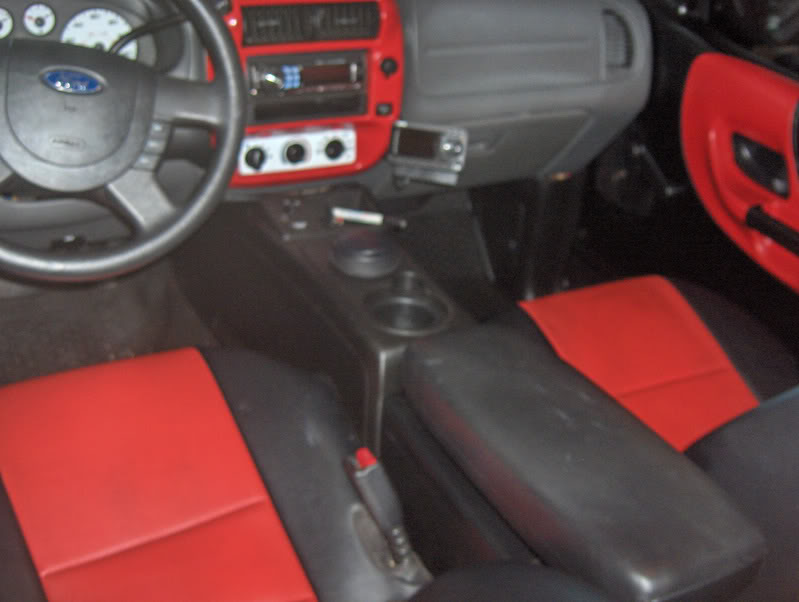

Pictures:
Name:  14.jpg
Views: 0
Size:  51.4 KB

Name:  12.jpg
Views: 0
Size:  75.2 KB

Name:  1.jpg
Views: 0
Size:  96.9 KB

Name:  11.jpg
Views: 3
Size:  175.0 KB
Reply With Quote
  #9
Old 11-09-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197

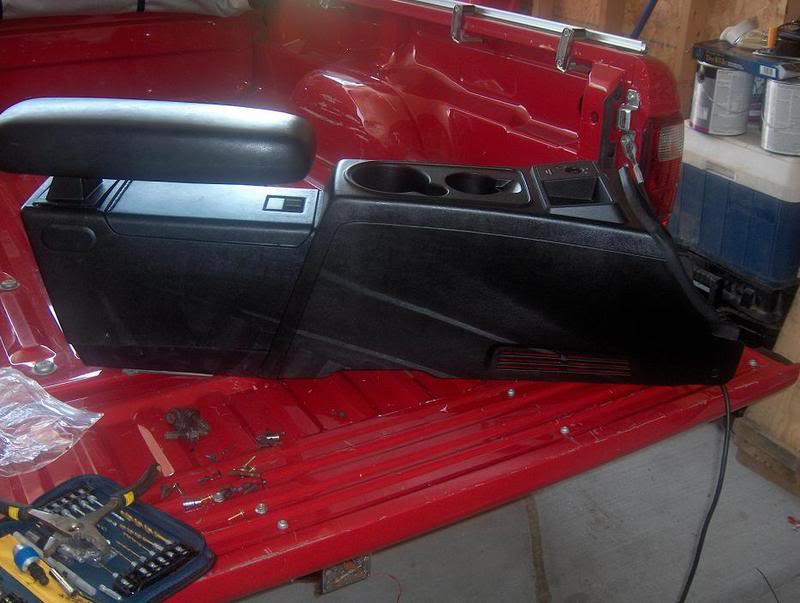

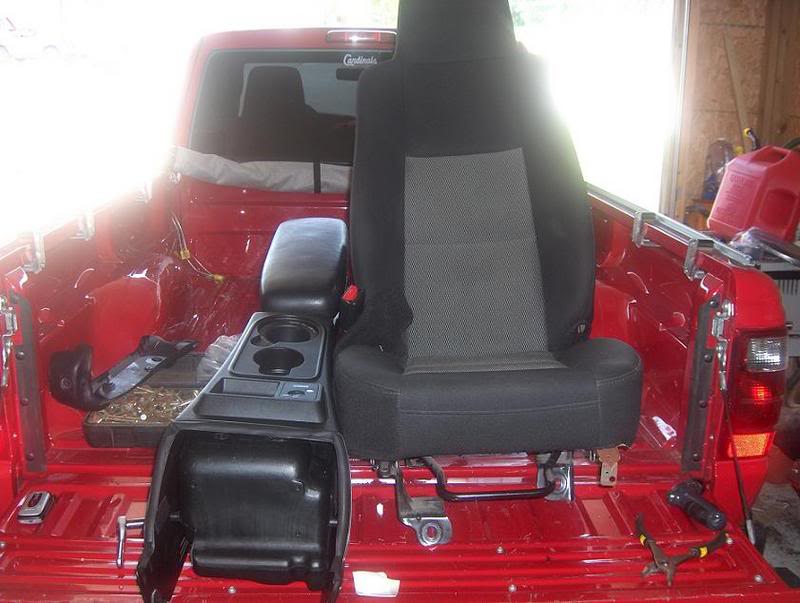

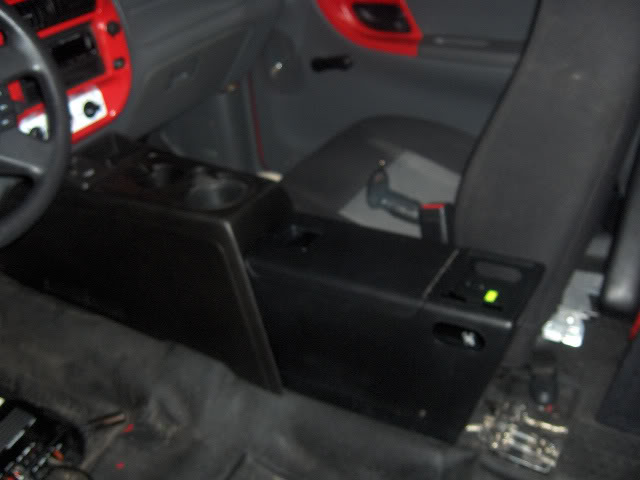

Another picture while installing it

Name:  HPIM1784.jpg
Views: 0
Size:  63.5 KB

Name:  HPIM1789.jpg
Views: 0
Size:  63.6 KB

Name:  console3.jpg
Views: 1
Size:  37.0 KB

Last edited by Mykhael; 11-09-2008 at 04:07 PM.
Reply With Quote
  #10
Old 11-09-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Man I really like that console!
Reply With Quote
  #11
Old 11-09-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
That looks awesome. Thanks for the pics.
Reply With Quote
  #12
Old 11-18-2008
Step Over the Edge's Avatar
Member

Join Date: Dec 2007
Location: Albuquerque, NM
Posts: 324
I really like that too, looks sweet! Too bad it wont work with my 5 speed...
Reply With Quote
  #13
Old 11-18-2008
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
i love mine
Reply With Quote
  #14
Old 11-18-2008
Member
Thread Starter

Join Date: Jul 2007
Location: alberta
Posts: 457
neat, thanks for the pics!
Reply With Quote
  #15
Old 11-19-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Quote:
Originally Posted by Step Over the Edge View Post
I really like that too, looks sweet! Too bad it wont work with my 5 speed...
Ya, I wish they made one for our 5 speeds that nice.
Reply With Quote
  #16
Old 11-29-2008
Robin Hood's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: AZ
Posts: 789
I can't give up my 60/40 because that extra 1/4 of a seat comes in handy sometimes.
