Mustang GT lights in grille? - Page 2 - Ranger-Forums - The Ultimate Ford Ranger Resource


New Ideas Have a new idea for your Ford Ranger? General discussion of new ideas for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 01-25-2009
Member

Join Date: Jul 2005
Location: College Station
Posts: 2,781
Have someone photoshop it.
Reply With Quote
  #27
Old 01-25-2009
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
That looks pretty close, You might be able to look around at some other cars and fine something even closer.

but wouldn't the light being vertical pose a problem, The light pattern would be messed up, it would be skinny instead of wide.
Reply With Quote
  #28
Old 01-25-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
You will have the most badass grille when you're done with that.
Reply With Quote
  #29
Old 01-25-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Quote:
Originally Posted by Ray_Welder View Post

but wouldn't the light being vertical pose a problem, The light pattern would be messed up, it would be skinny instead of wide.

who cares. it'll look cool atleast lol. They will be used as high beams or aux. lights, so you dont need the beam to be low.

If they take a 9006 bulb, he can pop in a 9005 and make it brighter.
Reply With Quote
  #30
Old 01-25-2009
Sixt9coug's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
They might make a projector style housing or something for the Mustangs too. I saw some LED ones on Ebay (ugly as sin though) so i know they have options. I havent explored all of the options yet. I figure there are ways i can mess with the setup. I mainly like it because the shape follows the grille rather well. I might photoshop it later tonight. Im on my laptop and its not installed here.
Reply With Quote
  #31
Old 01-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by braddokxlt View Post
Only in Vt.
Reply With Quote
  #32
Old 01-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
looks like that would work
Reply With Quote
  #33
Old 01-25-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by Sixt9coug View Post
ive thought about incorporating the high beam wire into the setup too, but i havent messed around with the harness enough to figure out whats going on. The relay setup sounds interesting though and i might give that a shot. I know there are premade relay harnesses out there that i can run and modify as needed too. I dont have a problem with sanding, filler and anything. I get paint and body work supplies free and ive never been afraid to sand a car. Filler work doesnt scare me, you should see some of the cars ive worked on lol.

Does the low beam circuit lose power when the high beams are switched on? or do all 3 wires in the pigtail still get power when its set to the high beam selection? too lazy to test and my back has been killing me for the past few days. Hence all the sitting on my *** and brainstorming. :D
Using a relay to do it would be really easy, you don't need a premade harness either. Relays are really simple and really easy to use too.

As far as the high beam power, here's how that works. When you pull the handle thing towards you and use the flash to pass where it just acts as a momentary switch the lowbeams still stay active. When you push the handle thing forward and it clicks to keep highbeams on without holding it, then it cuts the power to the lowbeams.
Reply With Quote
  #34
Old 01-25-2009
Sixt9coug's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
Quote:
Originally Posted by korey89 View Post
Using a relay to do it would be really easy, you don't need a premade harness either. Relays are really simple and really easy to use too.

As far as the high beam power, here's how that works. When you pull the handle thing towards you and use the flash to pass where it just acts as a momentary switch the lowbeams still stay active. When you push the handle thing forward and it clicks to keep highbeams on without holding it, then it cuts the power to the lowbeams.


awesome to know. On the plug for the bulb, the right wire is low beam power, the left is high beam power, and the middle is ground right (looking into the female end)? If thats true i can work something out. That would be the preferred way instead of a straight out fog lamp setup.
Reply With Quote
  #35
Old 01-25-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Correct
Reply With Quote
  #36
Old 01-28-2009
Sixt9coug's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
'Chopped some pics. This is the best straight on pic i had of it, so its old. Keep in mind i painted the front bumper since then, and im gonna paint the grille surround most likely too.


Heres what im thinking now..... 94-04 Mustang Fog lights. the aftermarket non fluted lenses will work better and match the stock headlights better so thats what id go with. Headlights will be 4300K HIDs, and the fogs will probably run a power wire to the empty spot on the HID plug and ill ground it somewhere else so i can use them as a flash to pass setup mainly. If i dont like that i might hook them up later as fogs. Options rule!

Heres the downside to options. Smoke, Clear or Yellow lenses? OH!!! If you think it looks like crap, let me know. Im a tall fat guy, I can take it. I might do it anyway, but it never hurts to hear other opinions.

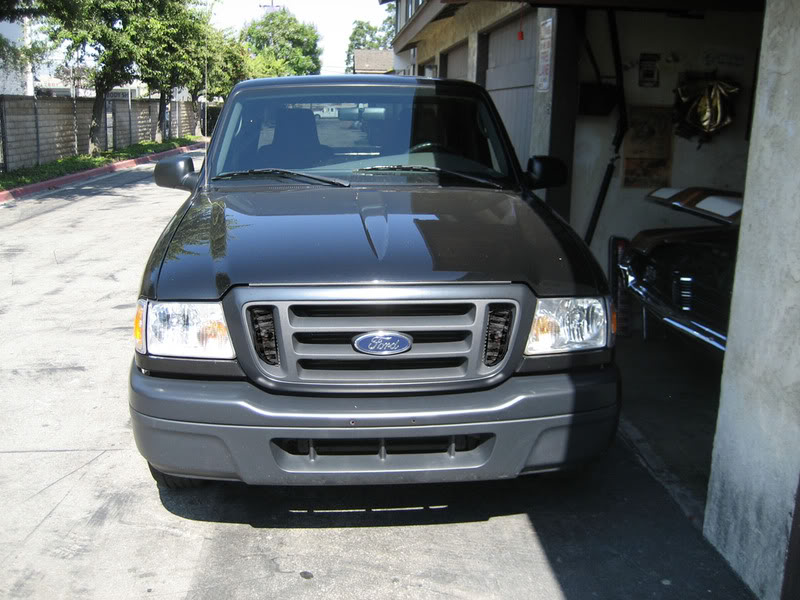

Name:  RangerFogssmoke.jpg
Views: 9
Size:  101.3 KB

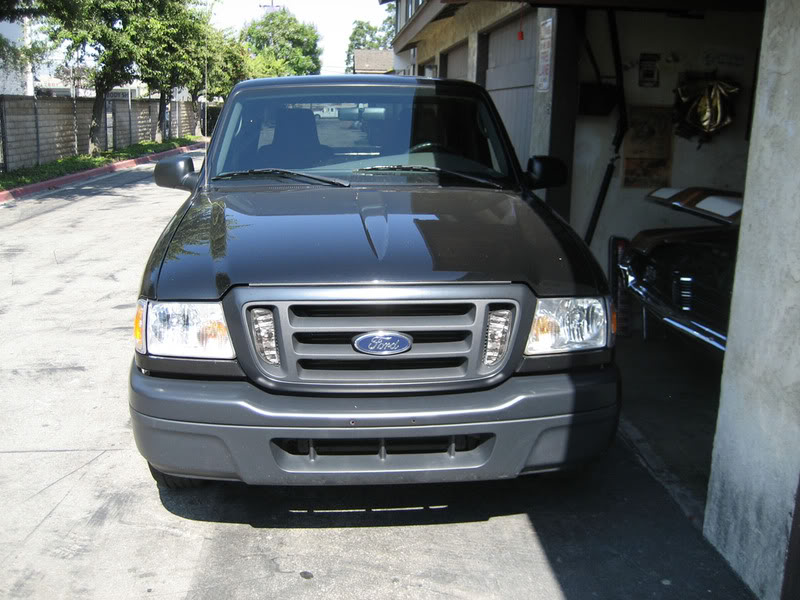

Name:  RangerFogsClear.jpg
Views: 9
Size:  101.5 KB

Name:  RangerFogsamber.jpg
Views: 9
Size:  101.8 KB
Reply With Quote
  #37
Old 01-28-2009
Sixt9coug's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
Bump on the front page. :D might as well get some responses while im at work.
Reply With Quote
  #38
Old 01-28-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
oh man that looks awesome. I cant even decide on those.

From the pics, amber looks cool, but you're probably best off with the clear. Actually, those amber ones would make wicked turn signals, and then turn your signals into fog lights instead!
Reply With Quote
  #39
Old 01-28-2009
Crackerstein's Avatar
Member

Join Date: Jan 2008
Location: Basically hanging out, sm
Posts: 604
That would be bad ***
Reply With Quote
  #40
Old 01-28-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by braddokxlt View Post
I can't believe I was going to try and do that. It looks a lot worse then I thought it would.

Quote:
That looks badass!!

Last edited by seed60; 01-28-2009 at 09:46 PM.
Reply With Quote
  #41
Old 01-28-2009
Sixt9coug's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
Thanks guys. Im gonna get the clear ones. When they get here and i start hacking the grille up, ill see if i can indeed turn them into turn signals. I thought about that a while ago, but then got sidetracked lol. We shall see says me.
Reply With Quote
  #42
Old 01-29-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Can't wait to see progress on this. I think it's gonna look cool for sure!

This could be a great place to mount emergency lights too for any of the guys that are volunteer firefighters or paramedics and such.
Reply With Quote
  #43
Old 01-29-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
X100 on the bad ***.
Looks damn good!
Reply With Quote
