2WD to 4WD part one (56k not)

sorry for the poor pics. there off my LG Envy phone (2.0 mega pixels)
first start by removing the pro-comp lift spindles
Name:  0513071050.jpg
Views: 123
Size:  37.8 KB
removed
Name:  0513071105.jpg
Views: 83
Size:  90.6 KB
Name:  0513071116.jpg
Views: 84
Size:  73.9 KB

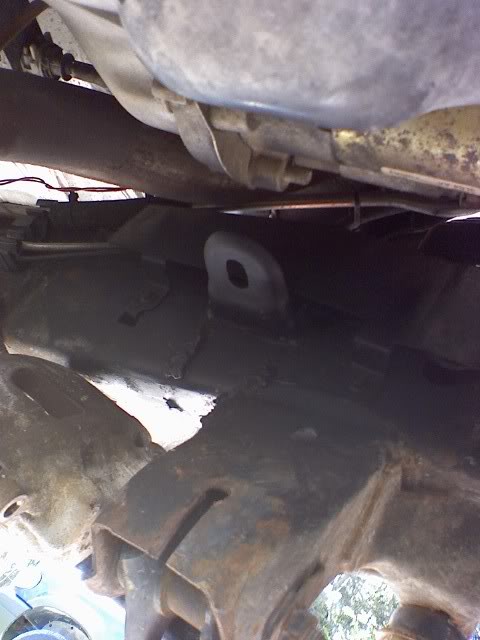

i had to fab a third bracket on the left frame rail. the first try was in the wrong place as you can see
Name:  0513071117.jpg
Views: 86
Size:  40.0 KB

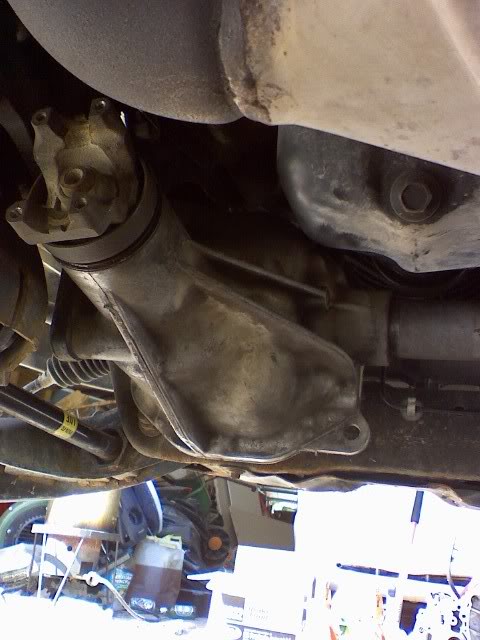

next install front axle in the 2 factory mounting brackets then bolt to the third bracket
Name:  0513071136.jpg
Views: 89
Size:  53.3 KB
Name:  0513071136a.jpg
Views: 83
Size:  45.7 KB
next instal both CV shafts
Name:  0513071139.jpg
Views: 84
Size:  56.5 KB
next install both knuckles and wheel bearings
Name:  0513071145.jpg
Views: 83
Size:  72.3 KB
Name:  0513071149.jpg
Views: 83
Size:  61.5 KB

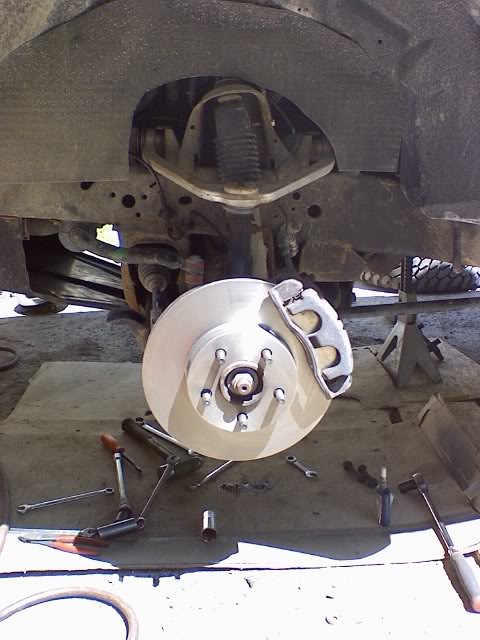

next install 2 new raybestos 12 inch brake rotors
Name:  0513071152.jpg
Views: 82
Size:  55.9 KB
Name:  0513071159.jpg
Views: 84
Size:  61.8 KB

this is where i got into another project, replacing a front axle U joint on a jeep.after fixing the jeep i started on the rear of the truck, removing the AAL's, didnt get any pics of that.

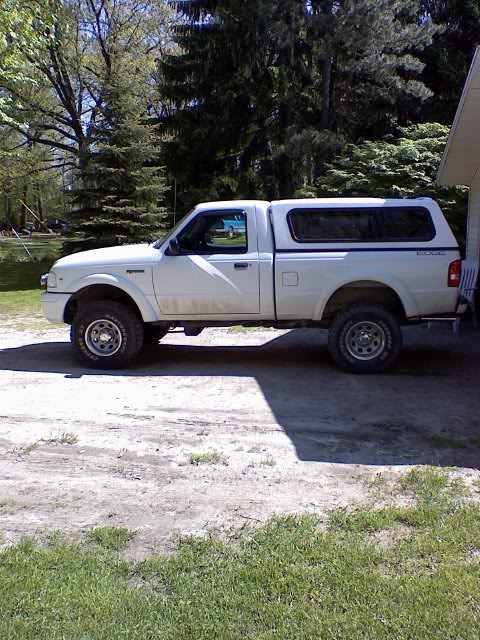

the finished (lowered) product
Name:  0513071554.jpg
Views: 82
Size:  105.0 KB

as soon as i can source a transfer case i'll start the transmission conversion.
Reply With Quote
  #2
Old 05-14-2007
04 EDGE
Unregistered User

Posts: n/a
heres the shot of the doner parts (thanks erv)

Reply With Quote
  #3
Old 05-14-2007
Member

Join Date: Jun 2005
Posts: 148
Looks like a pretty easy conversion since the Edge has the same suspension as the 4wd. How much $$ will you have into it when you're done?
Reply With Quote
  #4
Old 05-14-2007
04 EDGE
Unregistered User

Posts: n/a
so far i have around 150 in used parts, 50 for the 2 rotors.
i have 2 transmission options at the moment, first is replacing the output shaft and housing for around 250, (i have a friend that owns a transmission parts warehouse) but that will requier total transmission dissassembly. second option is a new take-out unit from a 2003 4x4 5R44E for $450.00 from the same guy. (its good to know people!)

i'm thinking the later of the two is the way i'll go, once i get the trans and Tcase it should be a one day project.
Reply With Quote
  #5
Old 05-14-2007
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Quote:
Originally Posted by 04 EDGE
so far i have around 150 in used parts, 50 for the 2 rotors.
i have 2 transmission options at the moment, first is replacing the output shaft and housing for around 250, (i have a friend that owns a transmission parts warehouse) but that will requier total transmission dissassembly. second option is a new take-out unit from a 2003 4x4 5R44E for $450.00 from the same guy. (its good to know people!)

i'm thinking the later of the two is the way i'll go, once i get the trans and Tcase it should be a one day project.
I would seirously consider this swap. I would do it w/ the superlift kit too though. I wouldn't go any lower b/c even right now my truck feels too low for how I use it.

I figure superlift 4x4 conversion is about a 3k dollar affair!!!
Reply With Quote
  #6
Old 05-14-2007
04 EDGE
Unregistered User

Posts: n/a
still cheaper then factory 4x4. my truck was $13,500 new. adding 4x4 would have made it almost 18 grand
Reply With Quote
  #7
Old 05-16-2007
04 EDGE
Unregistered User

Posts: n/a
ok new update. seems the ABS pump and module are diferent. the 2x4 unit does not like the 4x4 front speed sensors. i got a 4x4 unit cheap from a local yard and will be installing it within the next few days. pics will folow.
Reply With Quote
  #8
Old 05-16-2007
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by 04 EDGE
ok new update. seems the ABS pump and module are diferent. the 2x4 unit does not like the 4x4 front speed sensors. i got a 4x4 unit cheap from a local yard and will be installing it within the next few days. pics will folow.
What was wrong with it? brakes locking up or what?
Reply With Quote
  #9
Old 05-16-2007
04 EDGE
Unregistered User

Posts: n/a
no brake problem. just a steady ABS light.
Reply With Quote
  #10
Old 05-20-2007
04 EDGE
Unregistered User

Posts: n/a
got the 4x4 ABS pump-module installed and now a new problem, seems the instrament cluster does not like the new ABS unit!
going into to ford next week i hope for a "cluster re-flash"

the tech said he could flash it any way i want, so i think i'll have him fix my speedo for the larger tires and flash it for a manual transfer case.
Reply With Quote
  #11
Old 05-20-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by 04 EDGE
got the 4x4 ABS pump-module installed and now a new problem, seems the instrament cluster does not like the new ABS unit!
going into to ford next week i hope for a "cluster re-flash"

the tech said he could flash it any way i want, so i think i'll have him fix my speedo for the larger tires and flash it for a manual transfer case.

would a 4x4 cluster fix the problem?
Reply With Quote
  #12
Old 05-20-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
im runnin a 2wd cluster in my 4wd. i doubt that will help out.
Reply With Quote
  #13
Old 05-20-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
the 04+ clusters are retarted, you have to program it to the computer.
to bad he doesnt have a 95-03, then he wouldnt have todo any of that.
Reply With Quote
  #14
Old 05-21-2007
04 EDGE
Unregistered User

Posts: n/a
a 4x4 cluster would work BUT it would need to be out of a edge 3.0 4x4, the local yards want 75 for one, i can get my entire truck (cluster/pcm) reflashed any way i want it for 85 and wont have to remove anything.
Reply With Quote
  #15
Old 05-31-2007
04 EDGE
Unregistered User

Posts: n/a
2WD to 4WD part two

heres a few teaser pics. havent got all the parts yet, tomorrow i will pick up the internal trans stuff!
tailshaft housing (thanks chuck at CTS transmission) FREEBEE!
Name:  DSC01755.jpg
Views: 84
Size:  32.0 KB
Name:  DSC01756.jpg
Views: 83
Size:  32.9 KB
4x4 tailshaft (thanks again chuck) FREEBEE!
Name:  DSC01757.jpg
Views: 84
Size:  30.0 KB

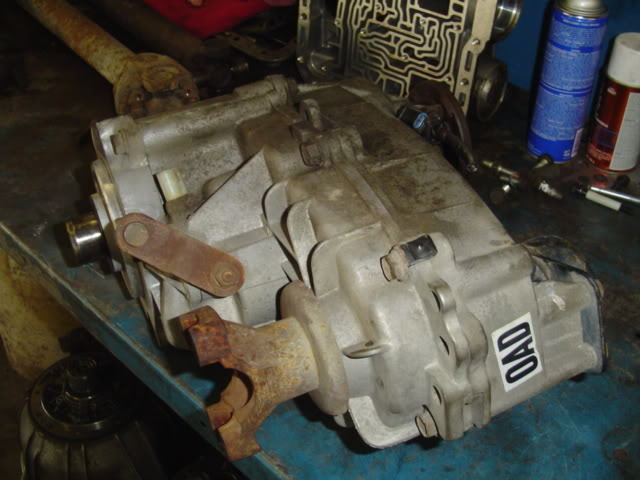

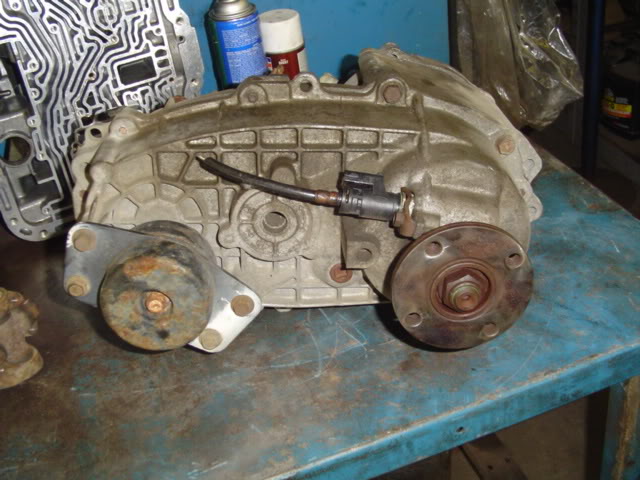

92 explorer BW1354 MANUAL SHIFT transfer case $200.00
Name:  DSC01759.jpg
Views: 112
Size:  51.3 KB
Name:  DSC01760.jpg
Views: 93
Size:  64.2 KB
and a pair of front driveshafts, $50.00
Name:  DSC01761.jpg
Views: 84
Size:  27.3 KB

i'll post more pics of the rest of the parts tomorrow. by mid july the deed will be done!!!!
Reply With Quote
  #16
Old 05-31-2007
04 EDGE
Unregistered User

Posts: n/a
oh and one more of my new tool box!
Name:  DSC01758.jpg
Views: 82
Size:  37.4 KB
Reply With Quote
  #17
Old 05-31-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by 04 EDGE
use the upper driveshaft since it has a double cardon joint on 1 end......
Reply With Quote
  #18
Old 05-31-2007
04 EDGE
Unregistered User

Posts: n/a
yeah i noticed that after i got the first one, always good to have spare parts anyway!!
Reply With Quote
  #19
Old 05-31-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
curious why you didn't just get another automatic tranny that was already from a 4x4 truck? wouldn't that have been easier and probably cheaper
Reply With Quote
  #20
Old 05-31-2007
04 EDGE
Unregistered User

Posts: n/a
i got a case (look close in the one pic) with very little inside it lol!

complete cores for my truck are impossiable to come by around here and i didn't have 600 for a used one so i will just take mine apart. easy enough!
Reply With Quote
  #21
Old 06-01-2007
04 EDGE
Unregistered User

Posts: n/a
got more stuff today

rear driveshaft
Name:  DSC01812.jpg
Views: 83
Size:  26.4 KB
shift kit, most of it is already installed.
Name:  DSC01774.jpg
Views: 88
Size:  73.1 KB

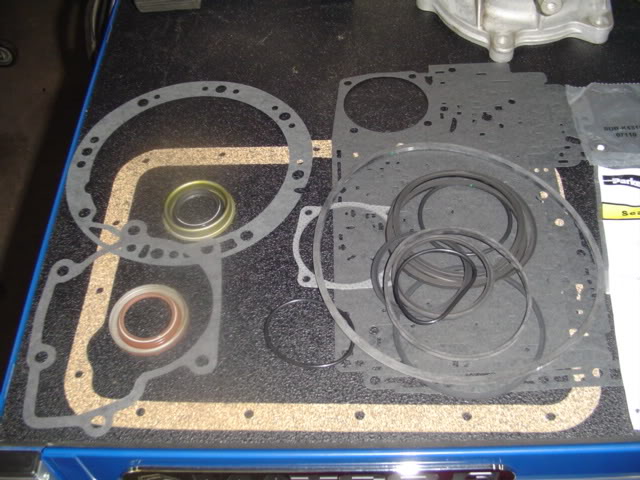

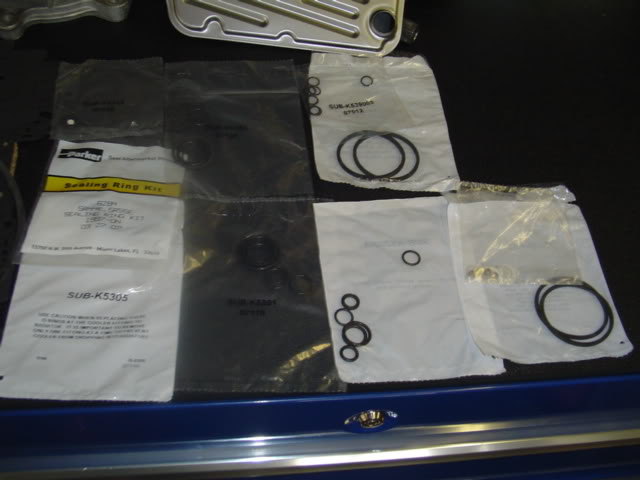

gasket and seal kit
Name:  DSC01766.jpg
Views: 84
Size:  25.1 KB
Name:  DSC01767.jpg
Views: 83
Size:  46.0 KB
Name:  DSC01768.jpg
Views: 81
Size:  68.8 KB
Name:  DSC01769.jpg
Views: 83
Size:  37.1 KB
filter
Name:  DSC01770.jpg
Views: 83
Size:  43.4 KB
messy workbench
Name:  DSC01796.jpg
Views: 82
Size:  49.7 KB
all i need now is fluid
Reply With Quote
  #22
Old 06-01-2007
04 EDGE
Unregistered User

Posts: n/a
sticking with IFS because its cheaper and easer to repair plus i drive it everyday, thus i dont have time to have it down for any length of time.
on the flip side of that if i do ever decide to do a sas i am already setup to "use" the front axle!
Reply With Quote
  #23
Old 06-02-2007
04 EDGE
Unregistered User

Posts: n/a
the deed is done!

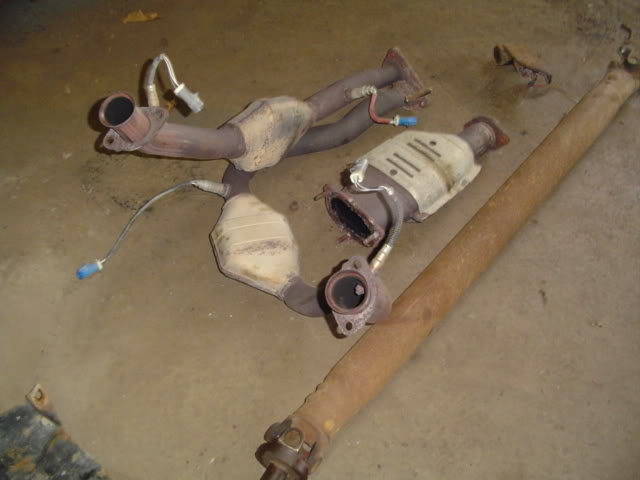

first remove the driveshaft, exhaust and skid plate then drain the trans by dissconnecting a trans line and starting the truck untill no fluid comes out
Name:  DSC01814.jpg
Views: 86
Size:  33.7 KB

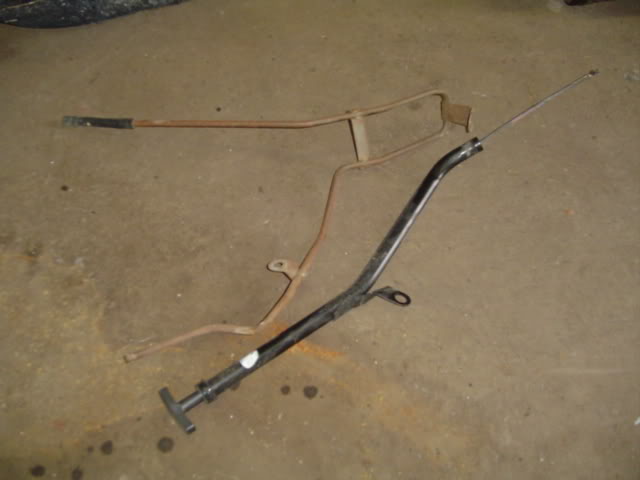

next remove the dipstick tube and vent tube
Name:  DSC01817.jpg
Views: 82
Size:  26.0 KB

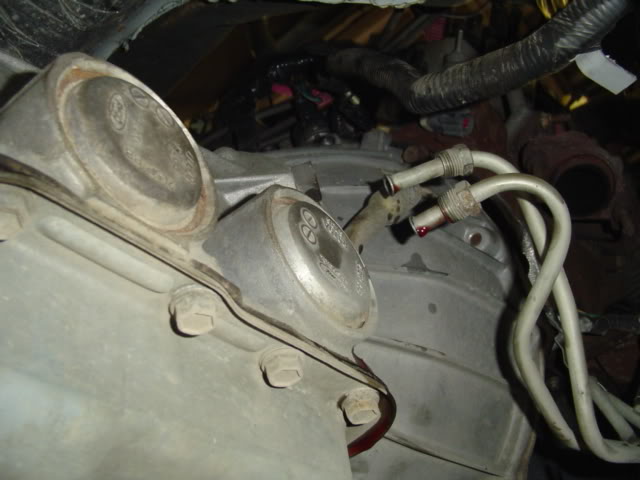

next unhook all plugs and lines
Name:  DSC01818.jpg
Views: 86
Size:  45.5 KB
Name:  DSC01819.jpg
Views: 87
Size:  41.4 KB

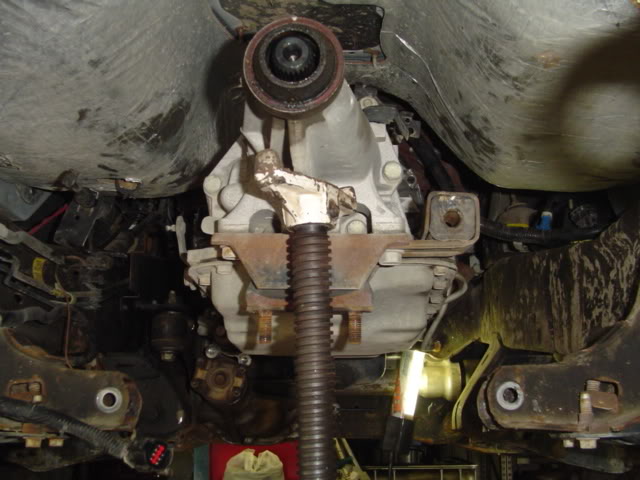

next unbolt all bell housing bolts and remove crossmember
Name:  DSC01822.jpg
Views: 84
Size:  54.6 KB
next remove transmission
Name:  DSC01823.jpg
Views: 82
Size:  39.1 KB
Name:  DSC01824.jpg
Views: 90
Size:  61.9 KB
Name:  DSC01825.jpg
Views: 82
Size:  44.2 KB

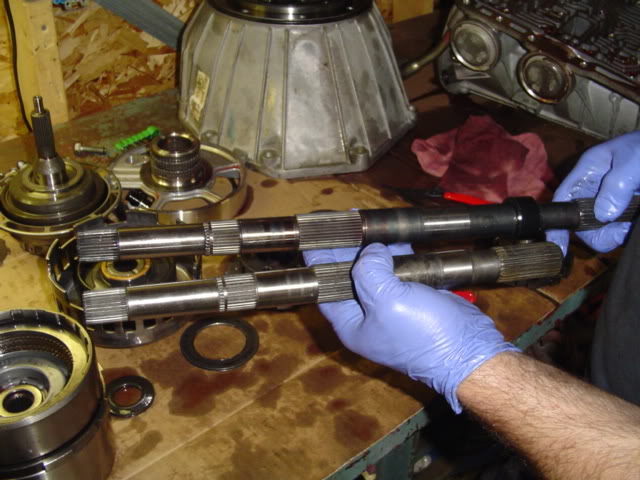

i'll post the internal pics tomorrow but heres a teaser
Name:  DSC01836.jpg
Views: 86
Size:  61.5 KB
Reply With Quote
  #24
Old 06-03-2007
04 EDGE
Unregistered User

Posts: n/a
first remove the pan and tailshaft housing

Name:  DSC01827.jpg
Views: 85
Size:  68.1 KB

next remove the filter and valve body

Name:  DSC01828.jpg
Views: 83
Size:  71.5 KB

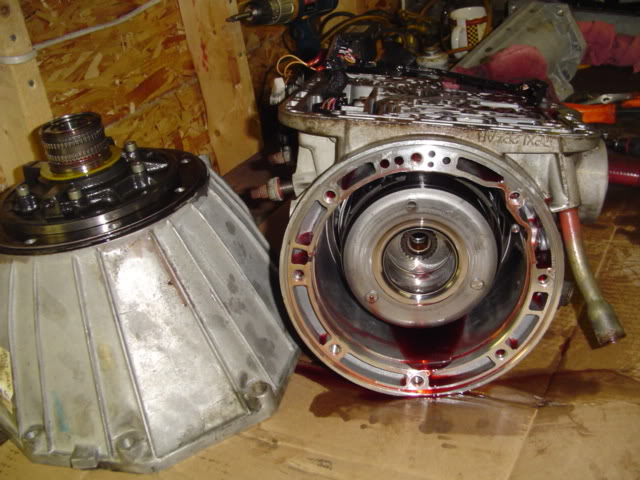

next remove the bellhousing/pump

Name:  DSC01829.jpg
Views: 85
Size:  66.5 KB

next remove all internal parts keeping them in order

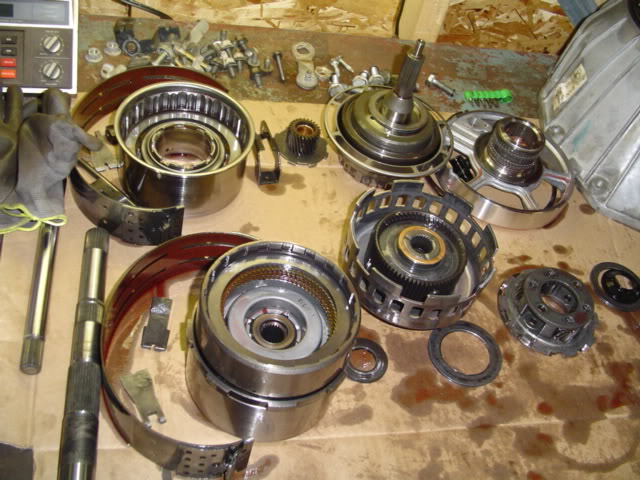

Name:  DSC01830.jpg
Views: 83
Size:  66.6 KB
Name:  DSC01833.jpg
Views: 82
Size:  77.1 KB

then at last you have gotten to the little snap ring that holds the output shaft in
Name:  DSC01832.jpg
Views: 85
Size:  69.3 KB

then remove the snap ring and enjoy the moment when you have the the old shaft out!
DSC01835.jpg?t=1180882916

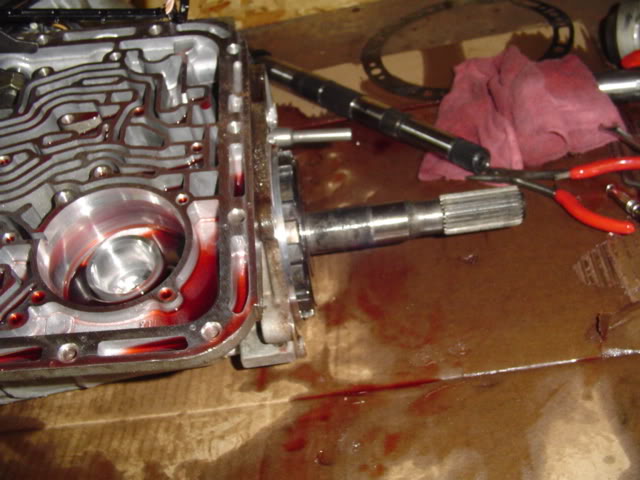

now install 4x4 output shaft and snap ring
Name:  DSC01837.jpg
Views: 82
Size:  67.2 KB
Name:  DSC01838.jpg
Views: 81
Size:  55.3 KB
now reinstall all internal parts
Name:  DSC01839.jpg
Views: 88
Size:  73.0 KB
Name:  DSC01840.jpg
Views: 83
Size:  58.5 KB
now install inputshaft and bellhousing/pump
Name:  DSC01842.jpg
Views: 92
Size:  57.0 KB

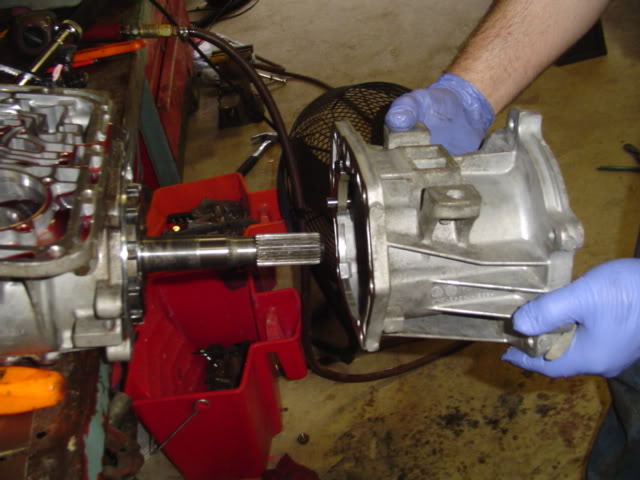

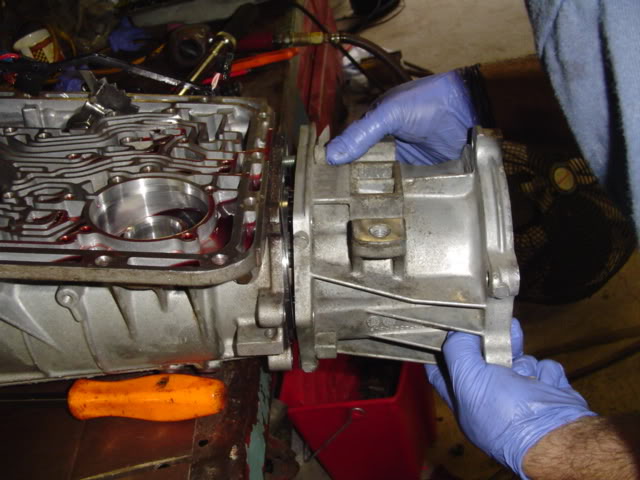

new 4x4 tailshaft housing
Name:  DSC01843.jpg
Views: 83
Size:  49.5 KB
Name:  DSC01844.jpg
Views: 82
Size:  56.8 KB
Name:  DSC01846.jpg
Views: 84
Size:  69.0 KB

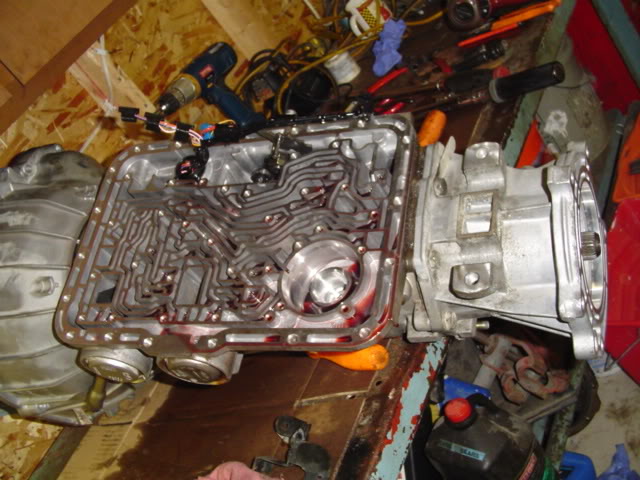

now reinstall the valvebody
Name:  DSC01847.jpg
Views: 88
Size:  75.7 KB

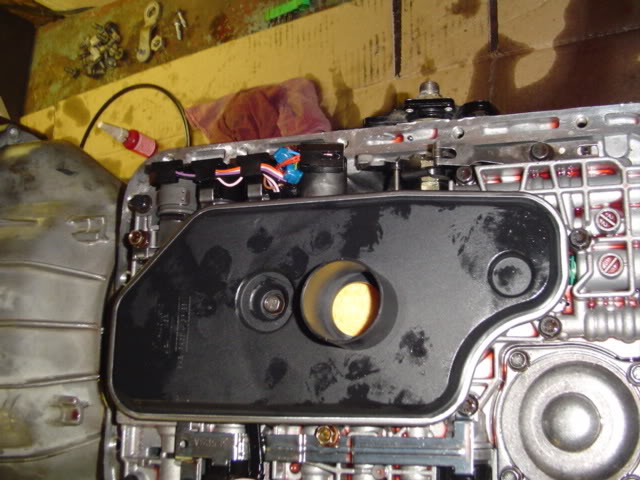

and a new 4x4 filter
Name:  DSC01848.jpg
Views: 96
Size:  64.4 KB
next the 4x4 pan (4x2 is different and not as deep)
Name:  DSC01850.jpg
Views: 82
Size:  34.3 KB
then adjust the bands
Name:  DSC01852.jpg
Views: 88
Size:  59.3 KB

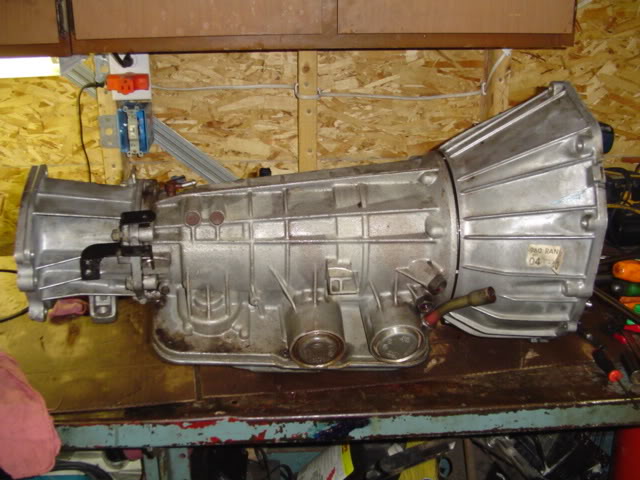

next stand back have a miller lite and enjoy your work
Name:  DSC01853.jpg
Views: 83
Size:  64.0 KB
Name:  DSC01854.jpg
Views: 82
Size:  63.2 KB

tomorrow or the next day i will start putting the truck back together!
Reply With Quote
  #25
Old 06-04-2007
04 EDGE
Unregistered User

Posts: n/a

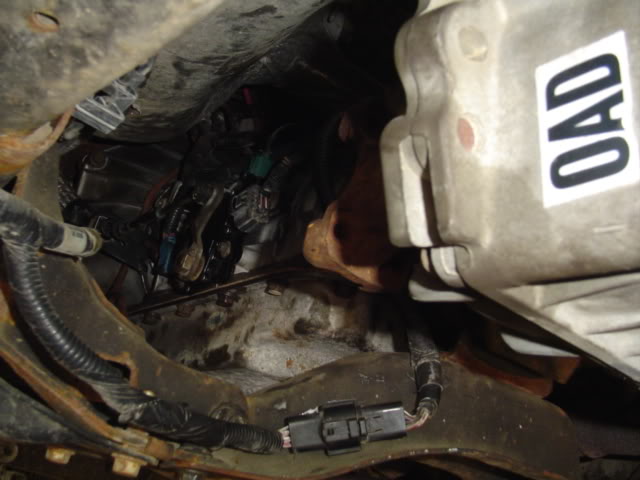

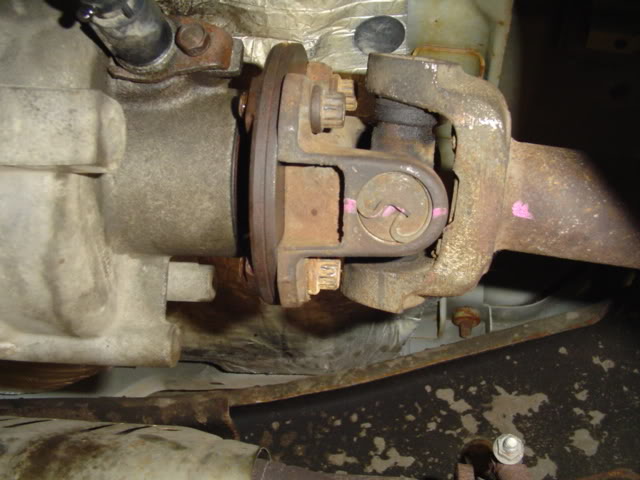

got is somewhat back together today. having a front driveshaft problem, one is to short one is to long. i'll adress this problem tomorrow

Name:  DSC01860.jpg
Views: 83
Size:  61.9 KB
Name:  DSC01859.jpg
Views: 83
Size:  51.4 KB
Name:  DSC01858.jpg
Views: 83
Size:  43.0 KB
Name:  DSC01857.jpg
Views: 82
Size:  51.1 KB

other then that everything works
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
4WD High and 4WD Low lights flash while driving in 2WD bleech1 General Technical & Electrical 9 11-27-2016 01:30 PM
05 3.0 Edge 2WD manual to 4WD auto cmc474 Drivetrain Tech 6 05-31-2009 07:17 PM
Another 2wd to 4wd edge conversion...questions wvcat General Technical & Electrical 0 05-04-2009 08:07 AM
2wd edge to 4wd conversion question wvcat Drivetrain Tech 7 01-16-2008 11:45 AM
4wd lift kit on a 2wd edge panzer Suspension Tech 6 08-12-2007 03:05 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 09:30 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
