Big04Ranger's SAS Thread

well it has been started.. heres whats gonna be used

Rear

Procomp 5.5" chevy leafs(installed)
Chevy Shackles (installed)

Front

79 HP Dana 44 narrowed 6"(in garage)
BcBroncos 6.5"+winch coils(garage)
Cage Offroad Tube Arms (Garage)
PSC 1 Ton Steering kit (garage)
Yota Box(sittin in garage)


Odds and Ends that still need to be bought

front brakes
513s
shocks
Electric Lockers when i can afford them
and what ever else i run into..lol







PSC 1 ton Steering Coils Cage Tube Arms

Last edited by Big04Ranger; 02-24-2007 at 03:51 PM.
Reply With Quote
  #2
Old 01-28-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
well here is what i got done so far tonight. after i conned my mom into letting me have some garage space.

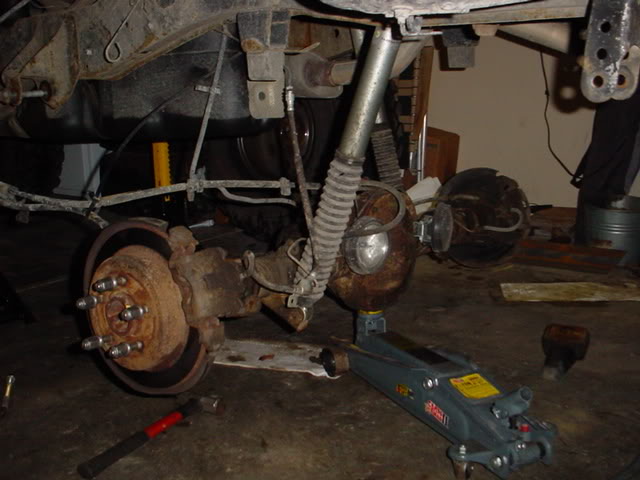

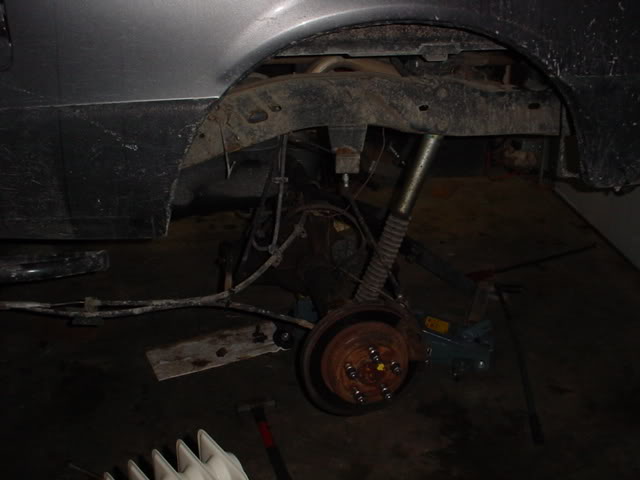

removed leafs in prep for the chevy springs. im very limited on space at the moment so i can only work on one end of the truck at a time.
Name:  DSC00074.jpg
Views: 24
Size:  49.0 KB
Name:  DSC00073.jpg
Views: 23
Size:  30.1 KB



some random other pics

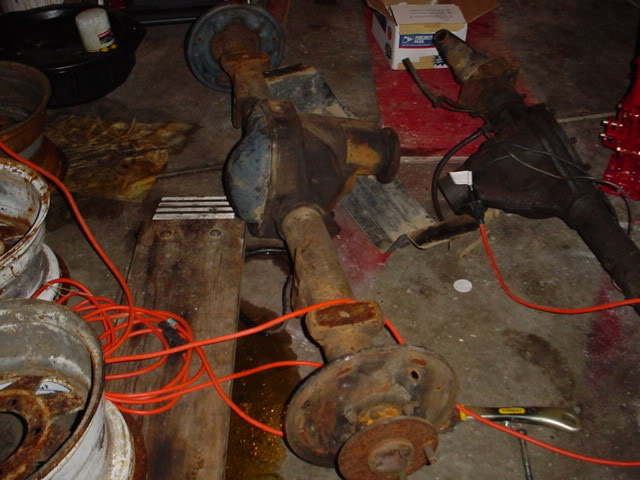

Zabeard's sploder diff on the left.. my HP 44 can kinda be seen to the right Name:  DSC00077.jpg
Views: 26
Size:  54.5 KB

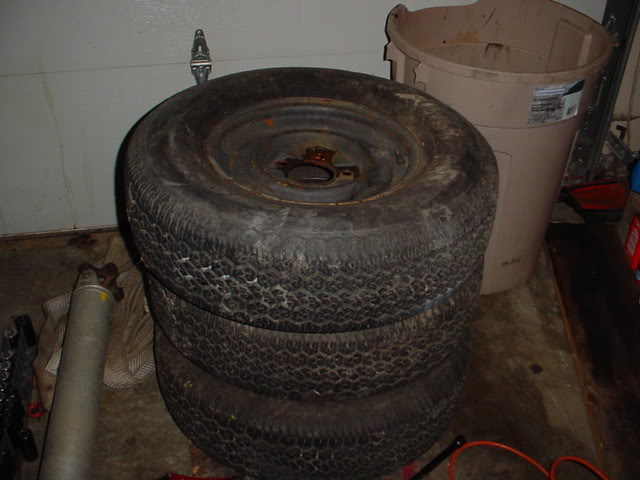

Race Tires so i can get out of the garage..lol

Name:  DSC00078.jpg
Views: 28
Size:  41.6 KB
Reply With Quote
  #3
Old 01-28-2007
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
them chevy spring are huge! ive got first hand experence with them!! good luck man!
Reply With Quote
  #4
Old 01-28-2007
Rangerless's Avatar
Member

Join Date: Oct 2005
Location: Kennett Square, PA
Posts: 129
Good luck with the Build the Cage arms are BEEF though I seen alot of the used on FS Broncos. They will take a trashing. If you have't picked your springs I like these ones
http://broncograveyard.com/bronco/i-...ils_4_inch.htm
this sight is also good for the D44 Parts as wells as buckets and hardware for the springs
http://broncograveyard.com/bronco/i-...8-79__pair.htm
Reply With Quote
  #5
Old 01-28-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Looks like you could do with a few minutes with the wire brush and some paint! It's a sweet start though!
Reply With Quote
  #6
Old 01-28-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by Gearhead61
Looks like you could do with a few minutes with the wire brush and some paint! It's a sweet start though!

why bother? its just gonna be covered in mud again.. then 2 wks after its muddy it will be rusted again.. so umm i dont see the point in painting
Reply With Quote
  #7
Old 01-28-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
its more the road salt! yuck!
Reply With Quote
  #8
Old 01-28-2007
Member

Join Date: Dec 2006
Location: Lehi, Utah
Posts: 731
POR15, then you don't have to worry about rust agian :)
Reply With Quote
  #9
Old 01-28-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by Rangerless
Good luck with the Build the Cage arms are BEEF though I seen alot of the used on FS Broncos. They will take a trashing. If you have't picked your springs I like these ones
http://broncograveyard.com/bronco/i-...ils_4_inch.htm
this sight is also good for the D44 Parts as wells as buckets and hardware for the springs
http://broncograveyard.com/bronco/i-...8-79__pair.htm

i have the stock 79 buckets and im using bcbroncos 6.5"+winch springs from an EB
Reply With Quote
  #10
Old 01-28-2007
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Very nice!!!

I like that 1 ton steering kit. That may be in my future. Looks very, very strong indeed.
Reply With Quote
  #11
Old 01-28-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by n3elz
Very nice!!!

I like that 1 ton steering kit. That may be in my future. Looks very, very strong indeed.

with a very affordable price tag to boot
Reply With Quote
  #12
Old 01-29-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
well got some stuff done tonight but my camera is officially junk.. got the C Wedge wacked off the 44, its now ready for me to cut 6" off the tube. and i got the front spring hangers removed. now i just need to move them forward then wait for my leafs to get here.. then the rear is completely done
Reply With Quote
  #13
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
well i bought Ball joints today.. and 1 leaf spring came in the mail... other will be here tommorrow
Reply With Quote
  #14
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756

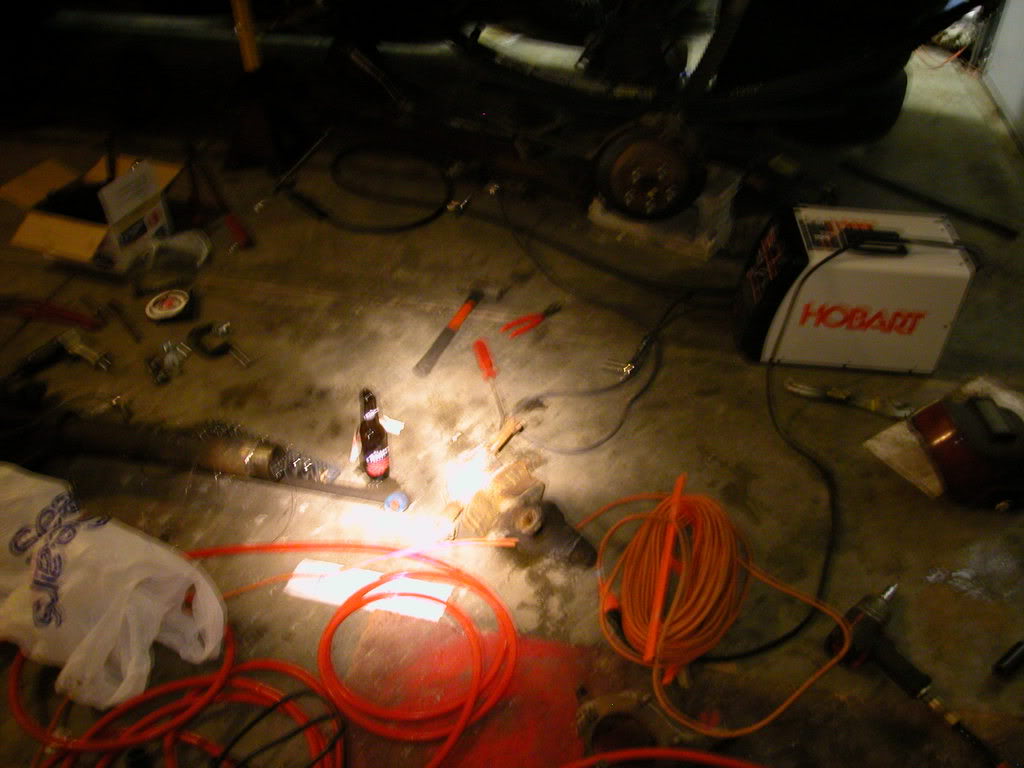

Name:  D44.jpg
Views: 25
Size:  85.4 KB

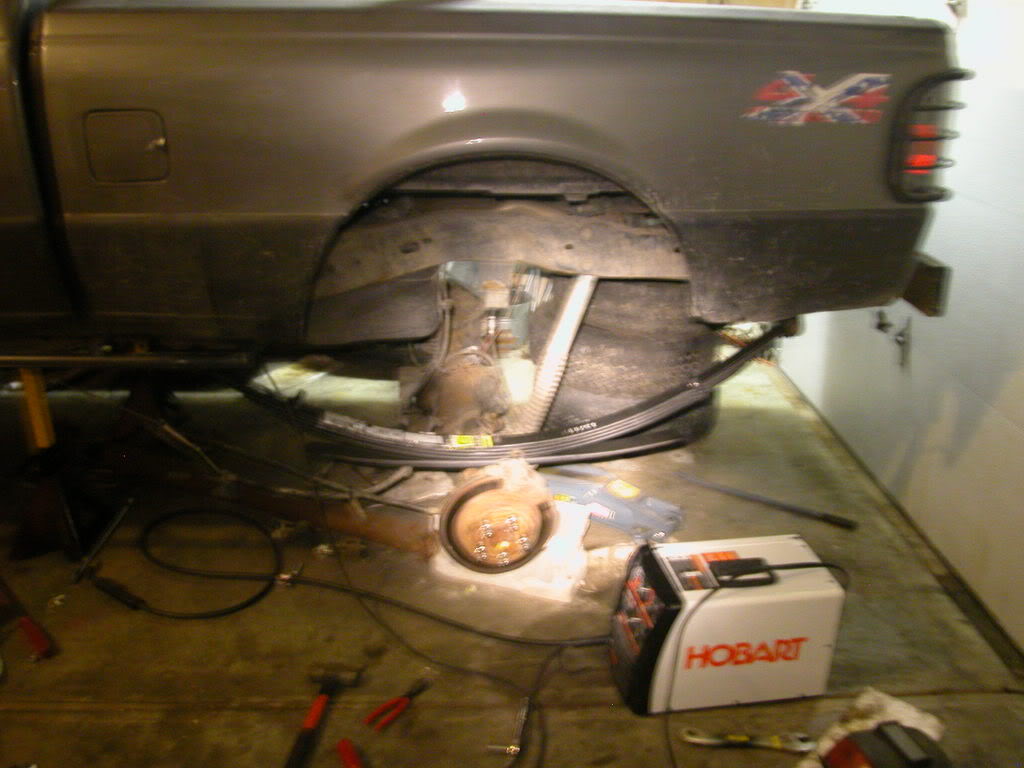

Name:  Leafhanginout.jpg
Views: 22
Size:  85.3 KB

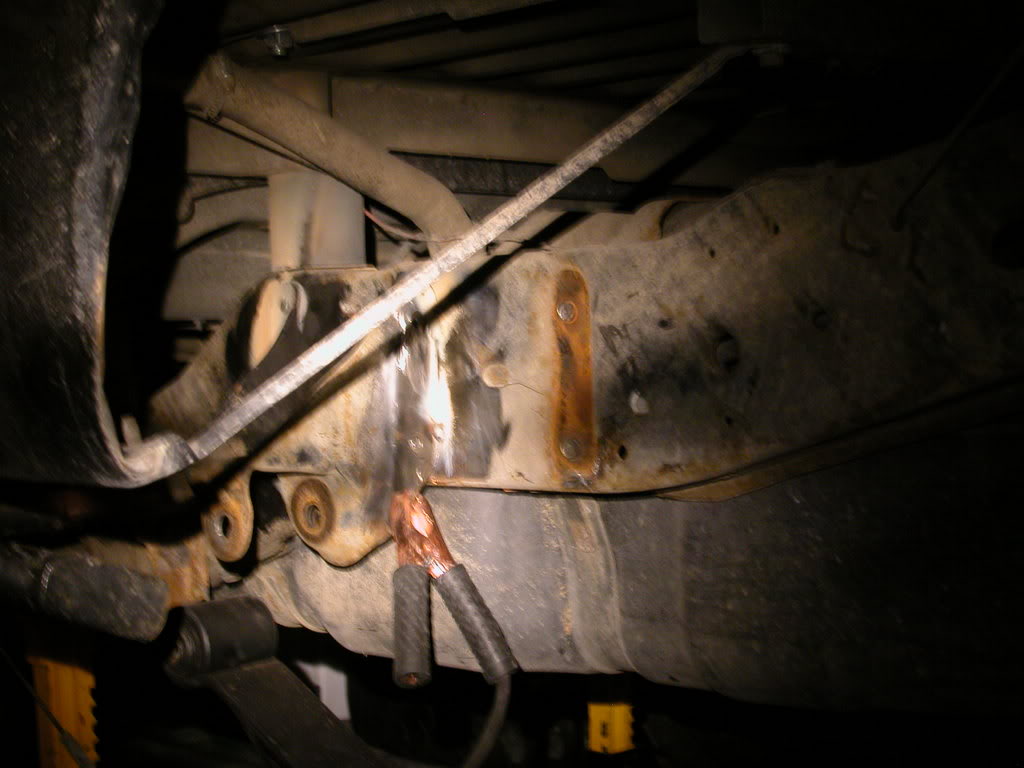

Name:  hanger.jpg
Views: 21
Size:  78.4 KB
Reply With Quote
  #15
Old 01-30-2007
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
13711s?
Reply With Quote
  #16
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by got-dirty
13711s?

thats what they have on them
Reply With Quote
  #17
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
you scared me for a sec... at first im like great the forkers sent the wrong ones or somthin.. good to know what you meant by it now..lol
Reply With Quote
  #18
Old 01-30-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
you keepin your 37s or runnin bigger?
Reply With Quote
  #19
Old 01-30-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
holy crap! are those pics with your phone?

my camera aint very nice, but sheesh, i almost got sick alil.
Reply With Quote
  #20
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by gumby
holy crap! are those pics with your phone?

my camera aint very nice, but sheesh, i almost got sick alil.

it turned on and i didnt waste any time to take them.. left at whatever setting it was on..lol think i got it figured out now tho
Reply With Quote
  #21
Old 01-30-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
and you werent lieing bout not havin alot of room..looks like the door rubs the bumper haha
Reply With Quote
  #22
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by HighRollerII
you keepin your 37s or runnin bigger?

plan is 38.5x15.50 boggers
Reply With Quote
  #23
Old 01-30-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by HighRollerII
and you werent lieing bout not havin alot of room..looks like the door rubs the bumper haha

ill snap a pic of what the other side of the truck looks like tommorrow or somthin
Reply With Quote
  #24
Old 01-30-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
scott make sure the long end of that spring is on the back end of the truck, one end is longer than the other. trust me we found out the hard way.
Reply With Quote
  #25
Old 01-31-2007
Member
Thread Starter

Join Date: Nov 2005
Location: Avon, IN
Posts: 756
Quote:
Originally Posted by zabeard
you cant remove the bed? its not that hard.

knowing scott its more out of lazyness why he isnt removing his
we have one smart mother f... here. ya im lazy as all hell when it comes to takin my bed off.. i hate lining it back up as im picky as hell on it. that and i could the hanger off w/o takin the bed off so i figure id save some time.


btw look later tonight for the rear totally done pics.. other spring is here
