The Black Beast is alive!

With Stevie Ray jammin in the background, I checked over every nut and bolt, harness and connector one more last time. After a meticulous search for anything that could be wrong, I came to the frightening conclusion that I was finally about to bring the 5.0 to life!

The first turn of the key was disappointing. The starter didn't click, the motor didn't turn, and even the dome lights and radio circuit shut off. I bit my tongue and ran inside to read over some EVTM's on the starter circuit.

After tracking down every component and connector that the starter circuit goes through, I was quickly able to find a loose connector at the top of the transmission, which prevented the circuit from being completed through the digital transmission range sensor. The electrical "dead-end" was preventing the starter from turning.

Now that I was once-again confident everything had been checked, it came time to expect some noise.

The second time of turning the key was the most exciting moment I've had during any of my projects. With the rumble of that 5.0 L, the nostalgia flooded my mind of the first time I flew an R/C airplane that I had built.

A few problems quickly became obvious, like the disconnected PCV valve hose that allowed a vacuum leak on the intake manifold. Also, a coolant line spring clamp wasn't completely seated, and needed to be "popped" in place.

How's it run???

The Power-To-Weight ratio is absolutely insane. A standard cab Ranger has absolutely no business carrying a 5.0L V8, C4 auto, and 8.8" rear unless you are clinically insane. The realization that I created a Hemi eater took a few days to overcome. Now I enjoy the looks I get from everybody when they hear me rumble to a stop at a red light. I dare anyone challenge me with so much as a crooked brow for they will be humiliated by the little Ford Ranger that could.

Project summary and Notes

Although it took me much longer than I hoped or planned, I am glad to have completed this project over a long period of time. Trying to rush through this job would have been like cramming for the SAT. All the lessons I learned and problems I encountered brought me invaluable knowledge that will stick with me through all of my future automotive projects.

If you decide to do this swap, you absolutely MUST have a limited slip differential. The capability to spin tires in this thing makes it dangerous in inclement weather.

Now enough with the jabbin, and let's see some pics.

BEFORE

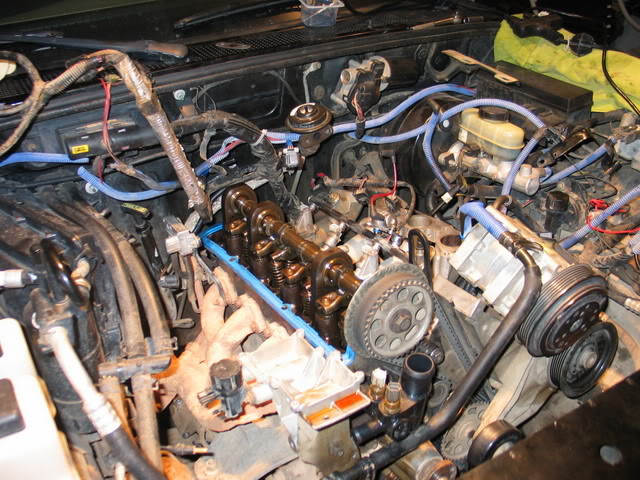

2.5 during removal:
Name:  IMG_3960.jpg
Views: 6
Size:  98.4 KB

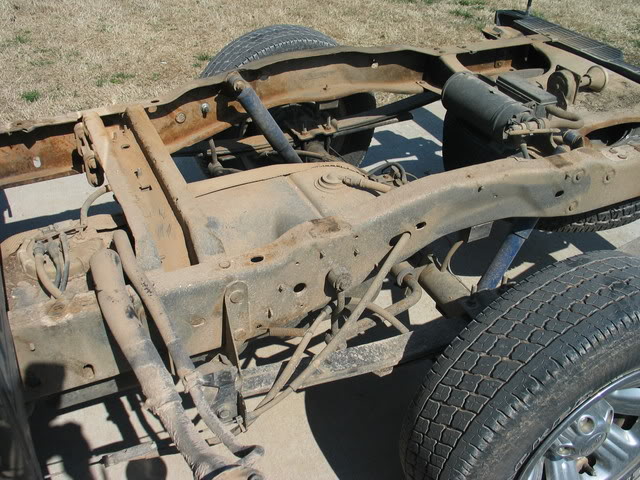

Before restoration and undercoating:
Name:  IMG_4528.jpg
Views: 6
Size:  92.8 KB

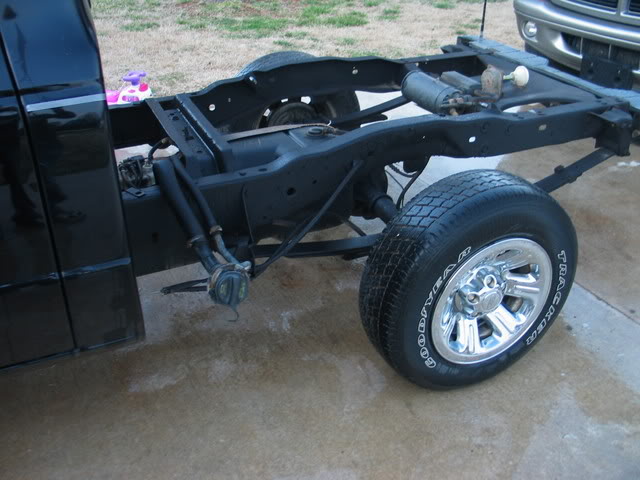

AFTER hours of grinding and painting:
Name:  IMG_4540.jpg
Views: 6
Size:  56.7 KB

Home:

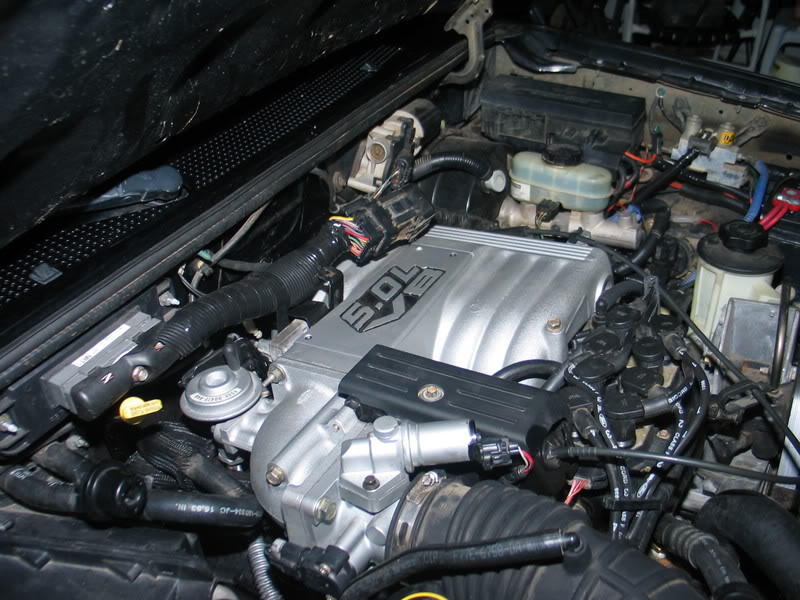

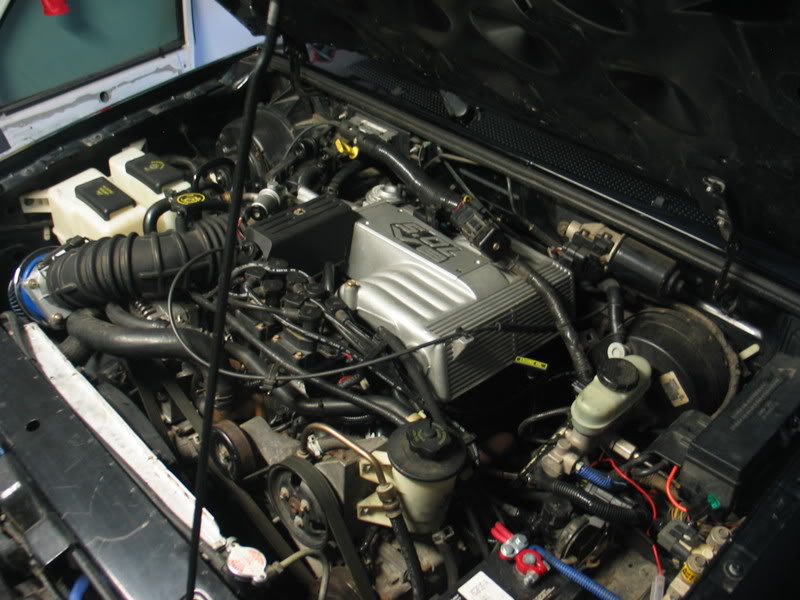

Done:
Name:  IMG_5390.jpg
Views: 5
Size:  103.8 KB

Name:  IMG_5396.jpg
Views: 5
Size:  84.5 KB

REVVING VIDEO
Reply With Quote
  #2
Old 12-02-2007
JSteele's Avatar
Member

Join Date: Jan 2007
Location: Columbus, Oh
Posts: 287
that is awesome! congrats on getting the project finished!
Reply With Quote
  #3
Old 12-02-2007
ThatGuy's Avatar
Member
iTrader: (1)

Join Date: Jun 2004
Location: Kent, Ohio
Posts: 325
Very nice Tim! Glad u got it all done... have fun with the Beast!

-Brad
Reply With Quote
  #4
Old 12-02-2007
mental ambiguity
Unregistered User

Posts: n/a
Sweet!
Reply With Quote
  #5
Old 12-02-2007
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
holy goddess thats freaking sweet. whats the mods done to the motor
Reply With Quote
  #6
Old 12-02-2007
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Sweeeeet!
Reply With Quote
  #7
Old 12-02-2007
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Icon14

Sweet!
Reply With Quote
  #8
Old 12-02-2007
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
That is insane!! Congratulations on a job well done.
Reply With Quote
  #9
Old 12-02-2007
04Sonicedge's Avatar
Member

Join Date: Nov 2004
Location: Sarasota, FL
Posts: 529
That is awesome!! Congrats on getting it done!
Reply With Quote
  #10
Old 12-02-2007
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
great job on the conversion
Reply With Quote
  #11
Old 12-02-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
god that sounds sick!! congrats!
Reply With Quote
  #12
Old 12-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Right now the motor is stock, with the exception of a decent valve re-grind and some minor head work. The stock exhaust manifolds got the bumps ground to increase flow. It's running a true-dual set up with no cats or O2 sensors flowing through 2 1/2" mandrel bent tubing to two Flowmaster 40 Series Original mufflers that dump before the rear axle. I have a 16" Flex-A-Lite mounted to a 3-core cross-flow aluminum radiator controlled by a thermostat-switch with a manual over-ride switch on the Over Head Console. I added a B&M Shift Kit to tighten the shift patterns, and bypassed the hot water flow to the intake manifold to decrease inlet air temperature.

Overall, it runs great. It idles great with the valve job, and really has endless torque. I have spun the tires from a 30mph roll by just stepping on it hard. If I start off from a dead stop and get on it, it will burn rubber all the way into second gear. If I get lucky enough to grab traction before 2nd, it will bark the tires shifting into second.
Reply With Quote
  #13
Old 12-02-2007
texasbullseye89's Avatar
Member

Join Date: Jan 2006
Location: Huntsville, Tx
Posts: 827
drool. youre doing mine next right? same truck...lol
Reply With Quote
  #14
Old 12-02-2007
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Man that is SICK!
Reply With Quote
  #15
Old 12-02-2007
D.
Unregistered User

Posts: n/a
I would STRONGLY suggest your next mod being a 4 link and a panhard setup. All that power sucks when its not hooking to the pavement.
Reply With Quote
  #16
Old 12-02-2007
Fordranger1998's Avatar
Member

Join Date: May 2007
Location: Illinois
Posts: 757
I have a couple questions for you what year is your truck and how hard was it to do the explorer swap
Reply With Quote
  #17
Old 12-02-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
That is incredible, major props man! Try to stay away from the speeding tickets haha
Reply With Quote
  #18
Old 12-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
It's a 2000 Ford Ranger XL that originally had a 2.5L 4 cylinder, 4-speed auto OD tranny, and 7.5 open differential. I swapped in the "guts" from a 1998 Mercury Mountaineer XLT with full options. I swapped over the motor, transmission, driveshaft, rear axle, rear suspension including leaf springs, sway-bar, and lower shock mounts, and the PATS system.

It wasn't all that hard, as long as you have a very good understanding of how a Ford works. You WILL need a copy of the Ford Technical Service Manual, available online. I had to splice only ONE harness in from the Explorer...the rest bolted and connected right up. You will also have to fabricate motor mounts and use Ford Ranger 4.0L OHV or OHC frame isolators. I used Brian Blackburn's drawings, slightly modified for my set-up.

If you want to talk about money, I will have to bust out the graphing calculator and a stack of O'Reilly's receipts about 1/2" thick!

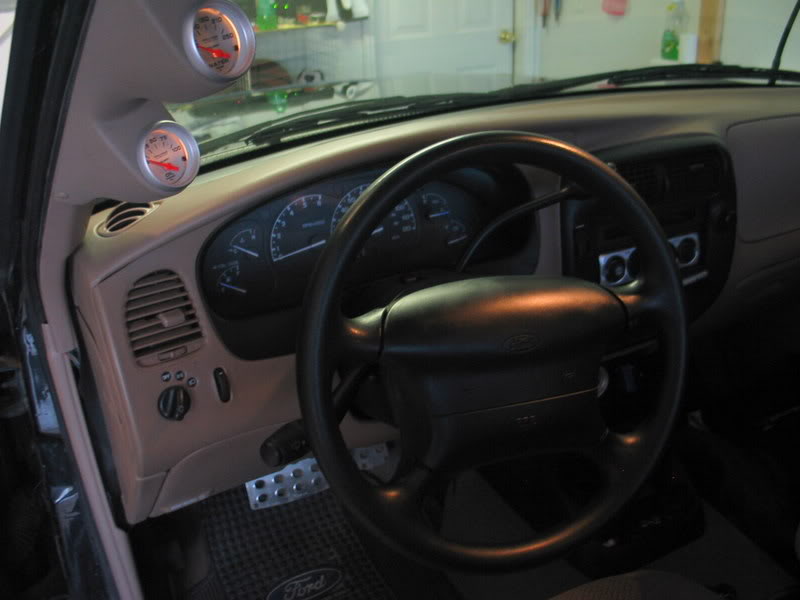

A few other pics:

Name:  IMG_5406.jpg
Views: 5
Size:  46.2 KB

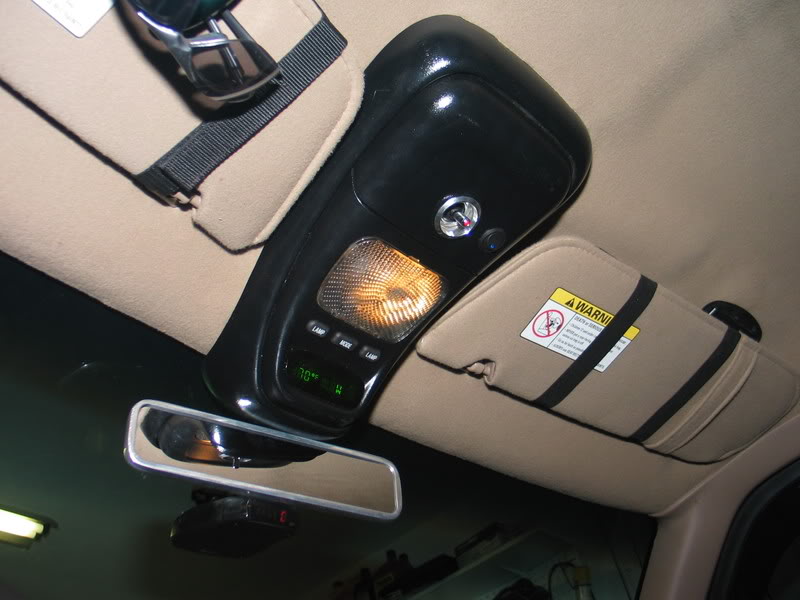

OHC, painted:
Name:  IMG_5409.jpg
Views: 5
Size:  63.5 KB

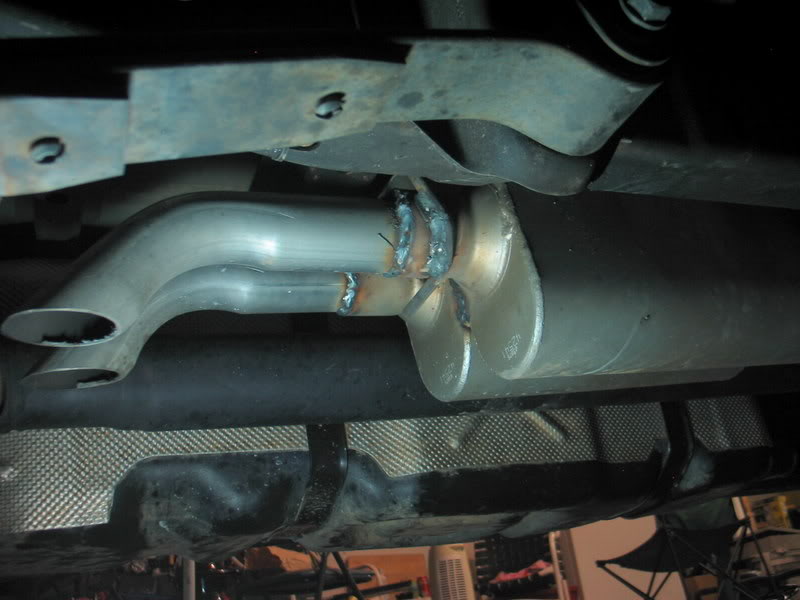

TWO Flowmaster 40 series:
Name:  IMG_5414.jpg
Views: 6
Size:  56.5 KB

TRUE-DUAL Exhaust

Last edited by Needforspeed3685; 12-02-2007 at 03:09 PM.
Reply With Quote
  #19
Old 12-02-2007
Fordranger1998's Avatar
Member

Join Date: May 2007
Location: Illinois
Posts: 757
ok i have a 98 xlt with a 2.5L 5spd with the 7.5 rear end how much different would it be and could i just get the motor tranny the supertine setup and the wiring harness
Reply With Quote
  #20
Old 12-02-2007
rangerkidSHSU's Avatar
Member

Join Date: Nov 2005
Location: Huntsville/Dallas
Posts: 411
sooo when you gonna get a clip of u revving the engine WITH the exhaust lol
Reply With Quote
  #21
Old 12-02-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
So I'll drop my truck off tomorrow and get it back friday give or take a day.

Very nice, for the mileage I get with the 4.0 I should do a 5.0 swap.
Reply With Quote
  #22
Old 12-02-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
looks good! the project came along quite well.....i like the work you did....

what part of the harness did you have to splice?
Reply With Quote
  #23
Old 12-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by rangerkidSHSU
sooo when you gonna get a clip of u revving the engine WITH the exhaust lol
I'll get that done!

Quote:
Originally Posted by lifted97ranger
what part of the harness did you have to splice?
Good question. The In-Line connector over by the ABS module which sends signals to the starter solenoid, engine oil temp, oil pressure switch, and a few other random things under the hood.

On the Ranger, it's connector C184, 6-pin round. On the Mounty, it's C125, 8-pin square. I simply snipped and soldered.
Reply With Quote
  #24
Old 12-02-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Cool! Congrats on completing the swap, Tim.
Reply With Quote
  #25
Old 12-02-2007
rangeredge_03's Avatar
Member

Join Date: Oct 2007
Location: lubbock,tx
Posts: 594
very nice truck
