Broken 60/40 armrest? My solution...

Like many Rangers my 01 has the broken armrest and the top was missing. Here's how I am fixing mine.

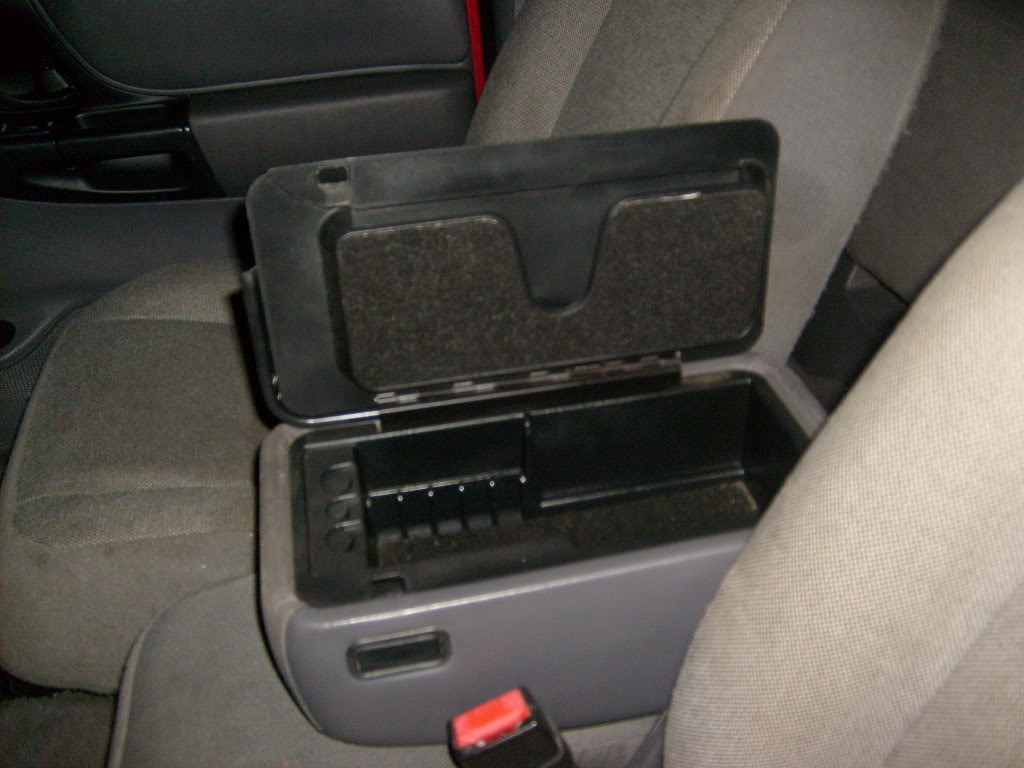

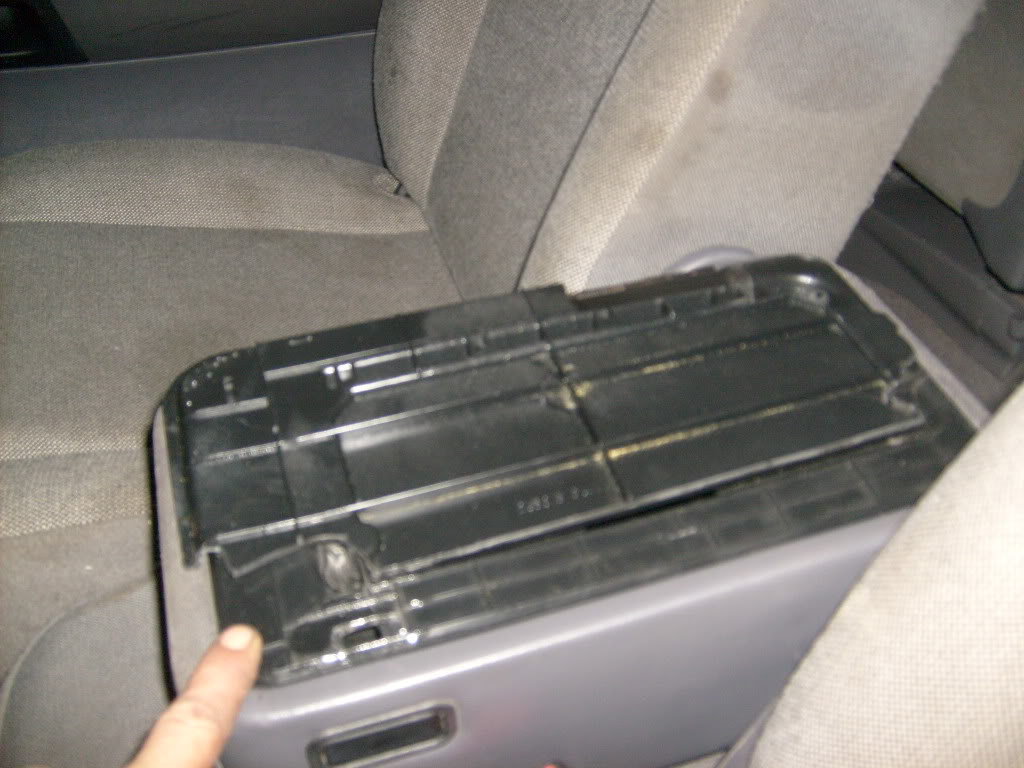

Here's the before, note there is no latch...
Name:  Picture176-1.jpg
Views: 118
Size:  126.9 KB
Name:  Picture177-1.jpg
Views: 45
Size:  129.4 KB

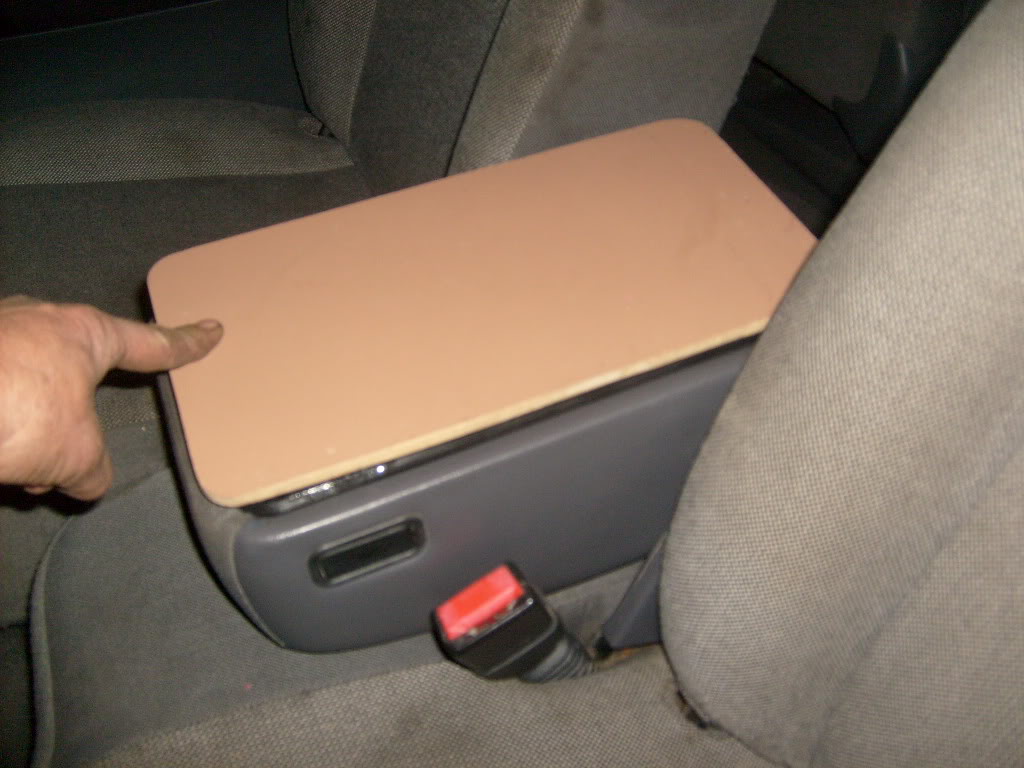

I traced the pattern out on a piece of wood and cut it out.
Name:  Picture178.jpg
Views: 36
Size:  125.4 KB

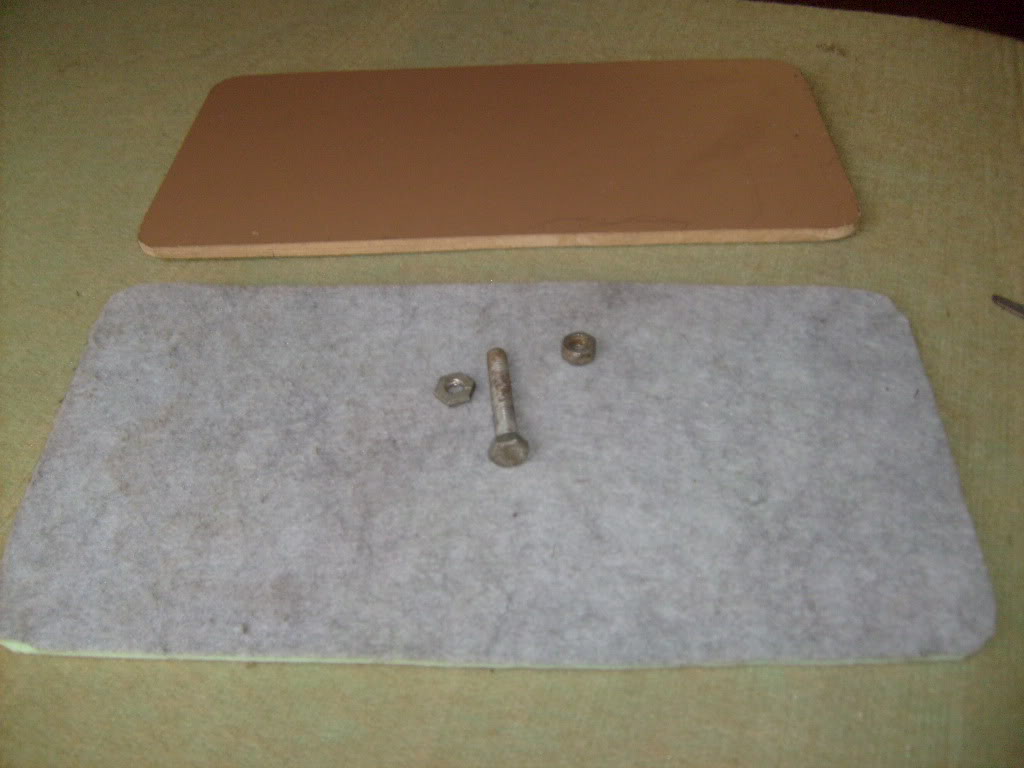

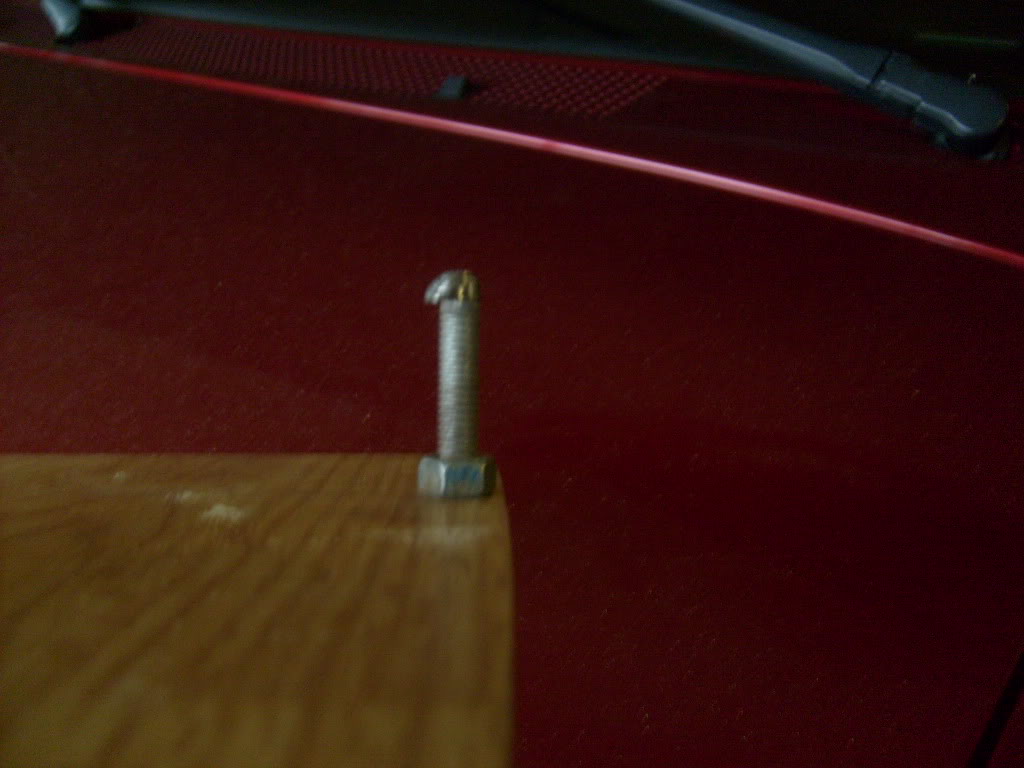

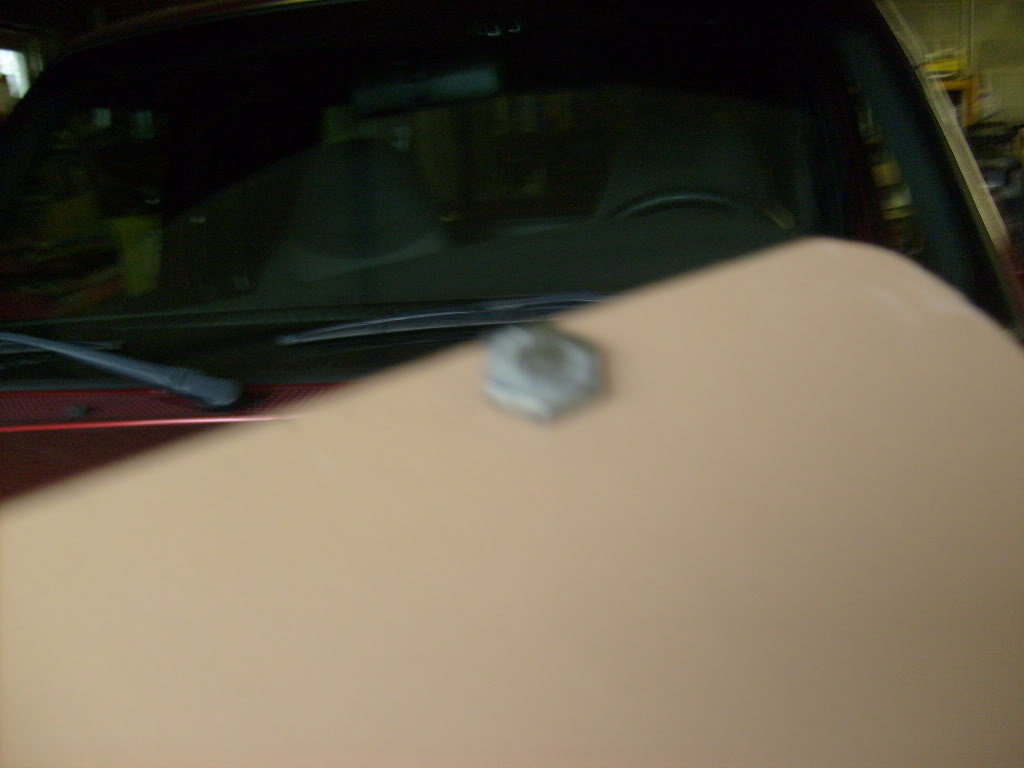

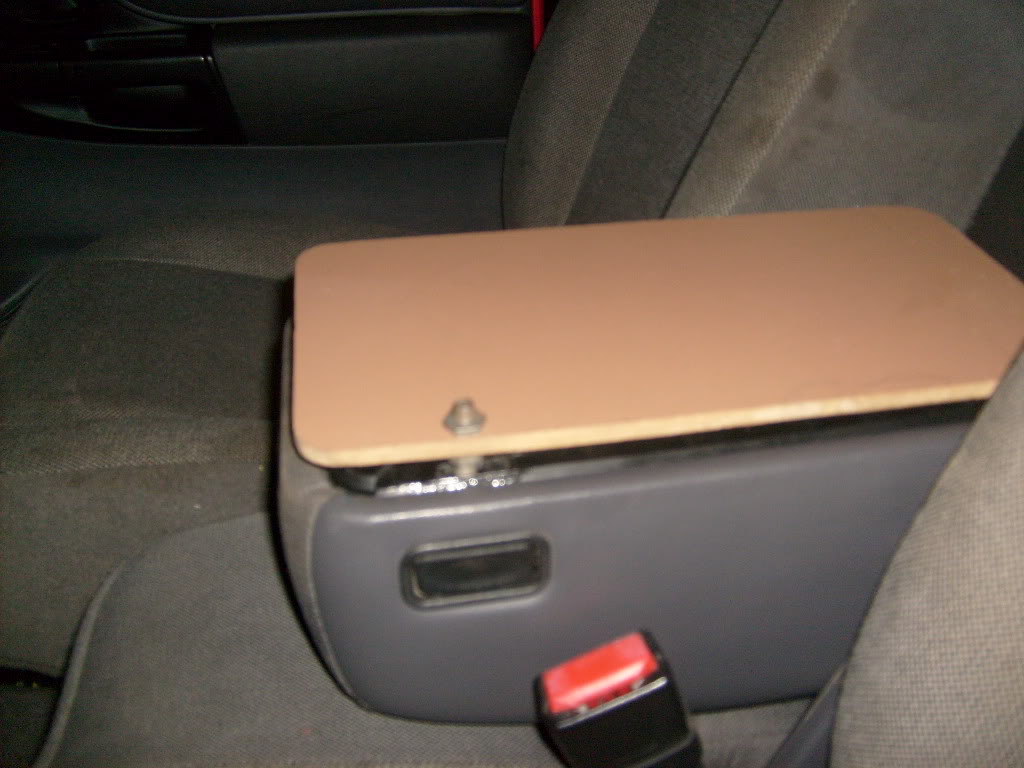

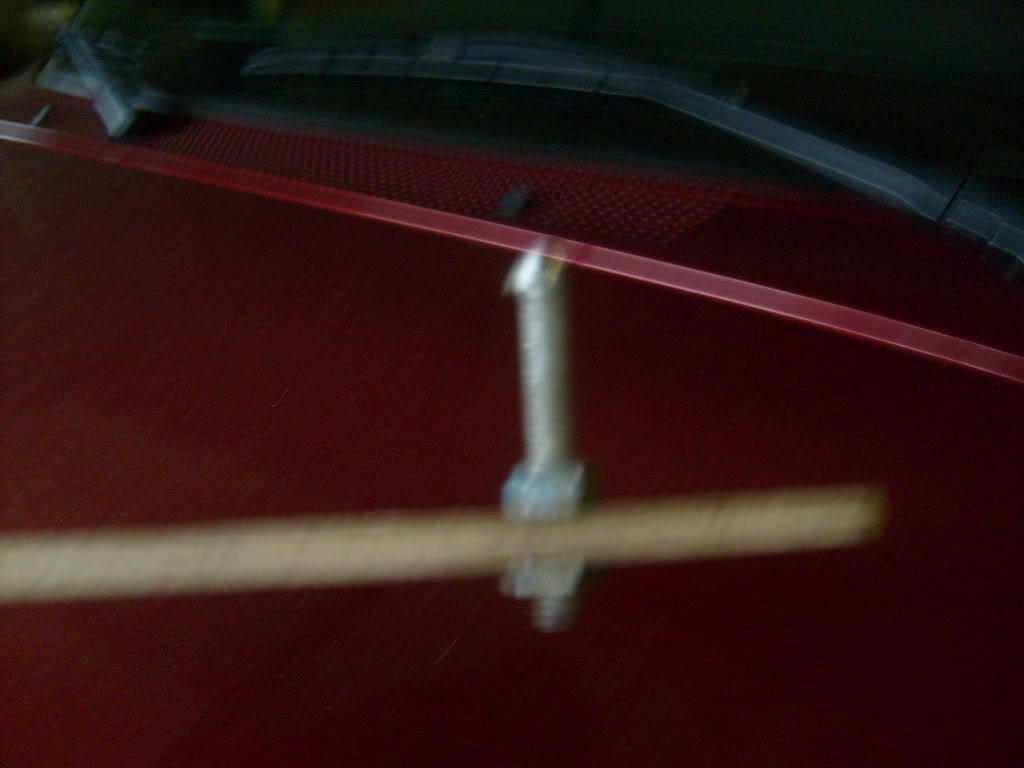

Next I made a 5/16 bolt work for the latch by grinding the head off on 3 sides and adding a taper to the 4th side. I used a jam nut on top so it wouldn't be too tall.
Name:  Picture179-1.jpg
Views: 36
Size:  104.5 KB
Name:  Picture180-1.jpg
Views: 38
Size:  115.1 KB
Name:  Picture181-1.jpg
Views: 37
Size:  104.1 KB
Name:  Picture182-1.jpg
Views: 39
Size:  99.3 KB
Name:  Picture183-1.jpg
Views: 37
Size:  79.0 KB

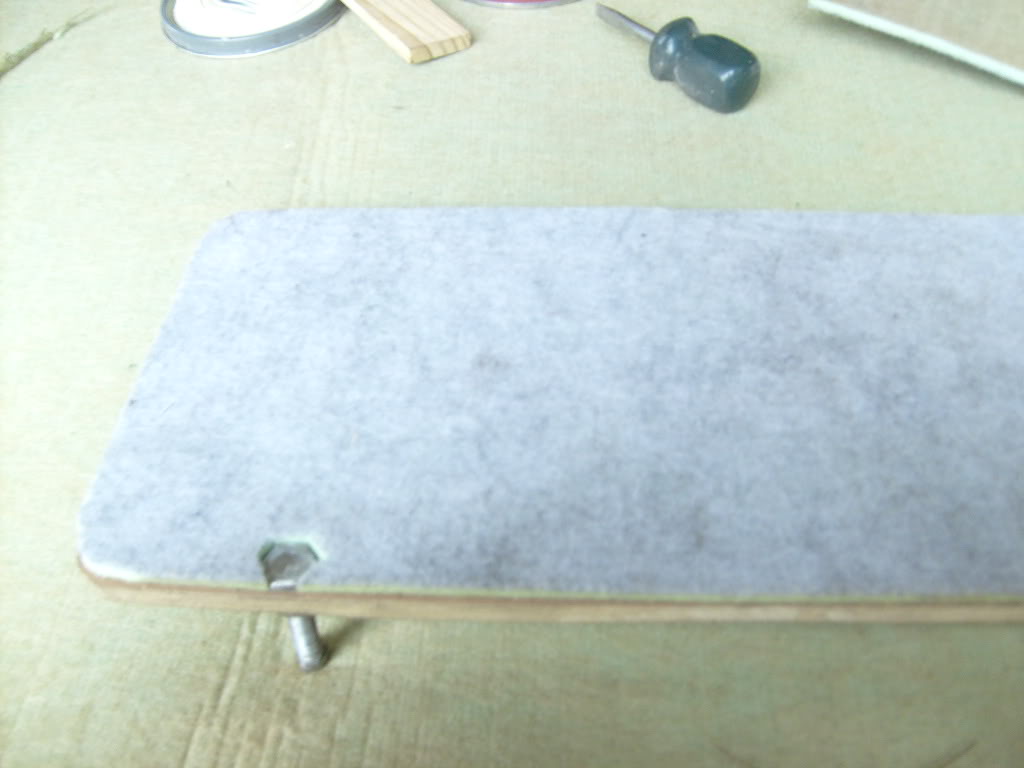

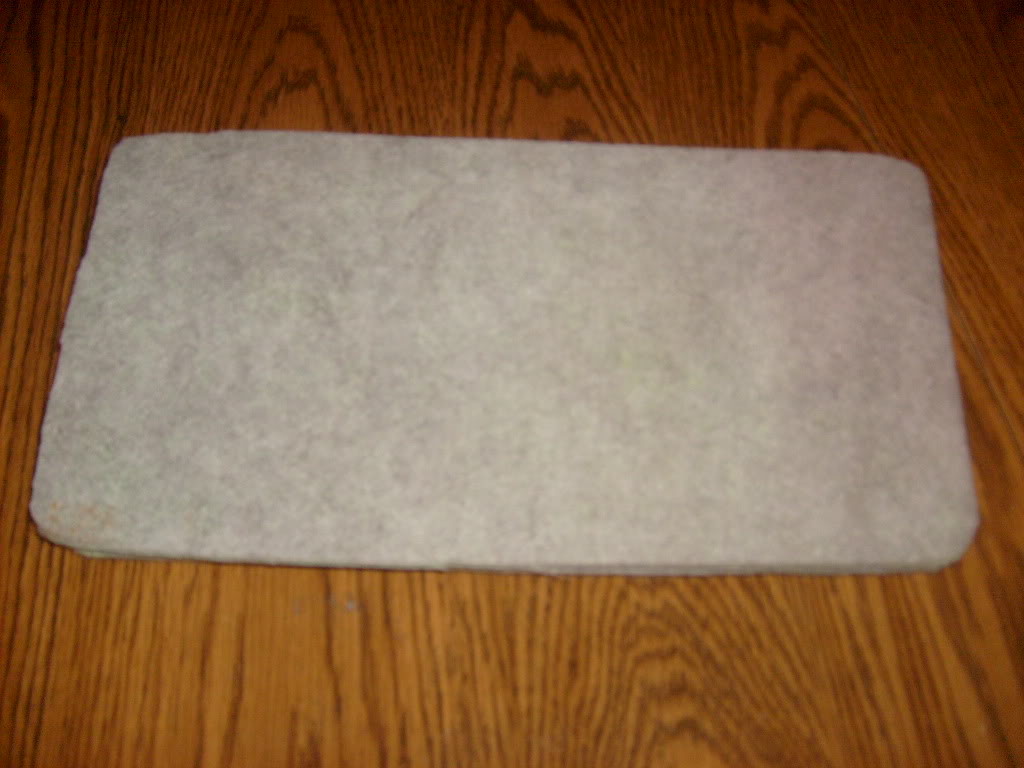

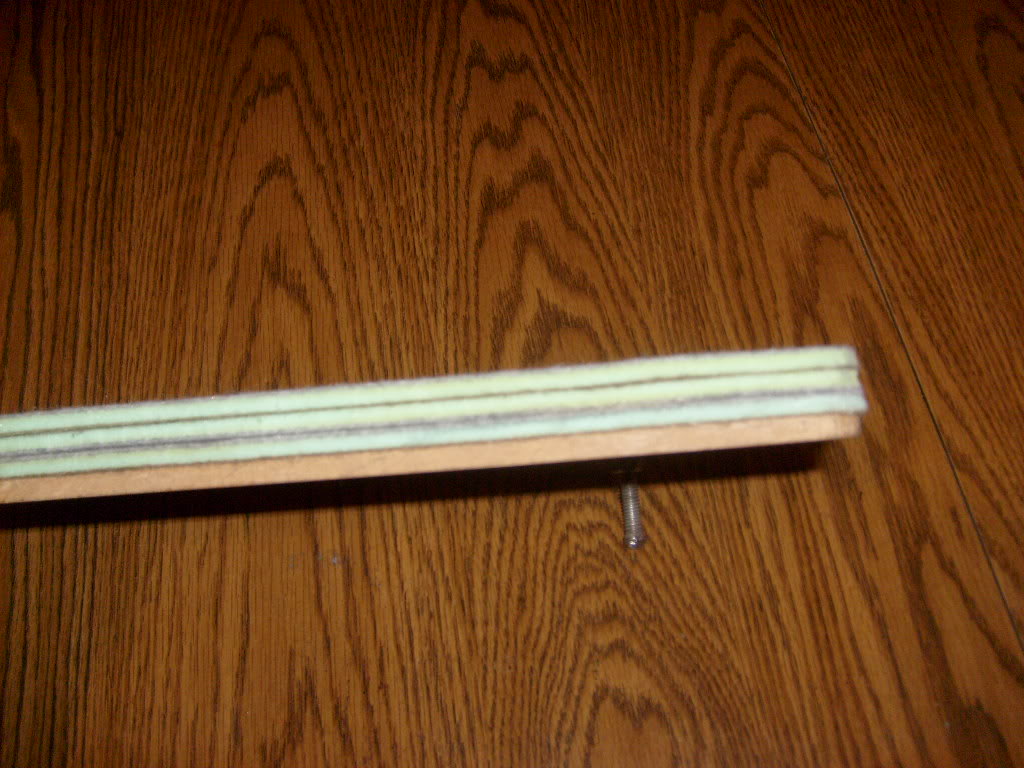

Then I cut some foan and added 3 layers because it was only 1/4 thick. I glued it on the wood.
Name:  Picture184.jpg
Views: 35
Size:  82.6 KB
Name:  Picture186-1.jpg
Views: 36
Size:  157.9 KB
Name:  Picture187-2.jpg
Views: 35
Size:  108.8 KB

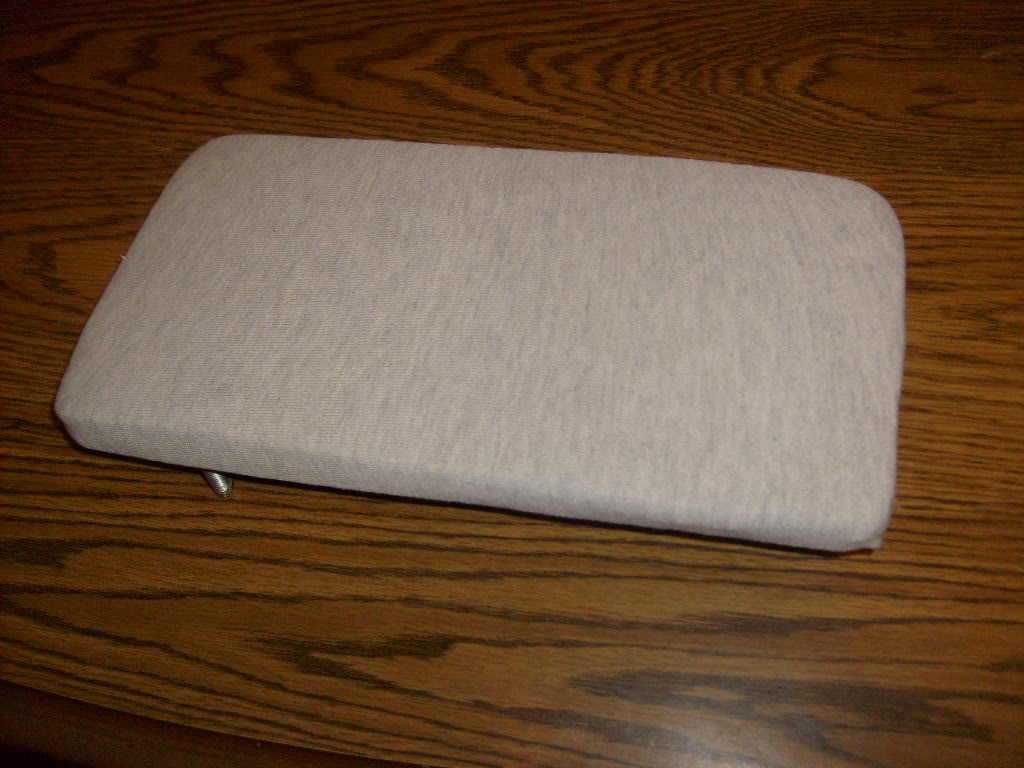

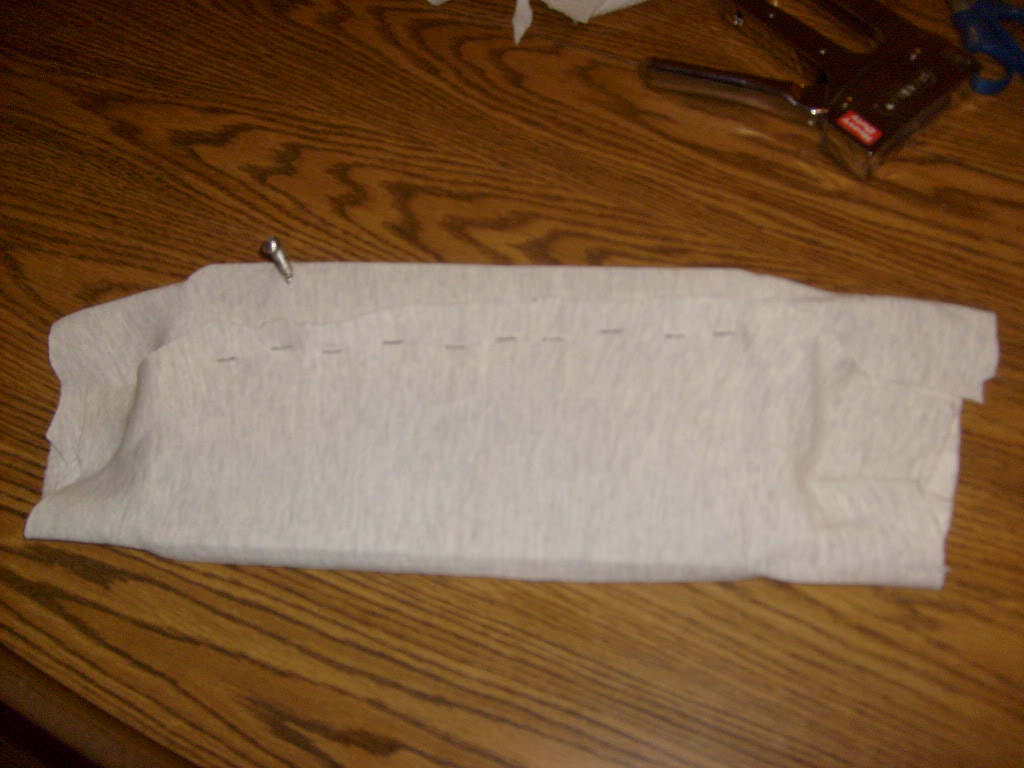

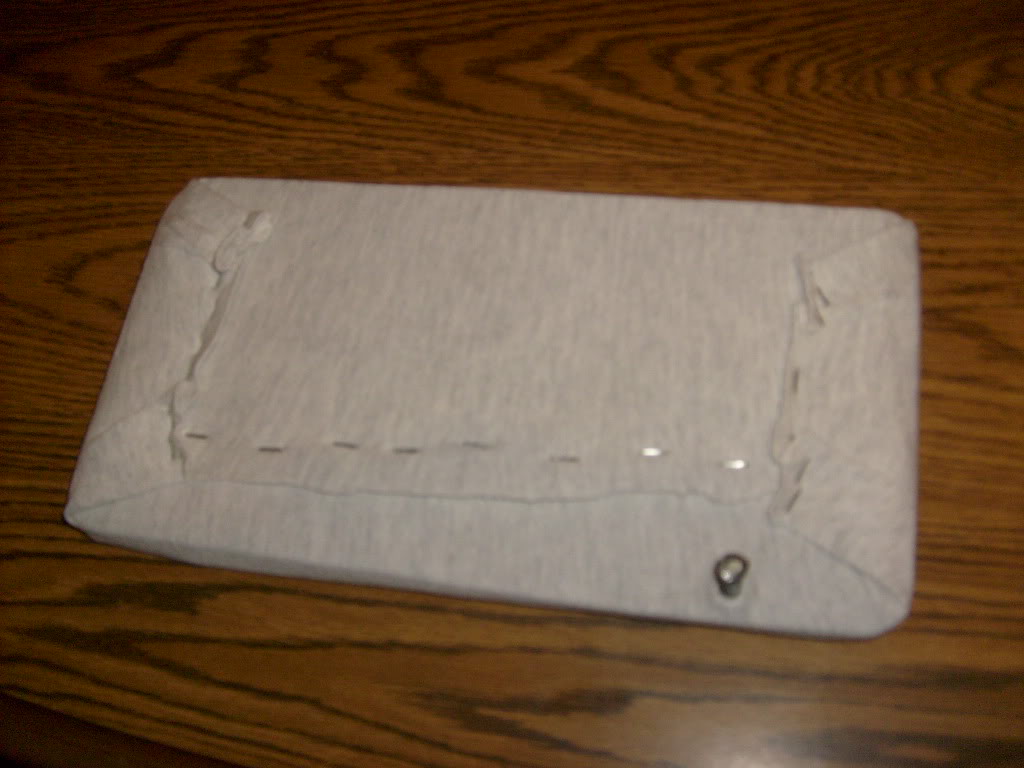

Because its what I had (and it was grey) I used a sweatshirt to cover the top.
Name:  Picture188-2.jpg
Views: 38
Size:  117.1 KB
Name:  Picture189-2.jpg
Views: 36
Size:  110.0 KB
Name:  Picture190-2.jpg
Views: 34
Size:  145.0 KB

Tommorrow I'll get it mounted to the armrest and show the finnished product....
Reply With Quote
  #2
Old 04-08-2010
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
lol anything is better then the buggy cord wrapped around the arm rest or rope
Reply With Quote
  #3
Old 04-08-2010
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
looks good need to shampoo the seats to match
Reply With Quote
  #4
Old 04-08-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
lol nice...i just have my seatbelt buckled around it haha
Reply With Quote
  #5
Old 04-08-2010
MothMan999's Avatar
Member
iTrader: (3)

Join Date: Mar 2009
Location: Chantilly, VA
Posts: 858
You should wrap a R-F shirt around it.
Reply With Quote
  #6
Old 04-09-2010
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801

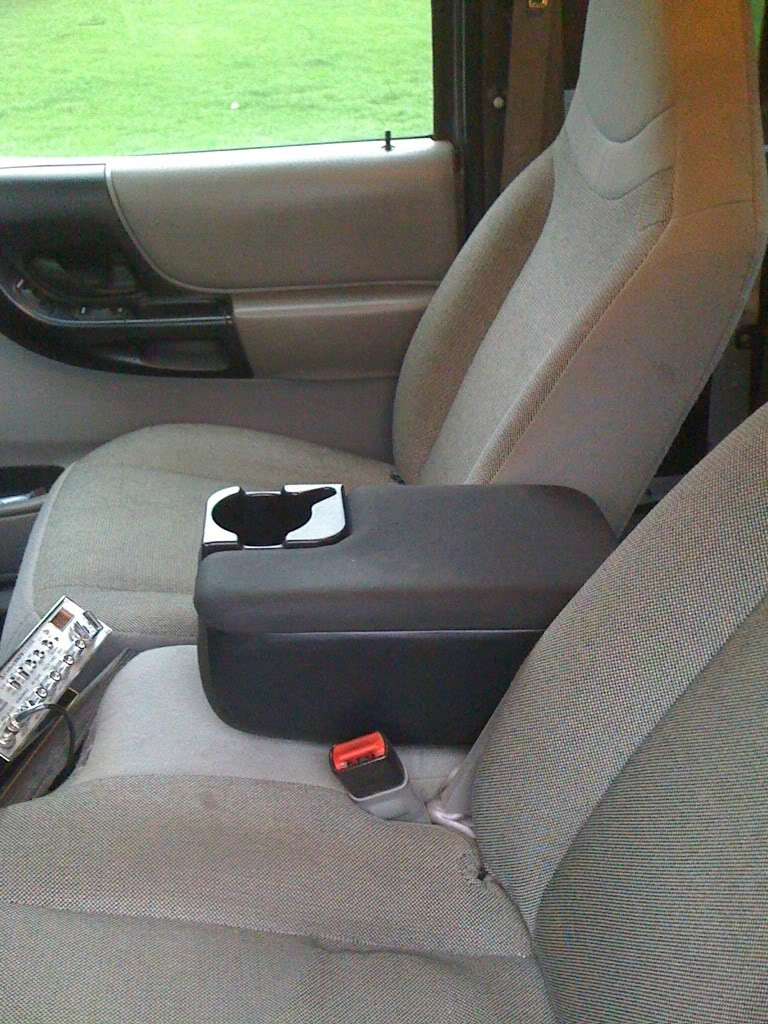

nice. I just got a new one from a junk yard for $20! i had the bungy cord around my old one.

Its black, but it looks great and has a cup holder!
Name:  f72a3ea3.jpg
Views: 38
Size:  202.1 KB
Reply With Quote
  #7
Old 04-09-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Nice solution, John!!
Reply With Quote
  #8
Old 04-09-2010
gibsondale's Avatar
Member

Join Date: Mar 2010
Location: Culpeper VA
Posts: 351
thats a great cupholder to have too
Reply With Quote
  #9
Old 04-09-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Thanks all I didn't want to try and sell a truck with a broken lid...lol I wouldn't be above a bungee cord on my truck but it doesn't look good...lol
Reply With Quote
  #10
Old 04-05-2011
Member

Join Date: Apr 2011
Location: erie,pa
Posts: 99
I just recently purchased a ford Ranger and had an issue with the arm rest breaking completely off the hinges.... The top was totally broken and removable with minimal effort. I eventually got tired of not having an arm rest. Personally I find it very uncomfortable to drive WITHOUT an armrest.

So I bought two Arm rests that are able to be bolted on, I epoxied the plate and bolted it through the plastic body, (epoxy adds strength instead of relying on the bolts alone).

I bought the black one :), very comfortable and the fabric is pretty durable.
http://www.12volt-travel.com/cab-acc...-c-18_171.html
