Natedog's 2000 SAS

I guess I'll start a writeup as the project is almost done and others' writeups were very helpful for me in this process. It has been driveable now for about 2-3 weeks. I would like to preface this with the statement that this took a lot of research (over a year), lots of time and some on-the-spot solutions. The truch was down for about 10 days but I had pretty much everything at hand. Now on the the specs, here are the highlights, I have a complete detail list in Excel format should anyone want it.

1987 Grand Wagoneer Dana 44
4.56 gears w/ welded spiders
Warn Premium Hubs
Hi Steer Arms w/ Dodge knuckles
YJ brake lines
New U-bolts
Chevy TREs and Links from Parts Mike
Stock leaf pack with added middle Ranger rear leaf

1998 Explorer 8.8
4.56 gears w/ Lockrite
Disc brakes
1/2 ton Chevy leafs
Alloy shafts from DutchmanMS (6 lug)
Redrilled Rotors

Toyota steering box w/ weld in insert (welded together both Ranger and Toy shafts)
F-250 Shock towers
Rancho RS 99012 shocks
1354 Manual t-case
35x10.5 TSL Boggers on 15x10 Rims


Minor things I did which I didn't see in others' SAS threads:
I converted the front wheel studs from 7/16" to 1/2" and bought longer studs so the lugnuts would thread on more.

Buy a magnetic angle finder - makes setting the Castor VERY easy = no death wobble


Things yet to do:
The driveshaft is not in yet as I need to make a new tranny crosmember.
The t-case shifter is not in yet as I haven't yet drilled the holes through the floor.
Finish the Winch mount
Buy and install rear shocks


Pics:

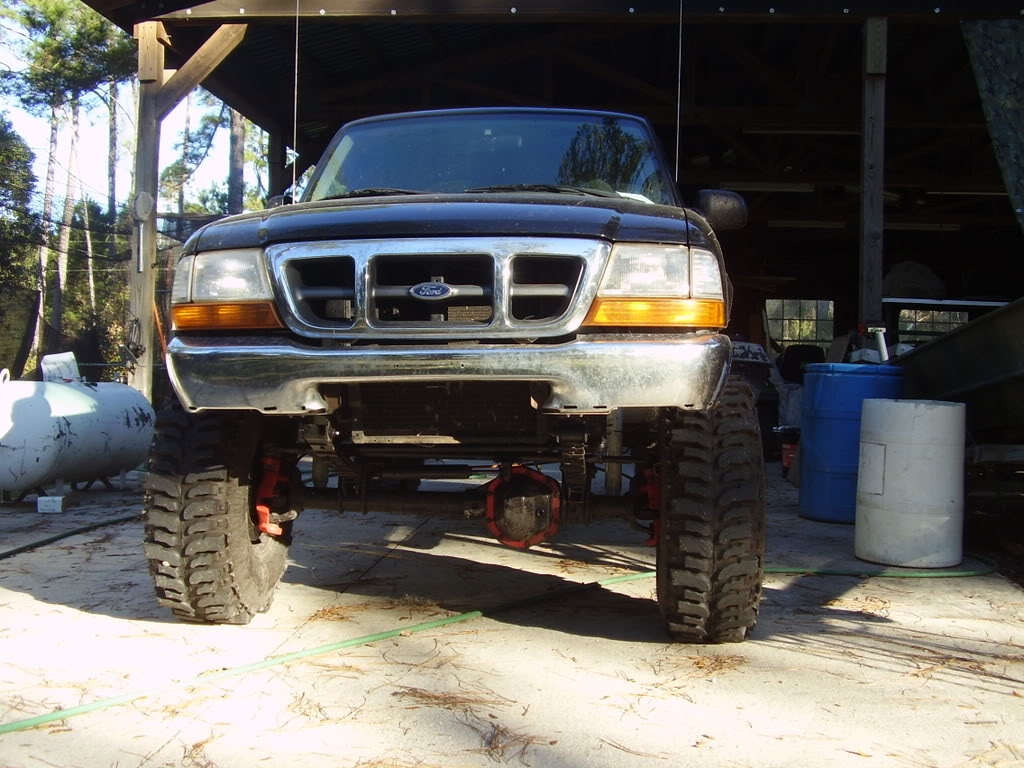

Name:  22Frontend.jpg
Views: 32
Size:  153.0 KB

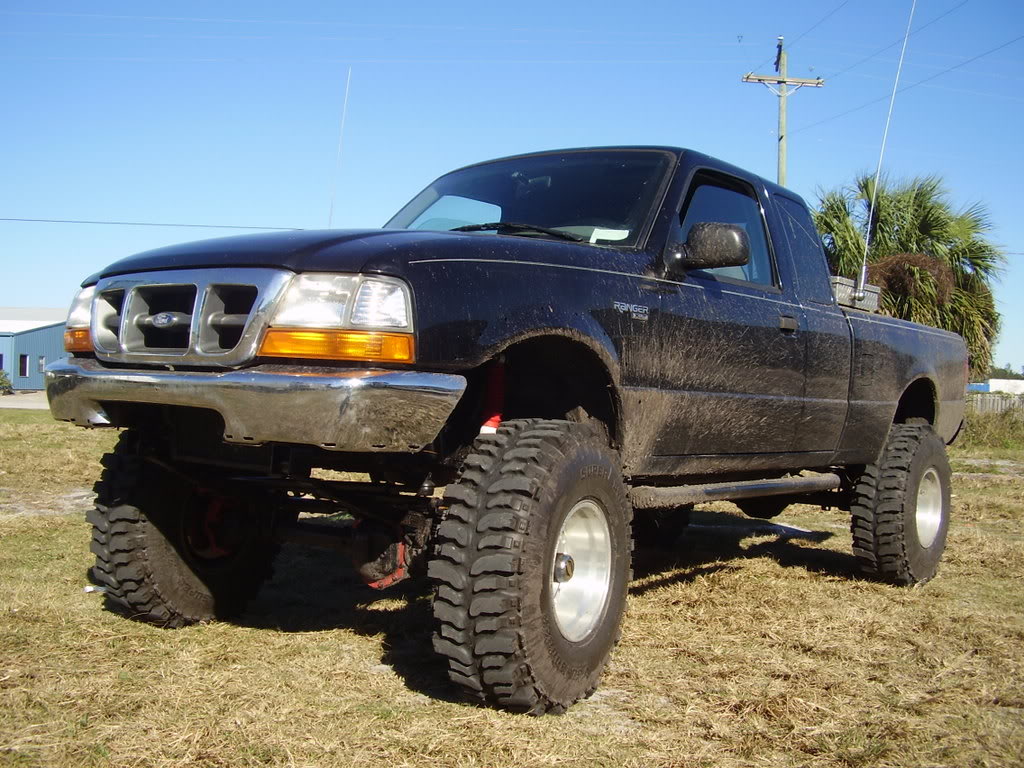

Name:  25Sideshot.jpg
Views: 34
Size:  173.3 KB





Reply With Quote
  #2
Old 01-13-2008
red_fx2's Avatar
Member

Join Date: Apr 2005
Location: lakeland, fl
Posts: 32
truck looks great man!
Reply With Quote
  #3
Old 01-13-2008
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
very nicely done,and thanks for the info
Reply With Quote
  #4
Old 01-13-2008
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
The front leafs are stock "Ranger" rears with an extra leaf added?
Reply With Quote
  #5
Old 01-13-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
truck looks good. have any lean?
Reply With Quote
  #6
Old 01-14-2008
natedog57's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Central Florida
Posts: 33
The front leafs are stock waggy plus the mid Ranger leaf, only because the Waggy springs were worn.
The truck leans to the driverside some when the gas tank is full and to the passenger side when lower, just something to live with I guess.
Reply With Quote
  #7
Old 01-14-2008
Member

Join Date: Jun 2005
Posts: 148
Looks pretty good, but why did you cut the arms off the stock knuckles? That significantly weakend them.

Excellent lift height and tire size IMHO!

Do you have other photos, specifically of the leaf hangers?
Reply With Quote
  #8
Old 01-14-2008
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
is the waggy axle full width,or is it the narrow track axle

Last edited by mazda98; 01-22-2008 at 08:36 PM.
Reply With Quote
  #9
Old 01-15-2008
Member

Join Date: Jun 2005
Posts: 148
It looks to be a narrow track axle. An easy way to tell is to just look at the short side axle tube. A wide track axle had a longer short side tube than the narrow track.
Reply With Quote
  #10
Old 01-15-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
How tall is the truck at the roof?
Reply With Quote
  #11
Old 01-15-2008
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Are you using the stock shock mounts on the axle? And why do you have to get a new tranny cross member?

Brenton
Reply With Quote
  #12
Old 01-15-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Truck looks GREAT!!! Gosh i can't wait to get started on mine. Which width waggy did you go with?? There's the narrow and there's the wide...the wide came off a waggy with flares.

From this angle.....it looks as though it's the wide compaired to the rear axle....
Reply With Quote
  #13
Old 01-15-2008
natedog57's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Central Florida
Posts: 33
I don't have any pics of the hangers at this time. The front is square tubing welded/braced to the frame and the rear is round tubing (for bushings) welded to square tubing welded to the axle. I believe 02FX4? did it this same way.

As fax as wide/narrow I don't know. I don't believe the Waggy had flares. The front is slightly wider that the rear.

The roof line is about 76" (sorry ST), the bottom, the front bumber (w/out valance) is 31" and the rear is 28"

I cut the old shock mounts off a long time ago thinking that they wouldn't work, I guess they might have, I dunno.

I need to change/modify the crossmember as the driveshaft wil now be lower than stock and hit the crossmember.

Last edited by natedog57; 01-15-2008 at 11:45 AM.
Reply With Quote
  #14
Old 01-15-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
67" wow that's awesome!! My 95 SAS'd 37s with a 3" body sits right at 80... but then again mine has fullsize axles, and 15x10's... mine is a good bit taller but at 82" wide on the outside of the tires, mine is uber stable! Yours looks reallly good though!!
Reply With Quote
  #15
Old 01-15-2008
natedog57's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Central Florida
Posts: 33
Mine is about 76" wide, outside of tires, also on 15x10s.
Reply With Quote
  #16
Old 01-15-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
ahhh OK!! lol if i took my body lift off mine i'd be sittin level with you.. but i'd have all sorts of fender contact!!! Plus I will say this, when I replaced the cluth that body lift made gettin to those tranny bolts a SINCH!
Reply With Quote
  #17
Old 01-16-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Natedog.....hey can you get a bunch of pics featuring the front crossmembers, the spring hangers, steering, etc......i think we need a bunch-o-detail pics. What'd you do for steering shaft setup?? I've been compiling a bunch of info and pics of solid swaps on rangers.....to prepare for mine.

I know my buddy has the widetrac waggy(i think 64" wms to wms) i can pick up anytime to start the buildup....but hopefully i can find a narrow waggy to throw on.
Reply With Quote
  #18
Old 01-16-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
looks good.......now bring that a$$ up a bit and it will be fine...
Reply With Quote
  #19
Old 01-16-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by Fx4wannabe01
Natedog.....hey can you get a bunch of pics featuring the front crossmembers, the spring hangers, steering, etc......i think we need a bunch-o-detail pics. What'd you do for steering shaft setup?? I've been compiling a bunch of info and pics of solid swaps on rangers.....to prepare for mine.

I know my buddy has the widetrac waggy(i think 64" wms to wms) i can pick up anytime to start the buildup....but hopefully i can find a narrow waggy to throw on.

Why run a waggy axle? nasty low pinion...

No offense to the ones that have it already but if I was doing it I would not be running one. F150 axle is 65" WMS its only a 1/2" per side.
Reply With Quote
  #20
Old 01-16-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
nice, it kinda looks like ryans truck.
Reply With Quote
  #21
Old 01-16-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by zabeard
Why run a waggy axle? nasty low pinion...

No offense to the ones that have it already but if I was doing it I would not be running one. F150 axle is 65" WMS its only a 1/2" per side.
Then you have to mess with cast wedges. And finding a 76-77 f150 or f100 axle is much harder to find then a waggy. And in my case my waggy axle is only 61" wide so it matches my EB rear. a 65" front axle would be way to wide.
Reply With Quote
  #22
Old 01-16-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 5speedin2.3
nice, it kinda looks like ryans truck.
except your nose doesnt bleed when you get in it and it actually has tread on the tires.
Reply With Quote
  #23
Old 01-16-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by redranger4.0
except your nose doesnt bleed when you get in it and it actually has tread on the tires.
rofl, true i guess.
Reply With Quote
  #24
Old 01-16-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0
Then you have to mess with cast wedges. And finding a 76-77 f150 or f100 axle is much harder to find then a waggy. And in my case my waggy axle is only 61" wide so it matches my EB rear. a 65" front axle would be way to wide.
in your case understandable. but if you were to start from scratch, a F150 axle would be better. you are also running coil overs which brackets fitting in a tight spot wont be much of an issue.
Reply With Quote
  #25
Old 01-16-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by zabeard
in your case understandable. but if you were to start from scratch, a F150 axle would be better. you are also running coil overs which brackets fitting in a tight spot wont be much of an issue.
that still leaves the problem with finding a 76-77 axle with the removeable wedges.
Reply With Quote
