Seems as if this is what I would need to convert the Waggy 6 lug to a Ford 5 lug...

-73 to 76 flat tops
-small bearing spindles
-86 fsj backing plate and caliper
-ford hub/rotor
-GM/jeep stub

That's all that I can figure. redranger4.0 sent me a link and that's what they said would take my 6 to a 5 lug. That would take too much time for the deadline that I'm trying to accomplish (by March 5th). Blows. Maybe I can find a rare set of 5x4.5 to 6x5.5 wheel adapters. :/

Brenton
Reply With Quote
  #127
Old 02-16-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
Is the wheel supposed to be lug or hub centric?? My idear... which I dunno if you'd want to do it... Just take the wheels to a machine shop, have them put the wheel on the millin machine and mill out the hub area so it is large enough.... Can't say that I would do it personally, but it might be an option.. i dunno...
Reply With Quote
  #128
Old 02-16-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I have some good news.

I found a guy who is going to make me 2 adapters to go from my Ranger bolt pattern in the rear to the 6x5.5 front. Whoo hoo!

Brenton
Reply With Quote
  #129
Old 02-16-2008
Member

Join Date: Jun 2005
Posts: 148
Quote:
Originally Posted by EdGe_wannabe View Post
Seems as if this is what I would need to convert the Waggy 6 lug to a Ford 5 lug...
-73 to 76 flat tops
-small bearing spindles
-86 fsj backing plate and caliper
-ford hub/rotor
-GM/jeep stub
Dude, the only things you need are small bearing spindles, Ford rotors/hubs, inner wheel bearings, and you're done!!!! That's it!

The knuckles you have already will work. The stub shafts, backing plates, and calipers for 1/2 ton Chevy and Jeep D44's are all the same so they work as well.
Reply With Quote
  #130
Old 02-16-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
awesome! that works just as good as far as i am concerned. now get some 6 lug wheels!
Reply With Quote
  #131
Old 02-16-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i have some small bearing spindles you can have brenton
Reply With Quote
  #132
Old 02-16-2008
Member

Join Date: Jun 2005
Posts: 148
I'm telling you Brenton, you're wasting your money on having custom adapters made when you can do it right for much less.

You can get brand new Ford hub/rotors and inner wheel bearings from www.rockauto.com. for like $30 ea.

Zabeard has small bearing spindle for free so you can convert the front axle to 5x5.5 for under $100!!!!!
Reply With Quote
  #133
Old 02-17-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I would still have to get adapters for the rear to get the bolt pattern up to 5x5.5. Also, these adapters aren't but like $100 for them anyway.

Brenton
Reply With Quote
  #134
Old 02-17-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
then you can run my wheels if you go on 5.5 to see the truck on 20s and i can see on 17s..we are gunna be changing tires like crazy ahh
Reply With Quote
  #135
Old 02-17-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I was finally able to get the shifter somewhat in. I sanded the parts and painted them black with clear and it looks like a brand new set. I'm going to take the tunnel cover to school tomorrow to plasma cut that bad boy out.

Brenton
Reply With Quote
  #136
Old 02-17-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Got a little more bored and decided to rip out the interior to clean under the carpet since I was almost there anyway. But I have a question... It looks like I won't be able to put my cup holder back in because the shifter is going to be in the way and if I can't do that then I'm just going to have a huge hole in the carpet where the cup holder was. Any ideas on that or if anyone knows anywhere that I can get another set of carpet? HELP?!?!?

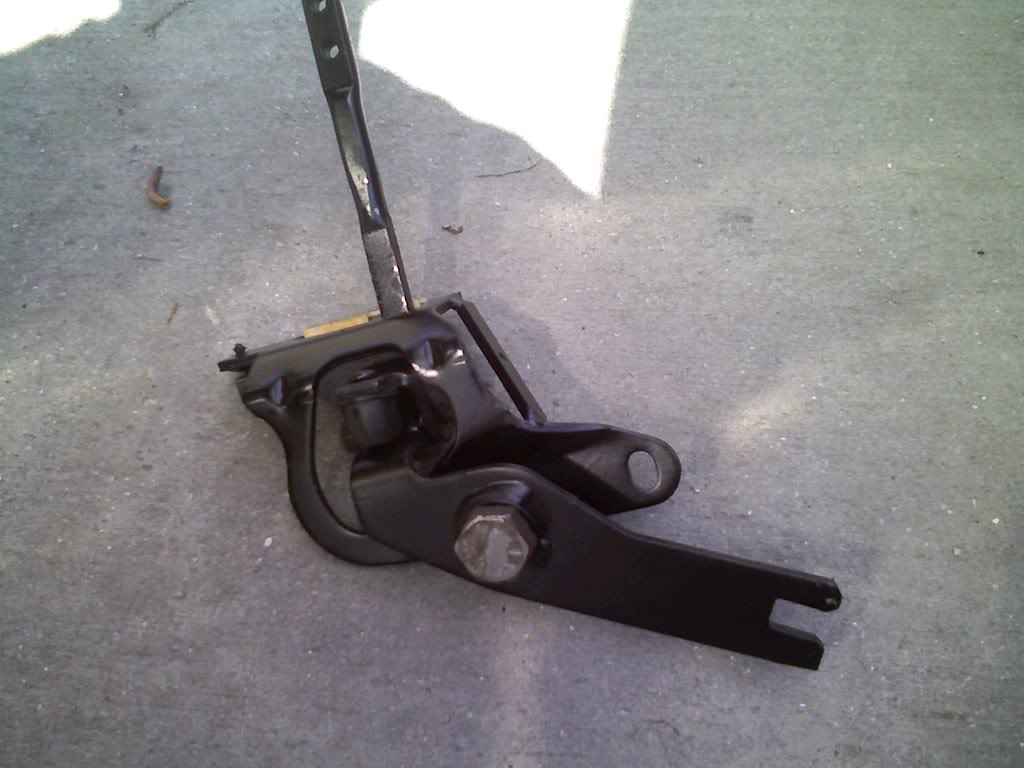

Linkage all blinged up!
Name:  PIC-0240.jpg
Views: 0
Size:  86.9 KB

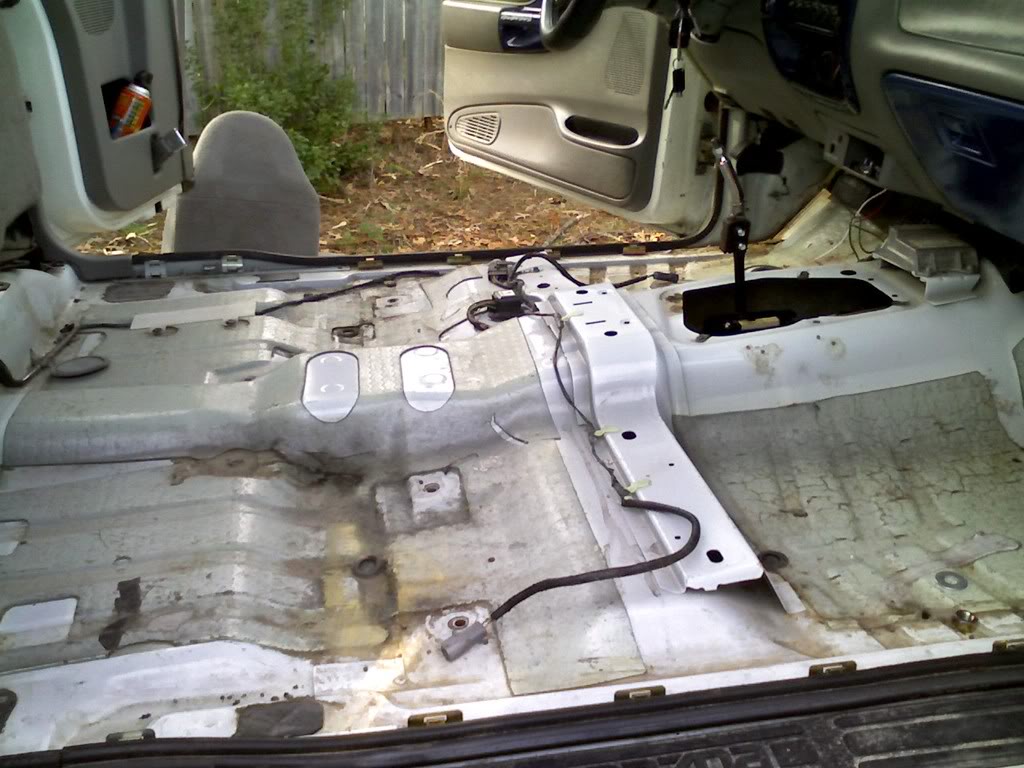

Stripped.
Name:  PIC-0241.jpg
Views: 0
Size:  120.7 KB

Brenton
Reply With Quote
  #137
Old 02-17-2008
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
trim around it.
Reply With Quote
  #138
Old 02-17-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I think I'm just going to go ahead and order new carpet for the truck in black. Should look a lot better than the poopy gray.

Brenton
Reply With Quote
  #139
Old 02-17-2008
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
I wouldn't run the adapters. Since the bolt patterns are so similar, one of the bolt-holes will overlap, so the adapter needs to be two seperate peices that bolt together.

Just order up some custom axle shafts for the rear with a 6 lug flange for ~250 shipped (superior chromo's, i'm sure you could get them cheaper)
Reply With Quote
  #140
Old 02-17-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Where would I get those at and where would I find a drum to fit the new pattern?

Brenton
Reply With Quote
  #141
Old 02-17-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you get your drums plugged and redrilled.
Reply With Quote
  #142
Old 02-17-2008
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
They need to be re-drilled but not plugged.

Got my rotors redrilled from ~100
Reply With Quote
  #143
Old 02-22-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Got the gears and install kit last night, drove to Jacksonville last night to get them from Chris (thanks tons!). New wheels are on the way. Gears MIGHT be going in today as well.

Brenton
Reply With Quote
  #144
Old 02-22-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You might be able to make a manual trans cupholder thing to work with the tcase shifter...maybe. I'd say get rid of your 60/40 and get a shorty console(has cupholders)....
Reply With Quote
  #145
Old 02-22-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 034x4 View Post
They need to be re-drilled but not plugged.

Got my rotors redrilled from ~100
i think you have to plug drums... he does not have rotors
Reply With Quote
  #146
Old 02-22-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I got the rear drive shaft in today finally. It's all rusted up, so I'm going to sand it down tomorrow at work and paint it. :)

I wasn't able to get the gears in today, but hopefully this weekend.

Brenton
Reply With Quote
  #147
Old 02-22-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Good deal. Truck looks good with no carpet in it. Where'd you get the level II t/c shifter arm from?
Reply With Quote
  #148
Old 02-23-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
A member on here sold me the linkage and arm. Too bad ford wants $100+ for a damn shift ****.

Brenton
Reply With Quote
  #149
Old 02-23-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
time to drill and tap an 8 Ball...
Reply With Quote
  #150
Old 02-27-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Zach: it's going to be a close call for my truck. lol I found some crappy wheels and tire to get my truck on a trailer and to a d-shaft shop. I ordered a 3rd set of wheels today so let's see if the 3rd time is really a charm. The adapters should be here tomorrow as well. Gears will be completed tomorrow night.

Brenton
Reply With Quote
