Panhard setup.

I posted some pics in the pictures thread, figured I would put it all together here.

A big problem with a lot of cars/trucks being built for the street/strip is keeping the wheels under the vehicle. Have you ever seen a burnout mark on a road and it looks all squiggly like an ' S '? Its due to the weight and movement above the tires not distributing properly. This causes uneven traction and one tire grabbing harder then the other. Keeping the weight ( body ) solid above both tires helps a lot. Sway bars are great, but they are more for roll then keeping things centered.

A lot of 4x4 trucks use a panhard type of setup but I believe they might call it something different ( draglink? ). My terms are limited on offroad entities as I really haven't gone Haywire like Beard and others have in their quests for ultimate lifts and such. I like my truck on the ground and launching quick.

The theory is the same in both applications.

Frame mount.


One side of the bar needs to be tied to the frame in some way and the other to the axle. I put a plate on the frame here ( over the winter ) and reenforced it recently.

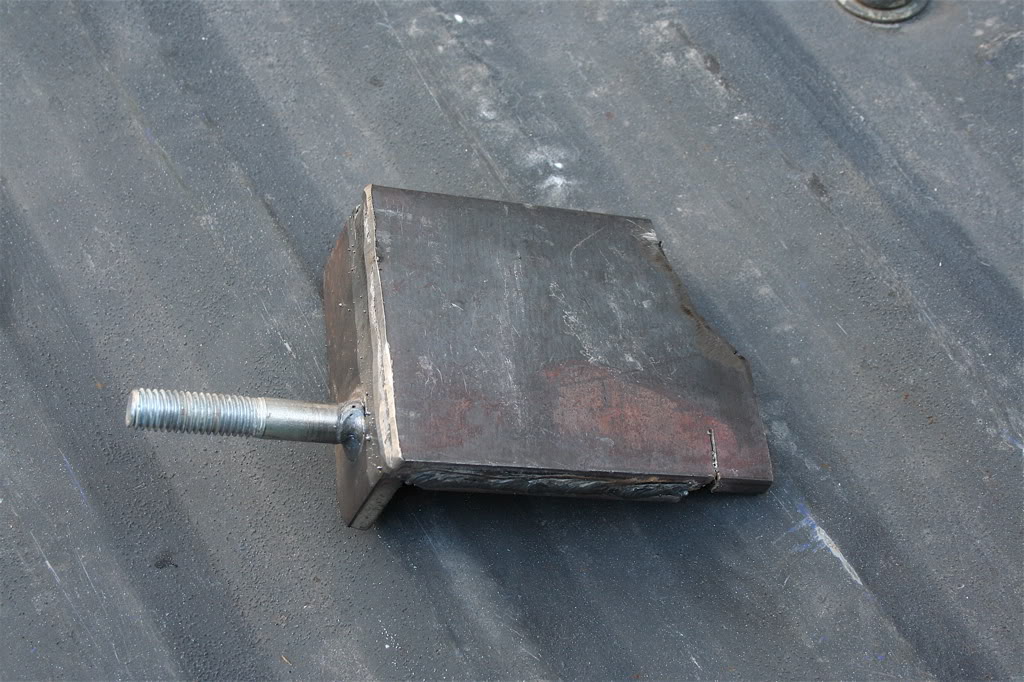

Frame bracket :


This is where one end of the bar will mount.

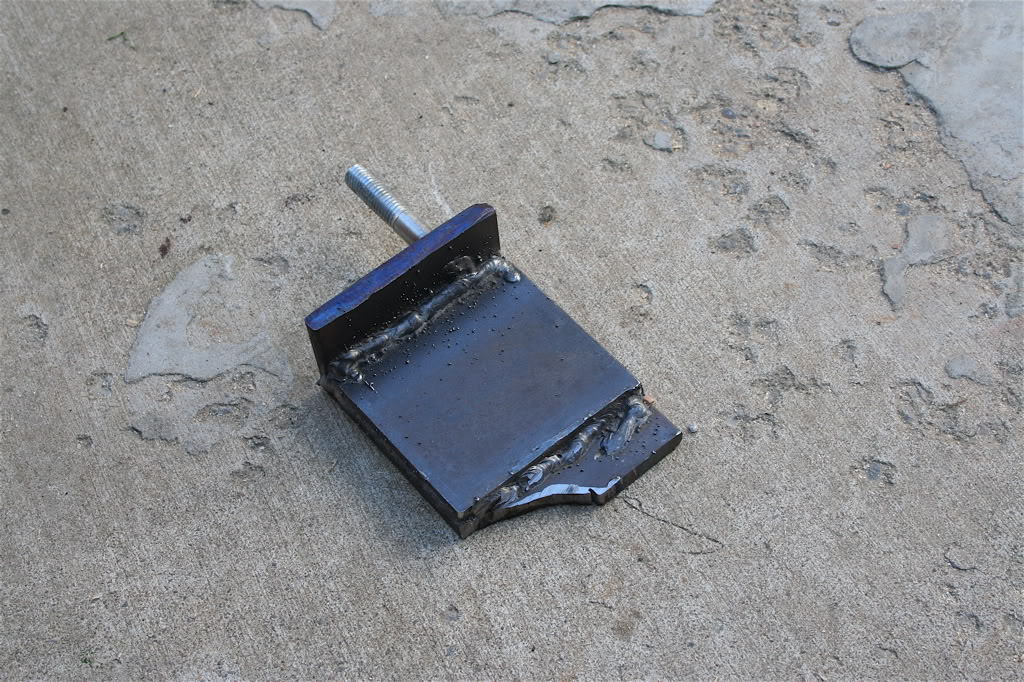

Axle bracket :
Name:  tab1.jpg
Views: 9
Size:  152.8 KB

Name:  tab2.jpg
Views: 8
Size:  235.9 KB

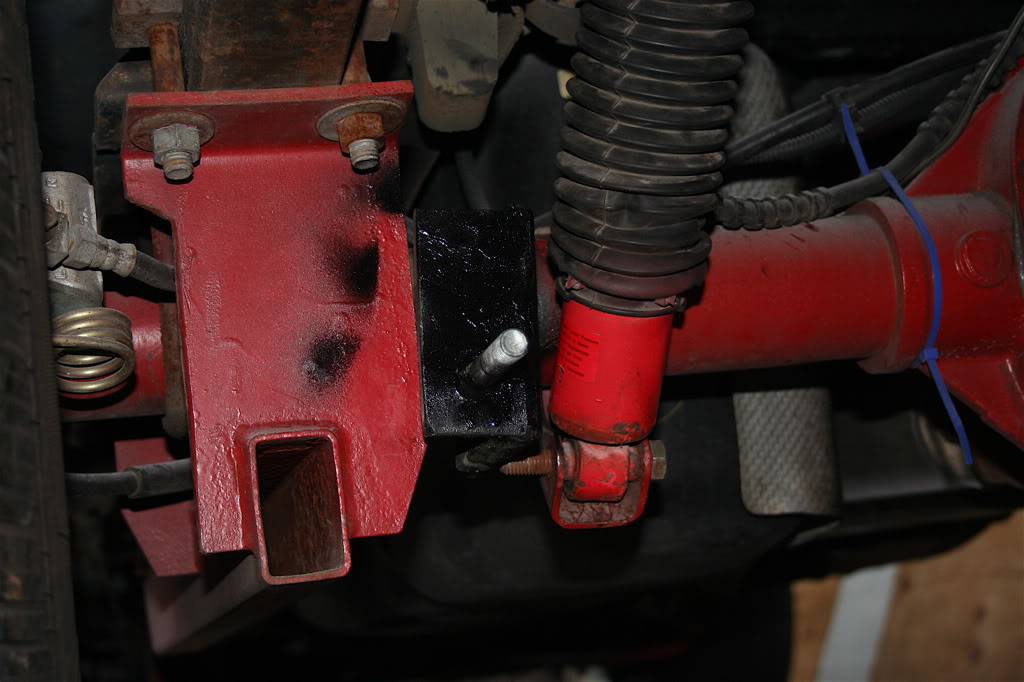

Mount welded to the axle. Not seen ion the picture are the 2 right-triangle gussets I added for strength.
Name:  s1.jpg
Views: 8
Size:  94.4 KB

I added a 3/4th's inch cross brace. I will add one across the top when I have someone here to help take the bed off so I can get in with the welder.

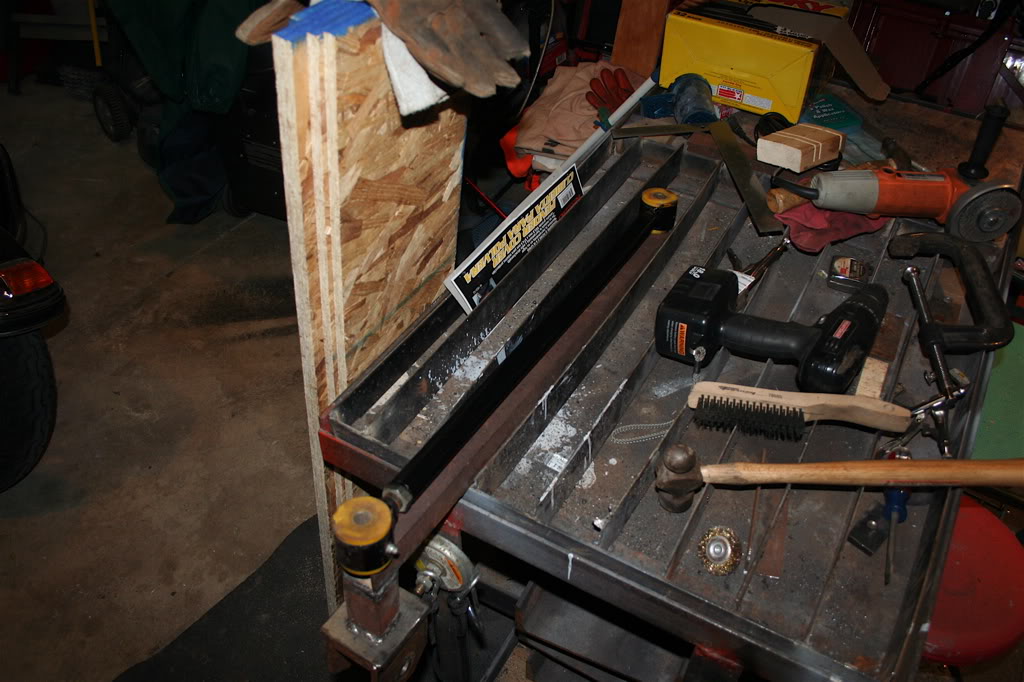

This is the Bar itself. Its adjustable in length by 5 inches. Has grease fittings on both ends .

Name:  s3.jpg
Views: 8
Size:  117.9 KB

Assembled but still needing that top ' cross-brace '


Even without the brace on top, I decided to go launch on it. The results were AWESOME. Launched perfectly straight!

Once the top brace is on and I have it all bracketed in, I plan on doing some drifting to see if it helps in slides or negates it. I think it will help as it will take the dampening of lateral movement from the leaf springs out of the equation as the leafs no longer have any side-to-side movement at all, just vertical.

I now should have the time to take apart the front end , add in ' Mother ' and put the coil setup in.

Lookin for 10's with this truck. Probably in the spring.
