  #51
Old 06-16-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Glad to see you got it back together
Reply With Quote
  #52
Old 06-17-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Quote:
Originally Posted by zabeard View Post
nice! so it moves under the current tranny?

you will like a built tranny for sure.
Yeah it would move when the rpm came up a little.As rpm dropped below about 1500 you could feel it slip out of gear but rev it just a little and it would slam back into gear. Not good.

Quote:
Originally Posted by chevyslayer925 View Post

Any idea how much this has costed you since im almost at this point already?
Im going to sit down and make a list of what everything cost me once I get the truck back at end of the week. I have a feeling its gonna be alot but since I have spread it out over the last 5-6 months it shouldnt be to bad.
Reply With Quote
  #53
Old 06-17-2009
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
Quote:
Originally Posted by deathbypsi View Post
Im going to sit down and make a list of what everything cost me once I get the truck back at end of the week. I have a feeling its gonna be alot but since I have spread it out over the last 5-6 months it shouldnt be to bad.
you sure you want to do that???
Reply With Quote
  #54
Old 06-17-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
So far this is the break down.
2 front CV shafts ...........................................130.00
brake pads.............................................. .........24.00
knuckle seals............................................. .......52.00
CV shaft retainer rings........................................12.00
Alabama Cylinderheads..................................... .350.00
Comp 422 cam............................................... ..286.00
Comp springs........................................... ..........84.00
SmithBros pushrods.......................................... ...90.00
DeltaCams rocker shafts.....................................130.00
Gaskets........................................... ................150.00
Timing set............................................... ..........65.00
head bolts............................................. ............30.00
remove 4 broken studs from stock manifolds.............40.00
oil and filter............................................ ............25.00
Waterpump......................................... ................44.00
Port job on heads............................................. ..250.00
Cam sync tool.............................................. .......40.00
plugs............................................. ....................10.00
starter rebuild........................................... ..........60.00
trans rebuild........................................... .........1200.00
EPC solenoid.......................................... ............120.00


Im sure there is more I forgot but oh well. I figure my truck prolly aint worth much more than 3000.00 so I will let somebody else add that crap up
Reply With Quote
  #55
Old 06-17-2009
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Brian glad to see you have it running again. That has to be a great feeling.
Reply With Quote
  #56
Old 06-18-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by deathbypsi View Post
So far this is the break down.
2 front CV shafts ...........................................130.00
brake pads.............................................. .........24.00
knuckle seals............................................. .......52.00
CV shaft retainer rings........................................12.00
Alabama Cylinderheads..................................... .350.00
Comp 422 cam............................................... ..286.00
Comp springs........................................... ..........84.00
SmithBros pushrods.......................................... ...90.00
DeltaCams rocker shafts.....................................130.00
Gaskets........................................... ................150.00
Timing set............................................... ..........65.00
head bolts............................................. ............30.00
remove 4 broken studs from stock manifolds.............40.00
oil and filter............................................ ............25.00
Waterpump......................................... ................44.00
Port job on heads............................................. ..250.00
Cam sync tool.............................................. .......40.00
plugs............................................. ....................10.00
starter rebuild........................................... ..........60.00
trans rebuild........................................... .........1200.00
EPC solenoid.......................................... ............120.00


Im sure there is more I forgot but oh well. I figure my truck prolly aint worth much more than 3000.00 so I will let somebody else add that crap up


3192 bucks damn i wish i had to much money to drop into my truck.


it looks great and i have gotten alot of great into from this build
Reply With Quote
  #57
Old 06-21-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Got the truck back from the trans shop yesterday! Trans works great but had a few scares!

I pick the truck up and pull out onto the main road and something is clunking really bad.As I row the wheel left to right I get this super bad clunking from front end so I pull over. I guess somebody at the shop locked my one and only AVM hub in and I was feeling the Aussie. I have a feeling the locker is damaged from last years disaster day also because even on pavement with only one hub on the front I wouldnt think the front axle would clunk that bad with a hub locked in. I will look into that later.

I turned my turn signal on and I had smoke start pouring out around my hazzard button!! I freak and pull over so I can yank a battery cable but as I come to a stop the signal starts blinking and the smoke stops.....been fine since.

Even though it was fine when I put it back on, my fan clutch is now locked up tight. Truck sounds like a P-51 Mustang going down the road! Since Im done mudding with this truck now I think I mite go back to an electric fan setup.

Overall Im very happy to have it back on the road! Missed this POS! Today Im bolting all my skidplates back on,installing my Sirius crap,and getting my a/c recharged.

........keep your fingers crossed.
Reply With Quote
  #58
Old 06-21-2009
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
congrats, and good luck. hopefully my rebuild wont be as costly.
Reply With Quote
  #59
Old 06-21-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Awesome info. I'll have to keep this one saved so I can look back to it when I'm ready to start the Ranger.
Reply With Quote
  #60
Old 06-21-2009
RangerJacoby99's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
theres actually a recall from ford on the turn signal smoking look in to it.
Reply With Quote
  #61
Old 06-27-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Here is the one week update.

510 miles driven so far.

Multifunction switch has been replaced,a/c is blowing cold and so far not one issue with the motor or trans ...other than being on my third Autozone fan clutch which still never seems to disengage.Going back to an electric next.


The new motor is dead silent with no ticks,knocks or anything else.Once its warmed up it has a nasty idle that I could see not all people liking....I love it,reminds me of my old 5.0 cars. Truck still will not smoke the tires from a dead dig but once it hits 3500rpm and up there is not doubt this thing is making way more power than before! If I stuff it from a 45+ mph roll it accelerates like I still cant believe! I was shocked the first time I stuffed it to pass somebody !!

So far I am very happy with how it turned out. My trans rebuild seems to be holding up fine and even with all the engine mods I did I am happy to report it is getting the same 16mpg average to a tank of mixed driving as it did prior to me killing it 14 months ago. And that is still with the original O2 sensors in it, that dam fan clutch that never free wheels and my bed cover is not back on yet either. I am hoping that once I replace all the O2's, get that fan off the motor and put my bed cover back on I should get at least another 1.5-2 mpg out of it.
Reply With Quote
  #62
Old 06-27-2009
'91 Project-STX's Avatar
Member

Join Date: Jun 2009
Location: Martinez Ga
Posts: 263
this motivates me to rebuild an old 2.9, but i don't like 4.0's to much, it red lines 1k less than my 2.9 and it has more power, but its heavier and the trade off doesn't seem worth it to me, or i would have gotten a 4.0 already and started rebuilding it.

since you have a 2.9 and a 4.0, which seems better to you on a weight to power ratio, on stock rebuild?
Reply With Quote
  #63
Old 06-28-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
I think I need to ride in it eventually. Sounds very promising!
Reply With Quote
  #64
Old 06-28-2009
swickwake's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
Quote:
Originally Posted by deathbypsi View Post
Truck sounds like a P-51 Mustang going down the road!


nothing sounds as good as P-51


great job on the rebuild
Reply With Quote
  #65
Old 06-28-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i want to hear the idle with it warmed up. are you running stock exhaust or what?
Reply With Quote
  #66
Old 06-28-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Stock manifolds for a little longer yet into the stock Y-pipe going to 3" pipe after cat into a 3" Magnaflow with a full 3" tailpipe. Sounds great.

The fan I hate tho.
Reply With Quote
  #67
Old 06-28-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Glad to see you have your truck back and running but why didnt you go with a rubber floor?
Reply With Quote
  #68
Old 06-28-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
I looked for one for a while when I was working on the inside but couldnt find one.
Reply With Quote
  #69
Old 06-28-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
so when you get a new fan can you get a video of your exhaust at idle so i can hear i want to know what this cam sounds like
Reply With Quote
  #70
Old 06-28-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
I will get a vid in the morning for you.

BTW guys...I am one click away from ordering a tuner thru Underdog-Performance ,the RogueX3. This a good tuner and good place to deal with?

I would like to change my shift points,have a tune for towing,a mileage tune,raise my idle a bit and have the option to change the tunes myself in the future should I ever get a set of headers and other mods. I own a LM1 wideband meter and I have done my own tuning on my old 2.3t cars with my SDS standalone so I know my way around making a good tune.
Reply With Quote
  #71
Old 06-29-2009
God,Country,FORD's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
Brian, you have brought hope to us that have the OHV. Hope that there are things to improve power lol..

would you say that the heads alone (if i were to get the complete ones) would make a noticable difference?
Reply With Quote
  #72
Old 06-29-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Only thing I can say for sure is the heads I got out of the box,as cast, were very rough and need alot of clean up work in the ports.Inside the bowls around the valve seats were left with sharp edges from them machining the heads for valve seat inserts. I would say if you were to bolt these on straight out of the box you prolly wouldnt feel a big differance,however, after just a little time on the bench these heads cleaned up great.

I think it has been proven these aftermarket heads are a much better casting so we shouldnt have to worry about them cracking like a stock casting.That being said I feel its worth every penny to have them worked over before they go on the motor so you get every bit of hidden power in the 4.0 OHV.
Reply With Quote
  #73
Old 06-29-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Quote:
Originally Posted by Downey View Post
i want to hear the idle with it warmed up.
Here you go. Its weird how my camera picks up sounds I cant hear. You can here the valvetrain and belt tensioner in the vid but up close in person you can barely hear those things.And that dam fan.And the dogs.And the neighbor mowing.And the wind......

This is just idling in park.
2009_0628idle30001.flv video by deathbypsi - Photobucket

This dropping it in gear with a little rev.

2009_0628idle30002.flv video by deathbypsi - Photobucket
Reply With Quote
  #74
Old 06-30-2009
Member

Join Date: Apr 2006
Location: Paulding , GA.
Posts: 1,435
man that sounds mean as crap for a 4.0L

now i need u to come down here to Ga. so u can rebuild my 2.9L in bronco II
Reply With Quote
  #75
Old 07-16-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Well today it got a good bath and some new shoes! Good-bye Buckshots and hello Grabber AT2's!

Name:  2009_0715buckshots0010.jpg
Views: 1
Size:  108.0 KB
Name:  2009_0715buckshots0008.jpg
Views: 1
Size:  113.1 KB
Name:  2009_0715buckshots0011.jpg
Views: 1
Size:  103.8 KB
Name:  2009_0715buckshots0009.jpg
Views: 1
Size:  103.4 KB

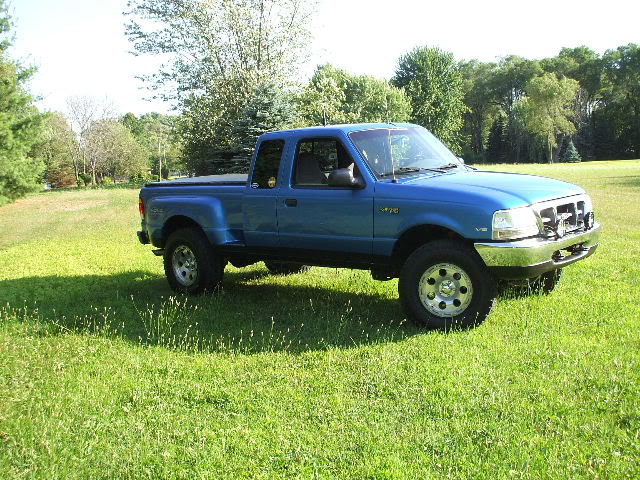

Name:  2009_0715buckshots0013.jpg
Views: 1
Size:  109.9 KB
Name:  2009_0715buckshots0014.jpg

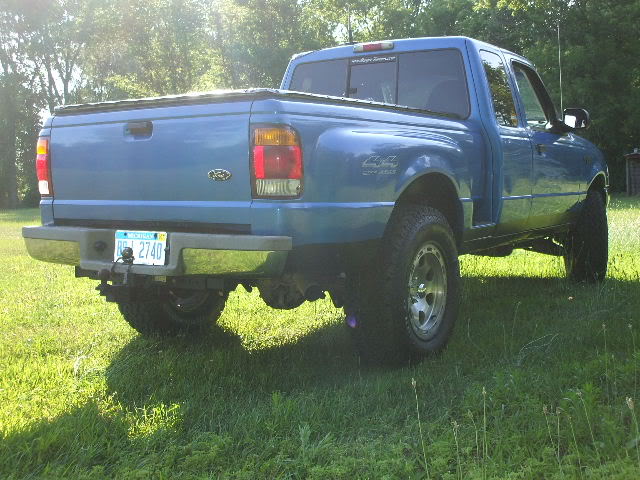

Views: 1
Size:  74.0 KB
Name:  2009_0715buckshots0016.jpg
Views: 1
Size:  79.5 KB

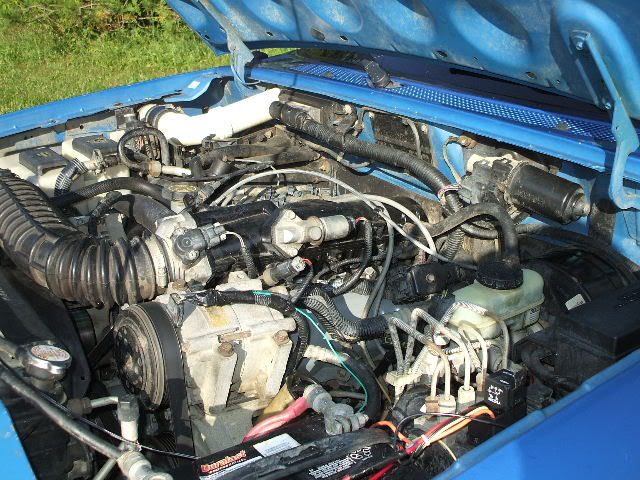

Name:  2009_0715buckshots0018.jpg
Views: 1
Size:  94.5 KB

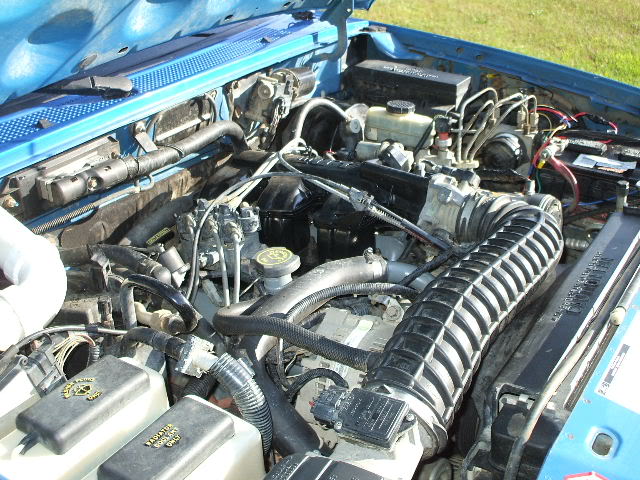

Name:  2009_0715buckshots0019.jpg
Views: 1
Size:  94.8 KB

I put an electric fan on and my bed cover one tank of fuel ago and it got 17mpg beating the **** out of it. My buddy has a 07 Quad cab Hemi Ram 4x4 and we were messing around last weekend and from a dig he blows me away but from any kind of roll race from 30mph and up the Ranger is door to door with him. I was impressed.

So far I love these General Grabber AT2's!! Glad I found the post about them before I went shopping.
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Help with troubleshooting starter problem 99ranger ranger99ct General Technical & Electrical 0 07-14-2011 07:29 AM
Project: Bronco 2 Rebuild/Restore Igobytwitch Project Logs 73 11-19-2009 09:22 PM
99ranger shakes when slowly turning jeffdavis411 General Technical & Electrical 9 03-15-2008 09:35 PM
D44 Rebuild and Install Project zabeard Project Logs 55 08-14-2007 10:08 AM
99ranger center consol removal help plz helliboarder Interior Semi-Tech 8 10-03-2004 10:46 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 10:51 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
