Project SAMI

i picked up this 1987 Suzuki Samurai.

how she sat when i picked her up, before i could get it home i had to fight off over 8 wasp nests....that was not fun.

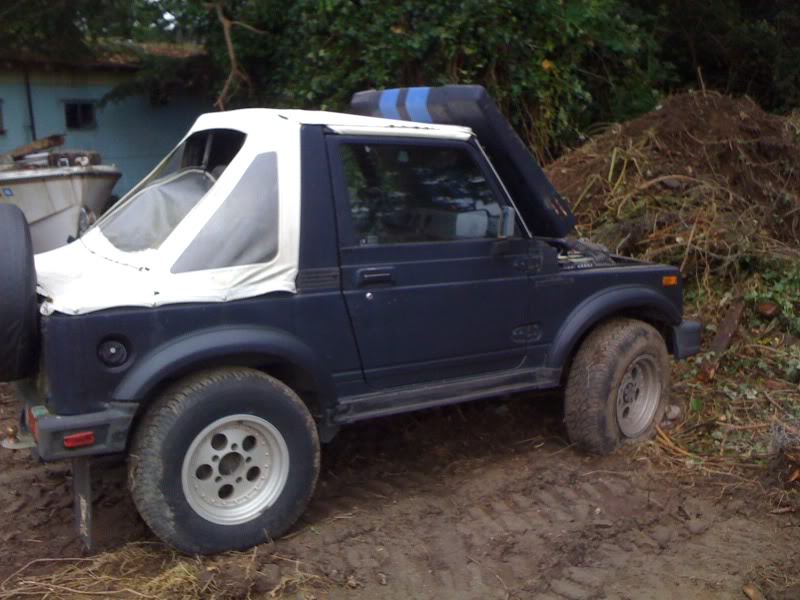

Name:  IMG_0130.jpg
Views: 4
Size:  78.2 KB

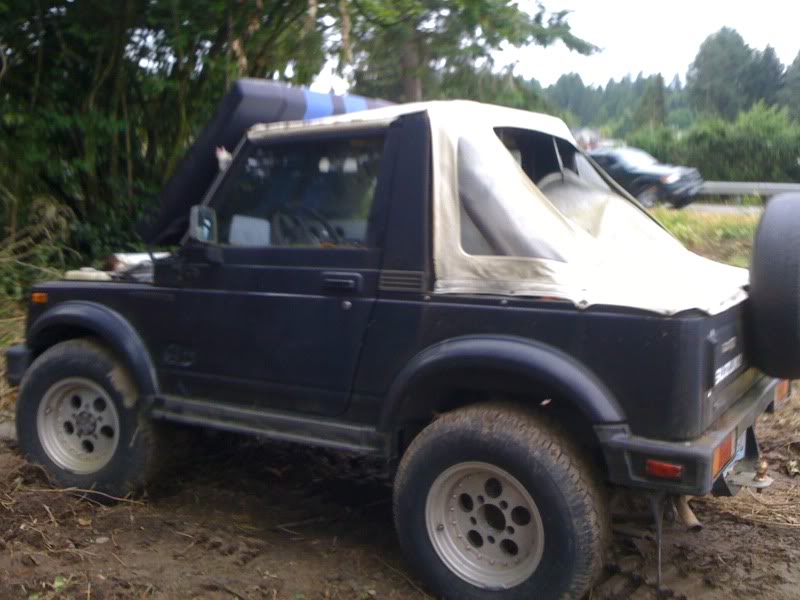

Name:  IMG_0132.jpg
Views: 4
Size:  65.3 KB

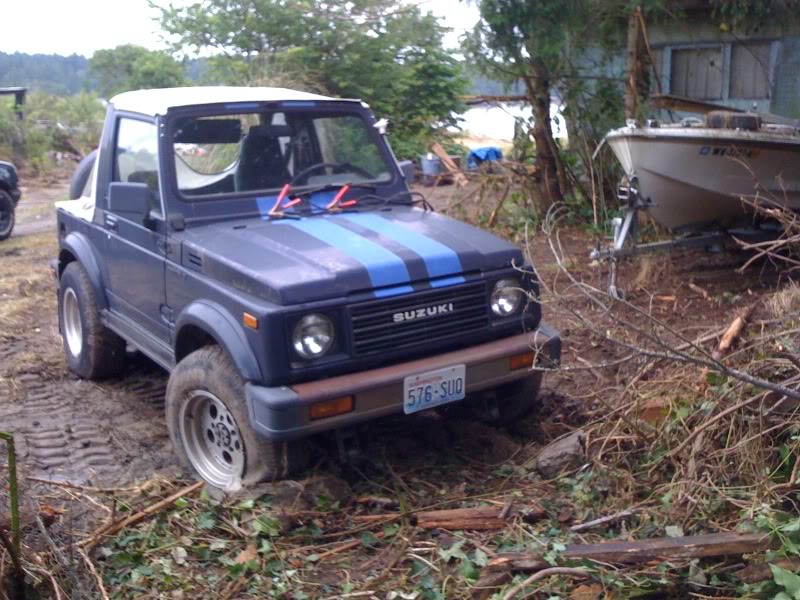

Name:  IMG_0135.jpg
Views: 4
Size:  117.8 KB

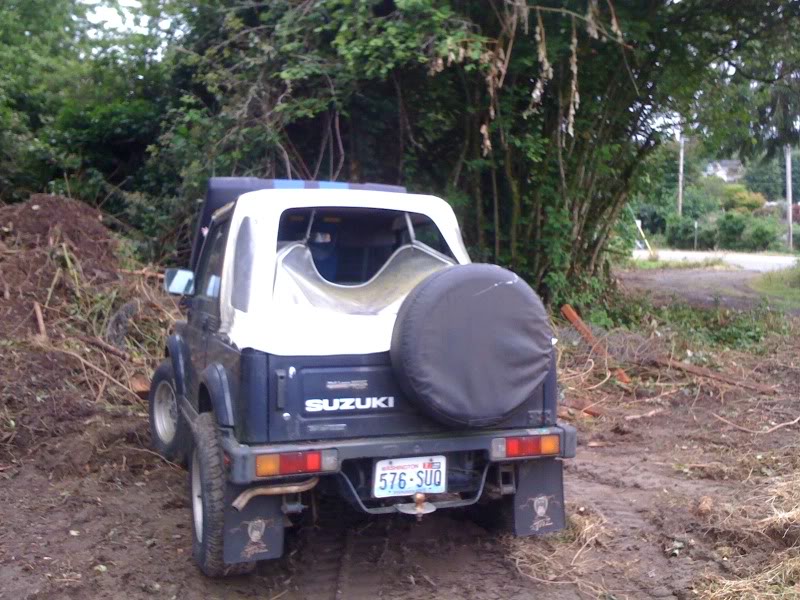

Name:  IMG_0131.jpg
Views: 4
Size:  111.8 KB

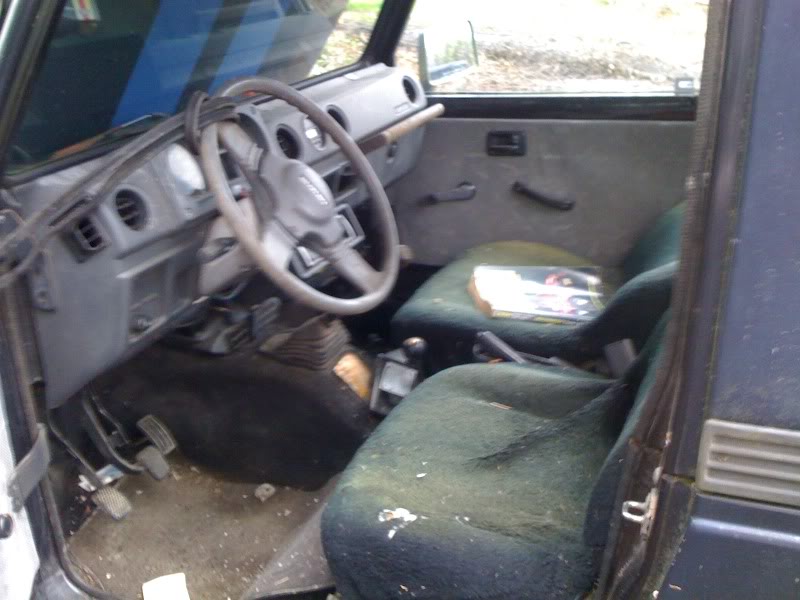

Name:  IMG_0133.jpg
Views: 4
Size:  64.3 KB

Name:  IMG_0128.jpg

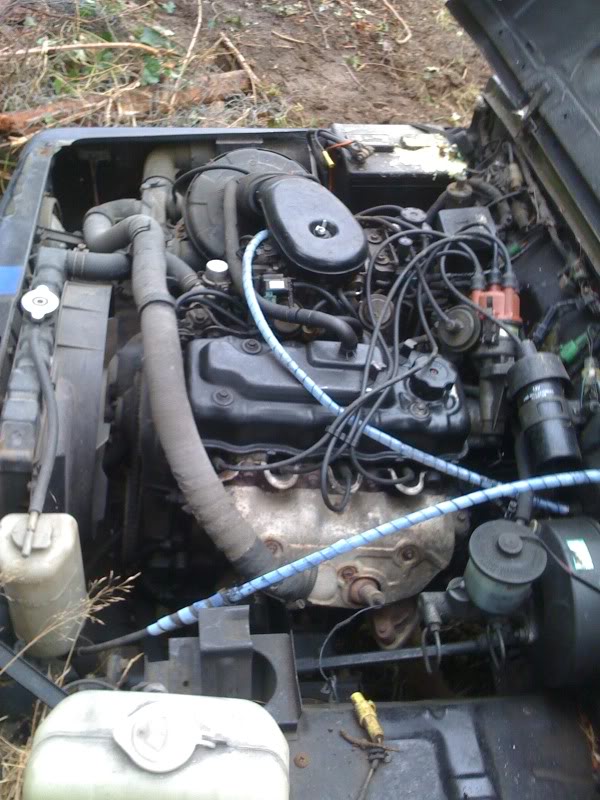

Views: 5
Size:  96.1 KB

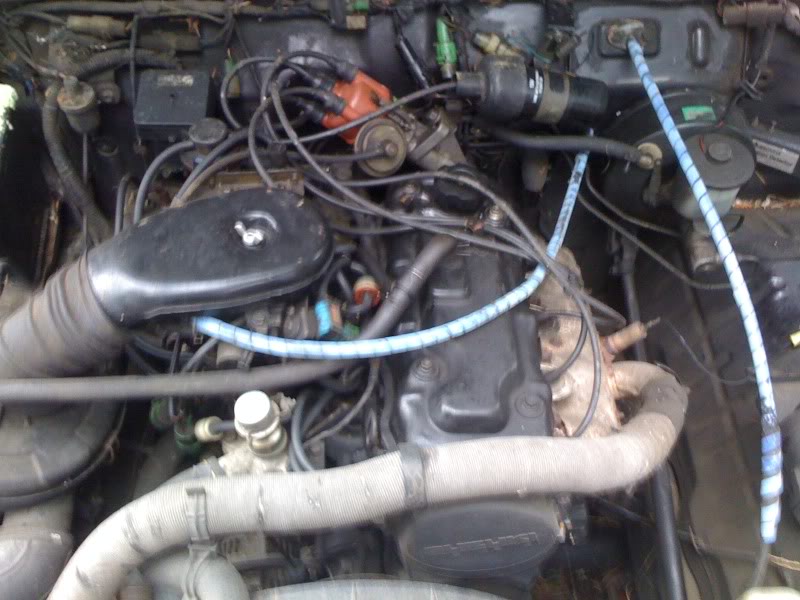

Name:  IMG_0126.jpg
Views: 5
Size:  78.4 KB



after i got it home and gave it a bath and ripped out the carpet and seats (they were thrashed). i was suprized at how much the paint cleaned up with just a bath.

Name:  35391_405502247735_537022735_472797.jpg
Views: 4
Size:  69.5 KB

then of course after seeing how clean it got i had to try and take it one step farther. it took a lot of time but the wax worked.

Name:  36208_405499952735_537022735_472792.jpg
Views: 4
Size:  58.0 KB


so far i have done a lot of little painting and stuff. the carb is all gummed up and fuel wont make it to the engine. im going to try and clean it up and make it work...if not it will probably get a propane swap from gopropane.com.

i have put in new seats that i had laying around the house. they are the plastic buckets from summit racing.

future plans (if i dont sell it and make alot of money...i bought it dirt cheap)

*SOA swap
*rear locker
*more flexy leafs
*remove blue stripes
*cage
*bumpers
*meaty tires and wagon wheels
and alot more
Reply With Quote
  #2
Old 07-11-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
the propane will help that lil engine alot. one of the better things you can do to it.
also look into toyota axles. sami axles are a pain and somtimes hard to find parts for. its work and the rear diff is centered in stead of off centered but it works just fine. i dont think your planing on goin 70mph...not that it will but will work fine for wheeling. also jeep yj springs are a comon and easy flexy solution.

hope ya keep it
Reply With Quote
  #3
Old 07-11-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
shall i quote myself? lol

Quote:
Originally Posted by rstangboi View Post
good job with it already!

im kinda jelous...my friend has one...those damn things really do go everywhere..just kinda tippy.

anyways, yota axles, 35's, low range tcase, lockers.....and your set.

also, some YJ leafs or something should work out great and maybe a nice belly pan?
Reply With Quote
  #4
Old 07-11-2010
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Awesome little project, had one on 35"s with a 1.6L swap, locked with on-board air and winch. Went through anything!

Keep us updated. Check out zukikrawlers.com if you haven't already.
Reply With Quote
  #5
Old 07-11-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
I just about had one of those a few times. that thing is damn clean. There are tons of great websites and parts for those things. There are some really awesome kits to throw small turbo diesels in them, like VW's etc.

like some said, get some jeep leafs and just do a leaf over and you got a pretty good lift for some 33's or so
Reply With Quote
  #6
Old 07-12-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice pick up. I'd love to have one.
Reply With Quote
  #7
Old 07-13-2010
Endoverend47's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Fox Island, Wa
Posts: 239
so before i bought it i knew it wasnt running...wasnt getting gas...but it ran well when i put gas directly in the barrel of the carb, until it burned it all....well after messing with the carb and no luck with it yet....i desided to take a break from it....so i did a compression test for the hell of it....well the first cylinder 135psi...second 132....third 138...i was happy until i got to number 4....0psi....i tested it twice...got nothing. i really hope i just messed up when i did the test.
Reply With Quote
  #8
Old 07-13-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
well even if it is the sidekick motors are a huge upgrade lol and fuel injections!
Reply With Quote
  #9
Old 07-13-2010
Endoverend47's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Fox Island, Wa
Posts: 239
ha i know...but having just graduated high school and going to school in the fall...i dont have a ton of money to put into it. lol
Reply With Quote
  #10
Old 07-14-2010
Endoverend47's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Fox Island, Wa
Posts: 239
so today i took a break from working on the engine and installed some gauges i had left over from a differant rig. i think i found just about the best/cleanest place for them. i dont use the vents anyway (i only use defrost and floor). water temp, oil pres, and volt.
Name:  33417_407205507735_537022735_477089.jpg
Views: 1
Size:  43.4 KB
Reply With Quote
  #11
Old 07-14-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good!
Reply With Quote
  #12
Old 09-10-2010
Endoverend47's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Fox Island, Wa
Posts: 239
update

freshly rebuilt head (rebuilt at machine shop)
water pump
timing belt
head gasket
spark plugs
plug wires
fan/water pump belt
radiator hoses
weber carb conversion
doug thorely header
ect..

front bumper

rear bumper



stainless interior panels
summit racing seats on factory seat rails
cb radio
hella 500 driving lights
55watt back up lights

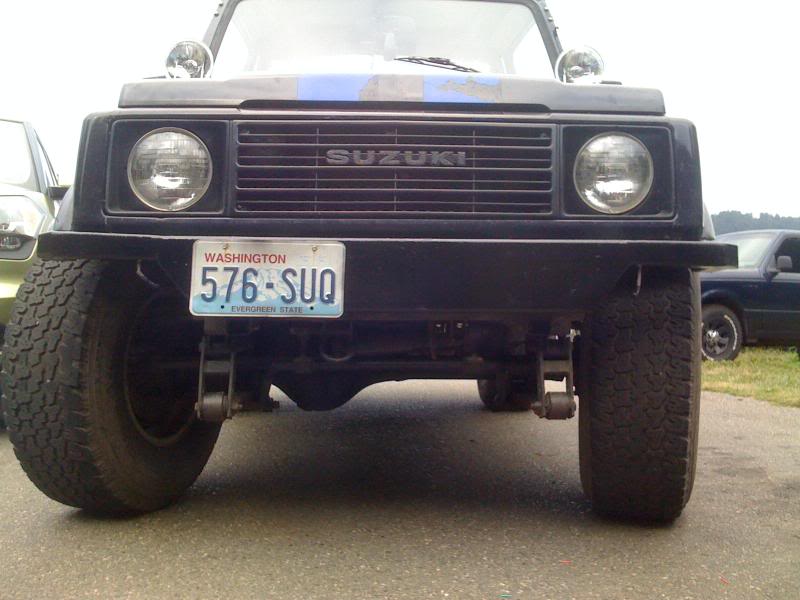

Name:  IMG_0431.jpg
Views: 2
Size:  65.8 KB
Name:  IMG_0335.jpg
Views: 2

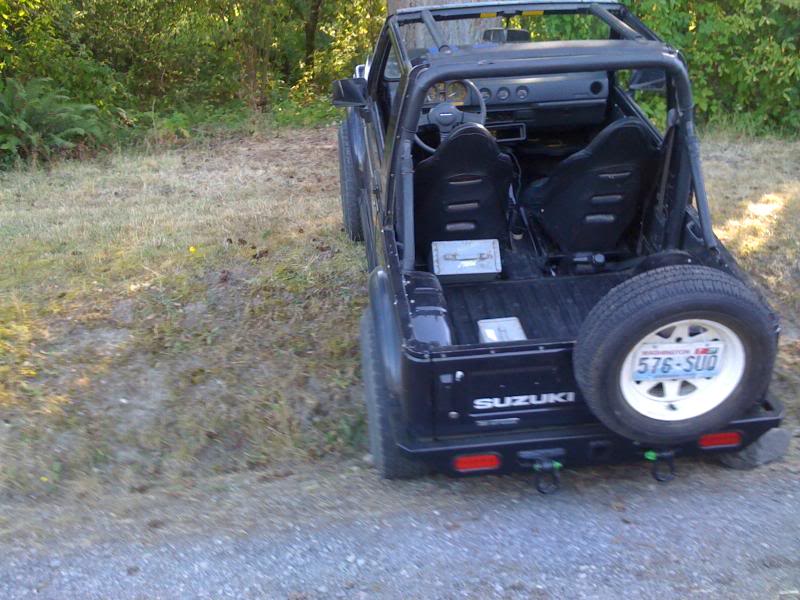

Size:  84.0 KB
Name:  IMG_0372.jpg
Views: 2
Size:  94.1 KB
Name:  IMG_0421.jpg
Views: 2
Size:  56.6 KB
Name:  IMG_0424.jpg
Views: 2
Size:  71.7 KB

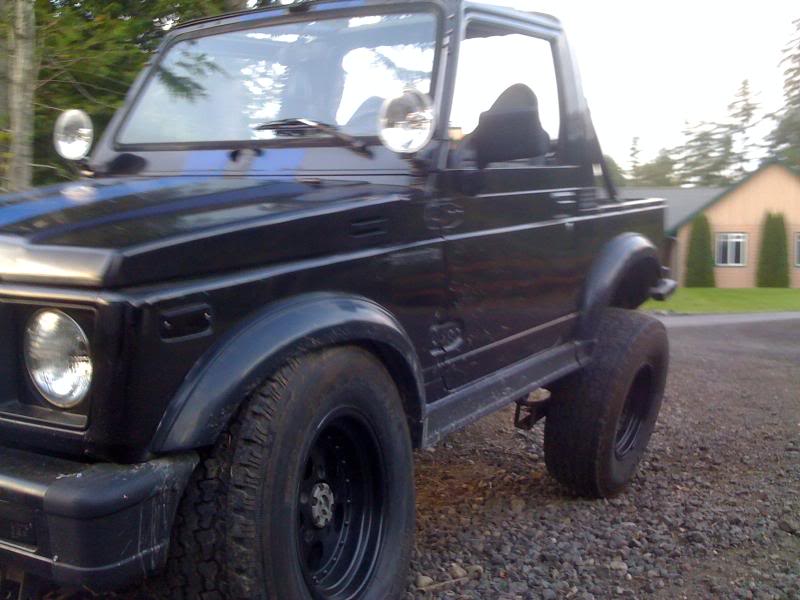

Name:  IMG_0425.jpg
Views: 1
Size:  72.1 KB

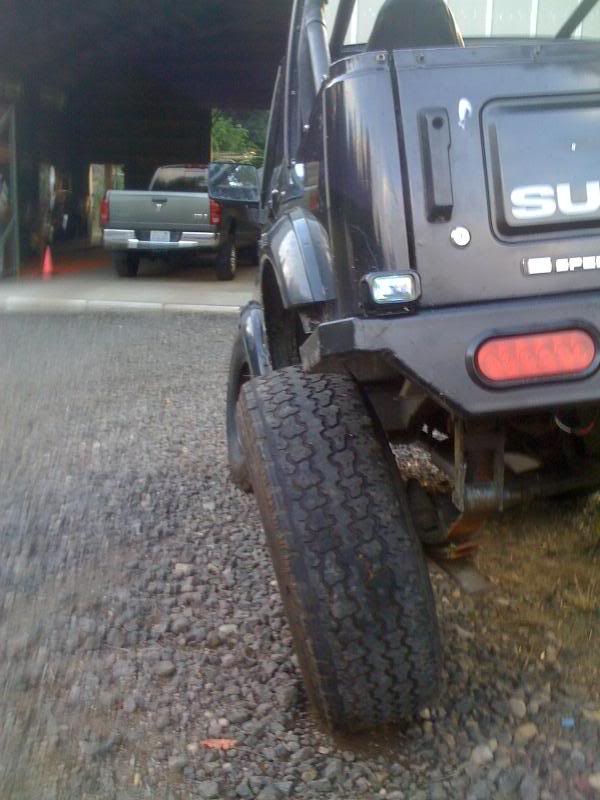

Name:  IMG_0422.jpg
Views: 1
Size:  70.7 KB

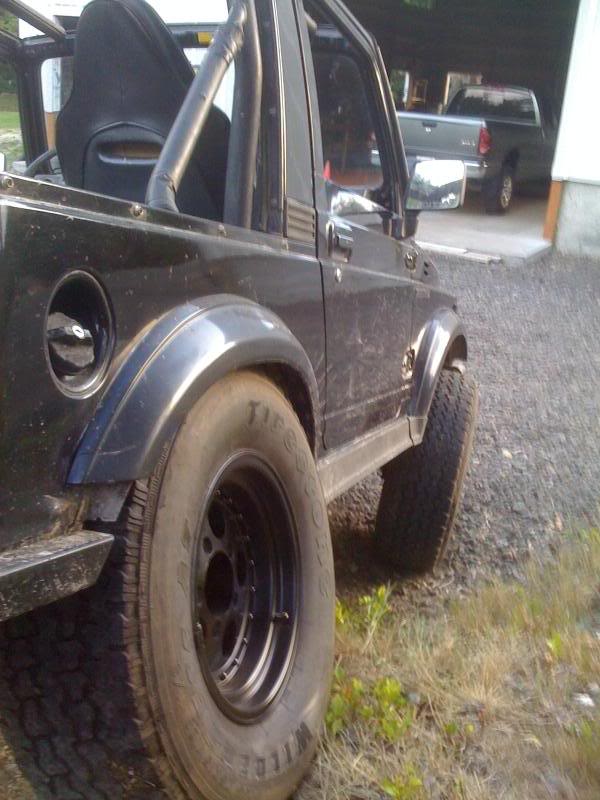

Name:  IMG_0423.jpg
Views: 1
Size:  77.4 KB
Name:  IMG_0397.jpg
Views: 2

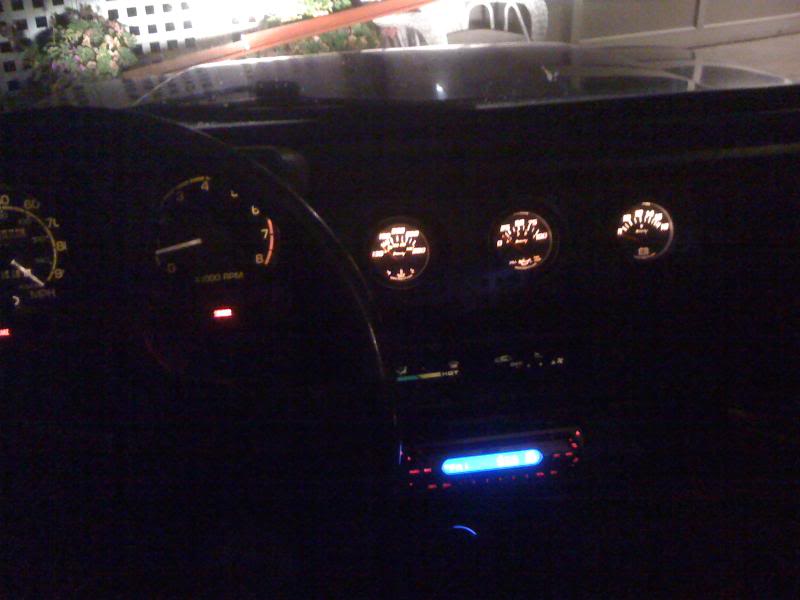

Size:  45.3 KB
Name:  IMG_0407.jpg
Views: 2
Size:  60.9 KB
Name:  IMG_0379.jpg

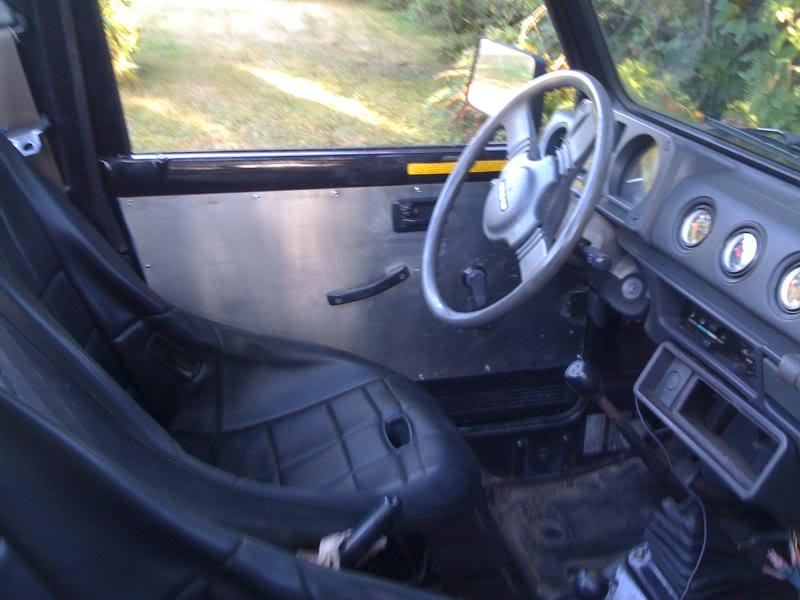

Views: 2
Size:  63.6 KB
Name:  IMG_0348.jpg

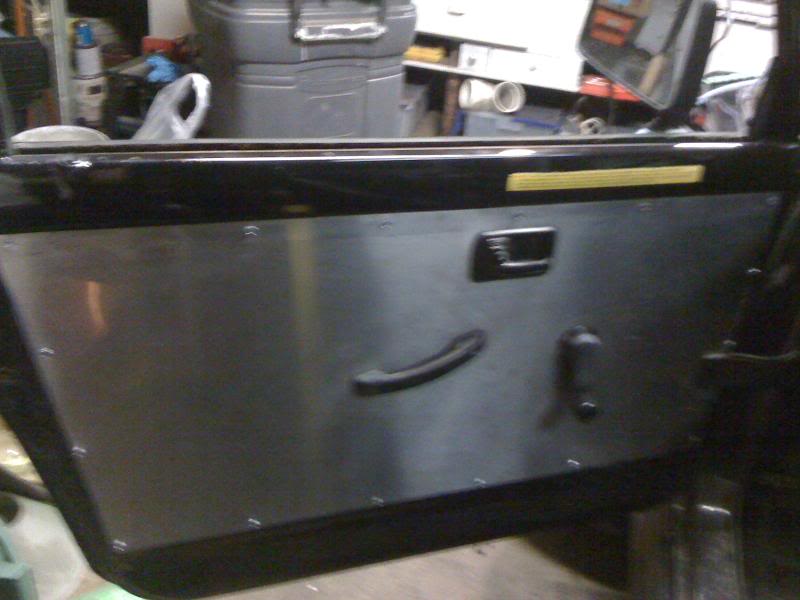

Views: 2
Size:  55.8 KB
Name:  IMG_0364.jpg
Views: 2

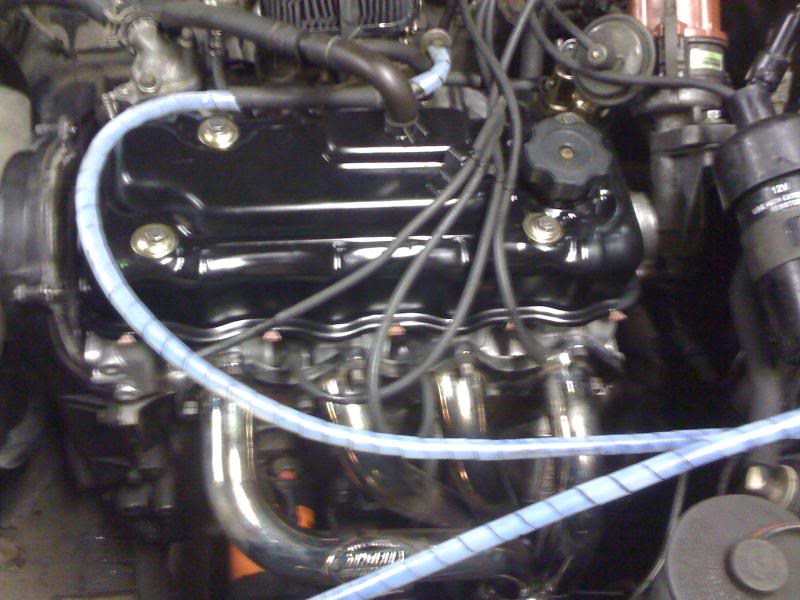

Size:  76.6 KB

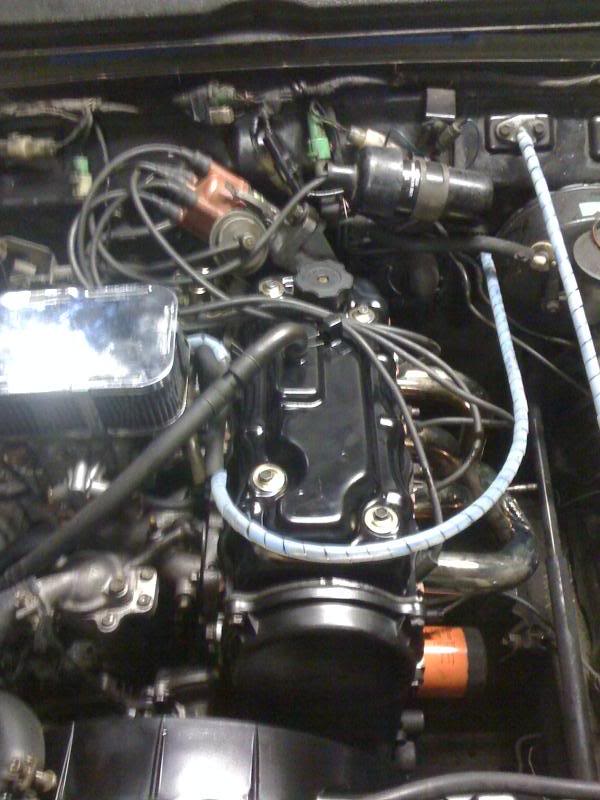

Name:  IMG_0365.jpg
Views: 2
Size:  77.1 KB
Name:  IMG_0426.png

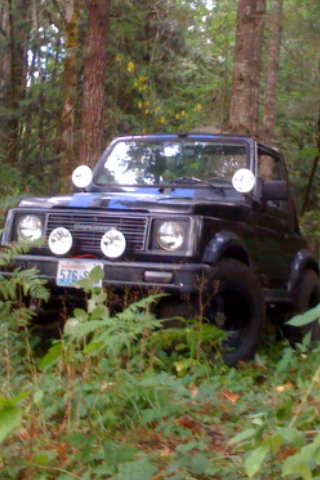

Views: 2
Size:  342.0 KB
Name:  IMG_0420.jpg

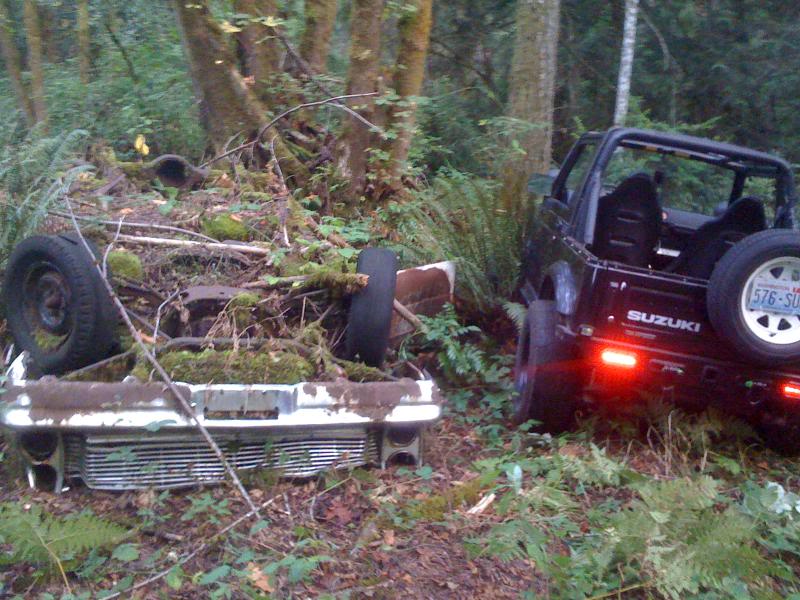

Views: 3
Size:  110.6 KB
Reply With Quote
  #13
Old 09-10-2010
03edge's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Akron, OH
Posts: 1,031
that thing looks like a blast, keep up the good work
Reply With Quote
  #14
Old 09-10-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
keep it up man! its lookin DOPE
Reply With Quote
  #15
Old 09-10-2010
Terrible One's Avatar
Member

Join Date: May 2010
Location: suwanee, GA
Posts: 72
That thing is lookin good! I want one so bad.
Reply With Quote
