Trepaul's Level II Transformation

Well as most of you know I'm swapping in a manual case and going with OEM Level II stuff, minus the tailhousing.

So far I have all I need, but I'll list the prices I paid for the parts

Chrome floor bezel from a 02 FX4OR - $60
RCM cover - $40
T-case shifter arm and ball - $87 (Bought Shane some parts as a trade)
Modified my old Auto/Auto inspection cover to match the Level II's cover, minus all the rubberizing
T-case linkage from a 91 B2 and expo inspection cover rubber with offset case location - $10
Custom t-case linkage bracket to adapt to the standard M5OD-R1HD tailhousing - Free (I made it)
T-case from a 94 Explorer $100 (Pissed about the service with the company I bought it from so I'm going to try and make them pay for half for their mistakes.. Possibly $50)
Rubber soft plug to cap the speedo cable hole - $2.09
2 quarts of royal purple ATF - $24
U-joint clamps for the 1354m's front output - Free - $10 depending on if I buy new or not

The things I might need are:
95-97 expo front driveline if the superlift one won't reach - Up to $50, then new u-joints
1354m pigtail to signal the lights in the dash - Free, junkyard pocket mod

As of right now, I have $324 into the swap and the only thing I wish I had was the Level II inspection cover :( That part alone costs almost as much as I have into the swap!

On to the pics:

Name:  IMG_1789.jpg
Views: 9
Size:  629.0 KB

Name:  IMG_1790.jpg
Views: 8
Size:  628.4 KB

Name:  IMG_1794.jpg
Views: 10
Size:  631.5 KB

Tomorrow if all goes the way it should, I should be starting on the swap around 10am starting with picking the case up at 9am.
Reply With Quote
  #2
Old 03-24-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
nice man!
Reply With Quote
  #3
Old 03-24-2010
David N's Avatar
Member

Join Date: Dec 2008
Location: Williamston, NC
Posts: 1,060
Nice! Good luck!
Reply With Quote
  #4
Old 03-24-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks great so far!
Reply With Quote
  #5
Old 03-24-2010
08rangerdan's Avatar
Member

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
those shifters look real nice together! good luck on the swap, but im sure you wont need it.
Reply With Quote
  #6
Old 03-24-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
get er done now
Reply With Quote
  #7
Old 03-24-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looking good
Reply With Quote
  #8
Old 03-25-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
blang blang!
Reply With Quote
  #9
Old 03-25-2010
kyledm18's Avatar
Member

Join Date: Nov 2006
Location: Thornton N.H.
Posts: 519
can you get pics of everything? just curious lol, and my friend wants to do this to his 99
Reply With Quote
  #10
Old 03-25-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Bling!!

I'll take that driveshaft of your hands.
Reply With Quote
  #11
Old 03-25-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Off topic - TrePaul what's that gauge you got down below the HVAC?
Reply With Quote
  #12
Old 03-25-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Air pressure for his train horns
Reply With Quote
  #13
Old 03-25-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
gotcha
Reply With Quote
  #14
Old 03-25-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by kyledm18 View Post
can you get pics of everything? just curious lol, and my friend wants to do this to his 99
To be completely honest, The pics I have already posted are just about everything. The only thing not shown in the pics is the automatic transmission inspection cover which I cut up for the twin stick setup.

Quote:
Originally Posted by seed60 View Post
Bling!!

I'll take that driveshaft of your hands.
For $400 it's yours! Actually I'm almost 100% positive, the SL shaft will work. I'll find out later today!

Quote:
Originally Posted by 04blackedge View Post
Air pressure for his train horns
Bingo!
Reply With Quote
  #15
Old 03-25-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Alright, little update... Picked up the case this morning and got back home and realized they took off the bracket the linkage attaches to. I was pissed, called them up and complained and they credited $25 back to my card. So the case was $75 and Shane's on his way over with the bracket off one of his cases. Stupid junkyard employees.

Anyways, while I'm waiting for Shane I figured I'd give an update. Case is out and the rubber soft plug is installed and swapped breather tubes over as well.

Name:  IMG_1804.jpg
Views: 7
Size:  427.1 KB

Name:  IMG_1795.jpg
Views: 7
Size:  721.2 KB

Name:  IMG_1797.jpg
Views: 7
Size:  747.5 KB

Where the bracket goes the linkage attaches to... Mother F'ers. lol

Name:  IMG_1796.jpg
Views: 7
Size:  774.1 KB

Soft plug installed

Name:  IMG_1802.jpg
Views: 7
Size:  496.1 KB

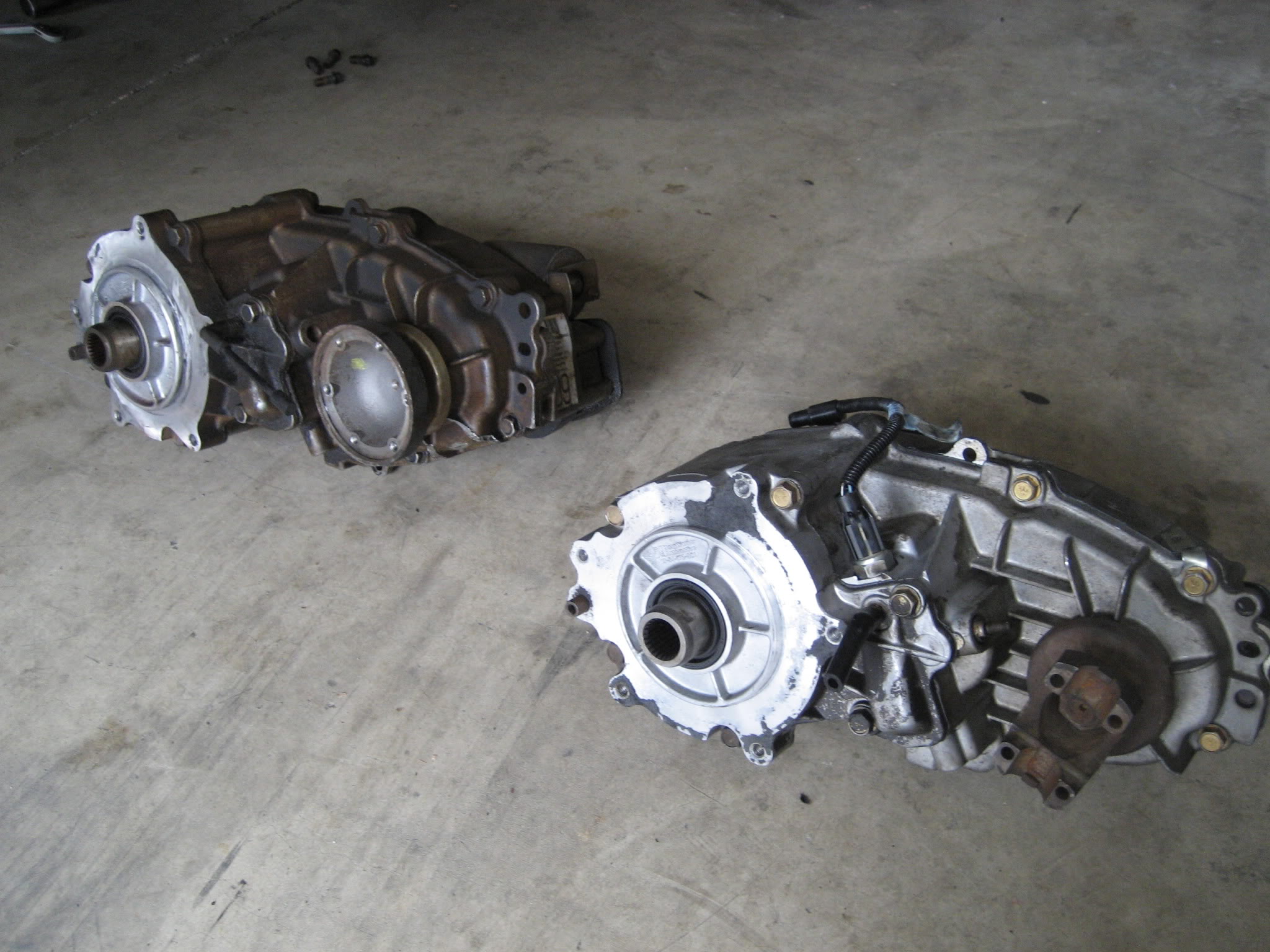

1354e Vs. 1354m.... The new one is so clean!

Name:  IMG_1803.jpg
Views: 7
Size:  353.0 KB
Reply With Quote
  #16
Old 03-25-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Shiny! Looks great man, nice work.
Reply With Quote
  #17
Old 03-25-2010
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
Damn Tre!
Reply With Quote
  #18
Old 03-25-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
yeah!! man it looks great! i have the same floor matts btw...lol

Truck looks real clean underneath too.
Reply With Quote
  #19
Old 03-25-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369

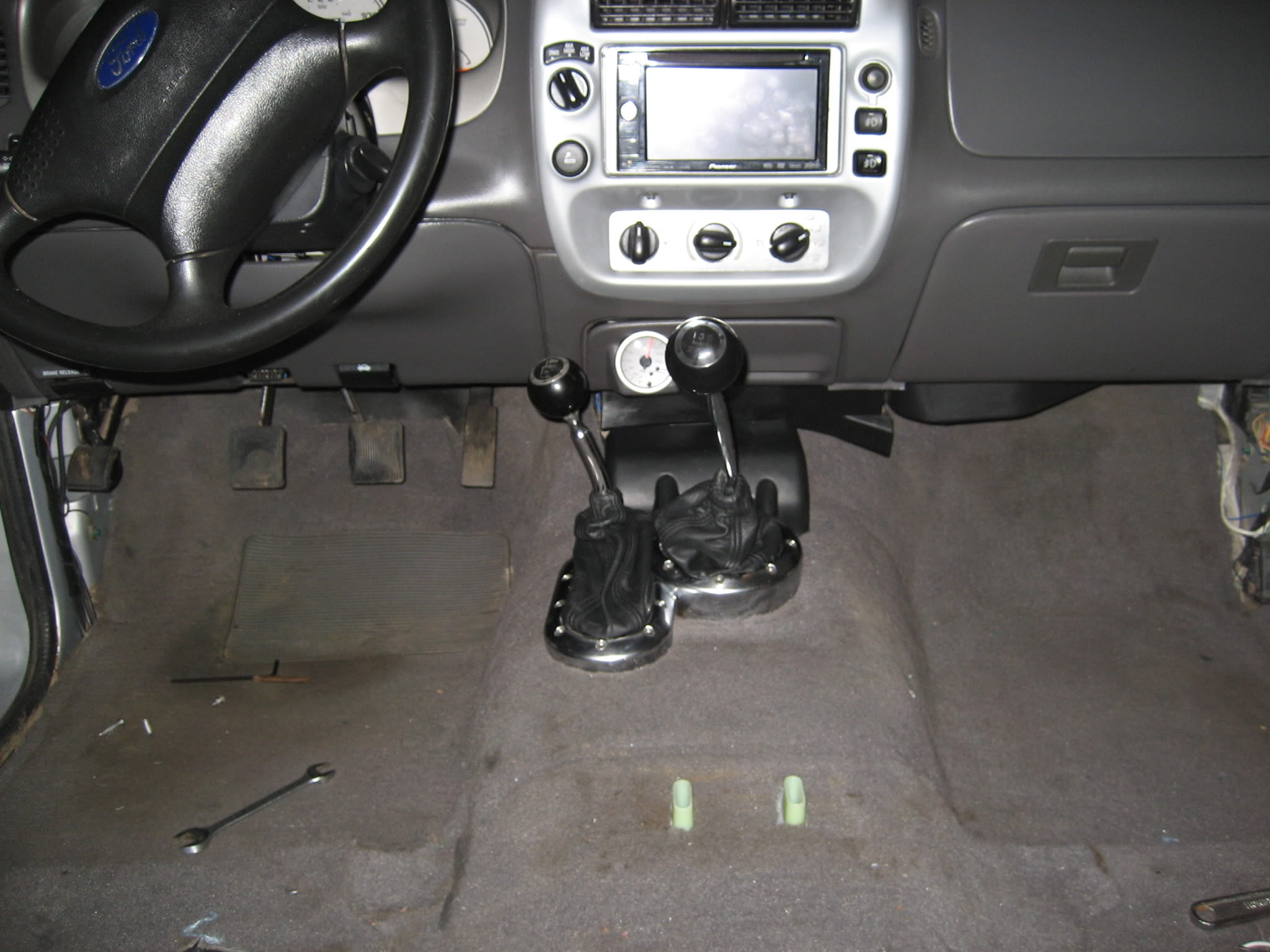

Here's my most recent update.... Just gotta put the driveline back on, add fluid to the case and bolt the seats and center console back down! Lots of trimming and fine tuning had to be done, I'll get a few pics up later of that...

Name:  IMG_1808.jpg
Views: 7
Size:  301.2 KB
Reply With Quote
  #20
Old 03-25-2010
Ranger_Envy's Avatar
Member
iTrader: (5)

Join Date: May 2009
Location: Newton, Ks
Posts: 845
Quote:
Originally Posted by TrePaul86 View Post
1354m pigtail to signal the lights in the dash - Free, junkyard pocket mod
Looks great! Do you know is that pigtail the same as the one used on LII's? Just wondering since it sounds like Shane has one to compare to?

Quote:
Originally Posted by kyledm18 View Post
can you get pics of everything? just curious lol, and my friend wants to do this to his 99
I have some pics of the complete LII setup over in the drivetrain tech. Tell your buddy to just climb under yours.
Reply With Quote
  #21
Old 03-25-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I'll snag a pic of the pigtail for you mike... Mine is cool, it's got pitgatils at both ends of the wiring..
Reply With Quote
  #22
Old 03-25-2010
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
nice setup. if i ever make up my mind my truck will look like this.
Reply With Quote
  #23
Old 03-25-2010
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
This all looks so familiar minus the extra shifter.....

Truk lewks gud
Reply With Quote
  #24
Old 03-25-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Alright, well I got the interior all cleaned up and seats and console bolted back down. Then I went underneath to install the driveline to realize the expo 1354m has a smaller rear driveline flange. I believe it's 4.25" and the ranger is 5" or 5.25".. Can't remember. Anyways, had to put the truck in 4lo and 1st gear to get the rear flange bolt off. Luckily I had a spare 1354e flange from a ranger in the shed and all I had to do was swap them.. I think the flange nut is 32mm like Shane was tellin me, or 1-1/4" socket. That's what I used. Then I bolted the driveline up and added about 1.25qts of Royal purple ATF and took it for a test drive. It's so awesome to be rolling and shift to 4lo, not high speed, but just not completely stopped. It shifts super smooth and the linkage doesn't move at all, well the bracket doesn't! Safe to say, I'm Level II'd! The only thing left I want to do is wire in the pigtail for 4hi and 4lo in case I have someone else drive it and they bump it into 4hi while driving. Use a bi-color LED and mount it in the new 2wd bezel, when I find one.

OH! Forgot to add, although the superlift shaft does telescope/extend, it doesn't reach the yokes.. By about 1/2" total distance. So it's safe to say I think I'm gonna sell the superlift shaft and go get me an expo 95-97 shaft and replace the u-joints. Since the ranger and expo have the same D35 and I'm running an expo 1354m, the expo 95-97 front driveline will be perfect and direct bolt on.

Difference in the 2 flanges. Expo vs. Ranger

Name:  IMG_1809.jpg
Views: 6
Size:  523.3 KB

The case and linkage bolted in and done

Name:  IMG_1810.jpg
Views: 6
Size:  415.6 KB

Name:  IMG_1811.jpg
Views: 6
Size:  330.3 KB

Name:  IMG_1814.jpg
Views: 7
Size:  530.6 KB

Name:  IMG_1816.jpg
Views: 5
Size:  452.4 KB

The pigtail that came with the case for the 4wd indicator

Name:  IMG_1815.jpg
Views: 5
Size:  492.6 KB

All done!

Name:  IMG_1818.jpg
Views: 5
Size:  419.2 KB

Enjoy! Hope this thread helps answer some questions, if you do have any, just lemme know! I'd be happy to help! I started the swap around 11am, and finished up around 4 or so. Had a buddy of mine help me out and Shane and Grant came over for a few to help out! Tell you what, that 1354e is a heavy *** case with fluid in it!
Reply With Quote
  #25
Old 03-25-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Very nice work!
