  #26
Old 02-13-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
thanks man,i know it will all work out in the long run,i am just a little disappointed at the moment with the way it all turned out,thanks for all the help and advise that you have given me.
Reply With Quote
  #27
Old 02-14-2008
Member

Join Date: Jan 2008
Location: Bopson
Posts: 1
your bumpsteer is being caused by your tie rod and draglink being nowhere near parallel. you need a high steer kit and possibly a drop pitman arm. going to leafs will have no affect on your problem ( other than suffering ride quality) truck looks great other than that
Reply With Quote
  #28
Old 02-14-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
the d-44 is so i can have the benifits of high steer etc,as for the leafs they are for now,i have spoke to shonuff and he understands my situation that i am in,it is more complicated than the drag link,panhard,i totally am aware of the geometry of the front end,bump steer was realy not one of my biggest problems.
Reply With Quote
  #29
Old 03-31-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
here are pic's of what i have done so far,some of it is still in the mock up stage

leaf spring hanger





shackle bushings with milled out dom tubing"for fitment"
Name:  100_0705.jpg
Views: 0
Size:  27.8 KB
Name:  100_0706.jpg
Views: 0
Size:  18.5 KB

and the rest of the pic's for now
Name:  100_0669.jpg
Views: 0
Size:  118.9 KB
Name:  100_0670.jpg
Views: 0
Size:  116.9 KB

Last edited by mazda98; 09-20-2008 at 05:37 PM.
Reply With Quote
  #30
Old 04-01-2008
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Looks good Walt, did you get new tires too?

You'll have to PM me your new cell phone number.
Reply With Quote
  #31
Old 04-01-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice walt. its getting there.

you got the knuckle issue ironed out?
Reply With Quote
  #32
Old 04-01-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by zabeard View Post

you got the knuckle issue ironed out?
yeah, i just reclocked the brake bracket and milled 20 thousands out of the back of the knuckle then wala it worked great,i will have pic's of how i did it soon.
Reply With Quote
  #33
Old 04-01-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by 01xltranger4x4 View Post
Looks good Walt, did you get new tires too?

You'll have to PM me your new cell phone number.
will do pm sent
Reply With Quote
  #34
Old 04-25-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550

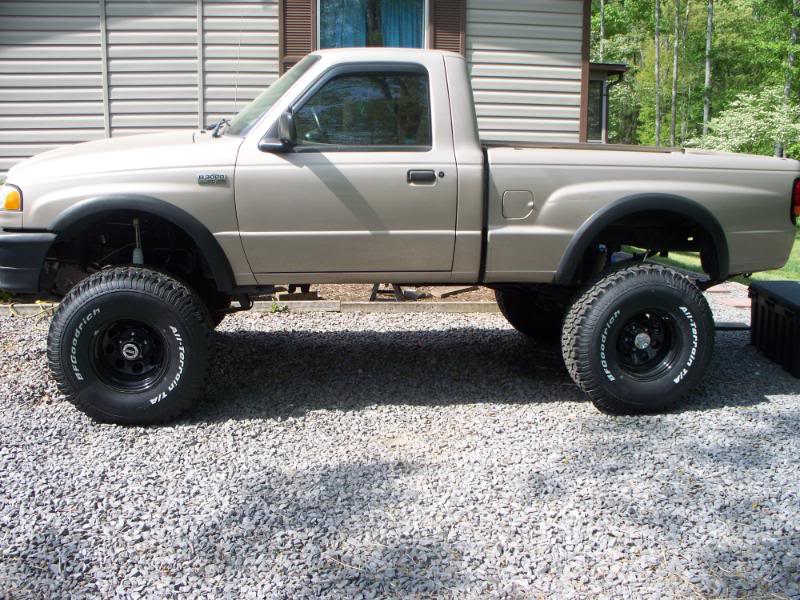

ok,so far it has been coming along slowly but nicely,here are what is done so far,some of the swap is still in the mock up stage but some of it is complete,the side pic

Name:  100_0773.jpg
Views: 0
Size:  120.3 KB

the front pic
Name:  100_0774.jpg
Views: 0
Size:  123.3 KB

passenger side high steer arm,spacer,spring,etc
Name:  100_0775.jpg
Views: 0
Size:  82.9 KB

custom upper driver side spring plate
Name:  100_0777.jpg
Views: 0
Size:  121.3 KB

pitman arm redrilled to accept chevy one ton tie rod ends

Name:  100_0778.jpg
Views: 0
Size:  42.9 KB

close up of the milled f-250 knuckle to accept f-150 callipers

Name:  100_0780.jpg
Views: 0
Size:  75.2 KB

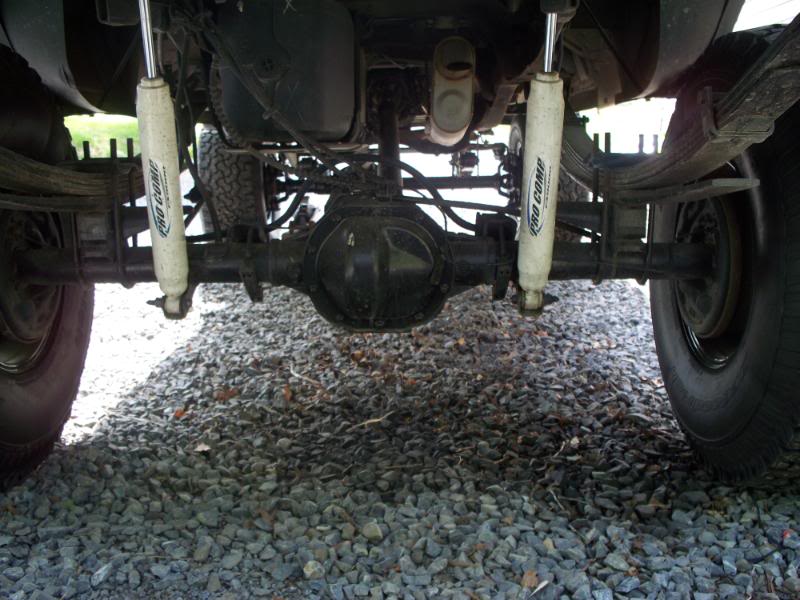

my reclocked and reverse mounted passenger side shock and shock mount

Name:  100_0781.jpg
Views: 0
Size:  88.1 KB

custom upper shock mounts

Name:  100_0783.jpg
Views: 0
Size:  92.8 KB

front side shot

Name:  100_0768.jpg
Views: 0
Size:  107.5 KB

inside pic of the front drivers side
Name:  100_0770.jpg
Views: 0
Size:  73.8 KB

that is about it for now,i will have more in about a week "i hope" it should be finished then.
Reply With Quote
  #35
Old 04-25-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Awesome man!! What's your running total so far?

I don't think I like the shocks like that.. The way the come stock is to help prevent axle wrap.. Do you have trac bars?
Reply With Quote
  #36
Old 04-25-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
no,no track bars,i have not had much axle wrap,since i went to pro comp chevy rear springs those things are thick,i did not see any diference in the way it drove when i did the shock change,the change is for looks only i guess,i copied an f-150
Reply With Quote
  #37
Old 04-25-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
looks good walt.

check out my SAS thread, i used some superduty shock mounts.
Reply With Quote
  #38
Old 04-25-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Nice walt. just as i pictured it when you described it.!
Reply With Quote
  #39
Old 04-25-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by 5speedin2.3 View Post
looks good walt.

check out my SAS thread, i used some superduty shock mounts.
will do,and thanks
Reply With Quote
  #40
Old 04-26-2008
Member

Join Date: Jun 2005
Posts: 148
Nicely done!

I would say, however that those front leaf packs look a little stiff, but I guess you'll find out soon enough.
Reply With Quote
  #41
Old 04-26-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by zainyD View Post
Nicely done!

I would say, however that those front leaf packs look a little stiff, but I guess you'll find out soon enough.
you would be surprised on how soft they realy are
Reply With Quote
  #42
Old 04-26-2008
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Looks good Walt!
Reply With Quote
  #43
Old 05-06-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
ok this is how it sits until i get some factory rear bumper brackets and a drivers side wheel hub"mine took a crap"well here it is for now.

Name:  100_0806.jpg
Views: 0
Size:  111.6 KB

Name:  100_0807.jpg
Views: 0
Size:  126.1 KB

this is my custom upper shock mount it has a base of 4" wide by 3" thick and bevels to 1" thick by 2" wide,the pic's do no justice

Name:  100_0805.jpg
Views: 0
Size:  75.4 KB
Reply With Quote
  #44
Old 05-06-2008
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
lookn good. doesnt look very wide for a FW
Reply With Quote
  #45
Old 05-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
so what did you do for the rear? i didnt see... i saw you mention a FW 8.8 maybe, why not a 9"?
Reply With Quote
  #46
Old 05-06-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 99ranger4x4 View Post
so what did you do for the rear? i didnt see... i saw you mention a FW 8.8 maybe, why not a 9"?
FYI 9s are centered just like D60s, which will require a fuel cell or moving your current tank in the bed. The driveshaft will hit.

Now 8.8s are offset and clear the tank
Reply With Quote
  #47
Old 05-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
thats news to me

badkarma has his stock tank and a 9"...?
Reply With Quote
  #48
Old 05-06-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
a steel shaft just might clear enough. i didnt realize they were different sizes until tonight. i already have the cell so i am going to do it.

i am just warning you, knowing badkarma he probably shifted the tank some, or found some crazy cool way to get around it. LOL
Reply With Quote
  #49
Old 05-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
he has some other crazy stuff on his truck so i wouldn't doubt it lol
Reply With Quote
  #50
Old 05-07-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
nope,no fw 8.8,i currently own an ex 8.8 but it will be a while until i put it under there, as far as my 44 goes i cut it down and had my axle shaft cut and resplined,fw was just a thought,i kind of wish i would have went fw now though,since i have seen beards truck with fw axles,i kind of like it.

Last edited by mazda98; 09-20-2008 at 05:47 PM.
Reply With Quote
