  #26
Old 07-31-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
I saw you post somewhere else about the tow hooks. forget them, weld in a hitch up front. that bumper looks way better than the stepside one haha

now it needs tint
Reply With Quote
  #27
Old 07-31-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
Quote:
Originally Posted by 99offroadrngr View Post
I saw you post somewhere else about the tow hooks. forget them, weld in a hitch up front. that bumper looks way better than the stepside one haha

now it needs tint
Thanks Pedro, and I really want to do the front hitch its soooo badass! especially with a beast d ring. I just need some more info to go off of. Any insight is appreciated lol.

As for the tint. if I don't pay to have that done professionally that is surely something I would F-up. If you wanna help me do the fronts i'm game. First I gotta get my rims and tires. I'm thinking the Ion Alloy 174's in 15x8 with the Grabber Red Letters in 33x12.50.
Reply With Quote
  #28
Old 07-31-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Wingman108 View Post
Thanks Pedro, and I really want to do the front hitch its soooo badass! especially with a beast d ring. I just need some more info to go off of. Any insight is appreciated lol.

As for the tint. if I don't pay to have that done professionally that is surely something I would F-up. If you wanna help me do the fronts i'm game. First I gotta get my rims and tires. I'm thinking the Ion Alloy 174's in 15x8 with the Grabber Red Letters in 33x12.50.
wheels and tires are a must lol. the hitch is easy, just get any straight bar hitch (i've used a chevy 1500 hitch both times) and then cut it down to size and weld it in between the frame rails and onto the weak front cross member. I don't mind helping do the fronts. tint is $20 too so its not bad
Reply With Quote
  #29
Old 08-25-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382

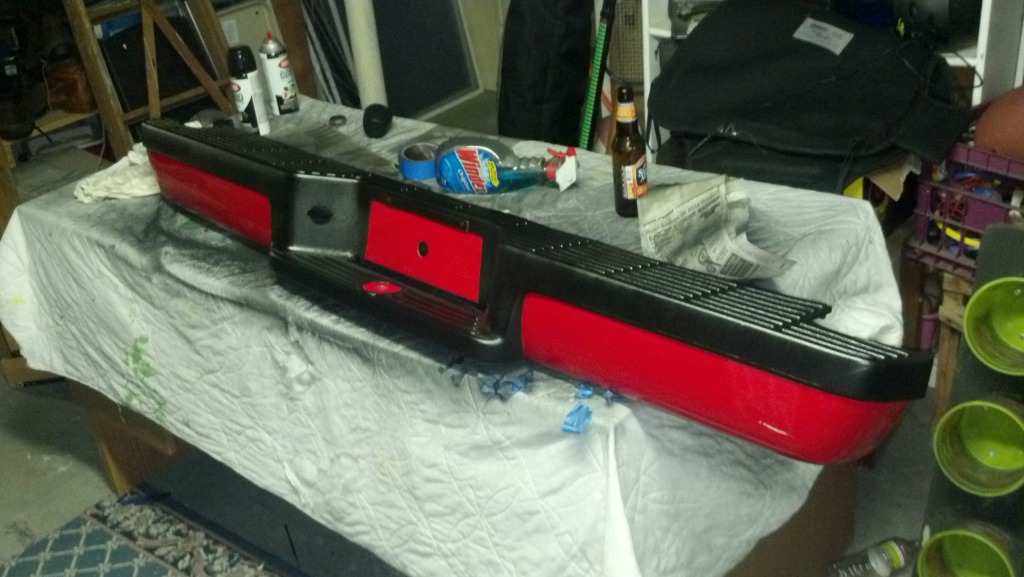

traded my stepside bumper for this one. It's in awesome condition and has no dents which was killing me about the other one. Just painted the plastic, which was also gray.

Attached Thumbnails
Wingman's 2002 Xlt Build-2012-08-23_17-17-01_447.jpg
Reply With Quote
  #30
Old 08-25-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by 98liftedranger View Post
That truck is minus the half bedlined rockers and that actually has bumpers. lol
I missed that one big time. lol.
Reply With Quote
  #31
Old 08-28-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382

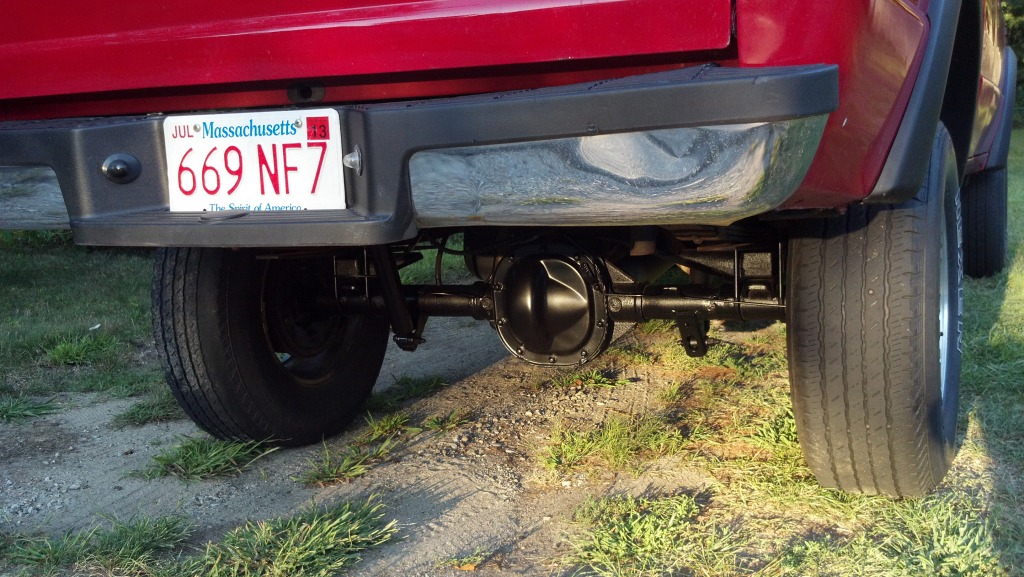

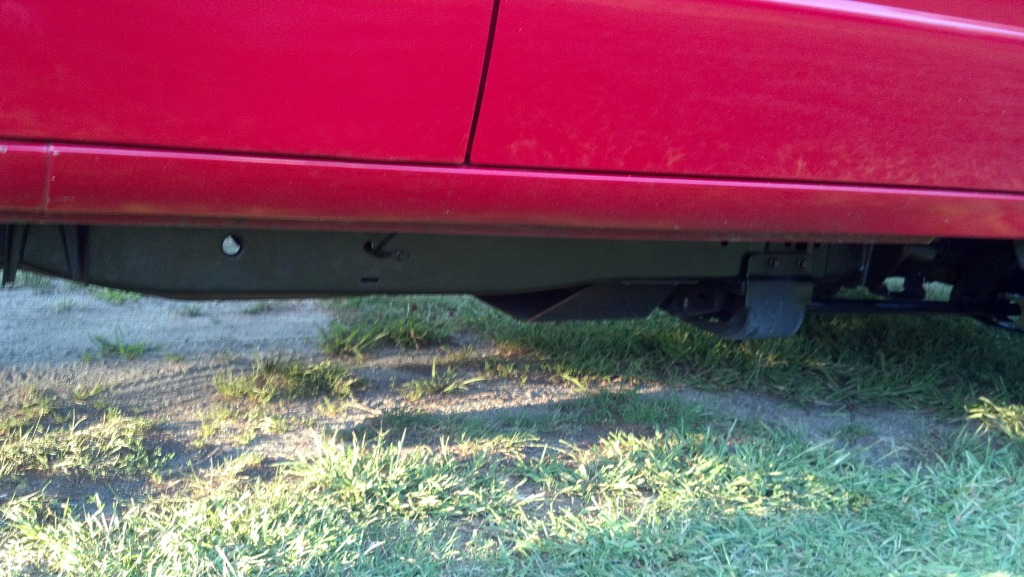

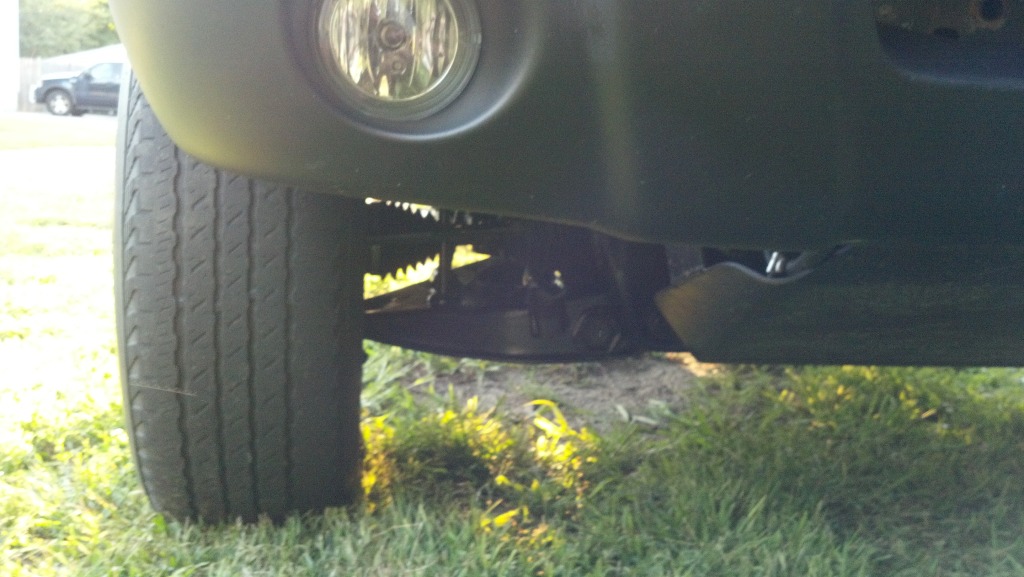

got my spray on today, still gotta do the leaves and drums but did a ton. lots of sanding and wire brushing
Attached Thumbnails
Wingman's 2002 Xlt Build-2012-08-26_18-39-03_795.jpg   Wingman's 2002 Xlt Build-2012-08-26_18-39-17_460.jpg   Wingman's 2002 Xlt Build-2012-08-26_18-39-30_654.jpg
Reply With Quote
  #32
Old 08-29-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good. Need step bars to cover the frame.
Reply With Quote
  #33
Old 08-29-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
Quote:
Originally Posted by 98liftedranger View Post
Looks good. Need step bars to cover the frame.
Yea i ran out of paint haha, I have to paint those and put them back on.
Reply With Quote
  #34
Old 08-30-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382

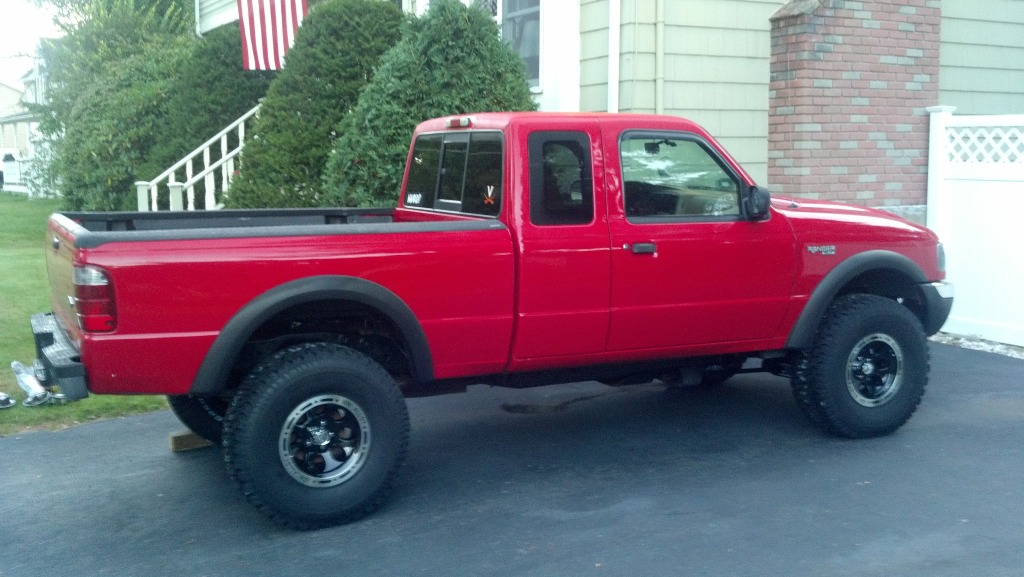

Finally got them. 33x12.50 bfgoodrich at's on 15 inch ion alloy 174s



Attached Thumbnails
Wingman's 2002 Xlt Build-2012-08-30_06-28-51_420.jpg   Wingman's 2002 Xlt Build-2012-08-30_06-29-31_222.jpg
Reply With Quote
  #35
Old 08-30-2012
03crewcabranger's Avatar
Member

Join Date: Feb 2010
Location: Mty, Mx
Posts: 1,031
Looking good.
Reply With Quote
  #36
Old 08-30-2012
mac's Avatar
mac mac is offline
Member

Join Date: Sep 2010
Location: new jersey
Posts: 319
i like those wheels a lot. looks good.
Reply With Quote
  #37
Old 08-30-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
Quote:
Originally Posted by 03crewcabranger View Post
Looking good.
Quote:
Originally Posted by mac View Post
i like those wheels a lot. looks good.
thanks guys!

I had a little rubbing when i went for my first drive so i pulled over into a parking lot to check it out. turns out i rubbed on my drivers side fender flair (right on the corner), and the front valence on both sides. After a quick few snips with the nippers, zero rubbing. even at full lock going over a small bump, and in reverse.
Reply With Quote
  #38
Old 09-03-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
Just finished up painting the running boards and putting them back on


Attached Thumbnails
Wingman's 2002 Xlt Build-2012-09-02_12-33-04_19.jpg   Wingman's 2002 Xlt Build-2012-09-02_12-34-37_996.jpg
Reply With Quote
  #39
Old 09-04-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Fix your bumpers.
Reply With Quote
  #40
Old 09-04-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
The new tires and rims look good.

Where’s the new bumper ?

The front one will need to be painter red too.
Reply With Quote
  #41
Old 09-10-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
Quote:
Originally Posted by Scrambler82 View Post
The new tires and rims look good.

Where’s the new bumper ?

The front one will need to be painter red too.
The other rear bumper is painted and ready to go on but i'm still waiting on my hitch so im waiting for that to put it on.

And i know my rear bumper is wack but whats wrong with the front? Lol looks fine to me.
Reply With Quote
  #42
Old 09-13-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
The gap on the passenger is smaller then the gap on the driver. By the fender, the corner.
Reply With Quote
  #43
Old 09-16-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382

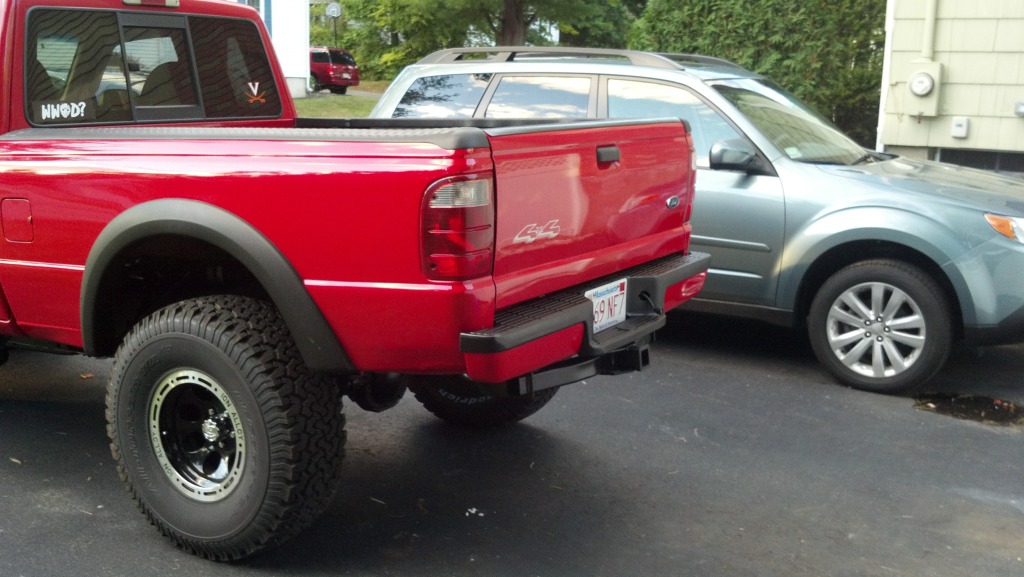

cut and re-welded the hitch for the body lift.



Finally put the new edge bumper on I got from Grev, I just painted the plastic gloss black.



Attached Thumbnails
Wingman's 2002 Xlt Build-2012-09-15_13-53-41_233.jpg   Wingman's 2002 Xlt Build-2012-09-15_18-15-46_852.jpg   Wingman's 2002 Xlt Build-2012-09-15_18-51-15_863.jpg
Reply With Quote
  #44
Old 10-14-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
cranked the torsion bars to get about an inch more up front and made some rear gap guards out of an old treadmill belt.

Attached Thumbnails
Wingman's 2002 Xlt Build-567052_3911451344761_1506505725_o.jpg
Reply With Quote
  #45
Old 10-21-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
First coat of Duplicolor Bed Armor with Kevlar

Attached Thumbnails
Wingman's 2002 Xlt Build-567510_3947735371839_512614291_o2.jpg
Reply With Quote
  #46
Old 10-21-2012
mac's Avatar
mac mac is offline
Member

Join Date: Sep 2010
Location: new jersey
Posts: 319
nice. doing the tailgate?
Reply With Quote
  #47
Old 10-21-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
i"m only doing a small part of it. I have a nice plastic cover for it that screws on so i'm just gonna put that back on.
Reply With Quote
  #48
Old 10-21-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good! How many coats do you have to put on?
Reply With Quote
  #49
Old 10-22-2012
Wingman108's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
I did two but i feel like three would be the best. I still have a good amount left over so i might end up throwing another on. says in the instructions for two or more if necessary. guess it depends on how heavy you lay it on.
Reply With Quote
  #50
Old 10-22-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good!
Reply With Quote
