Added some lighting to the shell, some PICS

Was wanting some better lighting for the shell so I got some led strips, think I will get some cold cathodes next time. These were nice since I could just run a 9 volt on them and not deal with anymore wiring then crimping on a 9 volt battery case.

Oh I will be cleaning up the wiring tomorrow and maybe the bed rug too

My camera sucks at getting this kind of lighting to look decent:

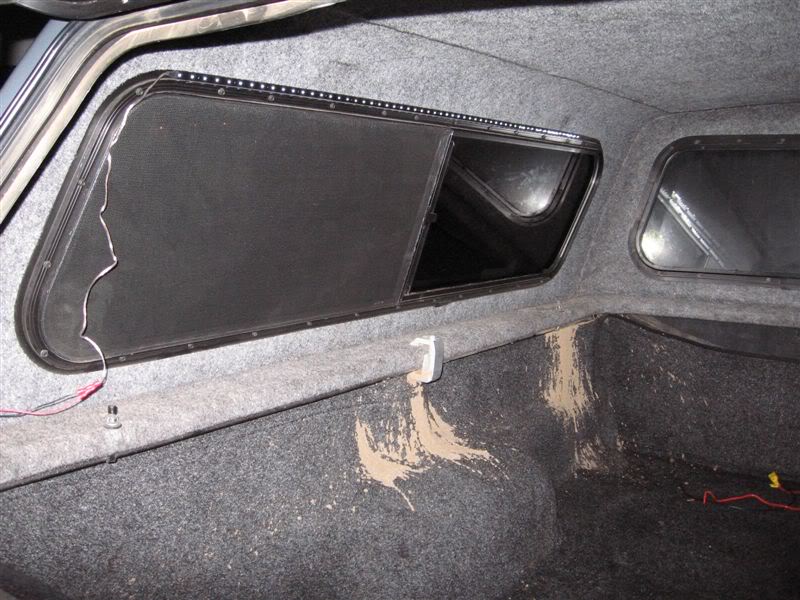

Name:  IMG_2079.jpg
Views: 3
Size:  96.9 KB

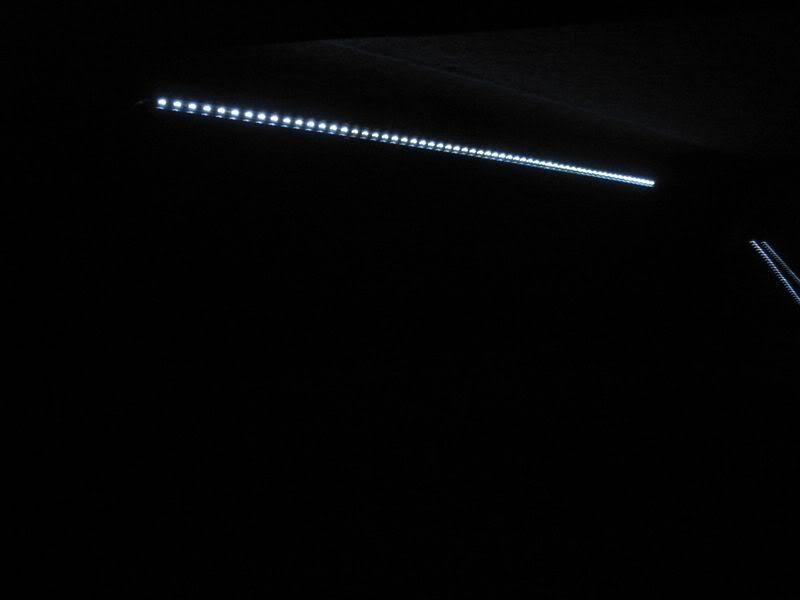

Name:  IMG_2078.jpg
Views: 3
Size:  12.4 KB

Name:  IMG_2077.jpg
Views: 2
Size:  57.5 KB
Reply With Quote
  #2
Old 02-09-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
sweet i wanted some light when i had the cap on how much light do they put out?
Reply With Quote
  #3
Old 02-09-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Great idea. Looks good like that. Will be nice and neat once you clean up the wiring some.
Reply With Quote
  #4
Old 02-09-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by Downey View Post
sweet i wanted some light when i had the cap on how much light do they put out?
Light output is alright, would prefer it to be a little brighter. I will have more feedback when I use it in a really dark area on Thursday. But it is more than the bulb that came with the shell could put out.
Reply With Quote
  #5
Old 02-10-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good Justin.
Reply With Quote
  #6
Old 02-10-2009
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Good mod.
Reply With Quote
  #7
Old 02-10-2009
freddie's Avatar
Member
iTrader: (9)

Join Date: Apr 2007
Location: OH
Posts: 2,463
Where'd you get the LED's? This is a mod I want to do on my Leer cap
Reply With Quote
  #8
Old 02-10-2009
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
great idea. do you have a switch to turn them on and off?
Reply With Quote
  #9
Old 02-10-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by freddie View Post
Where'd you get the LED's? This is a mod I want to do on my Leer cap
Got them on ebay, I will get ya a link. They are about 4' long and flexible.
Quote:
Originally Posted by cchsbuzz19 View Post
great idea. do you have a switch to turn them on and off?
Yea, they each have a 9-volt battery case with switches on the case.
Reply With Quote
  #10
Old 02-10-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by freddie View Post
Where'd you get the LED's? This is a mod I want to do on my Leer cap
http://cgi.ebay.com/48-120CM-60X-Whi...713.m153.l1262

Took about 10 days to ship since it was Hong Kong.

He has some other stuff in his ebay store that I just found that might be a little better...
Reply With Quote
  #11
Old 02-10-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Lighting looks good but AHHHHHHHHHHHHHH that bed rug isnt clean anymore LOL
Reply With Quote
  #12
Old 02-10-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by Redneckstone View Post
Lighting looks good but AHHHHHHHHHHHHHH that bed rug isnt clean anymore LOL
Just wanted to break it in some...after years of being kept clean by you it was time for a change...haha
Reply With Quote
  #13
Old 02-10-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks good. I put silicone around all the crack in the bed so that mud wouldn't get in my bed like that anymore. Does a pretty good job.
Reply With Quote
  #14
Old 02-10-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Should use some LED underglow tubes lol.
Reply With Quote
  #15
Old 02-10-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by Trigger01 View Post
Looks good. I put silicone around all the crack in the bed so that mud wouldn't get in my bed like that anymore. Does a pretty good job.
What happens when you take the shell off?
Reply With Quote
  #16
Old 02-10-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I haven't had it off since I put it on. I didn't seal the cracks between the bed and shell, just all the cracks and holes in the bed itself.
Reply With Quote
  #17
Old 02-10-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Ah got it...yea this all came in from lack of contact between bed and shell....at least I think thats it...
Reply With Quote
  #18
Old 02-10-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
if you want even more light later just a some cold cathodes...

Reply With Quote
  #19
Old 02-10-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Sweeett.... Mood lighting... haha
Reply With Quote
  #20
Old 02-10-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Those should help. What else do you have wired up back there? I wish I could rock a shell and it look right.

Maybe try weatherstripping in between them.
Reply With Quote
  #21
Old 02-10-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by RangerJustin View Post
Ah got it...yea this all came in from lack of contact between bed and shell....at least I think thats it...
Didn't you put the weather stripping/ cushion stuff between it? Mine came from the cracks under the bedrail.
Reply With Quote
  #22
Old 02-11-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by 07SPORT View Post
if you want even more light later just a some cold cathodes...

That will probably be what I end up going with actually.

Quote:
Originally Posted by rngprerunner View Post
Sweeett.... Mood lighting... haha

Quote:
Originally Posted by seed60 View Post
Those should help. What else do you have wired up back there? I wish I could rock a shell and it look right.

Maybe try weatherstripping in between them.
Nothing else back there yet. Still have to wire in my third brake light and will be putting in another 12V source back there. Was actually thinking I should head to vatozone and get some of that weatherstripping.

Quote:
Originally Posted by Trigger01 View Post
Didn't you put the weather stripping/ cushion stuff between it? Mine came from the cracks under the bedrail.
Got it used, and just picked it off his truck and set it onto mine, didn't check underneath to see if it was still there. Just more stuff to fix in the coming months...yay...
Reply With Quote
  #23
Old 02-11-2009
ChaosFromAbove's Avatar
Member

Join Date: Jan 2009
Location: Haddon Heights, NJ
Posts: 313
Quote:
Originally Posted by RangerJustin View Post
Light output is alright, would prefer it to be a little brighter. I will have more feedback when I use it in a really dark area on Thursday. But it is more than the bulb that came with the shell could put out.
rig it up so tht u can hav 2 9v sources...ull get ur brightness
Reply With Quote
  #24
Old 02-11-2009
RangerJustin's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Quote:
Originally Posted by ChaosFromAbove View Post
rig it up so tht u can hav 2 9v sources...ull get ur brightness
I meant to ask that, if running a 9 volt versus running it to the battery would effect the brightness.
Reply With Quote
  #25
Old 02-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by RangerJustin View Post

Got it used, and just picked it off his truck and set it onto mine, didn't check underneath to see if it was still there. Just more stuff to fix in the coming months...yay...
It's not bad to put on. It's like $20. All you have to do is take the cap off, put the stuff on the shell or the bed rails and set it back on and you're good to go.
Reply With Quote
