Finally put it in

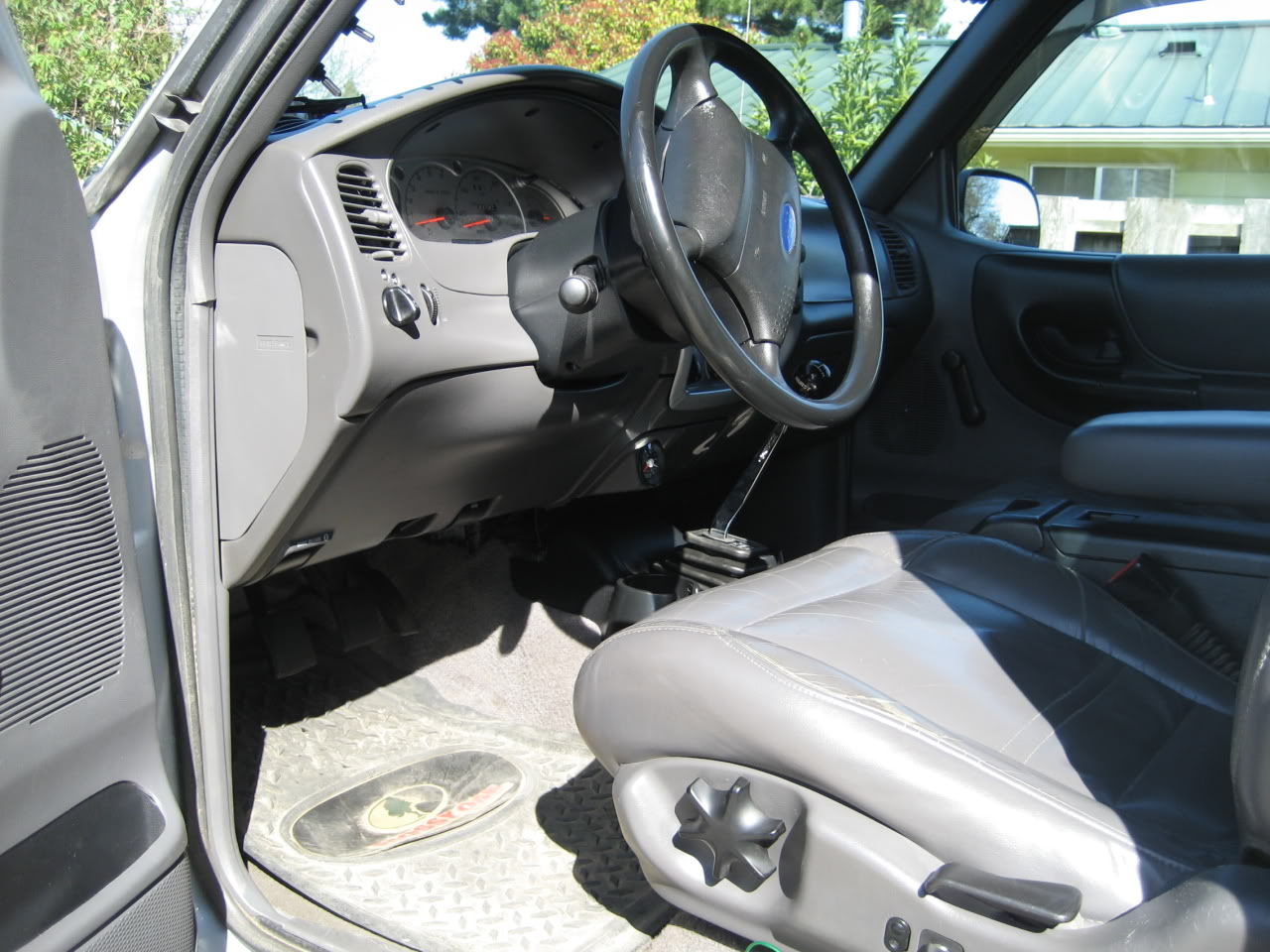

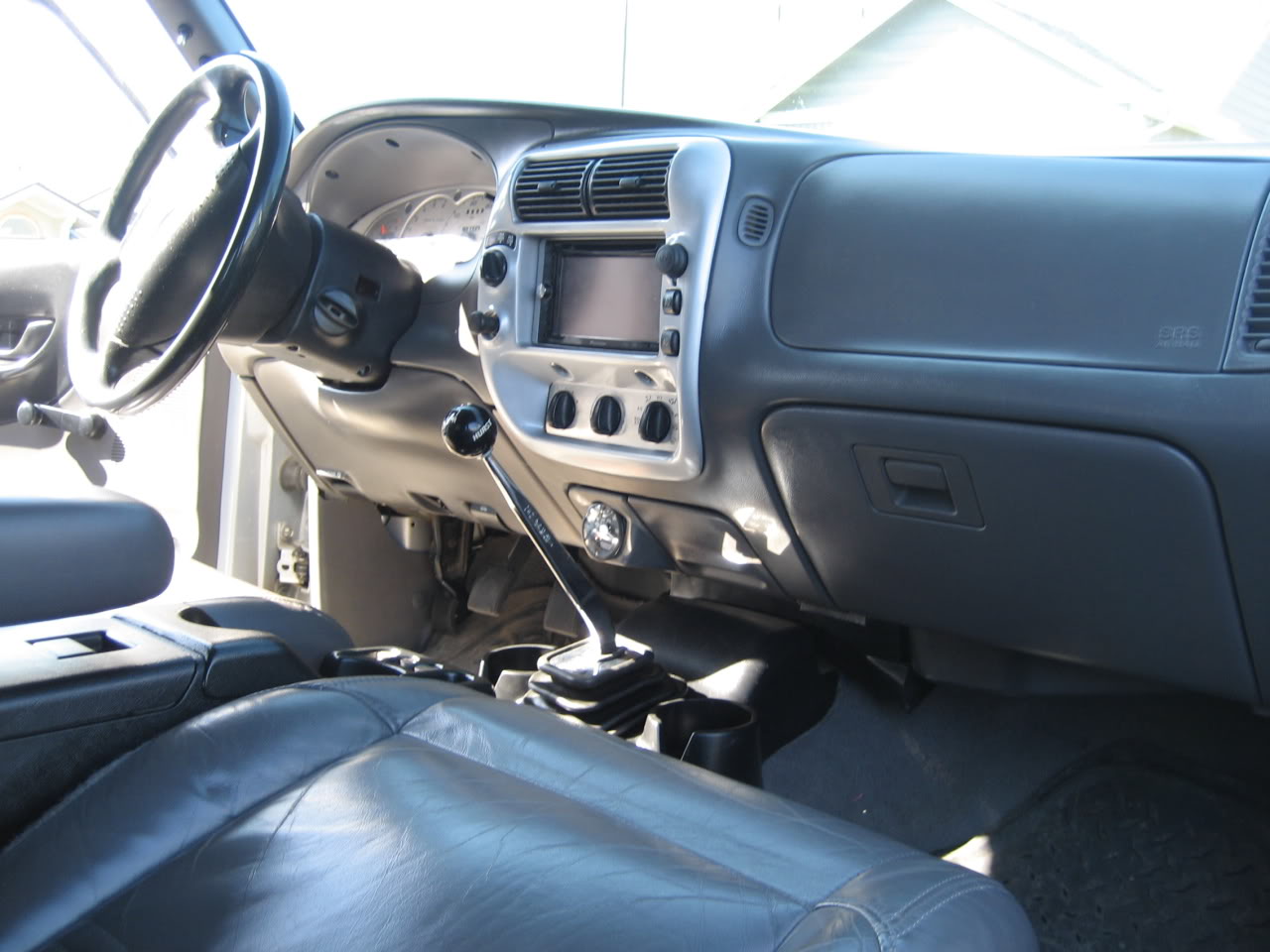

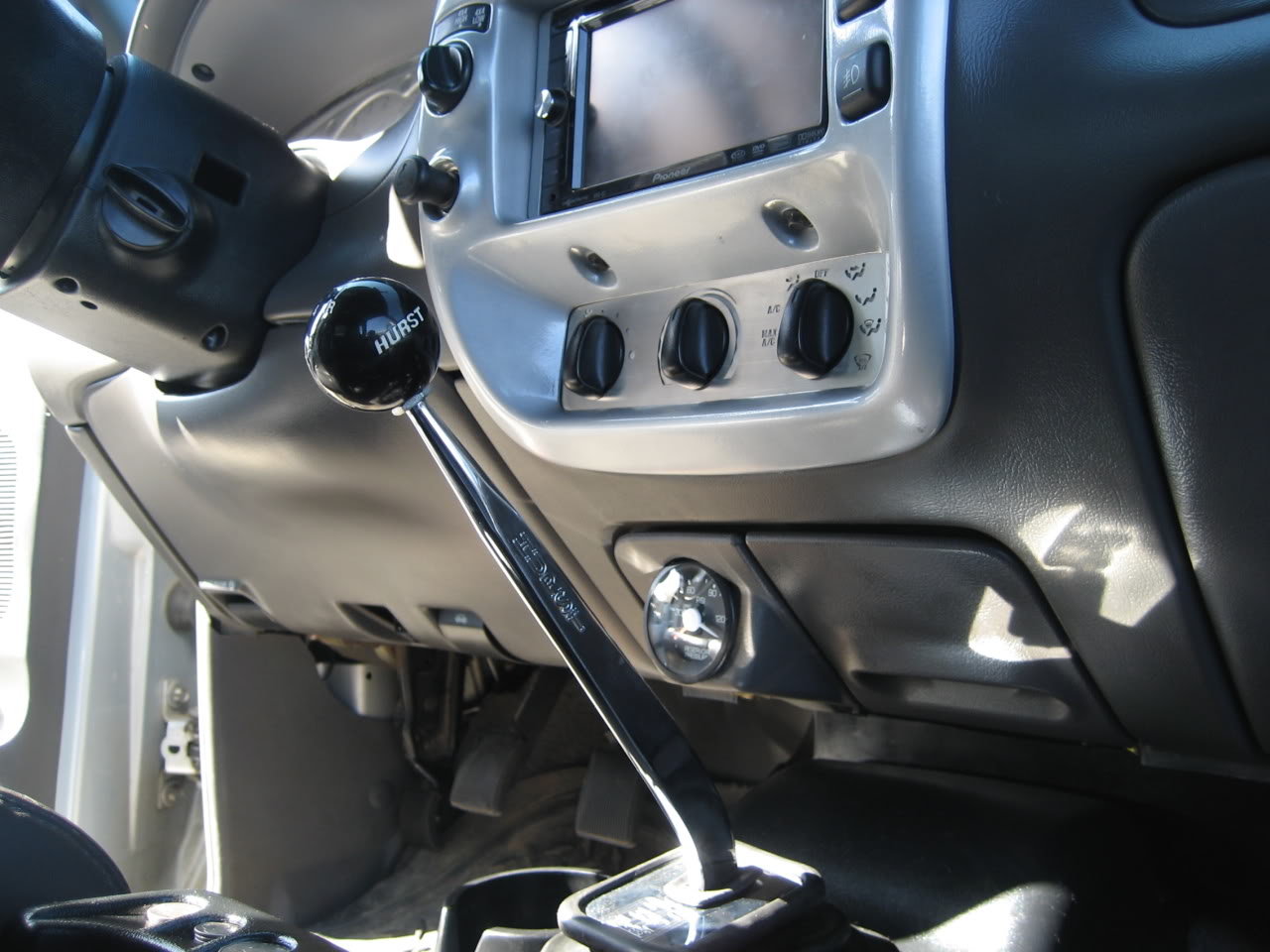

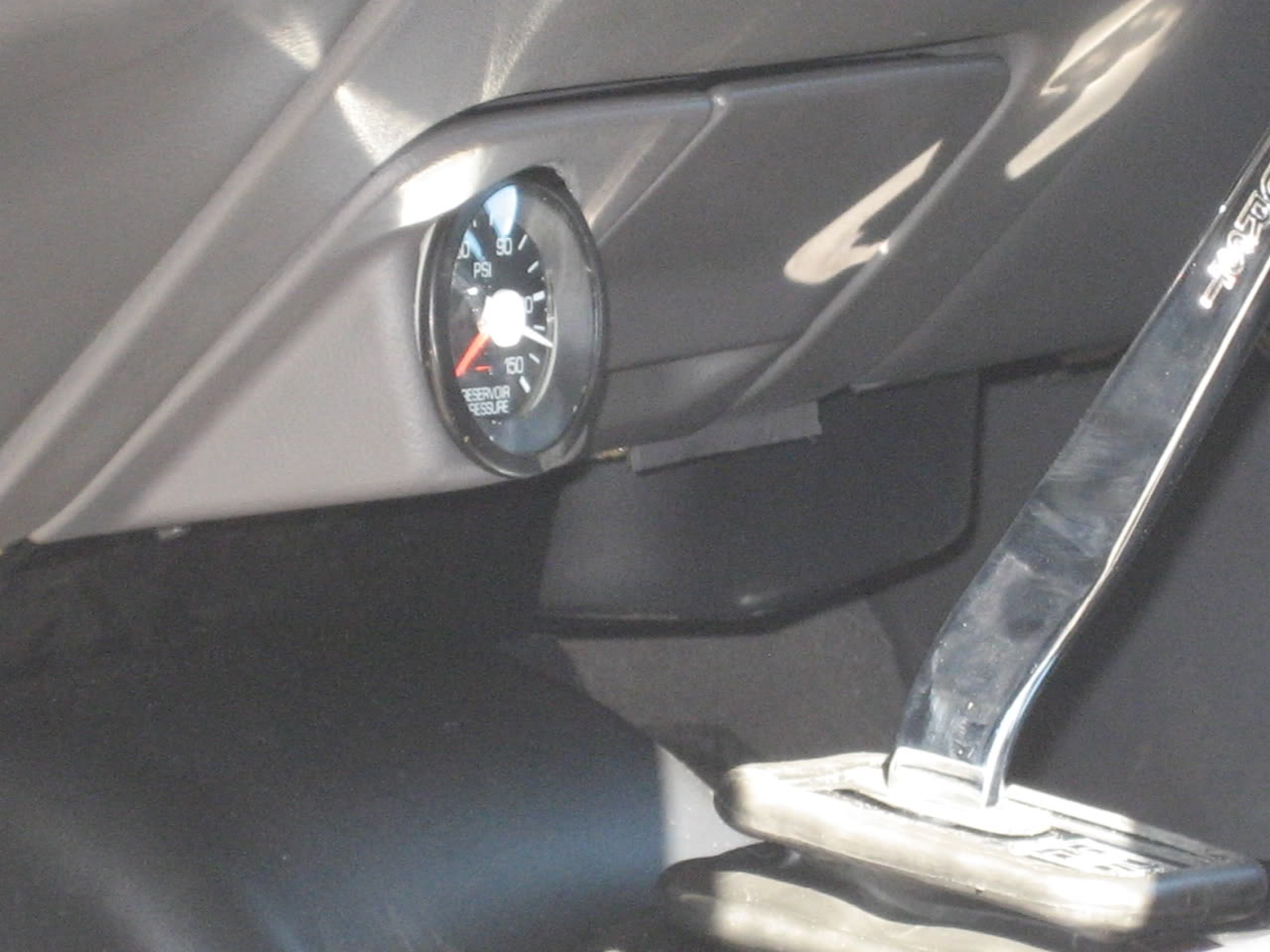

Had some more time today after the gf left and it was WAY nice outside so I modded the new interior pieces I got from the junk yard to hold my gauge.

Tell me what you guys think. (The fuse panel door isn't the light gray color, it's just the sun)

Name:  IMG_0115.jpg
Views: 1
Size:  134.7 KB
Name:  IMG_0116.jpg
Views: 0
Size:  122.4 KB
Name:  IMG_0117.jpg
Views: 0
Size:  186.9 KB
Name:  IMG_0118.jpg
Views: 0
Size:  113.4 KB

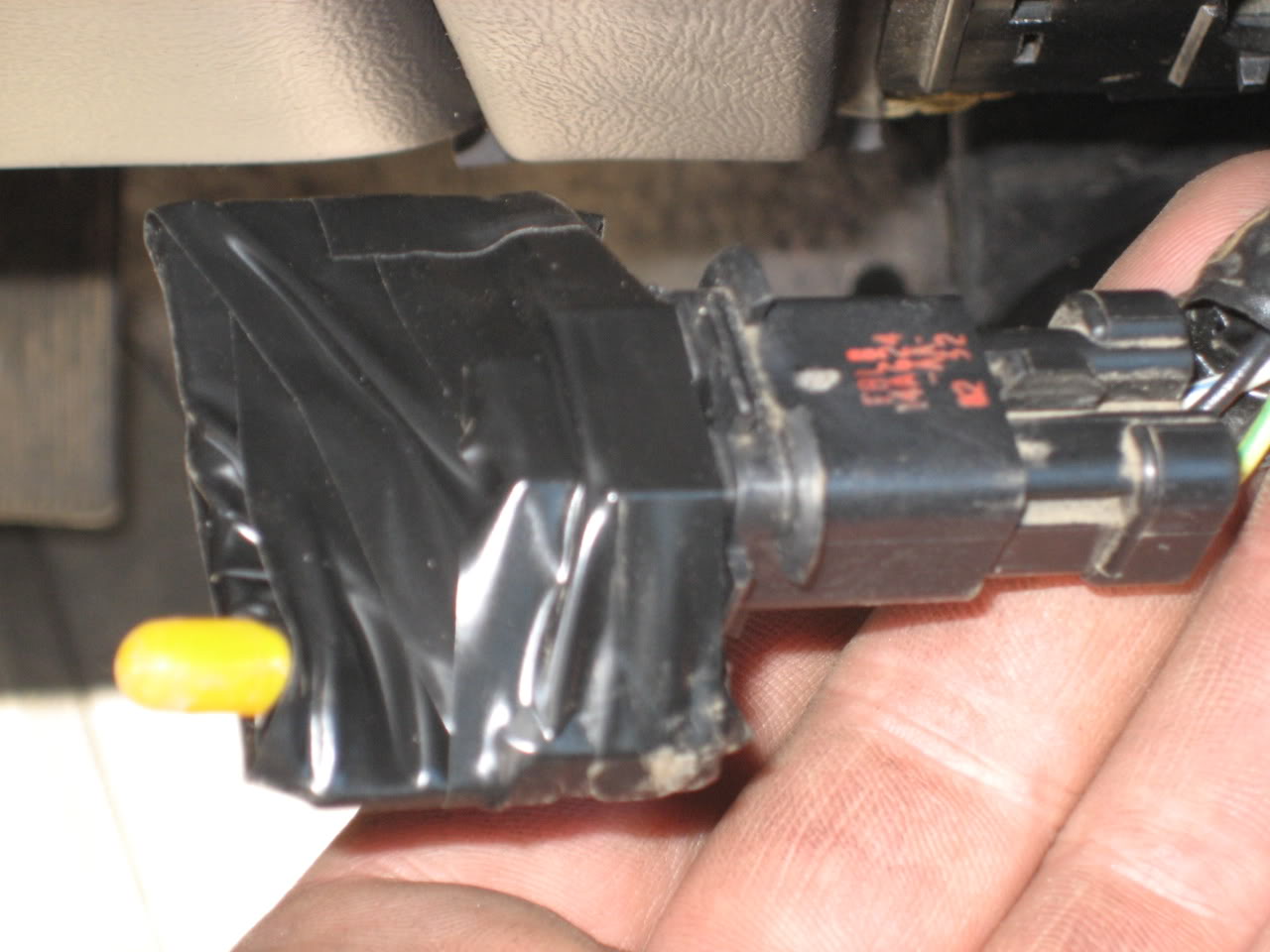

Now I might catch some flack for this and if it doesn't get hot then I don't really care. I took apart the air bag control box and took just the chipset out of it and wrapped it in electrical tape. With the gauge there, the box and the gauge just wouldn't work for space so to save space I took the box out of the equation and just wrapped the chip in electrical tape. It gets shoved up in the dash so I could care less how that looks, just making sure it doesn't get hot that's all.

Anyways here's what I mean:

Name:  IMG_0120.jpg
Views: 0
Size:  106.3 KB
Name:  IMG_0121.jpg
Views: 0
Size:  107.9 KB
Reply With Quote
  #2
Old 04-05-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Looks good to me.

What is that hole above the key insert? Is that were the shifter used to be?
Reply With Quote
  #3
Old 04-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I have my entire airbag box shoved up in the dash with no problems. I like the gauge mount
Reply With Quote
  #4
Old 04-05-2009
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Look nice. need to change out that steering colum cover to a manual one.
Reply With Quote
  #5
Old 04-05-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by Jimmeh View Post
Looks good to me.

What is that hole above the key insert? Is that were the shifter used to be?
No that's the release for the key when it's in the ignition for stock manual trucks. Since I had the option not to have that having done the swap I said hell with it. Usually that's the piece you push forward while turning the key back at the same time to release the key from the ignition. I didn't want it.

I dunno what I'm gonna do to fill that spot either. Any one have any ideas?

Quote:
Originally Posted by 04blackedge View Post
I have my entire airbag box shoved up in the dash with no problems. I like the gauge mount
Just wanted to keep it simple ya know? Anyways I had mine up there too, but with the gauge and the box it was pushin it so I just took the box outta the picture.
Reply With Quote
  #6
Old 04-05-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by hozII View Post
Look nice. need to change out that steering colum cover to a manual one.
Thanks man.

That is a manual column cover.
Reply With Quote
  #7
Old 04-05-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
How deep does that hole go? And how thin/tall is your cell phone? Would be an awesome console for it.
Reply With Quote
  #8
Old 04-05-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I would put it there but I usually just put it in the slot on the shorty console or up on the visor.

It only goes like maybe 1.5in before it hits the column...
Reply With Quote
  #9
Old 04-05-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
good work, i think it looks ok
Reply With Quote
  #10
Old 04-05-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
looking good TrePaul. verry niice. oh, how is the shifter extension? I never got back to you if it worked out okay....
Reply With Quote
  #11
Old 04-05-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Works well man! Thanks GB Kustomz. lol
Reply With Quote
  #12
Old 04-05-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Looks good Trev, nice idea on mounting it there. I'm trying to think of something you could do about that hole but have no idea?
Reply With Quote
  #13
Old 04-05-2009
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
Thats a killer spot for a gauge!!! You never cease to amaze, with all your awesome mods. Keep it up bro!!!
Reply With Quote
  #14
Old 04-05-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by TrePaul86 View Post
Works well man! Thanks GB Kustomz. lol
good to hear. Oh, and i like the name, i think i'll keep it!
Reply With Quote
  #15
Old 04-05-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by 04blackedge View Post
I have my entire airbag box shoved up in the dash with no problems. I like the gauge mount
Me too. I can still get to it under the dash if need be.
Reply With Quote
  #16
Old 04-05-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
I have my entire air bag assembly crammed inside my dash. My CB covers it up well.

What does the new guage meassure or monitor?
Reply With Quote
  #17
Old 04-05-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
the gauge measure his coolness level....and its usually pegged.
Reply With Quote
  #18
Old 04-05-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looking good man. Guessing you got an air tank? Where is it and the compresor mounted?
Reply With Quote
  #19
Old 04-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
In his toolbox
Reply With Quote
  #20
Old 04-05-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
^ok, thats what i thought
Reply With Quote
  #21
Old 04-05-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
only 150 psi? mine blow at about 180ish

looks good. my air bag module pieces are all unplugged. lol
Reply With Quote
  #22
Old 04-05-2009
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
scweet ....and the key release is annoying as hell, used to **** me off when i first got the truck
Reply With Quote
  #23
Old 04-05-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by Lord Of War View Post
I have my entire air bag assembly crammed inside my dash. My CB covers it up well.

What does the new guage meassure or monitor?
Well it's not new. I used to have it in my FL expo console in the front cubby. Did the tranny swap and put in the regular floor bezel with the shorty and lost my air gauge cuz I couldn't find a spot for it.

Went to the JY and grabbed an extra one of those covers for the air bag switch for security if I didn't like it lol.... And put the gauge in there... It monitors my tanks pressures (2 tanks) in the toolbox.

Quote:
Originally Posted by Dangerranger01 View Post
the gauge measure his coolness level....and its usually pegged.
True story!!!!

Quote:
Originally Posted by robert99ranger View Post
Looking good man. Guessing you got an air tank? Where is it and the compresor mounted?
2 tanks, 2 compressors in the toolbox! ViAir ftw!

Quote:
Originally Posted by zabeard View Post
only 150 psi? mine blow at about 180ish

looks good. my air bag module pieces are all unplugged. lol
Really? I have a 145 cut off for the air so it automatically kills the power to the compressors at 145. Most of the time it's at 140 though because the hot air caused by the compressors tricks the sensor into thinking it's at 145 when it shuts off when it's really about 140.

I don't think my horns would sound good above 150. Although I've never done it. Drive to OR so I can test it on your system lol

Quote:
Originally Posted by Melt View Post
scweet ....and the key release is annoying as hell, used to **** me off when i first got the truck
It would for sure make the OEM swap complete... However...

Justin just informed me to grab a column cover from a OEM floor shifted auto mustang. They don't have the key release being auto in that body and the shifter isn't on the column, it's on the floor between the seats!

That Justin guy is a real Einstien.
Reply With Quote
  #24
Old 04-05-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Yeah I was told to honk them at 200, but I get impatient because I only have a viar 380, takes forever
Reply With Quote
  #25
Old 04-05-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I got impatient too... Then I bought a second 380c.... Made my whole system feel complete lol.
