L1224R nuff said

Finally had time to start this. I was looking for a bulb socket so I wouldn't have to permanently attach the bulb to the tail housing.

Found some at autozone for 8 dollars each junkyards here wanted about the same price for used ones[?]

This is what I started with


Then cut the center out

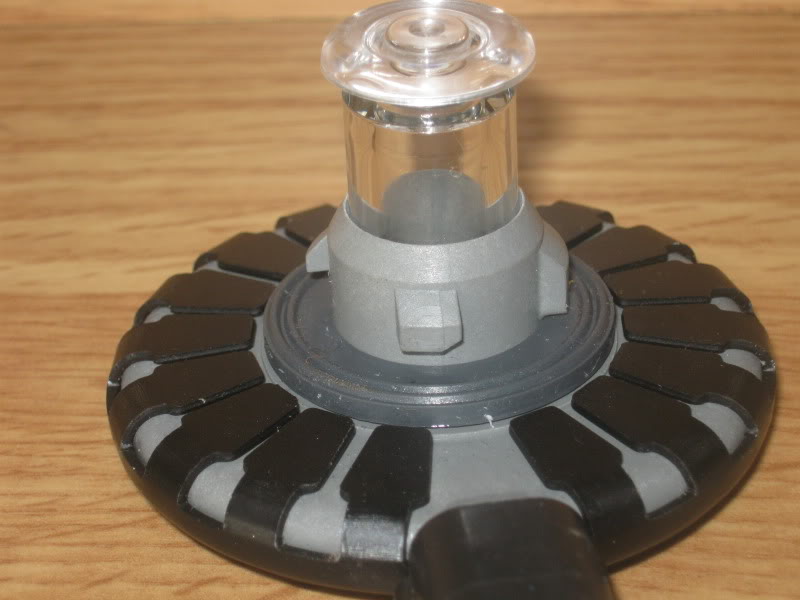

Here is the L1224R Led
Name:  IMG_0290-1.jpg
Views: 19
Size:  58.8 KB

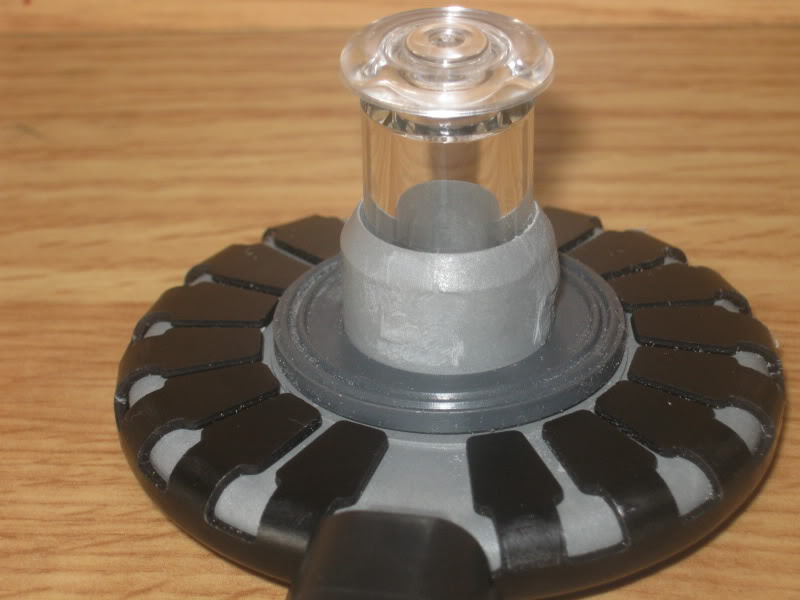

I then had to dremel off the tabs it has on there for the new socket to fit over
Name:  IMG_0291-1.jpg
Views: 4
Size:  58.5 KB

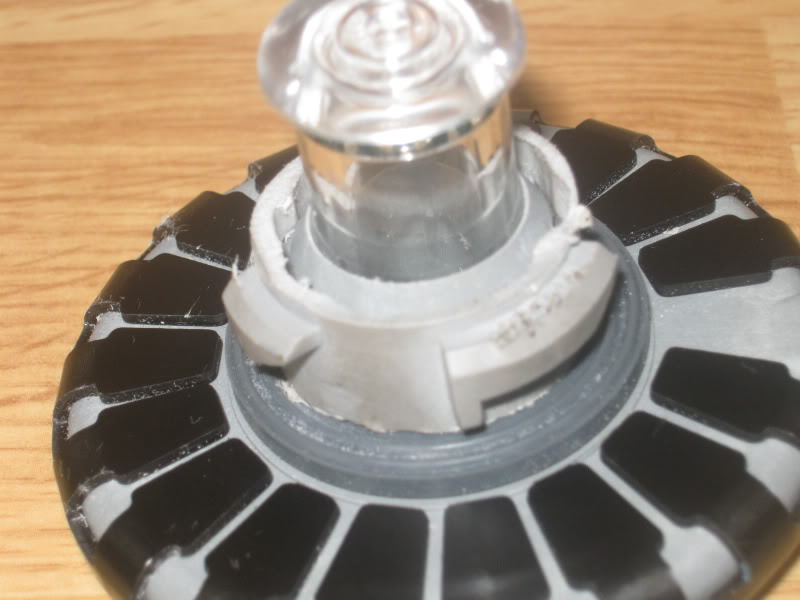

L1224R LED with new socket sitting on there. Will epoxy new socket and it's base tomorrow.
Name:  IMG_0293-1.jpg
Views: 5
Size:  59.0 KB

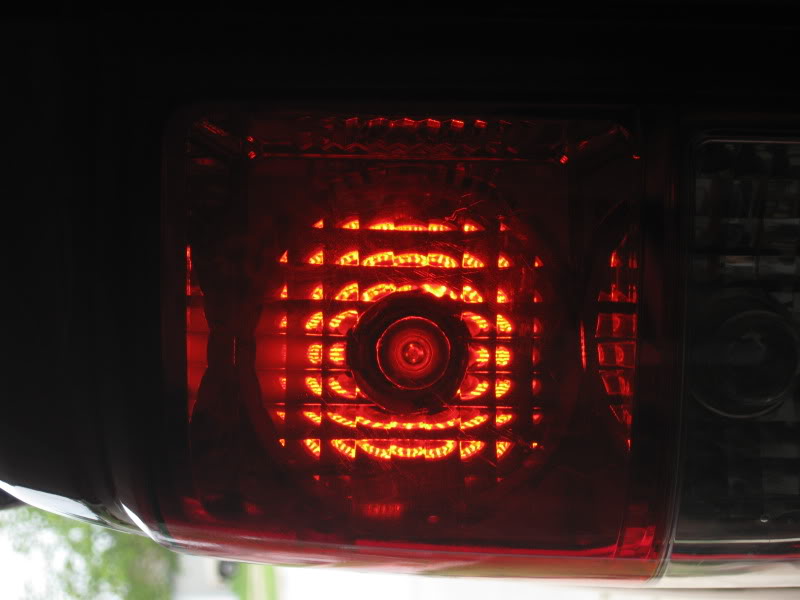

Well here are some day time completed pictures still working on the flasher issue cant seem to find a EP27 relay anywhere in this town

Name:  50b44740.jpg
Views: 5
Size:  43.8 KB

Name:  98fa795b.jpg
Views: 6
Size:  56.2 KB

Brakes on
Name:  eb11cfc1.jpg
Views: 5
Size:  70.0 KB

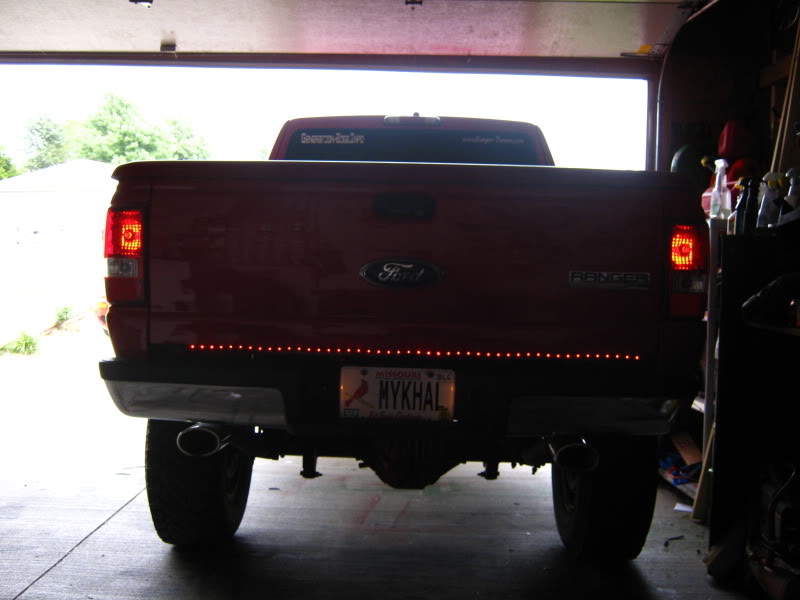

Just the headlights
Name:  9e0bf60f.jpg
Views: 11
Size:  57.3 KB

Here are some pictures from last night

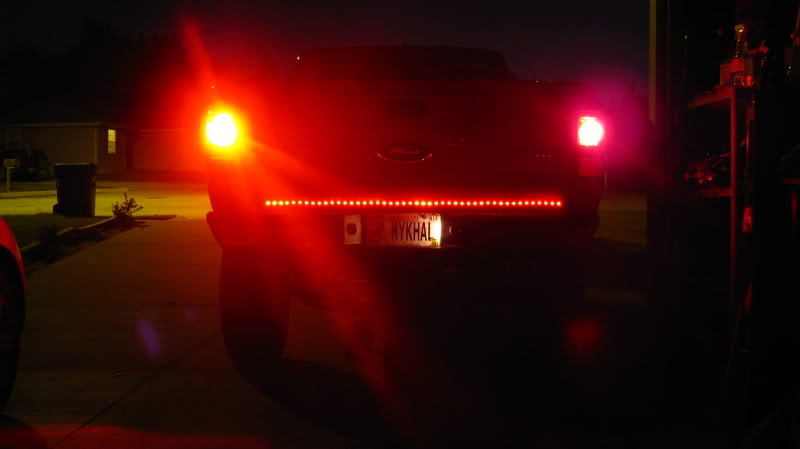

L1224R on left Stock incandescent on right
Name:  2aa39c50.jpg
Views: 10
Size:  31.9 KB

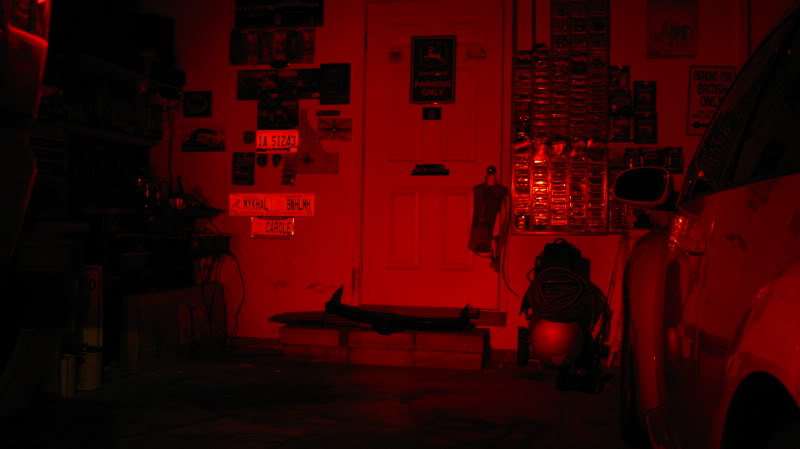

This is just 1 L1224R light for a park light on
Name:  4f2ef0d8.jpg
Views: 8
Size:  41.3 KB



Last edited by Mykhael; 09-13-2009 at 04:41 PM.
Reply With Quote
  #2
Old 09-13-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
looks like you have a lic plate light out on the right side
Reply With Quote
  #3
Old 09-13-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
nice upgrade, always can tell what cars have those when it comes to stopping or changing lanes.
Reply With Quote
  #4
Old 09-13-2009
22Below's Avatar
Member

Join Date: Jan 2007
Location: Tempe Arizona
Posts: 228
Looks good and bright
Reply With Quote
  #5
Old 09-13-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Looks like we're fully functioning! Glad you got it all worked out!! I sure do love my L1224R's!!!
Reply With Quote
  #6
Old 09-13-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks great man! I do like it!
Reply With Quote
  #7
Old 09-13-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Thanks Shane for the picture it helped out alot I was so frustrated last night working on them

Finally got a EP27 flasher from Orielly. Went to one and nothing on the shelf left there went to another and they didn't have one.

I asked the guy he said they would have one behind the counter but they didn't have one there but the store I was just at showed they had 4 of them.
Reply With Quote
  #8
Old 09-13-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good man. Now they just need to make amber ones.
Reply With Quote
  #9
Old 09-13-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by RangerNDog View Post
Looks good man. Now they just need to make amber ones.
DITTO!! That way I'd be LED's up front too.
Reply With Quote
  #10
Old 09-18-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
another happy L1224R customer~!
Reply With Quote
  #11
Old 09-18-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Just realized how bright these really are with brake lights on.

Was sitting in traffic no one behind me. The treet sign that was a good 50 yards away was red
Reply With Quote
  #12
Old 09-18-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by STL View Post
Just realized how bright these really are with brake lights on.

Was sitting in traffic no one behind me. The treet sign that was a good 50 yards away was red
hahahahahahahah, i just totally lmao

Dude you forget I have FOUR of these in my tails with the beefy LED CHMSL to match.
Reply With Quote
  #13
Old 09-18-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Cant even imagine how bright that is

I wish the new flasher wasn't as annoying though a lot louder than the stock one
Reply With Quote
  #14
Old 09-18-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
huh...my new flasher is quieter than my stock one. different tone too.
Reply With Quote
  #15
Old 09-18-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Wait a couple minutes ill be back
Reply With Quote
  #16
Old 09-18-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Okay video

1st one is of the new flasher
2nd is OEM flasher
3rd new flasher again

Reply With Quote
  #17
Old 09-18-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I wonder what a strip of dynomat would do if it were wrapped around the flasher? hmm?
Reply With Quote
  #18
Old 09-18-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
mine isnt any louder either, just a different tone. I do notice if i turn it off half way through a click it clicks one more time.
Reply With Quote
  #19
Old 09-18-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah if anything mine was a softer tone.
Reply With Quote
  #20
Old 09-22-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
I have some L1224R left if anybody wants to do this mod...
Reply With Quote
  #21
Old 09-22-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Already ordered mine! I can't decide on how I want to make mine work, whether to use this method or epoxy the part to the back of the taillight housing.


Quote:
Originally Posted by RangerNDog View Post
Looks good man. Now they just need to make amber ones.
They do I just don't know how to get them. Jp7, I found a link on civicforums about these...do you have any info on the amber ones?


Last edited by 0RangerEdge2; 09-22-2009 at 11:05 AM.
Reply With Quote
  #22
Old 09-22-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
what ever you dont just epoxy it to the housing
Reply With Quote
  #23
Old 09-22-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Already ordered mine! I can't decide on how I want to make mine work, whether to use this method or epoxy the part to the back of the taillight housing.
Do it the way STL, PAseries and crucialcolin did. All the same method (the corvette/STI way) - it gives better results me thinks compared to the way Fx4wannabe and I did - we were first remember) I know I am missing a few members because there has to be 10-15 of us on RF that have these.
Quote:

They do I just don't know how to get them. Jp7, I found a link on civicforums about these...do you have any info on the amber ones?

No - I think this is a prototype picture. They probably did this putting the concept together. If you read more on this you'll tell that the L1224R's I've been getting you guys look entirely different than the original prototype ones in the syvania show-off thread. If your really advantageous, and smarter than me you could always try taking them apart and modding them to be amber, but this would be like a brain-transplant as far as I'm concerned. I only take clusters and convert them to different colored LED.
Reply With Quote
  #24
Old 09-22-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
....there has to be 10-15 of us on RF that have these....
yeah, and I just realized too that I should have way higher feedback than just 2 w/ 100% LOL - come on guys give me positive feedback for the um-teen members that bought L1224R and love them
Reply With Quote
  #25
Old 09-22-2009
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Hey Jp7 on the civic site its got pics of your ranger. Are the grill lights led strips?? Also what are you using in the reverse lights?
Reply With Quote
