OHC install with turbo's help!!

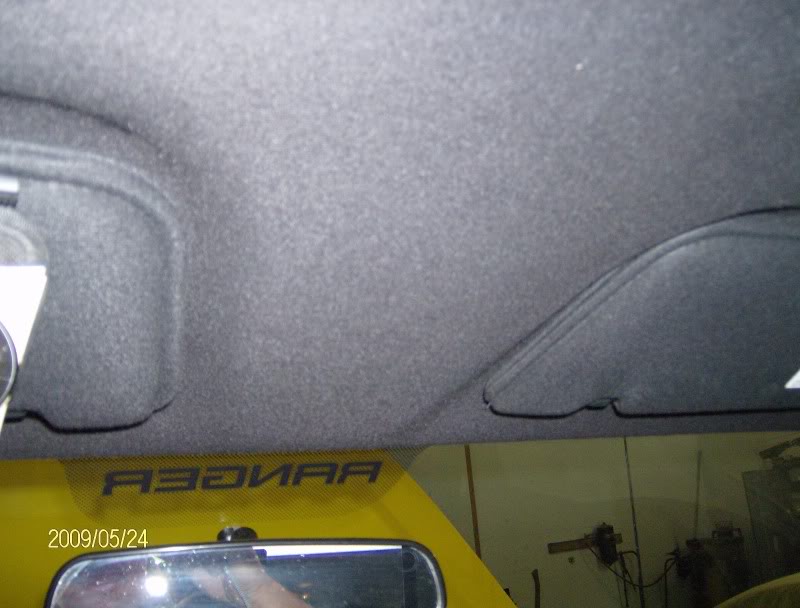

alrighty then, brian (turbo) was up this weekend from FL to do his BL and he helped do my OHC install. had a few lil probs and gotta finish up expo mirror tomm. nothing not been posted already but here's mine...lol!!

virgin.....
Name:  HPIM0555.jpg
Views: 0
Size:  71.9 KB

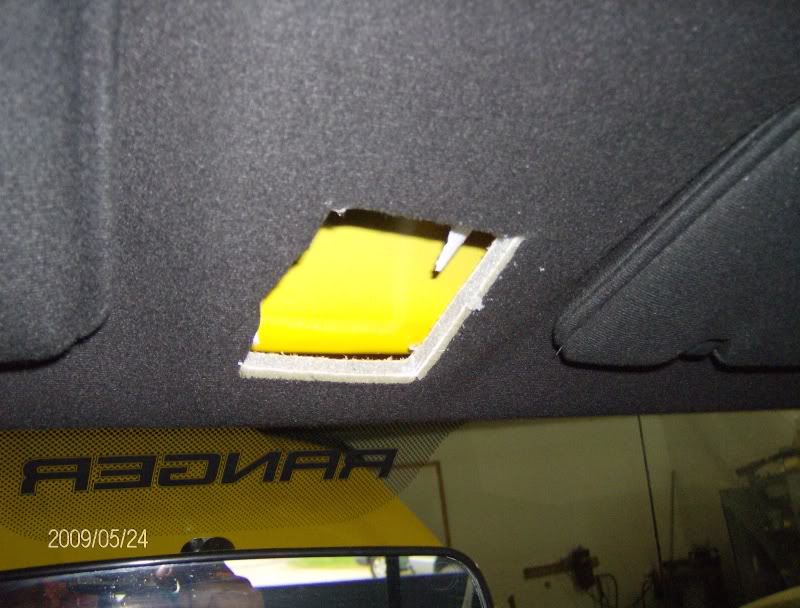

Name:  HPIM0556.jpg
Views: 0
Size:  94.9 KB

Name:  HPIM0557.jpg
Views: 0
Size:  65.8 KB

Name:  HPIM0558.jpg
Views: 0
Size:  64.2 KB

Name:  HPIM0560.jpg
Views: 0
Size:  101.2 KB

brian doin his thing!!
Name:  HPIM0562.jpg
Views: 0
Size:  91.0 KB

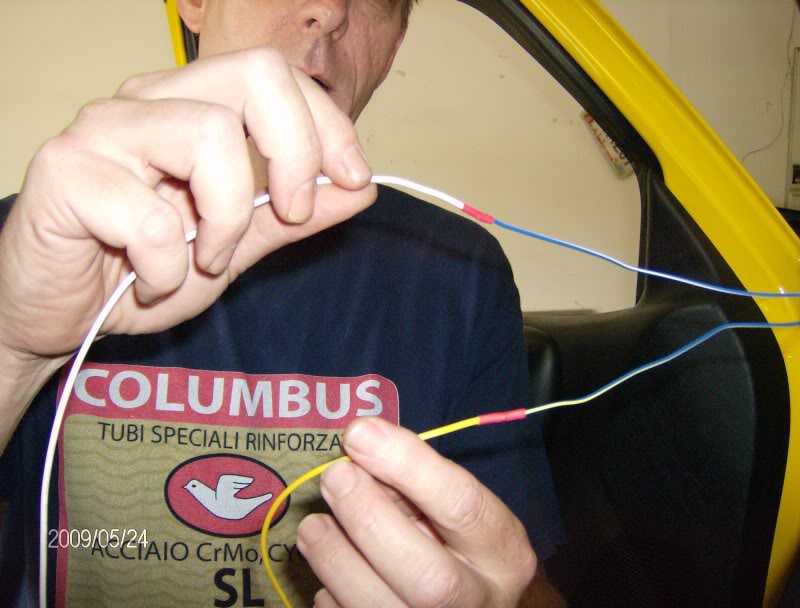

Name:  HPIM0563.jpg
Views: 0
Size:  85.2 KB

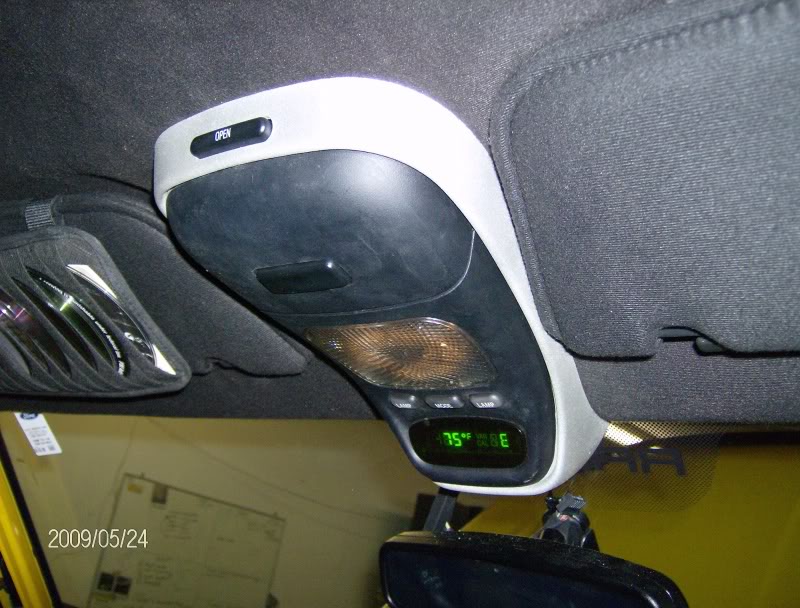

Name:  HPIM0566.jpg
Views: 0
Size:  113.1 KB

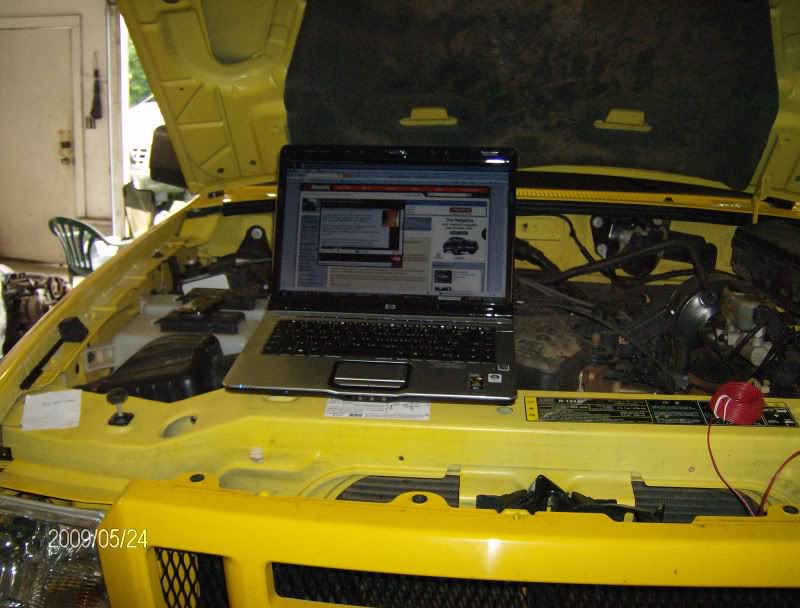

AND this is what i LOVE about this community. Had a prob findin the VSS wire and called stone,justin,then trent,and tonight dustin and got the answer i was lookin for, and was between phone and internet and AIM, finally got it i believe but its great that the help is there if ya need it!! Thanks to everyone!! OHC is done but gotta wire up expo mirror tomm then i can button everything up!!

Name:  HPIM0565.jpg
Views: 0
Size:  93.0 KB

Name:  HPIM0564.jpg
Views: 0
Size:  57.7 KB
Reply With Quote
  #2
Old 05-25-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Glad ya gotta it done man, looks good.
Reply With Quote
  #3
Old 05-25-2009
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
very nice
Reply With Quote
  #4
Old 05-25-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good. I want to install one but I am too scared to cut the headliner and hate wiring things.
Reply With Quote
  #5
Old 05-25-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
looks good man. maybe you can come down here and install one for me. im scared to cut the headliner
Reply With Quote
  #6
Old 05-25-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
looks good Josh... glad you finally got the mount to "mount"!!! I see you had to sneak that pic in.... I was NOT ready for my close-up, Mr DeMille!!! (note to the ladies: there's something wrong with Josh's camera -- I'm much better looking in person!
Reply With Quote
  #7
Old 05-25-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Looks good. That's what I like about R/f need help and you can get a answer within minutes.

You gonna paint the OHC?
Reply With Quote
  #8
Old 05-25-2009
hozII's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Quote:
Originally Posted by STL View Post
Looks good. That's what I like about R/f need help and you can get a answer within minutes.

You gonna paint the OHC?
i did paint it, its the same color as the bezel, silver, i guess the flash just drowned it out. I'll get a daytime pic, might come out better. Thanks everyone!!
Reply With Quote
  #9
Old 05-25-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
looks great.. i need to install mine .. its sitting in a box ontop of my foglights next to my new valance.. who else has car parts in their room? lol
Reply With Quote
  #10
Old 05-25-2009
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Looks good.
Reply With Quote
  #11
Old 05-25-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
Quote:
Originally Posted by Smakes
who else has car parts in their room? lol
haha.. umm... me! I even have parts for cars I don't even own, any more!! (...and I'm not talking [only] about removed parts... but parts for modifications that hadn't been installed yet!!!)
Reply With Quote
  #12
Old 05-25-2009
BCobe's Avatar
Member

Join Date: Jul 2008
Location: Fairfeild,California
Posts: 1,055
Looks awesome man!
Reply With Quote
  #13
Old 05-25-2009
LuckyRanger13's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Santa Fe, TN
Posts: 554
Lol you are a brave soul Josh!! Glad to see you got the OHC wire thingy figured out. I'll be back down there one weekend to have mine installed.
Reply With Quote
  #14
Old 05-25-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks good man. I'd like to have one, but I hate wiring with a passion.
Reply With Quote
  #15
Old 05-25-2009
hozII's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Quote:
Originally Posted by LuckyRanger13 View Post
Lol you are a brave soul Josh!! Glad to see you got the OHC wire thingy figured out. I'll be back down there one weekend to have mine installed.
I had no prob cuttin into it, actually i was gonna let you cut it!!

Quote:
Originally Posted by Trigger01 View Post
Looks good man. I'd like to have one, but I hate wiring with a passion.
me and you both!! Thank goodness brian was here!!
Reply With Quote
  #16
Old 05-26-2009
mcpink's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Out There
Posts: 443
Looks sweet, man. I can't wait to see it in person in October!
Reply With Quote
  #17
Old 05-26-2009
Sea-Bass's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Georgia
Posts: 1,059
Quote:
Originally Posted by Trigger01 View Post
Looks good man. I'd like to have one, but I hate wiring with a passion.
LOL...X2!!
Reply With Quote
  #18
Old 05-26-2009
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
i want one too....loks like most of us are scared to cut the headliner....lol...!
Reply With Quote
  #19
Old 05-26-2009
howells's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Kitchener ont
Posts: 779
where is the vss ???or better sjb is it in the pass kick pannel??? thats the only wire i need to hook up still to complete my install.
Reply With Quote
  #20
Old 05-26-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by howells View Post
where is the vss ???or better sjb is it in the pass kick pannel??? thats the only wire i need to hook up still to complete my install.
Explorer Overhead Console ---> 07~08 Ranger

Console Power: Yellow/Gray ---> White/Blue (white wire with blue stripe - radio harness)
Console Ground: Black ---> chassis ground
Console Night Dim: Light Blue/Red or Red/Black ---> Blue/White (blue wire with white stripe - radio harness)
Console Maps: Green/Orange ---> Violet/Red (radio harness)
Console Dome: Black/Blue ---> Green/Blue (above factory dome)
Console VSS: Gray/Black ---> Purple/Orange (pin #1 of the center PCM connector)

These two would be wired separately from the truck harness:
Console temp: Dark Blue/White ---> Temp sensor Dark Blue/White
Console temp: Dark Blue/Yellow ---> Temp sensor Dark Blue/Yellow


[Important: the 2007~2008 Ranger no longer has practical way to tap the "Battery Saver" feature for use with the Ex console map lights. So, if a map light is wired to a constant hot (Violet/Red as shown above) and it is inadvertently left on overnight, it could kill the battery. An alternative would be to wire the maps to the keyed console power (White/Blue referenced above). Of course, then the maps would only work with the key in the RUN or ACC position. It's a matter of preference.]
Reply With Quote
  #21
Old 05-26-2009
hozII's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Quote:
Originally Posted by rwenzing View Post
Explorer Overhead Console ---> 07~08 Ranger

Console Power: Yellow/Gray ---> White/Blue (white wire with blue stripe - radio harness)
Console Ground: Black ---> chassis ground
Console Night Dim: Light Blue/Red or Red/Black ---> Blue/White (blue wire with white stripe - radio harness)
Console Maps: Green/Orange ---> Violet/Red (radio harness)
Console Dome: Black/Blue ---> Green/Blue (above factory dome)
Console VSS: Gray/Black ---> Purple/Orange (pin #1 of the center PCM connector)

These two would be wired separately from the truck harness:
Console temp: Dark Blue/White ---> Temp sensor Dark Blue/White
Console temp: Dark Blue/Yellow ---> Temp sensor Dark Blue/Yellow


[Important: the 2007~2008 Ranger no longer has practical way to tap the "Battery Saver" feature for use with the Ex console map lights. So, if a map light is wired to a constant hot (Violet/Red as shown above) and it is inadvertently left on overnight, it could kill the battery. An alternative would be to wire the maps to the keyed console power (White/Blue referenced above). Of course, then the maps would only work with the key in the RUN or ACC position. It's a matter of preference.]
Thanks for that INFO bob!!!!! that really cleared alot up for me and im sure for others. Need to get that in the how-to for an update!!
Reply With Quote
  #22
Old 05-26-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
you kids and your fancy black interiors....



looks good joshie! except the finish on the OHC! paint that thing NAOW!!
Reply With Quote
  #23
Old 05-27-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by hozII View Post
Thanks for that INFO bob!!!!! that really cleared alot up for me and im sure for others. Need to get that in the how-to for an update!!
Josh, the info that I posted above is for 07 and 08 and possibly 09. Your 2006 is different. Rangers seem to get a wiring overhaul about every 3~4 years.

The basic wiring information in John Griggs's How-to is correct for 2001~2003 Rangers and should also be adaptable for some earlier years as well. The added color code info in the how-to for "2004+" is correct for 2004~2006 EXCEPT the VSS wire which was eliminated in the SJB for 2005~2006 (as you found out).

Unfortunately, I don't have a way to contact John to ask him make the corrections in his CarDomain page.
Reply With Quote
  #24
Old 05-27-2009
hozII's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Quote:
Originally Posted by Fx4wannabe01 View Post
you kids and your fancy black interiors....



looks good joshie! except the finish on the OHC! paint that thing NAOW!!
Kids?? then why do you call me daddy .....LMAO!!! J/K!! It is painted same color as bezel i just suck on my camera skills and camera...lol!!!

Quote:
Originally Posted by rwenzing View Post
Josh, the info that I posted above is for 07 and 08 and possibly 09. Your 2006 is different. Rangers seem to get a wiring overhaul about every 3~4 years.

The basic wiring information in John Griggs's How-to is correct for 2001~2003 Rangers and should also be adaptable for some earlier years as well. The added color code info in the how-to for "2004+" is correct for 2004~2006 EXCEPT the VSS wire which was eliminated in the SJB for 2005~2006 (as you found out).

Unfortunately, I don't have a way to contact John to ask him make the corrections in his CarDomain page.
yes i did find out...lol thanks too you and many others help!!!
