Painted flares & valence today....what a difference!

Thanks to the many how to posts on here, I decided to go ahead and do this today since my faded out grey flares and valence looked pretty bad.

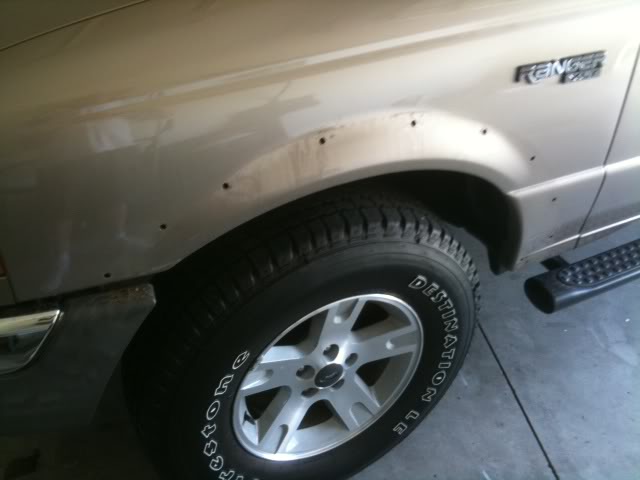

I got all the flares off fairly easy, had ordered a new box of clips but only needed about 5 total of them. Also got new push-pin/tree fasteners since its easier just to cut those and replace them than fight with them. Sure was dirty under the flares, I cleaned them all up and put a coat of wax on the areas that they cover. Fortunately, no rust anywhere. This truck is suprisingly clean and rust free even underneath for an Ohio truck.

Name:  photo-23.jpg
Views: 2
Size:  29.5 KB
Name:  photo-21.jpg
Views: 2
Size:  31.6 KB

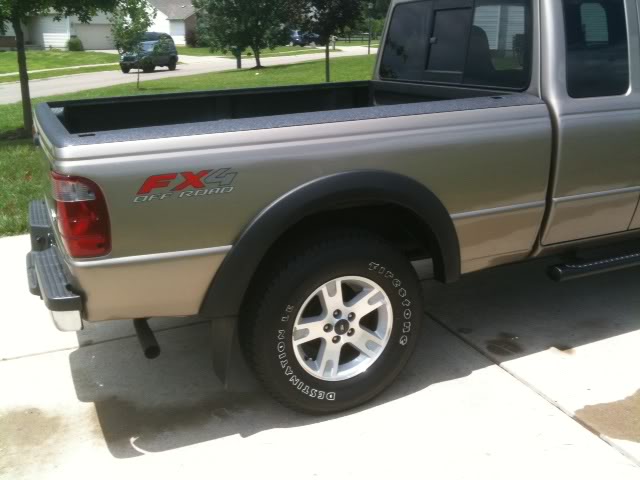

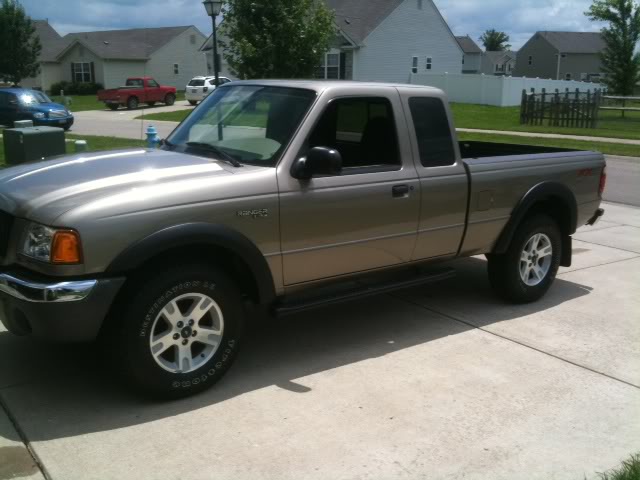

Got them cleaned and painted with about 5-6 thin coats of Krylon Fusion satin black. In the second pic, you can see where I hadn't yet done the front valence and the difference in color.

Name:  photo-25.jpg
Views: 2
Size:  42.5 KB
Name:  photo-22.jpg
Views: 2
Size:  46.4 KB

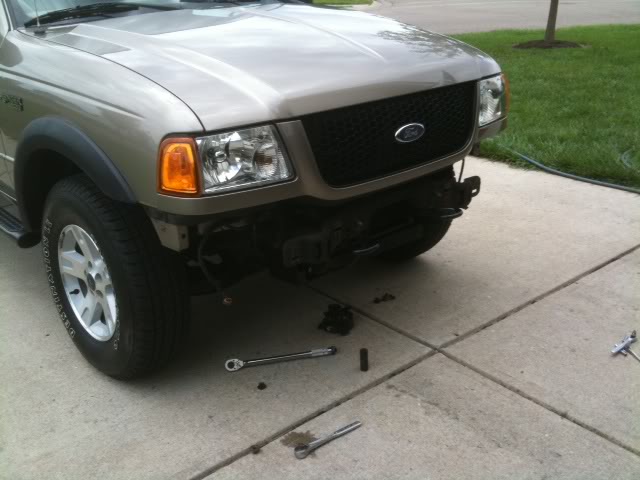

Instead of fighting the bolts under the bumper to get the valance off, I just un-bolted the bumper and took it all off. Easier access that way. While that was off, I got out the wire wheel and used some of the POR-15 I had left to paint the bumper brackets, tow hooks, and some other stuff in the front frame area that looked kinda grungy. In this pic is my brand spankin new A/C condenser that I had to replace recently....always something!

Name:  photo-26.jpg
Views: 2
Size:  45.7 KB

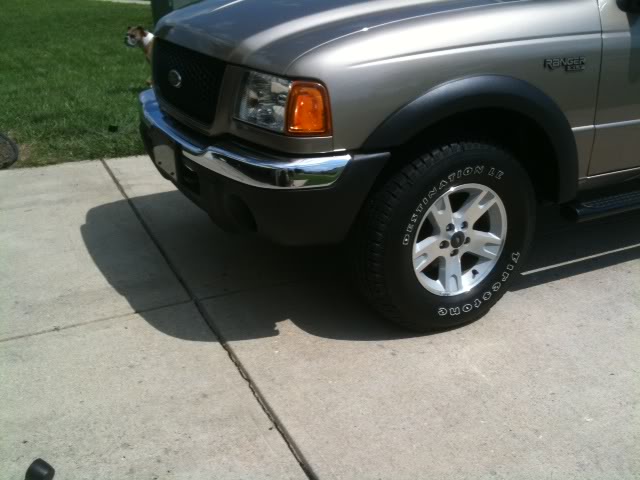

All done...looks alot better! Just need to wait on the neighbor or the wife to get home to help me re-align the front bumper.
Name:  photo-27.jpg
Views: 2
Size:  46.3 KB

Last edited by klc317; 06-25-2011 at 03:59 PM.
Reply With Quote
  #2
Old 06-25-2011
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
looks good
Reply With Quote
  #3
Old 06-25-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks great! Any mods to the Escape yet?
Reply With Quote
  #4
Old 06-25-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Quote:
Originally Posted by KLC View Post
Looks great! Any mods to the Escape yet?
Nah, its a lease so not much going into it. Front windows are tinted 20% to match the rest of the factory tint, has silverstar bulbs in it....thats probably all we'll do to it. I can aggrivate the wife enough buying odds & ends for the Ranger...lol
Reply With Quote
  #5
Old 06-25-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
That looks much better!
Reply With Quote
  #6
Old 06-25-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Quote:
Originally Posted by FULLSCALE View Post
That looks much better!
Oh yea!! Took many years of aged look off it....the paint looks great but all those swirly mold lines and fading in the plastic made the truck look like crap.
Reply With Quote
  #7
Old 06-25-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Thinking about doing the rear bumper cover/pad too but it's got a scraped up place in it from the previous owner. Might just look for a better junkyard part first.
Reply With Quote
  #8
Old 06-25-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
If you don't find anything in decent shape I'm pretty sure they're not too expensive to buy new!
Reply With Quote
  #9
Old 06-25-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
You're probably right...I need to check RockAuto...got my new Motorcraft A/C condenser from them for a killer price and showed up 2 days later, good company. I need to take the rear bumper off anyway...it has a ding in it that I need to fix thanks to some idiot running into me at a stoplight a few months back.

He mostly caught my hitch with his Dodge Neon and curled up his whole hood. I had some green paint to clean off and a door-ding looking spot in the bumper. I was feeling like a good mood kinda day that day so my neck didn't suddenly hurt and he was very appologetic and had insurance so I didn't worry about it too much, got a small check from his insurance so I was happy.

The local U-pull usually has a decent selection of Rangers sitting around and most are either rolled or wrecked in the front so good rear bumpers are a dime a dozen....depends what kind of mood the staff is in as to what kind of price you get though...lol

Last edited by klc317; 06-25-2011 at 05:39 PM.
Reply With Quote
  #10
Old 06-25-2011
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
It's amazing how much better Rangers look when you paint the plastics.
Reply With Quote
  #11
Old 06-25-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Quote:
Originally Posted by rangerboy101 View Post
It's amazing how much better Rangers look when you paint the plastics.
Very true
Reply With Quote
  #12
Old 06-26-2011
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
Like new again! Nice job!
Reply With Quote
  #13
Old 06-26-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Thank you
Reply With Quote
  #14
Old 06-26-2011
powerranger262's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Hartford, WI
Posts: 1,222
Good mod, nice work.
Reply With Quote
  #15
Old 06-29-2011
Jelly's Ford's Avatar
Member
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
Yeah I need to do that soon. I got black fender flares with a gray valence.....fail.

Anyways, truck looks good!
Reply With Quote
  #16
Old 07-01-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Thanks. It was much easier than I thought so go for it!
Reply With Quote
  #17
Old 07-01-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Ugh...looking at that third pic makes me realize how much I need to do some exhaust on this truck..
Reply With Quote
  #18
Old 07-03-2011
Jelly's Ford's Avatar
Member
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
If you don't mind me asking, how did you prep the area for painting? I was thinkin whipping the plastic down with some mineral spirits or alcohol. Then taking a scotch pad to it to rough it up a little bit. Then add several layers of duplicolor bed liner spray. I painted my step bars with that stuff, and it came out extremely well.
Reply With Quote
  #19
Old 07-06-2011
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Quote:
Originally Posted by Jelly's Ford View Post
If you don't mind me asking, how did you prep the area for painting? I was thinkin whipping the plastic down with some mineral spirits or alcohol. Then taking a scotch pad to it to rough it up a little bit. Then add several layers of duplicolor bed liner spray. I painted my step bars with that stuff, and it came out extremely well.
I washed them really well with dish soap and hot water, let them dry, scuffed them up just slightly with some fine scotchbrite pads, washed them again, let them dry for a few hours in the sun, and then sprayed them with about 4-5 thin coats of the paint...easy.
Reply With Quote
  #20
Old 07-07-2011
Jelly's Ford's Avatar
Member
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
^Ok man thanks! I was planning on doing that, but I just wanted to make sure before I jumped in. I'm going to whipe the plastic down with rubbing alcohol right before I paint, to make it sticky and dry.
Reply With Quote
