PIC REQUEST: onboard air system setups

ok i have a few parts so far and i working on getting some more for an onboard air system, need some ideas of how yall installed your systems, post pics and give me some specs and details of them, also what you guys are useing the for. ex: air horns, run tools, pump up tires

Last edited by blueranger789; 09-25-2009 at 12:43 PM.
Reply With Quote
  #2
Old 09-26-2009
MOTOunplugged's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Covington, Georgia
Posts: 759








Reply With Quote
  #3
Old 09-26-2009
t_schloesser's Avatar
Member

Join Date: Jun 2007
Location: Palm Beach, FL
Posts: 739

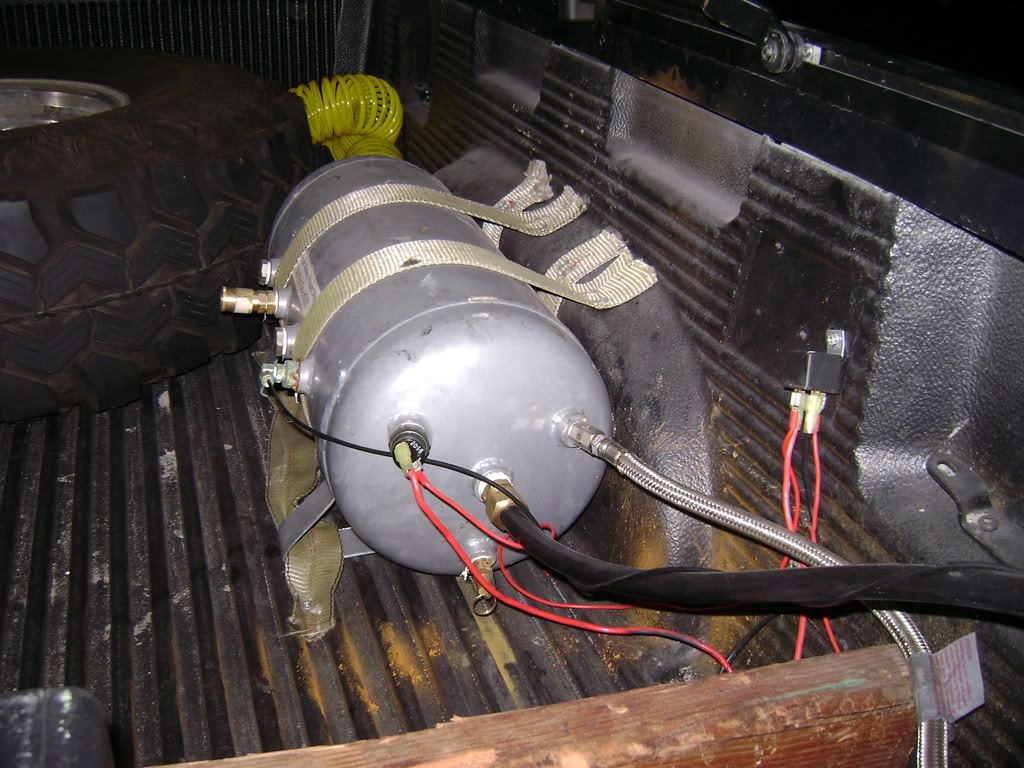

Name:  DSC01241.jpg
Views: 5
Size:  171.5 KB
Name:  DSC01242.jpg
Views: 5
Size:  92.0 KB
Reply With Quote
  #4
Old 09-26-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
My valves(one for horns and one for locker) and compressor are mounted in my toolbox along with my Haldey horns. My tank is my rear bumper. I'll get some pictures up later.
Reply With Quote
  #5
Old 09-26-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
moto thats a damn clean bed install.
Reply With Quote
  #6
Old 09-26-2009
therangerofdanger's Avatar
Member
iTrader: (2)

Join Date: Feb 2007
Location: Raleigh, North Carolina
Posts: 618
Quote:
Originally Posted by INT3RC3PTOR View Post
moto thats a damn clean bed install.
x2!! That is really slick, I really like it!!
Reply With Quote
  #7
Old 09-27-2009
blueranger789's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Boiling Springs, SC
Posts: 619
thanks moto and t_schloesser, only question is do you guys not worry about someone comeing up to your trucks and messing with the systems?
Reply With Quote
  #8
Old 09-28-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Here are a few pictures of mine, sorry they are blurry. Mathematically I figure the tank to be just under 15 gallons. It takes about 6 minutes to fill it from 0-105psi.

Compressor/manifold/valves/air chuck/gauge/pressure switch:
Name:  IMG_0075.jpg
Views: 6
Size:  167.8 KB
Name:  IMG_0074.jpg
Views: 5
Size:  149.9 KB
You can see part of the horns here:
Name:  IMG_0076.jpg
Views: 5
Size:  176.7 KB
Name:  IMG_0069.jpg
Views: 7
Size:  96.8 KB
Schrader valve on the bottom of the tank for drain:
Name:  IMG_0072.jpg
Views: 5
Size:  94.0 KB
And here you can just see the bumper/tank:
Name:  IMG_0068.jpg
Views: 5
Size:  230.9 KB
Reply With Quote
  #9
Old 09-28-2009
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
holy f loving the tailgate how much u pay for that mod lol
Reply With Quote
  #10
Old 09-28-2009
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
^^ x2
Reply With Quote
  #11
Old 09-28-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Reply With Quote
  #12
Old 09-28-2009
blueranger789's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Boiling Springs, SC
Posts: 619
wow thats pretty cool that you bumper is your tank, what guage metal is the tank, id be afraid of punturing that thing
Reply With Quote
  #13
Old 09-28-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by Spc_Austin View Post
holy f loving the tailgate how much u pay for that mod lol
Hah more than you would think. That was a bad day. lol

Quote:
Originally Posted by blueranger789 View Post
wow thats pretty cool that you bumper is your tank, what guage metal is the tank, id be afraid of punturing that thing
It is 1/4" thick, good luck putting a hole in this tank. The end caps are bulletproof(resistant) 1/4" plate from the gunhole covers on a V-100 Commando.
Reply With Quote
  #14
Old 09-29-2009
MOTOunplugged's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Covington, Georgia
Posts: 759
nah i'm not worried about anybody messing with it really. you cant reach the bolts from the other side. and have fun cutting a tank off with 155psi in it.
Reply With Quote
  #15
Old 09-29-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
That's just crazy!!
Reply With Quote
  #16
Old 09-29-2009
The_Dealer's Avatar
Member

Join Date: Apr 2007
Location: Macon Georgia
Posts: 348
Quote:
Originally Posted by seed60 View Post
That's just crazy!!
so wat the story on that i wanna know so bad!!!!!!!
Reply With Quote
  #17
Old 09-29-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Quote:
Originally Posted by The_Dealer View Post
so wat the story on that i wanna know so bad!!!!!!!
Is it not obvious?
That's what happens when you don't use your brain and hook a tow strap to a tow ball. It's how people get killed.
Reply With Quote
  #18
Old 09-29-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
bah I dont have pics of any set up of mine on this computer..but ive had 3 or 4 different ones lol
Reply With Quote
  #19
Old 09-29-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by The_Dealer View Post
so wat the story on that i wanna know so bad!!!!!!!
I was stuck. I was getting pulled out by an f-250 with a pintle hitch(the style with the ball), I didn't know at the time, but the jackass that was pulling me in the f250 had a 5/8" shaft ball in a pintle hitch built for a 1" shaft ball. The ball cocked in the hitch and ripped out. It looked like he only had the nut on a few threads.

Quote:
Originally Posted by brianjwilson View Post
Is it not obvious?
That's what happens when you don't use your brain and hook a tow strap to a tow ball. It's how people get killed.
I agree, somewhat. You have to do what you have to do sometimes, but if I had know that he didn't have the right ball I wouldn't have let him pull me. I had a Toyota trying and a Jeep trying, even at the same time a couple times. The entire hitch ripped off of the Jeep. It wasn't a ball, it was the entire receiver along with a pintle hitch. So before you accuse me of not using my brain(if you look I don't have a ball on my truck) maybe ask about the circumstances.

Now on the other hand, you will never see me pull on a ball again and I agree that it is dumb and you shouldn't do it.
Reply With Quote
  #20
Old 09-29-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
I wasn't intending to call you out and call you stupid or anything, just trying to prove a point. Someone will look at it and it will stick in their head one day when they or a friend are stuck.
The other person your truck is connected to is the most danger to you, since (if it breaks) it's coming back toward you.

Any time I hook up to someone, I tell them they are responsible for what they hook their end up to if it breaks. But if I'm not satisfied with where they hook it up I will 'suggest' a better spot, and remind them again if anything breaks it is their responsibility. Plus I will not pull until everyone is clear out of the way.
Reply With Quote
