snapped an axle/ pics of carnage

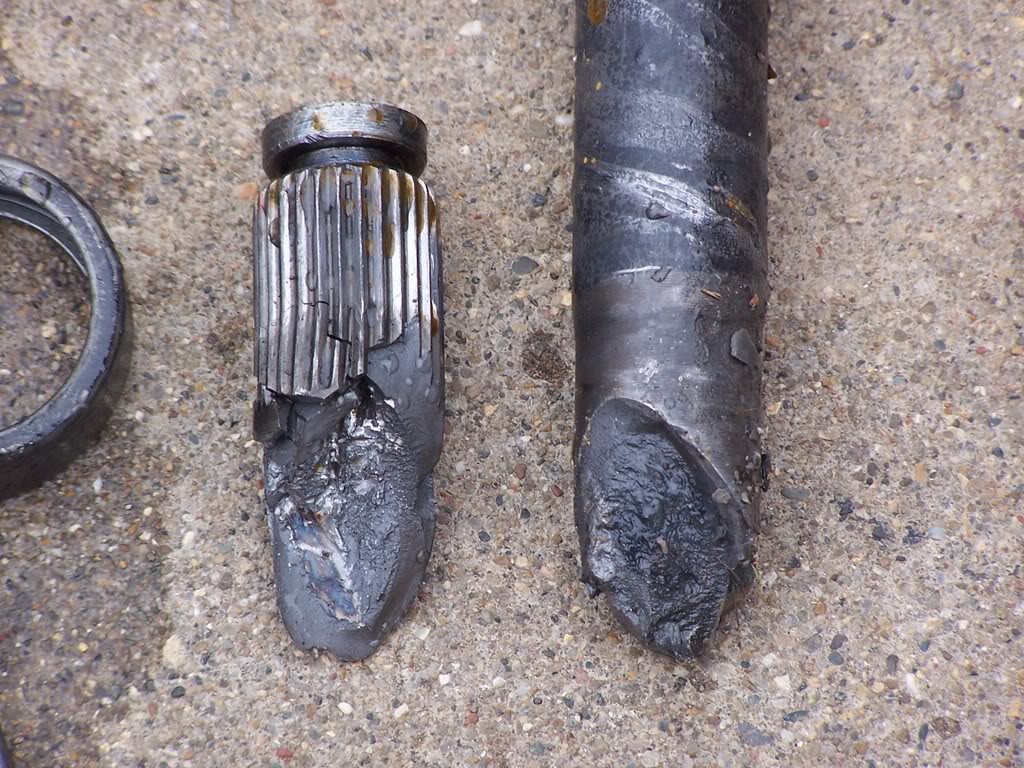

Name:  100_3278.jpg
Views: 6
Size:  226.0 KB

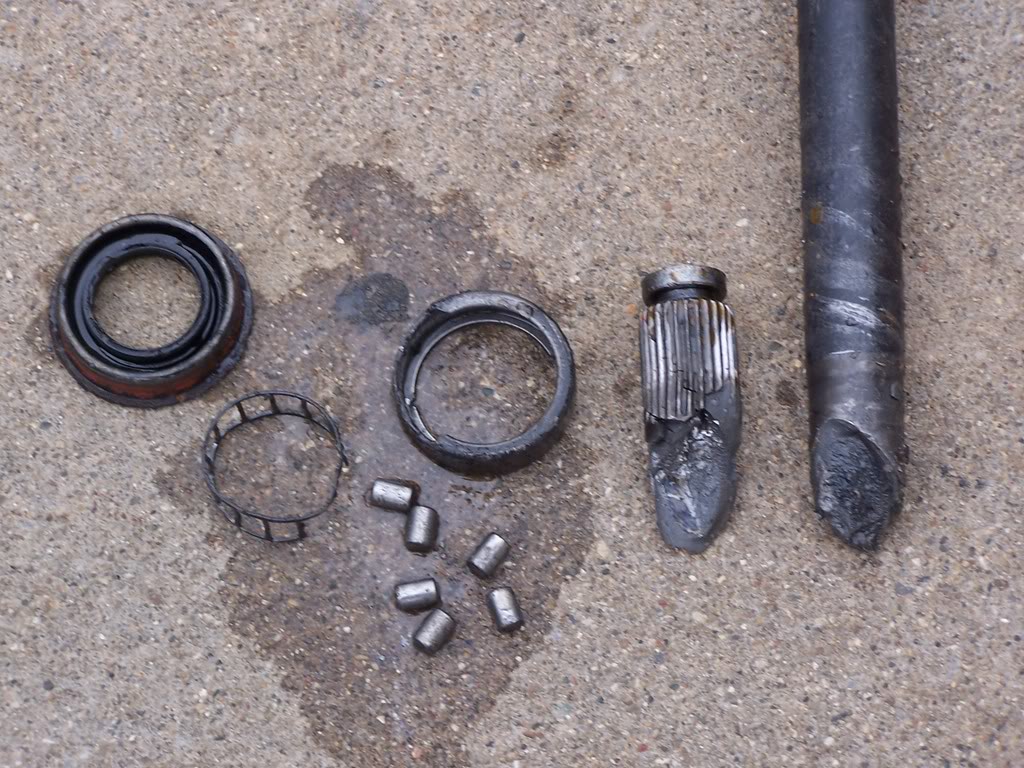

Name:  100_3277.jpg
Views: 2
Size:  195.7 KB
Reply With Quote
  #2
Old 01-14-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yup that sucks. My buddy did that in his jeep climbing a tree stump.
Reply With Quote
  #3
Old 01-14-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Well, that sucks. How'd you do it?
Reply With Quote
  #4
Old 01-14-2009
JRanger's Avatar
Member
Thread Starter

Join Date: Dec 2006
Location: benton,IL
Posts: 116
burnout
Reply With Quote
  #5
Old 01-14-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i snapped my carrier while trying to do a burnout haha!

i never broke an axle shaft! thats impressive! lol
Reply With Quote
  #6
Old 01-14-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Sucks man.
I am surprised I haven't broken one yet with the way I drive on and off road.
Reply With Quote
  #7
Old 01-14-2009
RangerMuse's Avatar
Member

Join Date: Jul 2007
Location: Colorado
Posts: 1,727
I broke mine in the same place a few months ago, it was more sheered off than snapped in half but either way it is sh*tty go to the JY I picked up a new one for 50 bucks
Reply With Quote
  #8
Old 01-14-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by RangerMuse View Post
I broke mine in the same place a few months ago, it was more sheered off than snapped in half but either way it is sh*tty go to the JY I picked up a new one for 50 bucks
Seems like they always break there. My buddies jeeps shaft broke there too.
Reply With Quote
  #9
Old 01-14-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
its the weakest part of the shaft i think. right where it necks down again and the splines don't help either.
Reply With Quote
  #10
Old 01-14-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Note to self: No more burnouts!!!










...not like I could do one anyway! lol
Reply With Quote
  #11
Old 01-14-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
holy carnage batman!!
Reply With Quote
  #12
Old 01-14-2009
RangerMuse's Avatar
Member

Join Date: Jul 2007
Location: Colorado
Posts: 1,727
I would have thought that the shaft would have twisted before it snapped at the slipjoint just because the shaft is all aluminum and that section seems to be stronger. I guess I was way off on that thought though
Reply With Quote
  #13
Old 01-14-2009
My05edge's Avatar
Member

Join Date: Dec 2006
Location: Midland, TX
Posts: 1,351
i guess i got lucky! well see in the coming months how mine holds up...
Reply With Quote
  #14
Old 01-14-2009
freddie's Avatar
Member
iTrader: (9)

Join Date: Apr 2007
Location: OH
Posts: 2,463
Was that a 7.5" rear end? Or did you happen to get some wheel hop by chance? I ask, because I know a guy putting down over 400RWHP with his 8.8 28 spline, and he's only broke 1 axle shaft because of a massive amount of wheel hop on launch.
Reply With Quote
  #15
Old 01-14-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Probably revving it to redline and dumping the hell out of the clutch.
Reply With Quote
  #16
Old 01-14-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Quote:
Originally Posted by freddie View Post
Was that a 7.5" rear end? Or did you happen to get some wheel hop by chance?

Don't the 8.8 and the 7.5 have the same axle shafts, or am I mistaken on this?
Reply With Quote
  #17
Old 01-14-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by 4LO 4.0 View Post
Don't the 8.8 and the 7.5 have the same axle shafts, or am I mistaken on this?

Yup, 28 spline 8.8 shaft same as 7.5
Reply With Quote
  #18
Old 01-14-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Quote:
Originally Posted by buckgnarly View Post
Yup, 28 spline 8.8 shaft same as 7.5
That's what I was thinking.
The shafts, bearings, and gear sets are the same, only difference is the diffs.
Reply With Quote
  #19
Old 01-14-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by 4LO 4.0 View Post
That's what I was thinking.
The shafts, bearings, and gear sets are the same, only difference is the diffs.
If by gears you mean ring and pinion, no. The 8.8 and 7.5 is the size of the ring, hence the weaker 7.5.
Shafts and everything out from the pumpkin are the same....tubes, bearings, sahfts, seals, etc.
Reply With Quote
  #20
Old 01-14-2009
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
And people say the 3.0 is weak. Haha... that's some pretty nice carnage.
Reply With Quote
  #21
Old 01-14-2009
JRanger's Avatar
Member
Thread Starter

Join Date: Dec 2006
Location: benton,IL
Posts: 116
there was no wheel hop. i just rev it up to about 4 and let out on the clutch briskley and thats what happen. it did it real easy. that pavement that the carnage is sitting on thats what i was doing the burnout on. that pavement was actually kind of sticky.
Reply With Quote
  #22
Old 01-14-2009
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Ouch, that sucks!!
Reply With Quote
  #23
Old 01-14-2009
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
nice one
Reply With Quote
  #24
Old 01-14-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Quote:
Originally Posted by buckgnarly View Post
If by gears you mean ring and pinion, no. The 8.8 and 7.5 is the size of the ring, hence the weaker 7.5.
Shafts and everything out from the pumpkin are the same....tubes, bearings, sahfts, seals, etc.

Yeah I don't know why I typed gears, Just a got carried away I guess.
Reply With Quote
  #25
Old 01-14-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
If you are going to do something, do a good job at it. Nicely done.
