Weekend project HEADERS

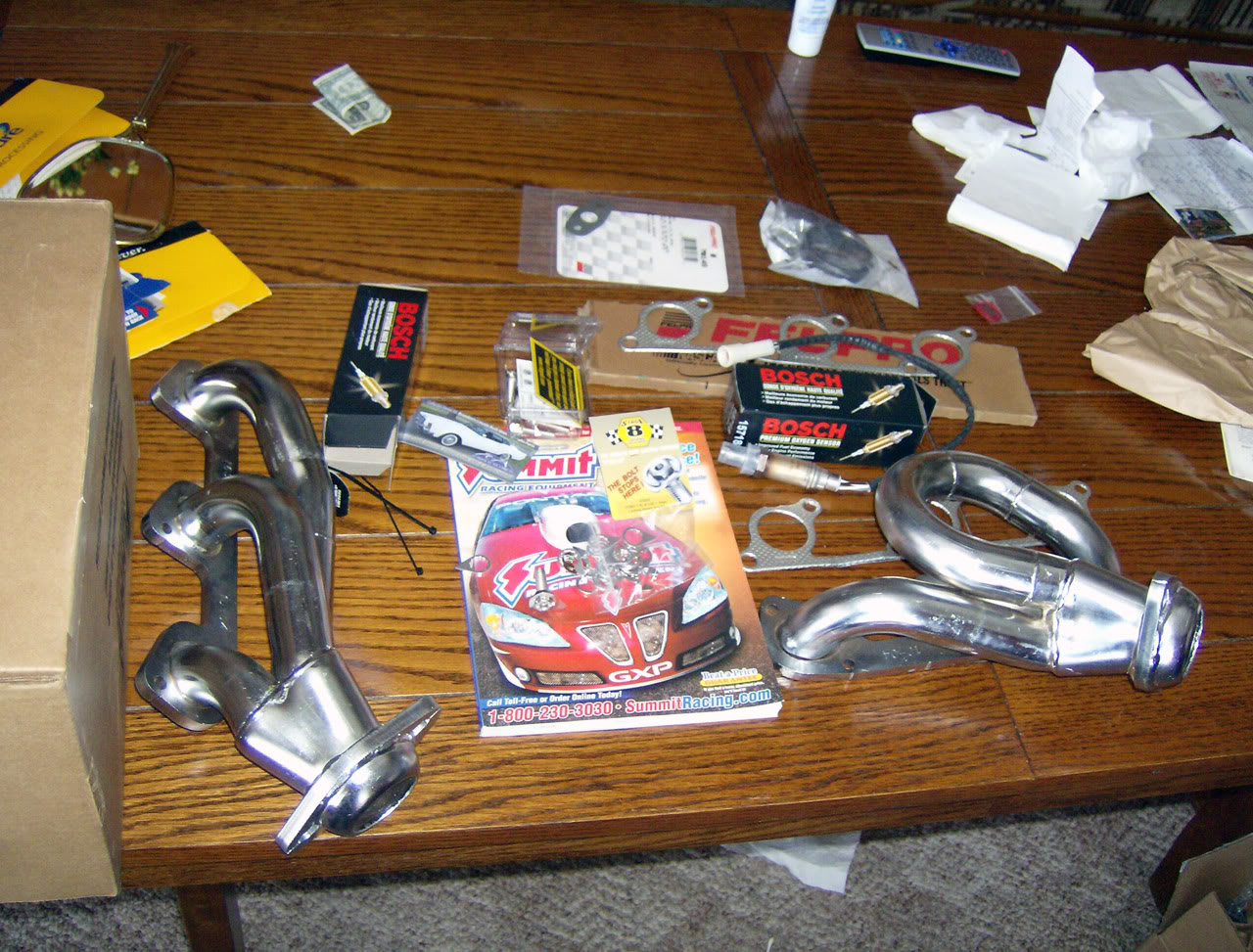

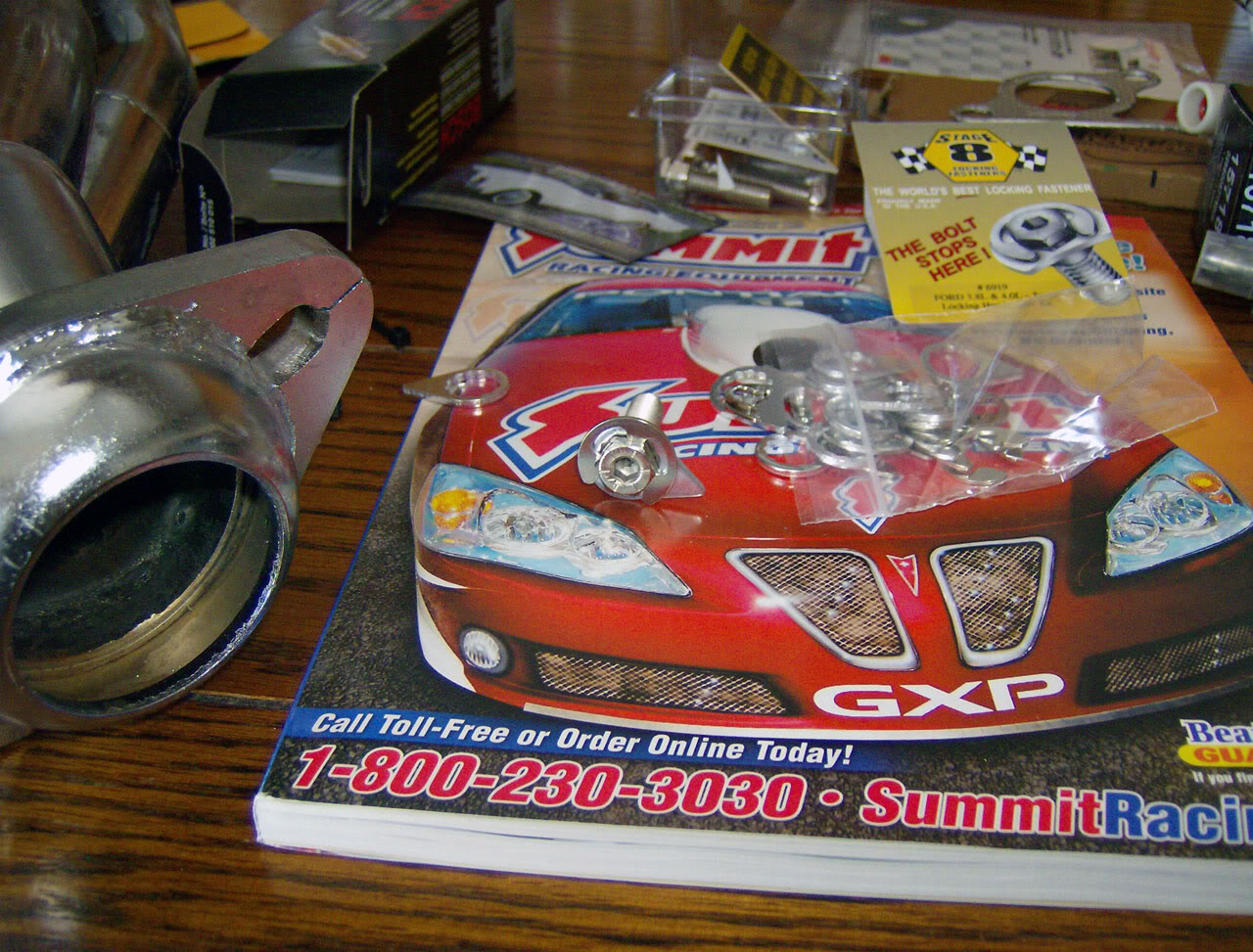

I have had these headers laying around for a while so i decided to order some bolts and gaskets.

Gonna start the install process after the holiday.

Name:  wkend.jpg
Views: 3
Size:  284.1 KB

Name:  wkend2.jpg
Views: 4
Size:  267.8 KB
Reply With Quote
  #2
Old 12-31-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I want some.
Reply With Quote
  #3
Old 01-01-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
get it done? should only take one day!
Reply With Quote
  #4
Old 01-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Git ~ R ~ Dun!!
Reply With Quote
  #5
Old 01-01-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by zabeard View Post
get it done? should only take one day!

Haven't started yet. Need to pick up some odds and ends. Im going to valve cover gaskets at the same time. Since they are leaking more than i thought.

Should be done with pics some time Friday. If all goes well.
Reply With Quote
  #6
Old 01-04-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
What a fun install. Had a real hard time with the studs untill i got a tool for the job. Some truck have E-torx studs which are on the easier side to get out. I was not that lucky and end up needing a stud puller. Which I got at the china tool palace, aka Harbor Freight. i would have went qualtiy route if i had the time. With a un driveable truck my hand was forced. Oh well.

After that speed bump the pass side went very easy. With no issues at all.

Now the drivers side. I had to notch the flange and use a BFH to get the bolts into place. The bolt I had to nudge isnt seating properly and i have very annoying tick which i need to address. This was rather pain in the butt time consuming project. Mostly becuase i choose to use stage 8 locking hardware. The JBA stuff must be different. I got these second hand so i didn't have any hardware.


Here are the pics. I took a few more than this but they really didn't focus well.


Differences
Notice the size difference on the middle port.
Name:  HPIM0792.jpg
Views: 4
Size:  99.7 KB

Stud puller
Name:  HPIM0790.jpg
Views: 5
Size:  183.6 KB

Notch cut in driver side header
Name:  HPIM0811.jpg
Views: 2
Size:  118.0 KB

finished
Name:  HPIM0798.jpg
Views: 2
Size:  121.5 KB
Reply With Quote
  #7
Old 01-04-2009
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
How did you get into that small area? when I look under there on my truck and I can barely get my arm up there let alone tools with it.

looks awesome though. Good job.
Reply With Quote
  #8
Old 01-04-2009
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
well, can u tell a difference in performance and or sound? Either was it looks good tho!
Reply With Quote
  #9
Old 01-05-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
I love my headers, except for the slight ticking.
Reply With Quote
  #10
Old 01-05-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
mmm purty!

so it drives good?
Reply With Quote
  #11
Old 01-05-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by cchsbuzz19 View Post
How did you get into that small area? when I look under there on my truck and I can barely get my arm up there let alone tools with it.

You pull the inner fender skirt/plastic out. There is plenty of room, even if it looks tight.


Quote:
Originally Posted by zabeard View Post
mmm purty!

so it drives good?


I have only back it out of the garage and then back in, so i could clean up the floor. It does have loud tick. Im going to address that to day.

From what little i drove it, i must say it sounds louder. From under the hood at least. I cant really hear a difference thought the exhaust.
Reply With Quote
  #12
Old 01-05-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
ah headers were kinda a pain in the butt and man do they get HOT fast!!!

install looks good!!!
