crank issues

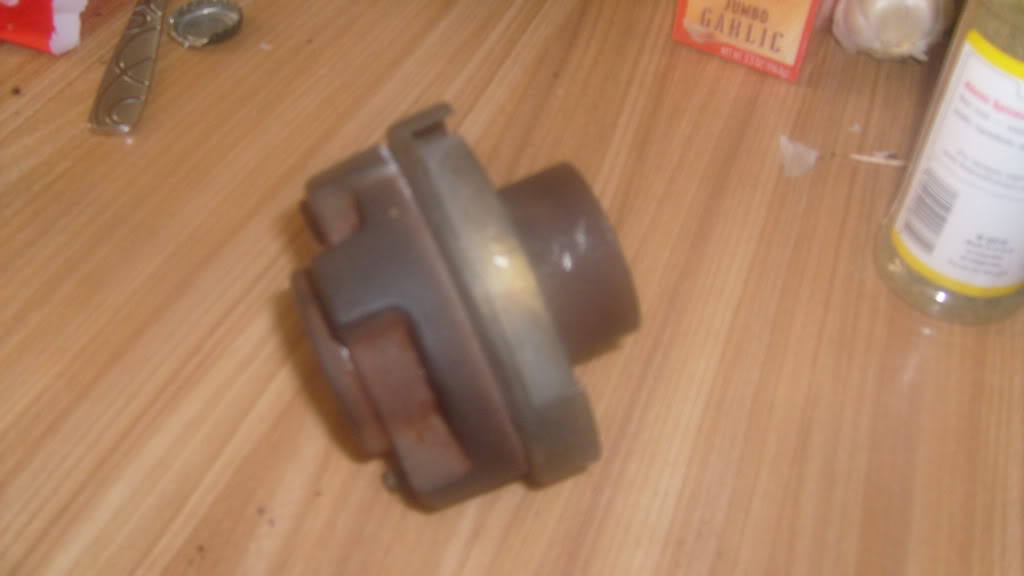

I was hoping someone could tell me the name of this part. I pulled it from my 94 Mazda and need to have it replaced as it's throwing off the timing. Name:  S6301229.jpg
Views: 15
Size:  76.8 KBName:  S6301230.jpg
Views: 17
Size:  70.5 KBName:  S6301228.jpg
Views: 14
Size:  67.0 KB
Reply With Quote
  #2
Old 09-02-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
where is this part located and on what year and motor?
Reply With Quote
  #3
Old 09-02-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
It fits around the crank pulley for the timing belt. It comes from a 1994 ford 2.3 L engine.
Reply With Quote
  #4
Old 09-02-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
this is right out of the workshop manual do you see it in this pic?
Attached Thumbnails
crank issues-a7116d.gif
Reply With Quote
  #5
Old 09-02-2010
ccosgrove71's Avatar
Member

Join Date: Jun 2010
Location: richmond,va
Posts: 185
its the ring for the crank sensor aka hall effect type sensor.
Reply With Quote
  #6
Old 09-02-2010
ccosgrove71's Avatar
Member

Join Date: Jun 2010
Location: richmond,va
Posts: 185
and your sure thats throwing off the timing and not the actual senor?
Reply With Quote
  #7
Old 09-02-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
Fairly certain. The collars that pass through the sensor are bent.
Reply With Quote
  #8
Old 09-02-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
interesting, goes to show you how many 2.3s i work on, i think every one i have worked on had a distributor lol
Reply With Quote
  #9
Old 09-02-2010
ccosgrove71's Avatar
Member

Join Date: Jun 2010
Location: richmond,va
Posts: 185
hopefully you can get one from a junk yard that isnt bent up.
Reply With Quote
  #10
Old 09-02-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
actually the one in the picture is one we pulled from a junk yard. A lot of junk yards here don't even part out their vehicles. We had to go an hour away for this one. we got it thinking that the original in my truck was in worse condition. It wasn't.
Reply With Quote
  #11
Old 09-02-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
So does this piece have a specific name?
Reply With Quote
  #12
Old 09-02-2010
ccosgrove71's Avatar
Member

Join Date: Jun 2010
Location: richmond,va
Posts: 185
its a reluctor ring, i ithink i spelled that right
Reply With Quote
  #13
Old 09-02-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
Ok. Well considering only the short wall is bent on the reluctor ring, should it still function properly with the sensor? I'm only somewhat confidant that its the ring that's faulty.
Reply With Quote
  #14
Old 09-02-2010
ccosgrove71's Avatar
Member

Join Date: Jun 2010
Location: richmond,va
Posts: 185
that ring should be perfect, a little bend can throw it off. but i would put a sensor in to be on the safe side.
Reply With Quote
  #15
Old 09-07-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
Well. Having watched me piddle around too long on this thing, my brother decided he'd get me a code reader. And all the while I was hoping for a 227 so I wouldn't feel retarded for spending so much time on it. But alas, I got myself a 224.
Reply With Quote
  #16
Old 09-07-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
code reader should have been the first thing you did. its stupid with vehicles now to just start replacing parts unless you scan them cause you dont know what the actual issue is
Reply With Quote
  #17
Old 09-07-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
Luckily we hadn't poured too much money into it before this point. Being a novice and learning as I go does have a great deal of disadvantages. But after using the code reader and examining the coils, we found the 1st and 4th exhaust stroke coils to be faulty. The only thing we lost here is a great deal of time. I'll be picking up and installing the ignition coil tomorrow. Pretty excited. And yes, I do feel quite stupid. But at least I know better for next time.
Reply With Quote
  #18
Old 09-07-2010
Member

Join Date: Dec 2009
Location: Kirkland, WA
Posts: 71
^^Meh....we all do stupid stuff.

*I once started filling up a gas truck with diesel. The container was marked both green and red in different areas. My buddy started laughing and told me it was wrong. I looked at him an continued on saying that if he was serious he wouldn't be laughing. Bastard just kept laughing!?!?! 20gallons later finally another buddy comes along and says that it was wrong. Had to siphon it all out.
Reply With Quote
  #19
Old 09-08-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Hattiesburg, MS
Posts: 9
Wonderful. My brother told me this story of a guy who was changing his oil. He was having trouble with the plug so he unscrewed the oil filter and ran his vehicle till it stopped spewing.
Reply With Quote
  #20
Old 09-08-2010
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Quote:
Originally Posted by Isaacwilliam View Post
Wonderful. My brother told me this story of a guy who was changing his oil. He was having trouble with the plug so he unscrewed the oil filter and ran his vehicle till it stopped spewing.
Lol wut?
Reply With Quote
  #21
Old 09-08-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
Quote:
Originally Posted by Isaacwilliam View Post
Wonderful. My brother told me this story of a guy who was changing his oil. He was having trouble with the plug so he unscrewed the oil filter and ran his vehicle till it stopped spewing.
lol isnt that how your supposed to drain the oil?
Reply With Quote
  #22
Old 09-10-2010
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Drain your oil and your rods all in one sitting!
Reply With Quote
