Hose on top of engine.

Stupid question but what is the hose thats on top of the 2.5L right next to the oil cap? Mine is cracked and im thinking its time to replace it.
Reply With Quote
  #2
Old 02-22-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Is it the oil reservoir hose? Does it go down to the oil pump?
Reply With Quote
  #3
Old 02-22-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
point it out
Reply With Quote
  #4
Old 02-22-2008
Jester983's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: La habra, CA
Posts: 429

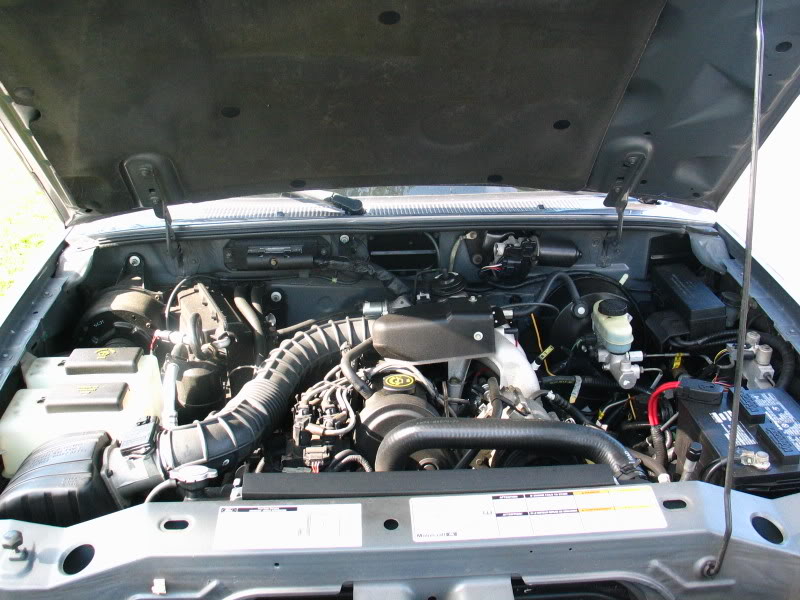

Name:  103_0363.jpg
Views: 104
Size:  97.3 KB

Its the hose right next to the oil cap. and goes right next to the throttle body I believe.
Reply With Quote
  #5
Old 02-22-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
hmm, seems my pic disappeared...i do not know what that hose is, hopefully someone else can help you
Reply With Quote
  #6
Old 02-22-2008
Member

Join Date: Feb 2008
Location: Tonica,IL.
Posts: 28
Quote:
Originally Posted by Jester983 View Post


Its the hose right next to the oil cap. and goes right next to the throttle body I believe.
Unsure of which one u mean do u mean
The hose coming from the valve cover, approx. 2" to the passenger side of the oil fill cap is the crankcase ventilation hose and it should go to the intake.
Reply With Quote
  #7
Old 02-22-2008
Jester983's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: La habra, CA
Posts: 429
I circled it in red. Should've done that in the first place lol.

Name:  example.jpg
Views: 110
Size:  77.3 KB
Reply With Quote
  #8
Old 02-22-2008
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Yep, that gets plugged directly into the air circulation system around in there... I wouldnt worry about it being cracked, it shouldnt have anythign go bad with it.. but if you want to make the engine perfect and such.. feel free to :-)
Reply With Quote
  #9
Old 02-24-2008
Needforspeed3685's Avatar
Member

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by WowMike2001 View Post
Yep, that gets plugged directly into the air circulation system around in there... I wouldnt worry about it being cracked, it shouldnt have anythign go bad with it.. but if you want to make the engine perfect and such.. feel free to :-)
Actually DO worry if it's cracked. This hose moves crankcase vapors from the valve cover to the intake manifold so they can be burned off for emissions.

Since this hose connects directly to your intake manifold via the throttle body, it can create a vacuum leak and will cause poor performance, bad gas mileage, stuttering idle, and other symptoms. More than likely, the crack you're seeing is only on the outer portion of the hose, but it may already be leaking!

I would recommend stopping by the Ford dealership (not sure if this one is available in retail auto parts stores without doing a special order.) ASAP to get this replaced.
Reply With Quote
  #10
Old 02-26-2008
Jester983's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: La habra, CA
Posts: 429
Quote:
Originally Posted by Needforspeed3685 View Post
Actually DO worry if it's cracked. This hose moves crankcase vapors from the valve cover to the intake manifold so they can be burned off for emissions.

Since this hose connects directly to your intake manifold via the throttle body, it can create a vacuum leak and will cause poor performance, bad gas mileage, stuttering idle, and other symptoms. More than likely, the crack you're seeing is only on the outer portion of the hose, but it may already be leaking!

I would recommend stopping by the Ford dealership (not sure if this one is available in retail auto parts stores without doing a special order.) ASAP to get this replaced.
Hmm maybe this is contributing to my not so great gas mileage. Is there an official name for this hose or no?
