My sas build

Truck is a 99 ranger 3.0, doing a 79 f250 44 front and dana 60 rear. Been working on it since last june.

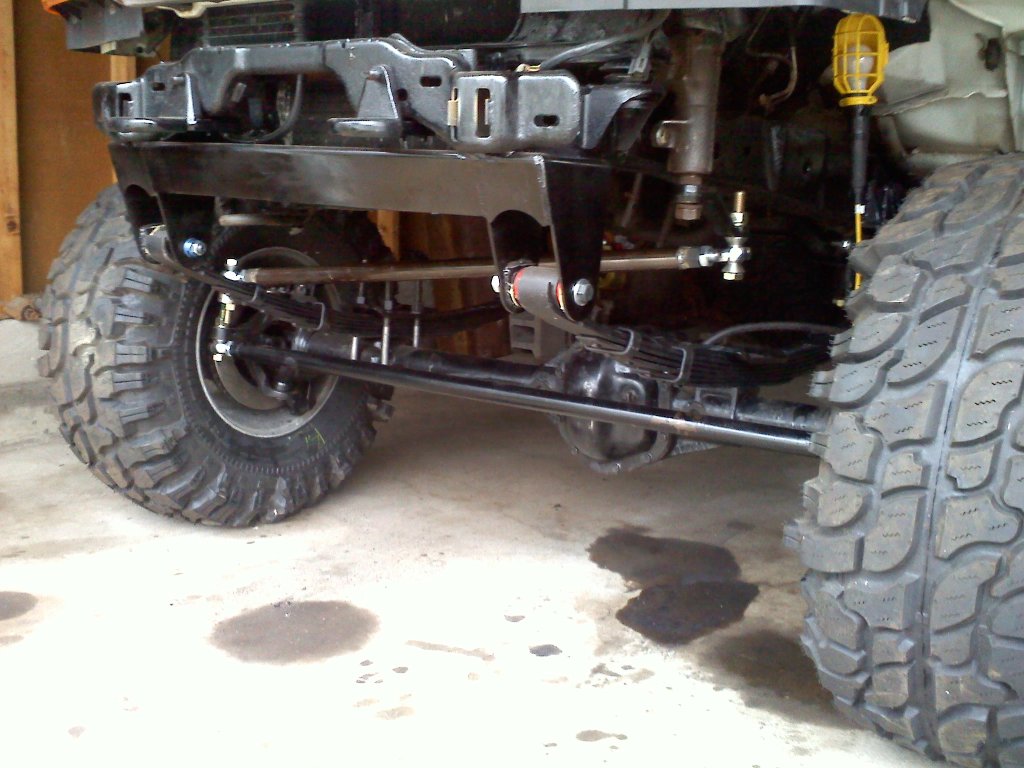

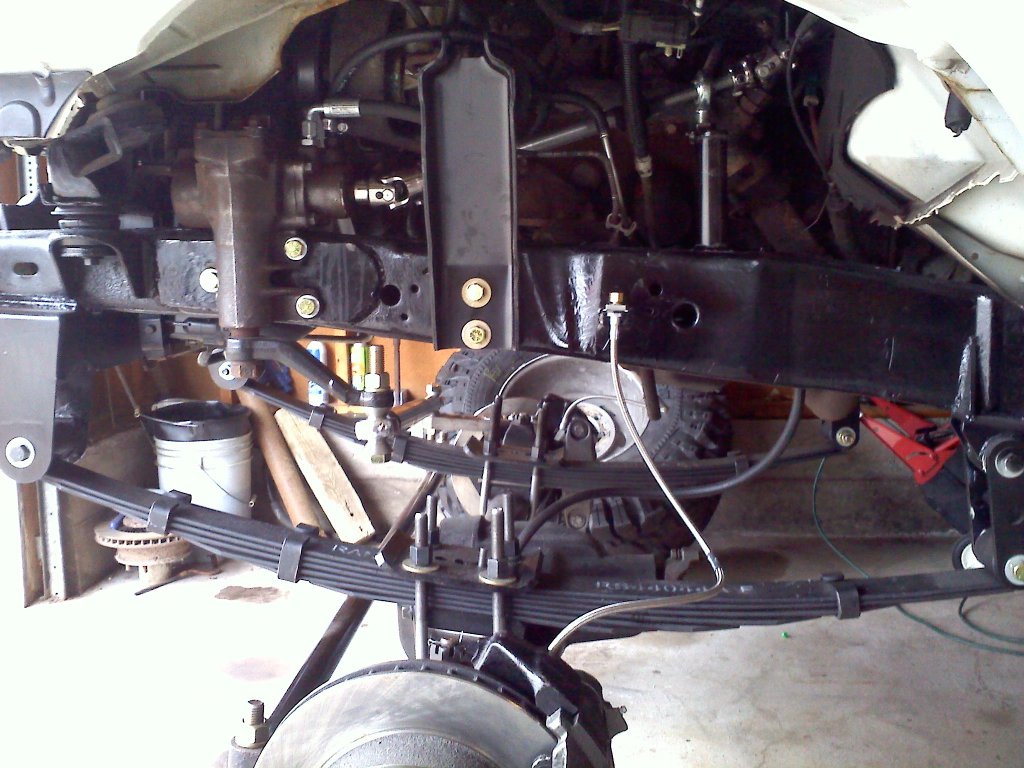

Used Rancho 44044 leafs springs

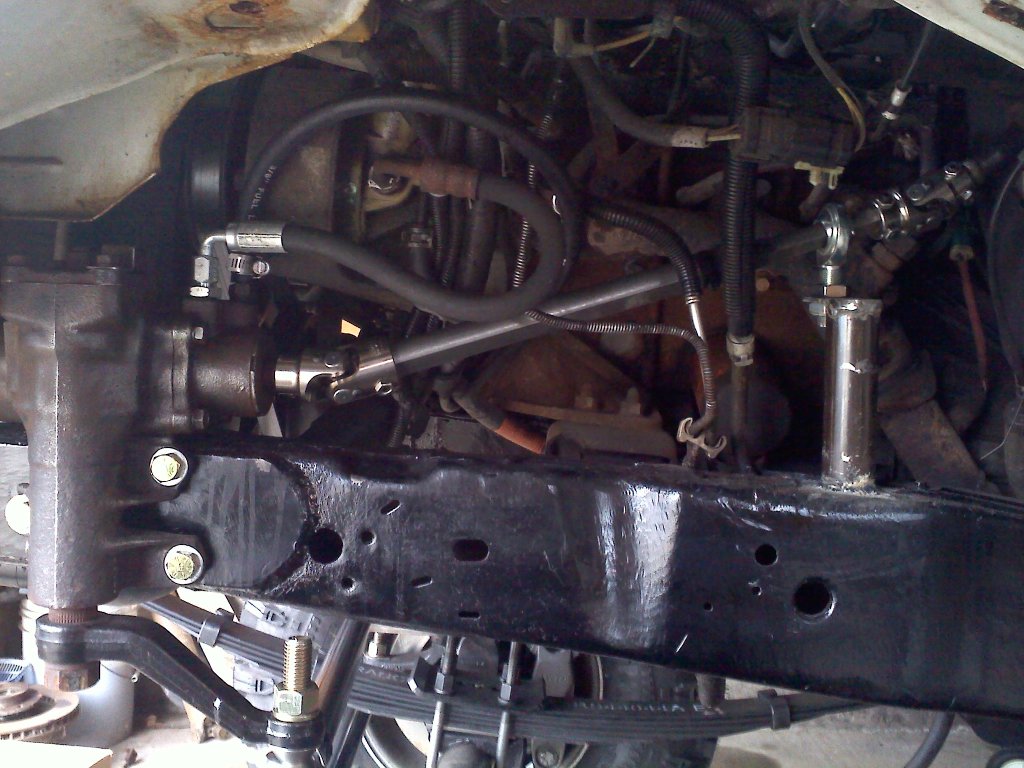

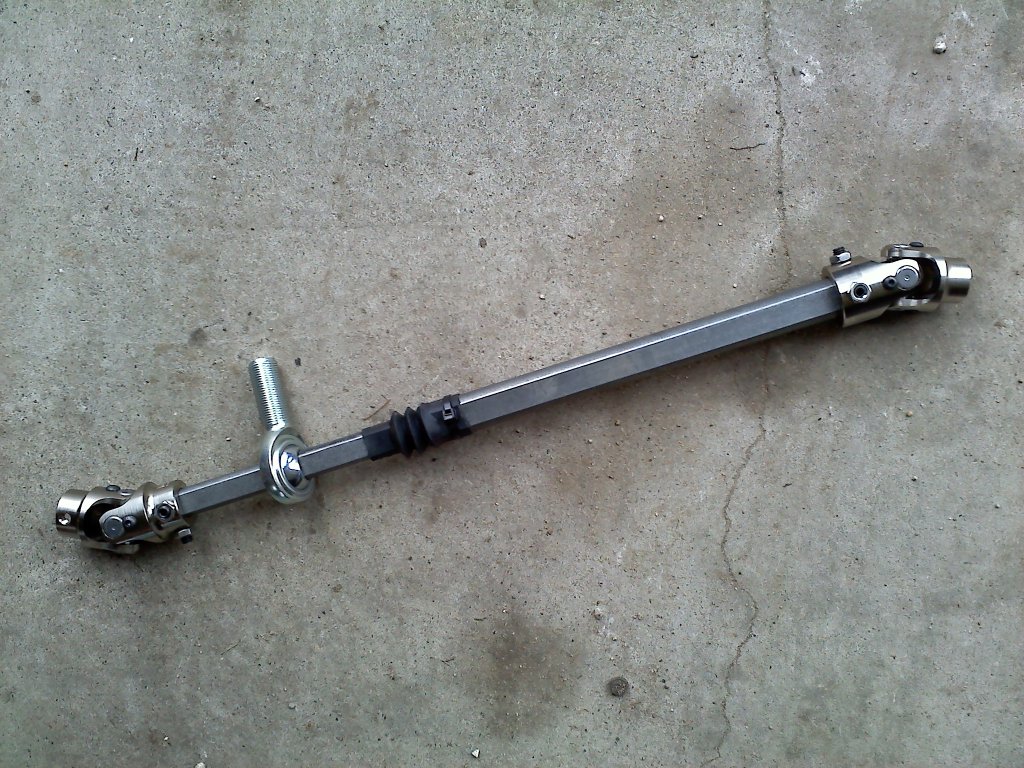

Used a toyota steering box,

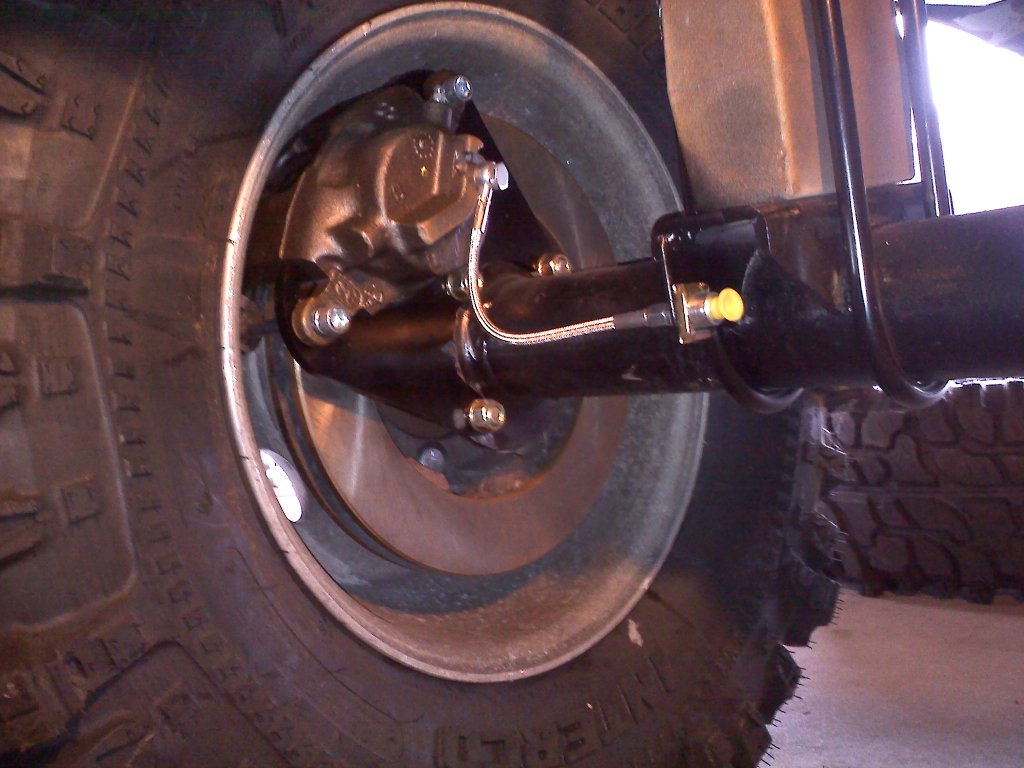

Rear 60 with disc conversion


Final ride height
Attached Thumbnails
My sas build-20120228114811.jpg   My sas build-20111205135249.jpg   My sas build-20120223134404.jpg   My sas build-20120223111854.jpg   My sas build-20120228115006.jpg

My sas build-20120228114852.jpg   My sas build-201110251136311.jpg   My sas build-201110251303261.jpg
Reply With Quote
  #2
Old 03-03-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Hoping to have it done by next week. Ordered the brake line that i need, which should be showing up wed and i will order today or monday. otherwise she is almost ready.
Reply With Quote
  #3
Old 03-03-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good. How far forward did you put the front axle?
Reply With Quote
  #4
Old 03-03-2012
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Is is just me or does it look like there is more gap between the lugs on the thornbirds than there used to be.
Reply With Quote
  #5
Old 03-03-2012
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
Quote:
Originally Posted by Ford78 View Post
Used a toyota steering box,
did you mount your intermediate shaft carrier bearing from the frame?
Reply With Quote
  #6
Old 03-03-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by 98liftedranger View Post
Looks good. How far forward did you put the front axle?
I never measured where stock was. I just placed the axle where i wanted it, i would guess about 3'
Reply With Quote
  #7
Old 03-03-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by -spilly View Post
did you mount your intermediate shaft carrier bearing from the frame?
Yes, i did mount it to the frame.
Reply With Quote
  #8
Old 03-03-2012
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Specs on rear axle please....

What it come out of?
What calipers and rotors did ou use on the rear axle?
Reply With Quote
  #9
Old 03-03-2012
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
When I did my sas I was told (from several forum members who sas'd) to mount the carrier bearing to the body not the frame because the frame and body will move differently under flex, effectively binding the steering and potentially breaking. Just something to consider. This is how I did mine. This pic is from another member on the forum. I really like the ride height of your truck too.

Attached Thumbnails
My sas build-630e9662.jpg
Reply With Quote
  #10
Old 03-03-2012
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
X2 -- I did mine that way...
Reply With Quote
  #11
Old 03-03-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by HighRollerII View Post
Specs on rear axle please....

What it come out of?
What calipers and rotors did ou use on the rear axle?
the axle came out of a 75 f250. The caliper mount is from ruffstuff. caliper and rotor are from a75-85 chevy 3/4ton 4x4 front. I have 5.13 gears with spool.
Reply With Quote
  #12
Old 03-03-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by -spilly View Post
When I did my sas I was told (from several forum members who sas'd) to mount the carrier bearing to the body not the frame because the frame and body will move differently under flex, effectively binding the steering and potentially breaking. Just something to consider. This is how I did mine. This pic is from another member on the forum. I really like the ride height of your truck too.

I mounted brace to the frame because I belive their should be enough play where it goes threw the body it shouldn't bind. If I have any problems ill just refab it to the body.
Reply With Quote
  #13
Old 03-03-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Nice, I plan on using the same axles out of the same era trucks. You're just faster than me lol
Reply With Quote
  #14
Old 03-03-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Nice!

I was also going to say the same about the shaft bearing. Im not an SAS expert or anything, but I immediately thought about stress during flex.

But its like you said, if you dont have any problems, then leave it as it is.

Keep us updated on progress!!
Reply With Quote
  #15
Old 03-03-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
stance is perfect! what size thornbirds? i cant wait to see some action shots. nice job man
Reply With Quote
  #16
Old 03-03-2012
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah those thornturds look better than I remember
Reply With Quote
  #17
Old 03-03-2012
Josh40601's Avatar
Member

Join Date: Jun 2011
Location: Kentucky
Posts: 376
Love it.

What did you do for brake lines? As far as ABS is concerned?
Reply With Quote
  #18
Old 03-03-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice work!
Reply With Quote
  #19
Old 03-03-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Thanks guys, the tire size is 35x14.5. Couldn't pass the deal up i got on them.
I took the abs out. Going straight from the master cylinder, I know the light will stay on but im ok with that.
Reply With Quote
  #20
Old 03-04-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
think you could measure the distance from ground to the ends of the frame rails?
Reply With Quote
  #21
Old 03-04-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
i wonder how the 3L will enjoy turning alll that
Reply With Quote
  #22
Old 03-04-2012
Member

Join Date: Feb 2011
Location: Tooele Utah
Posts: 132
Quote:
Originally Posted by 04RangerDave View Post
i wonder how the 3L will enjoy turning alll that
5.13 gears not a problem the 2.3l could turn 35's with those 5.13's
Reply With Quote
  #23
Old 03-04-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by blue03ranger View Post
think you could measure the distance from ground to the ends of the frame rails?
Once I get done with it, hoping Thursday I will take them for u. My parts should be showing up Monday or Tuesday and I will be working on her on wed.
Reply With Quote
  #24
Old 03-08-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124

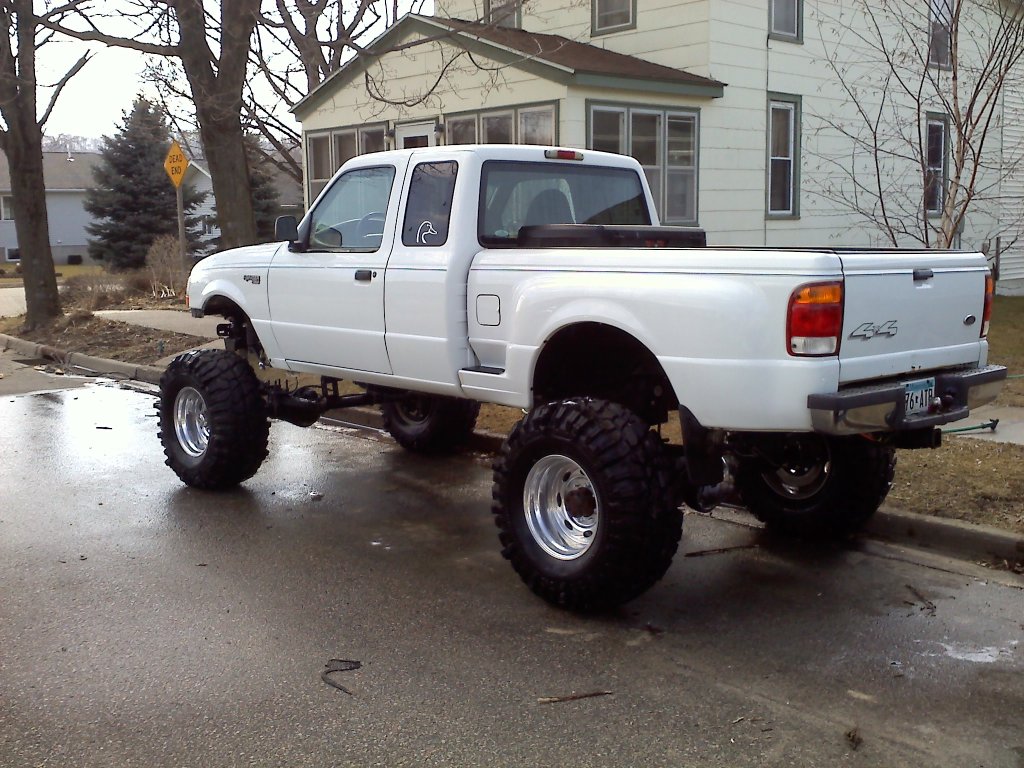

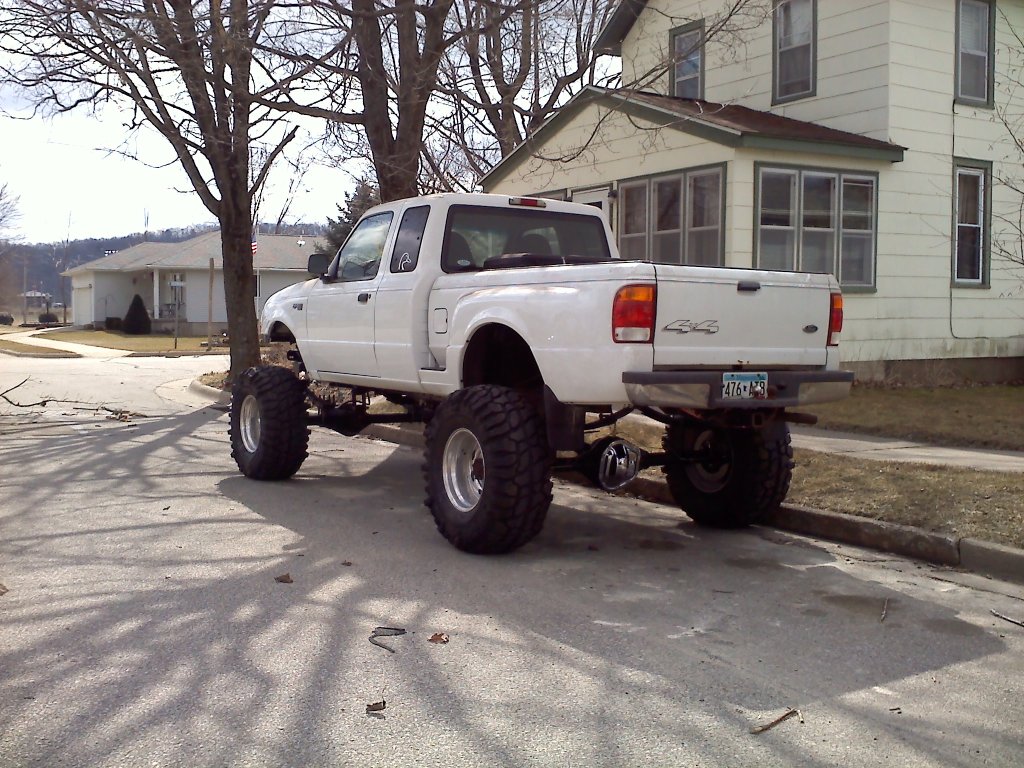

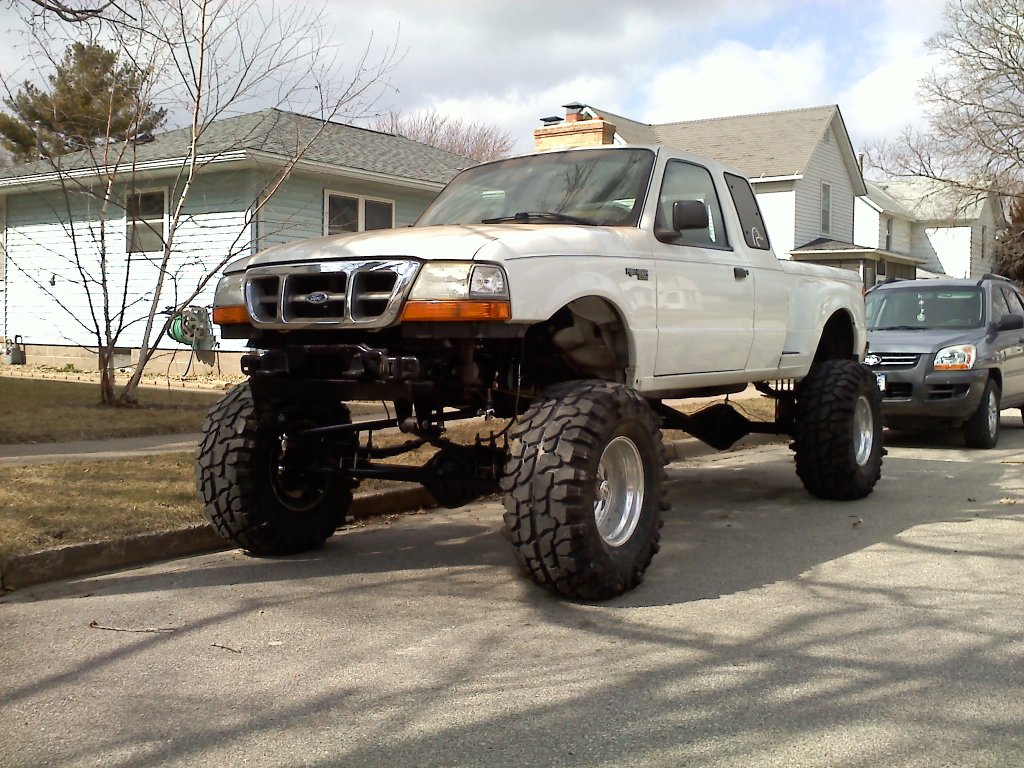

Got her out today. Did a few laps around the block. Everything see to work, got shocks order and they should be here next week. here a few pics




Attached Thumbnails
My sas build-20120308133153.jpg   My sas build-20120308133206.jpg   My sas build-20120308140008.jpg   My sas build-20120308140026.jpg   My sas build-20120308140042.jpg

Reply With Quote
  #25
Old 03-08-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Got her all washed up after collecting dust for the last 9 months.
