  #26
Old 03-08-2012
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
Damn I want that front axle I love how wide it sits. Truck looks good!
Reply With Quote
  #27
Old 03-08-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Did you say what you were doing for a front bumper?
Reply With Quote
  #28
Old 03-08-2012
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
Looks great man! I mounted my steering shaft pillow block to my frame also, and ive had no issues. I would deffinatly recommend a track bar!
Reply With Quote
  #29
Old 03-08-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice... looks huge!
Reply With Quote
  #30
Old 03-08-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Thanks guys. Don't know what I'm going to do yet for the front bumper. Would like a tube bumper with winch
Reply With Quote
  #31
Old 03-08-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good! Its giant!
Reply With Quote
  #32
Old 03-09-2012
Josh40601's Avatar
Member

Join Date: Jun 2011
Location: Kentucky
Posts: 376
I second the track bar. If you're going to drive it on the street. This looks more like a weekend Breyer drive on the street too type truck. You will DEFINTELY want a track bar. I recommend a disconnectable swaybar as well, but I like trucks to handle like road cars. Track bar Keeps it safe on the road at speed.
Reply With Quote
  #33
Old 03-09-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
I thought about the track bar, I just other things done first
Reply With Quote
  #34
Old 03-10-2012
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Look awesome. Definitely a tube bumper!!

What shocks are you planning to use?
Reply With Quote
  #35
Old 03-10-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
had a chance to get those measurements yet?

a front bumper will really pull it all together. i vote tube!
Reply With Quote
  #36
Old 03-11-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Ill be using skyjacker shocks since they have that rebate giong on right now . Ill try to get the measurements for u tomarrow after noon.
Reply With Quote
  #37
Old 03-11-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Looks good, nice work.

Wide isn't she… too much for me but the stance is good.

What’s up on the bumper ?

AND, AND, you probably know the Track Bar will stabilize the front end and yes give a better ride on the street… not that you are worried about that.

Back End is down, what are you going to do ?
Reply With Quote
  #38
Old 03-11-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Thanks, Being in Iowa i really dont have to worry about the tires sticking out or the height.
I am going to find someone to make a tube bumper for the front. The springs should settle a little, plus the weight of the bumper/winch, should be about level.
Reply With Quote
  #39
Old 03-11-2012
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
My rancho 44044's came down 2" give or take. They ride and flex awesome but I'm not overly impressed with how much they settled. Just something to keep in mind when you your adding the weight of a bumper and I'm assuming a winch. I love the height and the width tho you got a nice lookin truck.
Reply With Quote
  #40
Old 03-12-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by blue03ranger View Post
think you could measure the distance from ground to the ends of the frame rails?

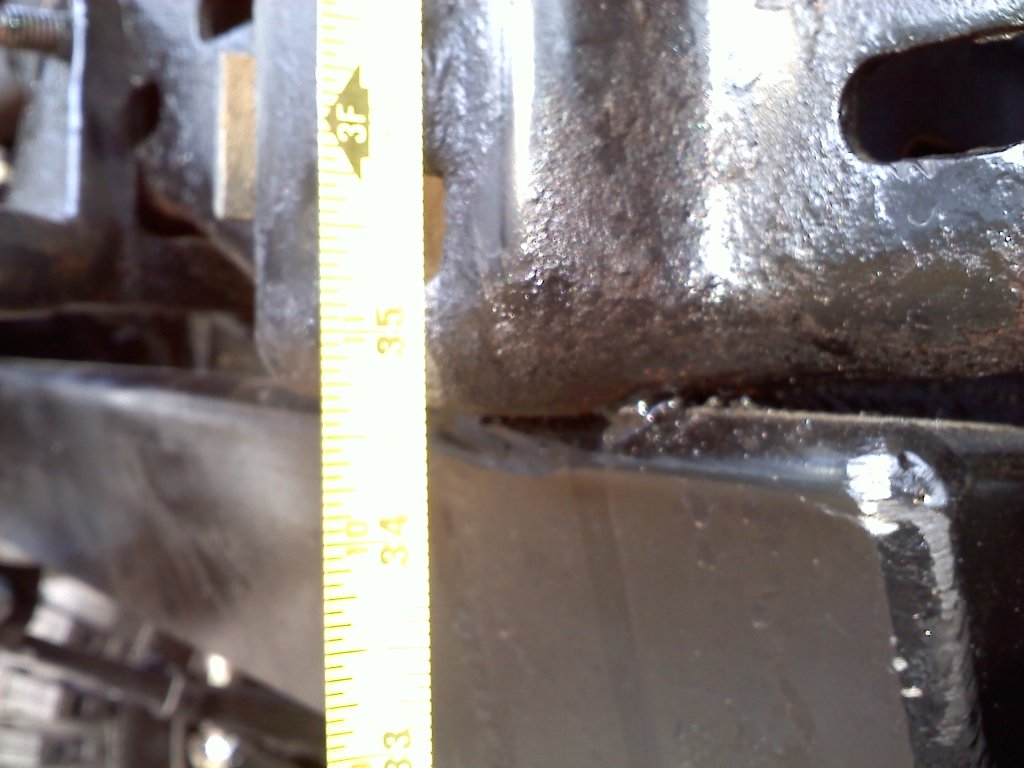

Took some measurements for ya,hears the front which is about 34.5in

The rear i took right by the shackle mount since i have the hitch in the way, which i would say is about 36"

Hope this help and if u need any more just ask.
Attached Thumbnails
My sas build-20120312173524.jpg   My sas build-20120312173749.jpg
Reply With Quote
  #41
Old 03-12-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
do you think that with a 3 inch bl and a 3 link setup and giant 64 setup it would be possible to keep those numbers down around 27 front and 29 rear? i ask because im gathering parts for an eb44 swap and those are the maximum heights dictated by the lovely state of maine. id like for my tires to be the only illegal thing on the truck.

sorry for the thread jack
Reply With Quote
  #42
Old 03-13-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
I would think u could keep those numbers down, just don't use big lift coils. I'm really not the best one to ask, I went for height. The best bet would go threw the build thread of everyones and see what would work best.
Reply With Quote
  #43
Old 03-13-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
i must have read all the sas threads 3 or four times now. im leaning towards a 3 link with 14 inch coilovers from ballistic fab and a giant 64 kit with a couple leafs removed and a custom bed cage.
thanks again for the measurements, now hurry up and go get some action shots!!!!
Reply With Quote
  #44
Old 03-18-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
I also read threw all of the sas treads when i was doing mine. They gave me the ideas what i wanted and what worked. Got the shock mounts welded on and the shocks installed.

Just waiting for my plates to show up and get insurance on her , then ill get some more pics.
Attached Thumbnails
My sas build-20120316115336.jpg

Last edited by Ford78; 03-18-2012 at 09:36 AM.
Reply With Quote
  #45
Old 03-24-2012
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
got any ideas for the speedo? im just running a gps but im not puting any miles on my truck right now, haha
Reply With Quote
  #46
Old 03-24-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by EricRanger View Post
got any ideas for the speedo? im just running a gps but im not puting any miles on my truck right now, haha
I was just going to u the gps that i have too. maybe the other choice is to find a tranfercase with the speedo built in?
Reply With Quote
  #47
Old 04-24-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Heres a little update, i swaped transfer case a cople weeks ago. I got my vss sensor back by getting it in the transfer case and my speedo works now too. Plus i alos got a front yoke too instead of cv cone that i had on my old case.
Here my new case next to my old case.

Heres my new vss sensor location instead of the rear axle. I still have to clean the wiring mess up.

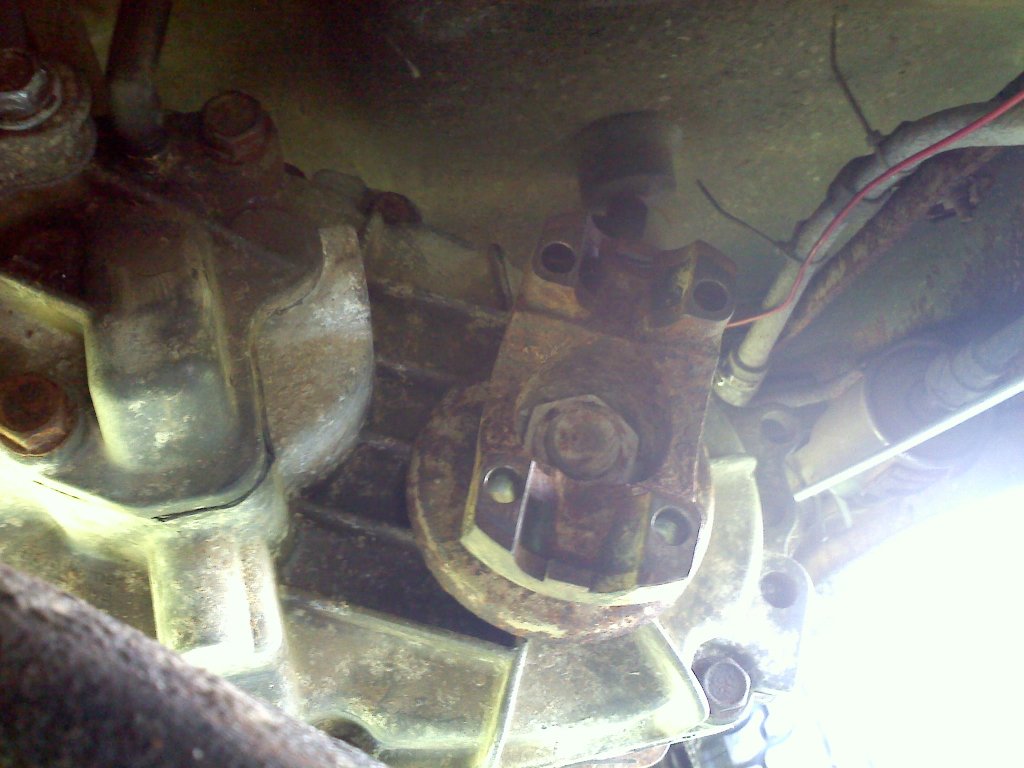

Heres my front yoke, now i dont have to get the adapter.
Attached Thumbnails
My sas build-20120413152630.jpg   My sas build-20120414143746.jpg   My sas build-20120414143811.jpg
Reply With Quote
  #48
Old 04-24-2012
Josh40601's Avatar
Member

Join Date: Jun 2011
Location: Kentucky
Posts: 376
What case is that? Looks like an older model with the vss plugged into the speedo cable hole
Reply With Quote
  #49
Old 04-24-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Its a 96 ranger 1354. The tranfer case had both vss and the speedo cable in 95,96 and 97
Reply With Quote
  #50
Old 04-24-2012
Josh40601's Avatar
Member

Join Date: Jun 2011
Location: Kentucky
Posts: 376
Ahhh. Nice! Learn something new everyday!
Reply With Quote
