  #26
Old 10-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 04blackedge View Post
You can do a 3 point 4 link that won't affect the tank.
yep but it might get some side to side movement. might as well do a 3 link with a panhard.
Reply With Quote
  #27
Old 10-28-2008
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
Quote:
Originally Posted by zabeard View Post
yep but it might get some side to side movement. might as well do a 3 link with a panhard.
well i made a small setup just like that today. to see if thats what i want to do. srry for the bad pics its from my phone

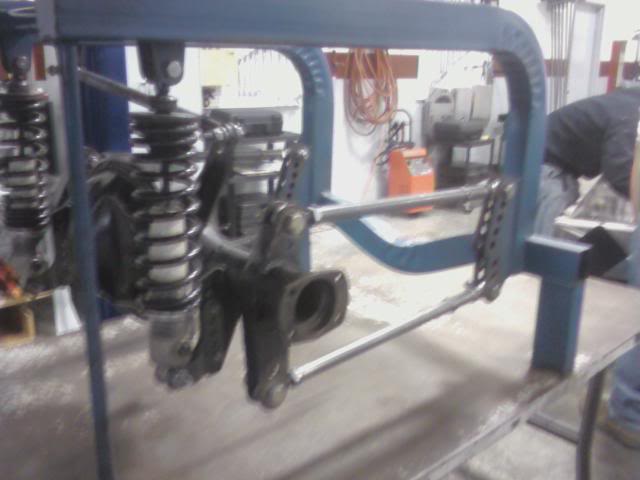

Name:  Setup1.jpg
Views: 4
Size:  30.8 KB

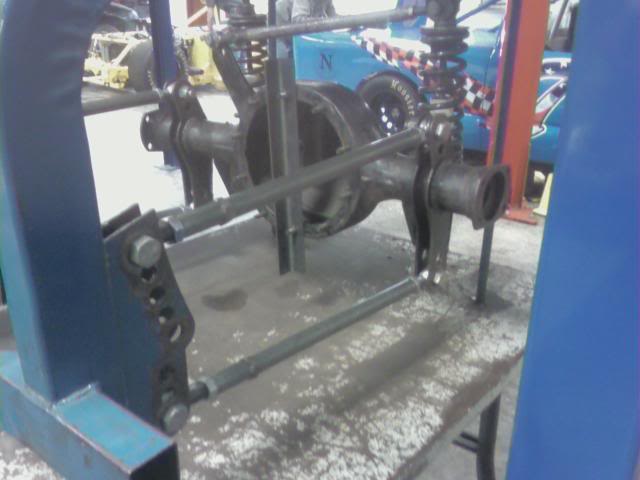

Name:  setup3.jpg
Views: 4
Size:  31.6 KB

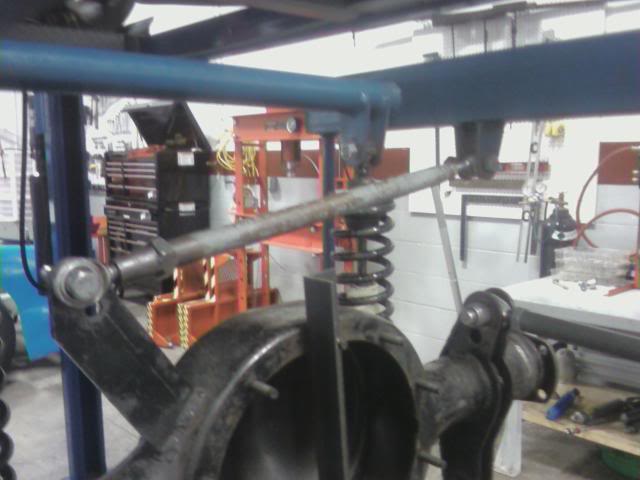

Name:  setup2.jpg
Views: 4
Size:  35.0 KB
Reply With Quote
  #28
Old 10-28-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
you can do a triangulated 4 link and a watts link. It would be the best all around setup.
Reply With Quote
  #29
Old 10-28-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by XeRo View Post
you can do a triangulated 4 link and a watts link. It would be the best all around setup.
You do one or the other not both, a Triangulated 4 link doesnt need a watts link or panhard to stop side to side movement, the 4 links do that themselves.
Reply With Quote
  #30
Old 10-28-2008
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
Quote:
Originally Posted by redranger4.0 View Post
You do one or the other not both, a Triangulated 4 link doesnt need a watts link or panhard to stop side to side movement, the 4 links do that themselves.

true, maybe a parallel 4 link with watts would be nice.
Reply With Quote
  #31
Old 10-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
so that you set it up what did you get out of it?
Reply With Quote
  #32
Old 10-28-2008
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
just bag it and drag it
Reply With Quote
  #33
Old 10-28-2008
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
Quote:
Originally Posted by zabeard View Post
so that you set it up what did you get out of it?

i was just taking notes on it, i did some drawings on the bar angles. other then that i really like the parallel set up, pretty simple concept. how hard you think it would take to do this. like a build.
Reply With Quote
  #34
Old 10-29-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
not all that hard. might have some clearance issues with the links but i am sure we can figure something out.
Reply With Quote
  #35
Old 11-03-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
Why not just do a panhard bar and a trac bar setup like D has. Would be MUCH less involved and still give you good handling. Will you have a V8 or good HP numbers to justify a 4 link and coilovers?
Reply With Quote
