8.8 lower shock mounts

Has anyone ever cut the stock lower shock mounts off and moved them higher on the housing so they wouldnt be a issue with gettin hung up on stuff?

There has been a few times I have been hung up by them or thought I was gonna rip them off completely.Looks like raising them 2.5-3" would get rid of that problem.

Do you think shorting the shock travel by that much would be an issue? I have 2.5" Rancho AAl in the rear and have ProComp9000 shocks for a SuperDuty for the extra travel.
Reply With Quote
  #2
Old 02-03-2008
Urandaman's Avatar
Member

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
i would look for a new shock that is shorter if you are going to do that... or make a new upper shock mount for both shocks...
Reply With Quote
  #3
Old 02-03-2008
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Well with my AAL's I had to get SuperDuty shocks which give a couple more inches of travel according to ProComp,so if I move these mount up a couple inches I guess I could get away with stock shocks again.

I think I am gonna cut my brackets off this week when I start workin on my front locker install and move them up and maybe ditch the swaybar too.
Reply With Quote
  #4
Old 02-03-2008
FX403/STX96's Avatar
Member

Join Date: Oct 2007
Location: MI
Posts: 395
Quote:
Originally Posted by deathbypsi View Post
Well with my AAL's I had to get SuperDuty shocks which give a couple more inches of travel according to ProComp,so if I move these mount up a couple inches I guess I could get away with stock shocks again.

I think I am gonna cut my brackets off this week when I start workin on my front locker install and move them up and maybe ditch the swaybar too.

Not to jack the thread..but what front locker did you go with?
Reply With Quote
  #5
Old 02-03-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I did that very thing. Let me find a pic and I'll show you.
Reply With Quote
  #6
Old 02-03-2008
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Hal,I got an Aussie front locker.

John, yes please post some pix if you can!!
Reply With Quote
  #7
Old 02-03-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by deathbypsi View Post
Hal,I got an Aussie front locker.

John, yes please post some pix if you can!!
Found one. I reclocked them on the FX4 L2 axle (31-spline) I put on. It allowed me to add about 3 to 4 inches more lift without dumping my Rancho RSX that were stock length. I'm still running those shocks.

They are now parallel to the ground. It's a much "cleaner" look and less likely to grab something when you're dragging your axle along the bottom of a water hole -- something I do regularly in Wharton, lol.
Attached Thumbnails
8.8 lower shock mounts-rearaxle.jpg
Reply With Quote
  #8
Old 02-03-2008
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Dam John that is exactly what I was thinkin bout! I like that alot,I knew someone else had to have thought of it before me.
Reply With Quote
  #9
Old 02-03-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Ha ha. I did that in 2005 and had some better pics but I moved them to a backup DVD and didn't want to get it out.

What I did was cut them off with a 3" air cutting wheel, then had them mig welded back on. The guy who welded them is an ex-nuclear weldor and he burned them in so fast I'm still in awe -- and they haven't broken. I could weld them now, but they wouldn't look like his welds, lol. Ford didn't weld them on as good as he did.
Reply With Quote
  #10
Old 02-03-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620

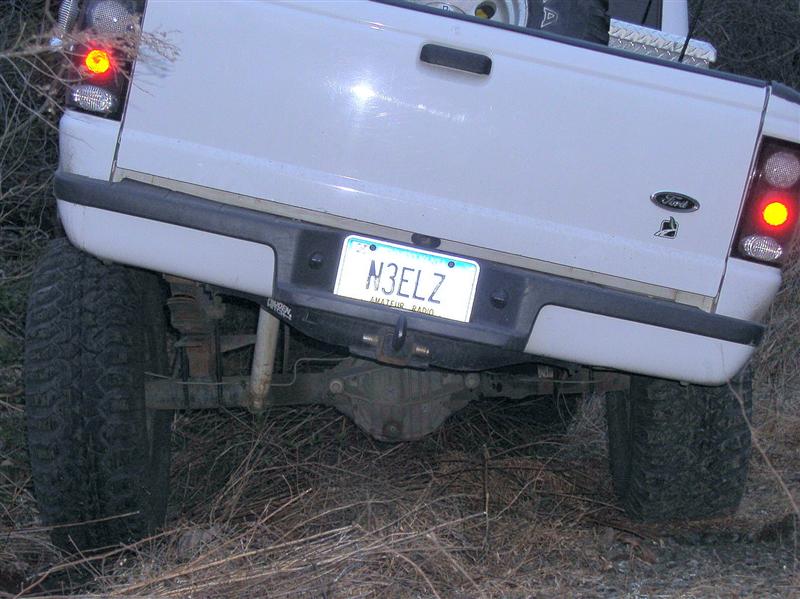

Here's another view flexed so you can see how it allows the stock length shocks to work without inhibiting flex too much.
Attached Thumbnails
8.8 lower shock mounts-axle2-medium-.jpg
