88 XJ Buildup thread

Building a 1988 XJ up for my sister's boyfriend.

Radius arm 8-lug D44 front.
BB 31 spline 9" rear.
4-5" lift with 4.88's.
Lockers f/r not sure yet.
~35" maybe 37's if I can talk him into it.
Whenever we get the $$$ to start building I'll start taking pics and posting the progress.

Update:

High pinion d44 8-lug. 31 spline FF d60.
Full spool front w/4.88's. Detroit rear 4.88's (sound similar? lol I may have been some influence).
Running factory ford radius arms, extended with JJ's on the frame side.
4.5" RE "extreme duty" leafs.
4.5" RR coils (maybe shorter depending on coil-bucket placement).
Cross-over steering, no high steer.
36x12.50 radial TSL, 16x8 rock-crawlers.

Picking up the axles this weekend hopefully, ordering all the gears/lockers/install kits the following week.

Last edited by 034x4; 04-25-2006 at 12:02 AM.
Reply With Quote
  #2
Old 04-11-2006
nated0g's Avatar
Member

Join Date: Nov 2005
Location: Millington, TN
Posts: 467
to save yourself some time, convert the closed cooling system to open.
Reply With Quote
  #3
Old 04-11-2006
blkb3's Avatar
Member

Join Date: Oct 2005
Location: Tolleson, Az
Posts: 443
cool man, i was thinkin of gettin an XJ (if you couldnt tell from the PM i sent ya). but i think im just going to get a 4x4 ranger insted. (i cant stand not having the bed when i need it). cant wait to see it get started. you do good work from what ive seen. should be fun. you leaving the rear leafs or converting to coils? that would be pretty sick.
Reply With Quote
  #4
Old 04-11-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Leaving the rear leaves for simplicity.

Using extended ford radius arms with JJ's on the end for the front. I'll take some pics of the jeep tomorrow for a "before" shot.
Reply With Quote
  #5
Old 04-11-2006
Member

Join Date: Feb 2006
Location: Lawrenceville, Georgia
Posts: 22
Should be pretty gnar jey. Good luck man

Chris
Reply With Quote
  #6
Old 04-11-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
sounds awsome Jey..cant wait to see the pics..looks like you got this down pat...
Reply With Quote
  #7
Old 04-11-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
I'm building up a customer base lol. If I keep doing this by the time I get to redo my truck I'll have alot more experience.
Reply With Quote
  #8
Old 04-13-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

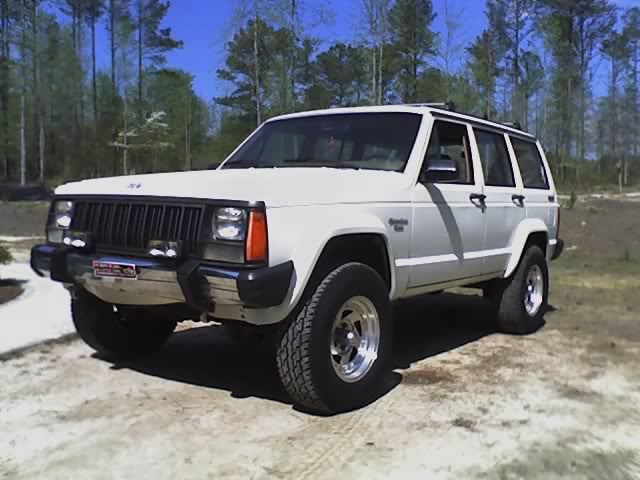

Before:

Name:  04-13-06_1556.jpg
Views: 1
Size:  45.9 KB

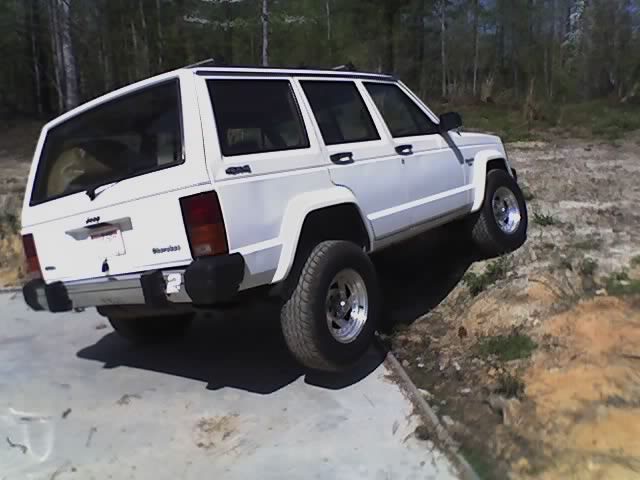

Name:  04-13-06_1559.jpg
Views: 1
Size:  39.3 KB

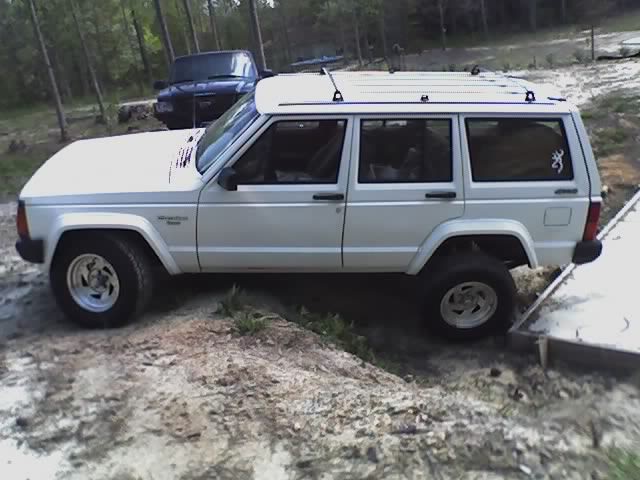

Name:  04-13-06_1622.jpg
Views: 1
Size:  46.4 KB

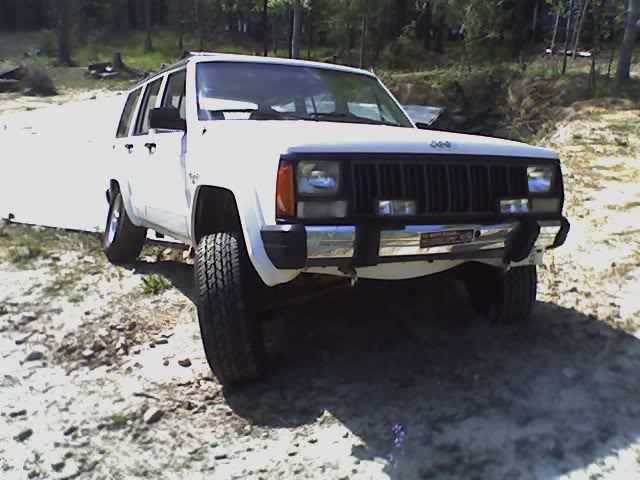

Name:  04-13-06_1623.jpg
Views: 1
Size:  48.3 KB

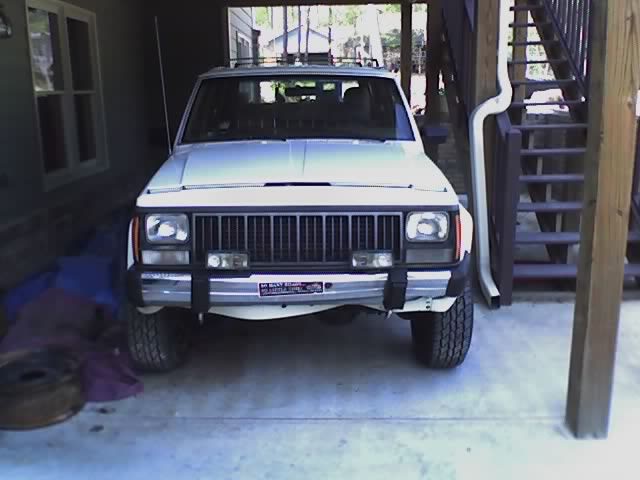

Name:  04-13-06_1630.jpg
Views: 1
Size:  36.1 KB
Reply With Quote
  #9
Old 04-13-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Quote:
Originally Posted by nated0g
to save yourself some time, convert the closed cooling system to open.
I agree, my friend has a couple XJs and he says the most common problem with them is the engine overheating.

Oh yeah, forgot... check out Rustysoffroad.com some of their stuff is really awesome, just as good or better than RE and it's in AL... cheaper shipping, etc.
Reply With Quote
  #10
Old 04-13-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
the xj is fun to use. i am looking for a cj-7 project
Reply With Quote
  #11
Old 04-13-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Ya I used to DD a '92 when my truck wasn't finished.

This one has no heating problems. It sat and idled in my backyard for about 45 minutes and didn't go above 200, even with the a/c on.
Reply With Quote
  #12
Old 04-13-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Rusty's is a little bling and their leafs are STIFF as hell.

I'm using RE springs because I know they are nice and soft.
Reply With Quote
  #13
Old 04-14-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Jey you should add me to AIM akrangerguy18 I have a few questions for ya on SAS stuff I don't understand. I might have some axles finally :-D Comes with a truck too! 76 F-150.
Reply With Quote
  #14
Old 04-16-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

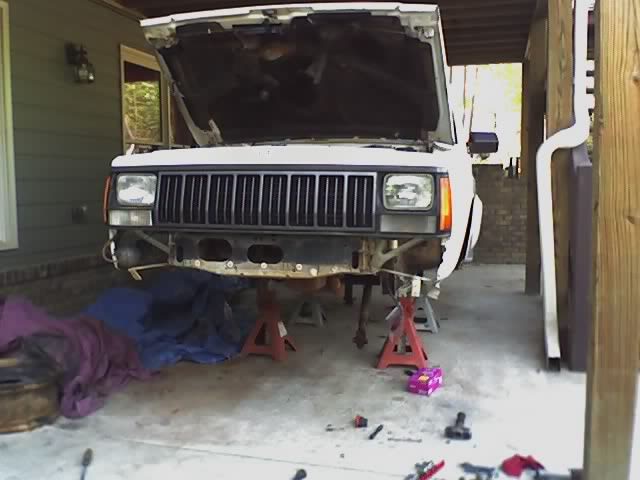

Had some fun, only took about 3.5-4 hours of leisurely work in the hot *** sun.

Name:  04-16-06_1735.jpg
Views: 1
Size:  36.0 KB
My 'new' axles are under the tarps, haha sorry still no pics .

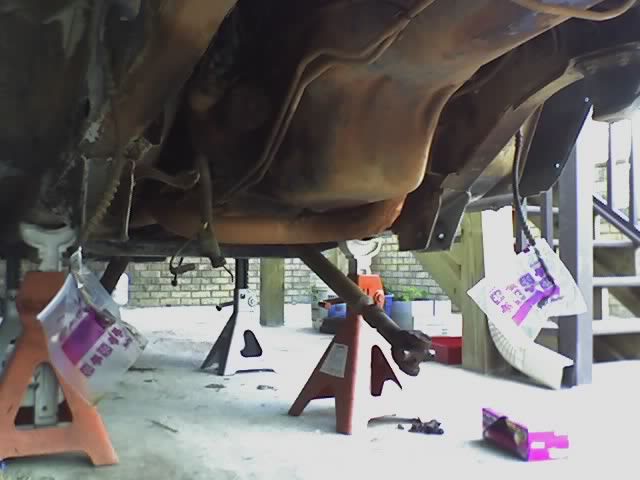

Name:  04-16-06_1736.jpg
Views: 1
Size:  34.8 KB

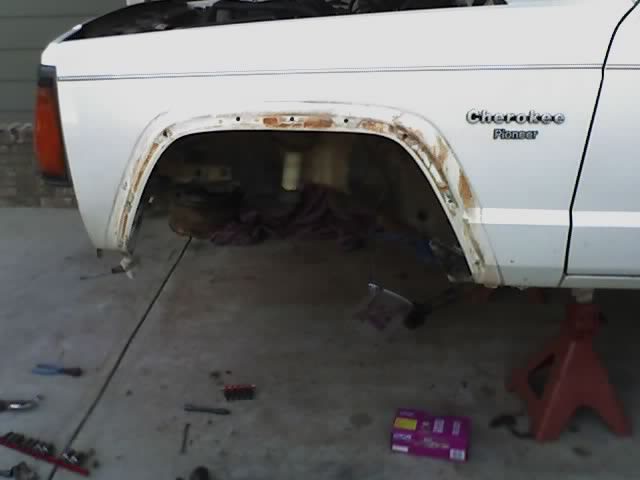

Name:  04-16-06_1737.jpg
Views: 1
Size:  21.1 KB

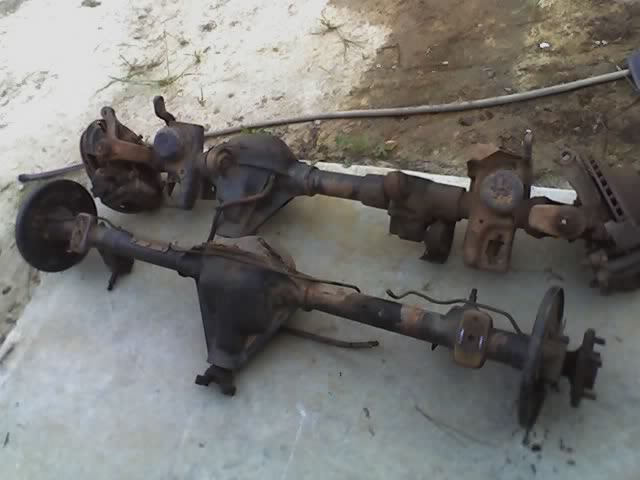

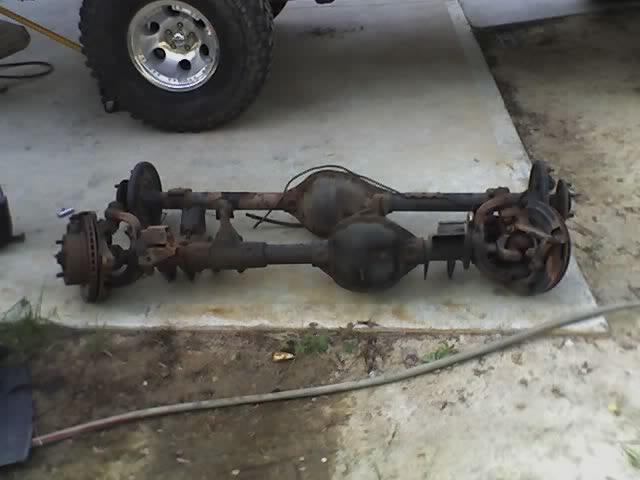

For sale: HP30 and d35. Package deal 100$ takes both.

Name:  04-16-06_1738.jpg
Views: 1
Size:  31.5 KB

Name:  04-16-06_1739.jpg
Views: 1
Size:  31.6 KB

Last edited by 034x4; 04-17-2006 at 11:18 AM.
Reply With Quote
  #15
Old 04-16-2006
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
this is gonna be cool! so what's worse, Trying to build up a truck in freezing cold weather or a jeep in the hot *** sun?
Reply With Quote
  #16
Old 04-16-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Ya know, if its cold, I can work faster and get warm, but can't really cool down in the heat, but I can still feel my fingers, so I'm not sure lol.
Reply With Quote
  #17
Old 04-24-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

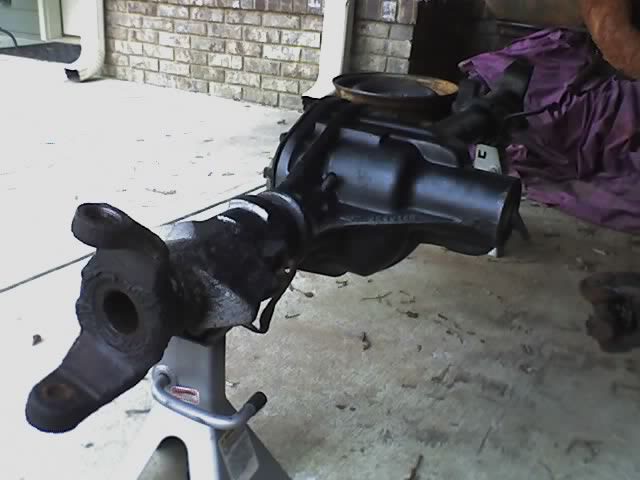

Picking up radius arms, bushings and frame mounts tomorrow

Name:  04-24-06_1822.jpg
Views: 1
Size:  24.5 KB

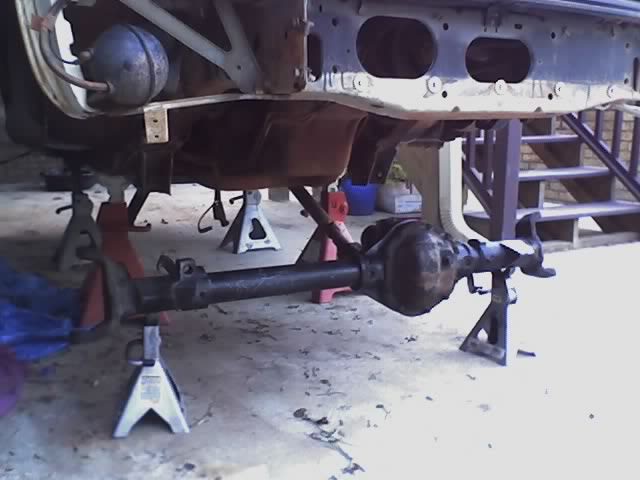

Name:  04-24-06_1823.jpg
Views: 1
Size:  35.1 KB

Name:  04-24-06_1824.jpg
Views: 1
Size:  34.7 KB
Reply With Quote
  #18
Old 04-24-2006
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Are the axles getting any goodies like your D44 got?
Reply With Quote
  #19
Old 04-25-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Goodies as in gears/lockers yes. Goodies as in chromo's/u-joints no. Too tight of a budget.
Reply With Quote
  #20
Old 04-25-2006
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Are you gonna do hydro assist on his too?
Reply With Quote
  #21
Old 04-25-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Maybe, if it can't turn it good enough then yeah.
Reply With Quote
  #22
Old 04-25-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Looks good Jey.
Reply With Quote
  #23
Old 04-25-2006
Member

Join Date: Nov 2005
Location: Aberdeen and Salisbury MD
Posts: 1,840
man thats thing is movin along nicley. cant wait to see more pics later
Reply With Quote
  #24
Old 04-25-2006
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
whats the genreal budget you are working with, if I may ask?
Reply With Quote
  #25
Old 04-25-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
5 g's. The majority of that will be the internal axle parts (~1200) and wheels and tires (another ~1200).
