Quote:
Originally Posted by Gearhead61
That's a whoooooole lotta axle. What are you running up front?
8-lug hp44.
Reply With Quote
  #52
Old 06-04-2006
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
wouldnt that be around what a f350 has?
Reply With Quote
  #53
Old 06-04-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
150/250, 350's have 60's.
Reply With Quote
  #54
Old 06-29-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Got alot of **** the past couple of days. The rear should be bolted in with gears set-up this weekend. Still waiting on tubing for the front to but the RE joints on the radius arms.
Reply With Quote
  #55
Old 06-29-2006
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
pics man....we need and want pics...or is just me cause i love jeeps =)
Reply With Quote
  #56
Old 06-29-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
No, we do need pics, Father Clegg of The House of Fabrication
Reply With Quote
  #57
Old 06-29-2006
red_fx2's Avatar
Member

Join Date: Apr 2005
Location: lakeland, fl
Posts: 32
looks frickin awsome.. imma send u my truck and the money.. hook me up.. lol
Reply With Quote
  #58
Old 07-11-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Waiting for autozone to ship all the parts in, and the rear will be done. Setting gears up in a few days.

*I know nothing is bolted on, it's just a mock up make sure **** fits picture*

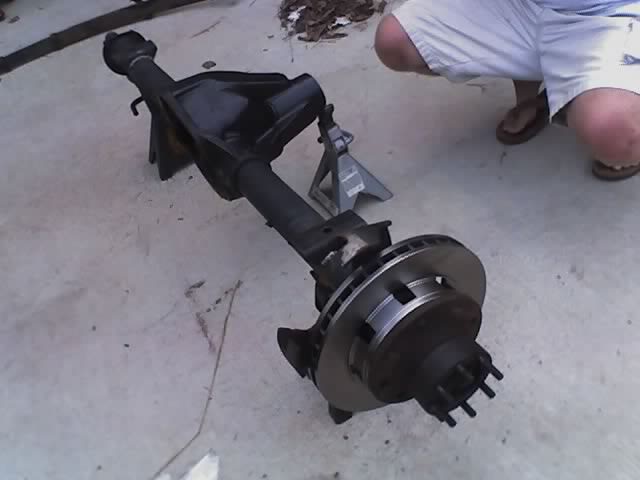

Name:  07-11-06_1916.jpg
Views: 0
Size:  24.9 KB

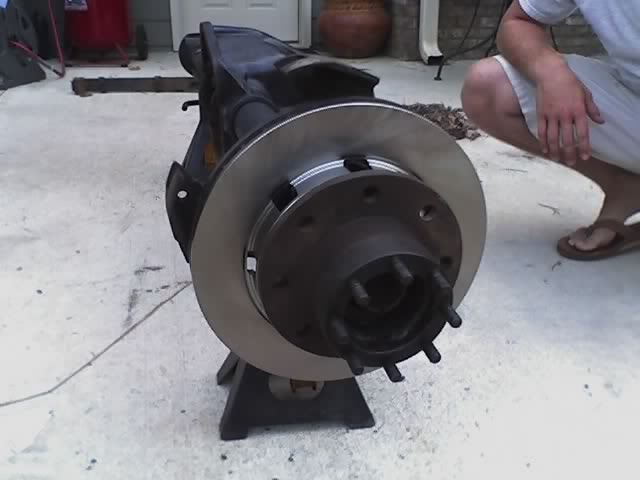

Name:  07-11-06_1917.jpg
Views: 0
Size:  27.9 KB
Reply With Quote
  #59
Old 07-11-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
ewww clean rotors i gotta get my rear ones resurfaced..

looks good Jey..
Reply With Quote
  #60
Old 08-15-2006
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Any updated pic's of the jeep?????
Reply With Quote
  #61
Old 08-19-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Soon. Need a 3/4" impact to crush the damn crush sleeve in the 60, it's kickin my ***. Got the radius arm's mounted with ford brackets but the unibody frame-rails are too wide and bind up the extended arms, so I'm cutting them back off and making a crossmember to go right behind the tranny xmember and mount the arms flush with the xmember and further in-board to keep from having as much crap haning low, and to keep the arm's from binding so much.
Reply With Quote
  #62
Old 08-23-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Gears are done on the 60. Needs a cover and some nuts for the FF axels and it will be mounted under the jeep = done.

The front, I tried mounting the broncograveyard drop brackets to the unibody "frame-rails" but they are too wide for the extended arms which = bindage. I'm going to get some steel, chop the brackets up and make a crossmember directly behind the factory tranny xmember and mount them babies up flush to the belly as possible.

Should (if I can get the steel) be able to have it sitting on the suspension (read: suspension, not wheels/tires yet lol) in a week or two.

EDIT: just read my previous post, bleh didn't mean to type about the front twice.
Reply With Quote
  #63
Old 08-26-2006
ShockFuel's Avatar
Member

Join Date: Jul 2006
Location: Grand Rapids, Mi
Posts: 329
Subscribed. I'm envious of your expertise.
Reply With Quote
  #64
Old 08-26-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
good update.. its coming along
Reply With Quote
  #65
Old 08-29-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

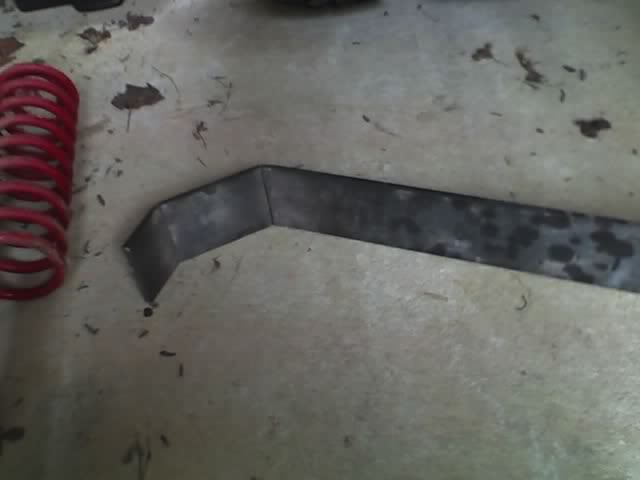

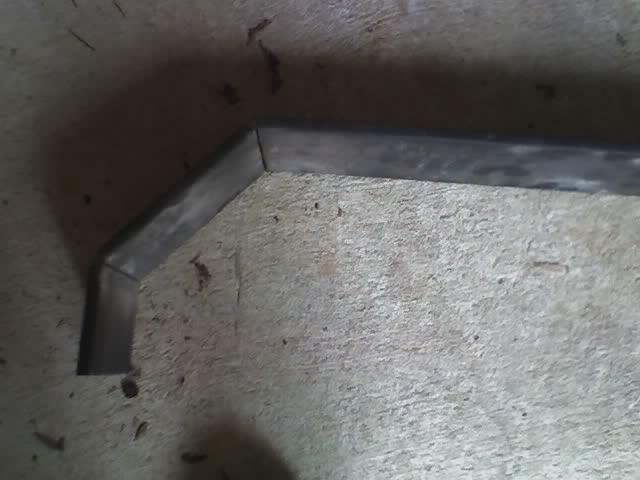

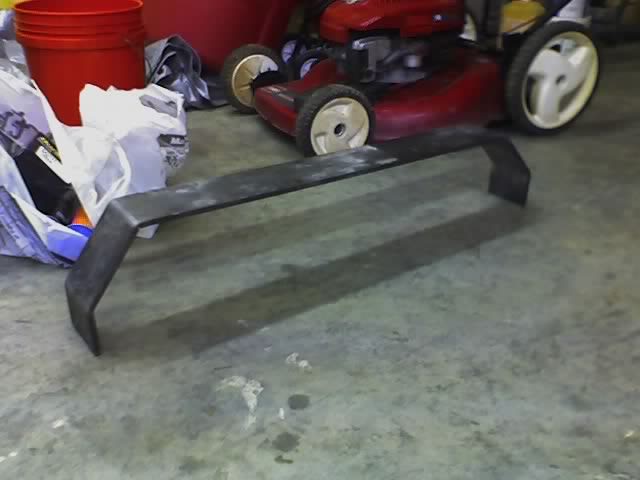

Made the crossmember for the radius arm mounts yesterday, took about 30 minutes, not too bad. It's 3/8" steel so it shouldn't bend. The sides will go on the outside of the unibody rails all the way up to the floor pan, it will be bolted on both sides and have a 1" bead of weld on each face of the xmember touching the unibody. It only hangs down about 2.5" from the frame, same as the tranny xmember, so as to clear the exhaust/cat convertor. I should have the radius arm brackets cut and mounted on it this evening.

More pics to come...

Rock-crusher diff cover is on the way for the 60, as soon as it gets here, the rear axle is getting thrown under the jeep with tires bolted on.

Name:  08-28-06_1712.jpg
Views: 0
Size:  18.2 KB

Name:  08-28-06_1713.jpg
Views: 0
Size:  30.4 KB

Name:  08-28-06_1743.jpg
Views: 0
Size:  28.2 KB
Reply With Quote
  #66
Old 08-29-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Pretty nice, I havent seen this thread in awhile. May just be me though.
Reply With Quote
  #67
Old 08-29-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
WOW! i just read every post.....nice build up..........looks like a good project!
Reply With Quote
  #68
Old 08-29-2006
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
hell yea man cant wait to see it done
Reply With Quote
  #69
Old 08-29-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
I found me a grand caddy up in AL for 2500, it's nicer than my truck man! 5.2L, pw/pl/pseats, Leather, 4x4 (duh...) and it's silver. It's only got 136k miles on it, so I guess I need to make a trip to the dealership and make sure it's not smashed up.

Progress looks good, can you take a picture of the unibody frame, I just want to see what it looks like I've seen a couple pictures that show it in magazines, but not a real good full-on shot.
Reply With Quote
  #70
Old 08-29-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
It looks like a small U made out of sheetmetal and welded to the floor pan.
Reply With Quote
  #71
Old 08-30-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
sweet that's what I thought...that's kinda gay.
Reply With Quote
  #72
Old 08-30-2006
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
keep up the good work. heres a pic of my buddies XJ that just got finished. 37" boggers in pic

Reply With Quote
  #73
Old 08-30-2006
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
Quote:
Originally Posted by redranger4.0
keep up the good work. heres a pic of my buddies XJ that just got finished. 37" boggers in pic

thats straight bad ***
Reply With Quote
  #74
Old 08-30-2006
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
god its so damn tempting to go get an xj........i really cant think of any reasons y not toooo
Reply With Quote
  #75
Old 08-30-2006
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
crank bearings go out around 130-150k. Tranny will soon follow. No real frame to weld anything to. I can think of some reasons .

Jamie will be runnin 36" tsl radials, which will end up being a little small considering the 35 spline 60 he's got out back...
Reply With Quote
