Icon9 Ball Joint Help

I need help getting the moog upper control arm in a fabtech spindle anyone have any ideas or had a problem as well?
Reply With Quote
  #2
Old 04-13-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
ball joint press?eh?
Reply With Quote
  #3
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
nope that wont work i replaced the whole upper control for the first time today
Reply With Quote
  #4
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340

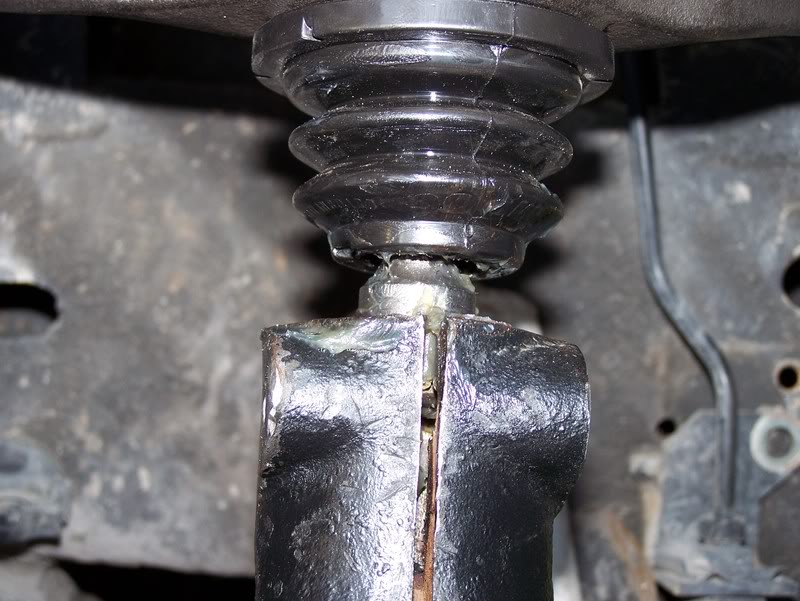

Heres where im having trouble.
Name:  100_1897.jpg
Views: 10
Size:  94.1 KB
Name:  100_1896.jpg
Views: 11
Size:  85.3 KB

Its like it wont seat in the spindle.
Reply With Quote
  #5
Old 04-13-2008
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
i used a little grease to lube it up and it went right in... thats gonna end up in someones signature im sure
Reply With Quote
  #6
Old 04-13-2008
04 EDGE
Unregistered User

Posts: n/a
put something in between the spindle and try to spread it out then smack in in place with a big hammer
Reply With Quote
  #7
Old 04-13-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
is the torsion bar in? that might just be fighting you. try to jack the lower control arm up so that the the balljoint will slide in.

its the same diameter right?
Reply With Quote
  #8
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
ive tried both and no luck at all.
Reply With Quote
  #9
Old 04-13-2008
sounddeveloper's Avatar
Member

Join Date: Mar 2008
Location: carrabassett valley Maine
Posts: 62
i just did mine yesterday and it went right in with one wack it was also the secont arm that they sent me because the first one was the wrong one compare it to your old ball joint to double check that they are the same size because it should not be giving you that much trouble
Reply With Quote
  #10
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
Yes the torsion bar is in. We are jacking up the lower control arm but its fighting us like crazy.
Reply With Quote
  #11
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
Yes i check and they are the same size.
Reply With Quote
  #12
Old 04-13-2008
sounddeveloper's Avatar
Member

Join Date: Mar 2008
Location: carrabassett valley Maine
Posts: 62
before you but that ball joint in did you clean out the inside of the spindle and also clean it out with a small wiza wheel or you could even use some sand paper but make sure it is clean and smooth on the inside of that
Reply With Quote
  #13
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
Quote:
Originally Posted by sounddeveloper View Post
before you but that ball joint in did you clean out the inside of the spindle and also clean it out with a small wiza wheel or you could even use some sand paper but make sure it is clean and smooth on the inside of that
Yes I did but ill do it again
Reply With Quote
  #14
Old 04-13-2008
04 EDGE
Unregistered User

Posts: n/a
bigger hammer
Reply With Quote
  #15
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
i have one still no luck

Its like i cant get the lower control arm back up to meet the spindle to the upper control arm.
Reply With Quote
  #16
Old 04-13-2008
sounddeveloper's Avatar
Member

Join Date: Mar 2008
Location: carrabassett valley Maine
Posts: 62
that bottom is pretty hard to move but that upper should move eassily those bolts should be in but not tightened on your frame. once that ball joint is in (hopefully) then tighten your bolts above if that doesnt work
Reply With Quote
  #17
Old 04-13-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Might have to remove the t-bars..worth a shot
Reply With Quote
  #18
Old 04-13-2008
04 EDGE
Unregistered User

Posts: n/a
is the suspension loaded?
Reply With Quote
  #19
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
no i undid the shock
Reply With Quote
  #20
Old 04-13-2008
sounddeveloper's Avatar
Member

Join Date: Mar 2008
Location: carrabassett valley Maine
Posts: 62
you shouldnt have to undo that shock are those bolts losened on the top before you tried to but the ball joint in? sry if im asking so many questions im just trying to figuire out where your at and if you understand what im trying to say
Reply With Quote
  #21
Old 04-13-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
I think you have the wrong upper control arm. It looks to me like a 2wd coil spring one. Go back to the auto parts store and return it.

If I'm mistaken, I appologize, but it looks exactly like a 2wd coil spring one.

Take a pic and I'll tell you 100 percent, I know they tried to sell kevoo the 2wd coil spring one.
Reply With Quote
  #22
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
i ordered it from rockauto.com

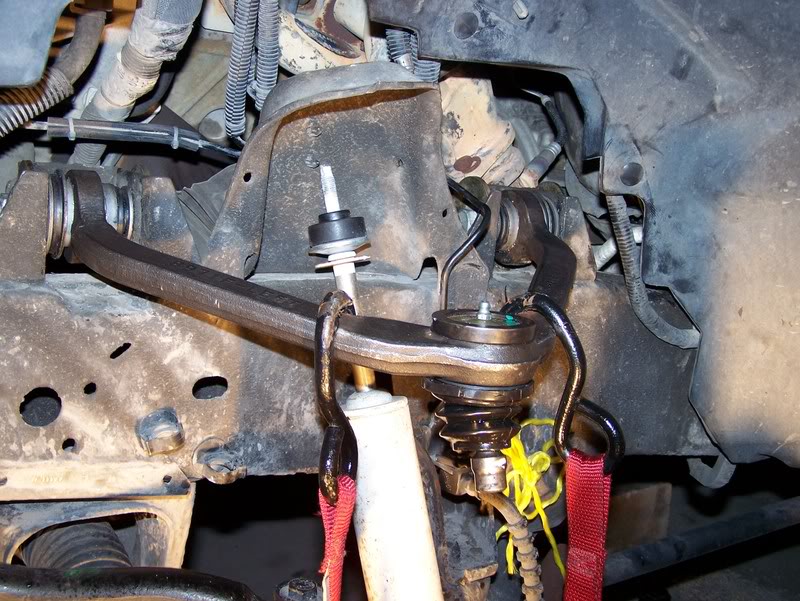

MOOG Part # K8708T is the left hand one

Name:  100_1898.jpg
Views: 10
Size:  133.4 KB
Name:  100_1900.jpg
Views: 11
Size:  88.3 KB

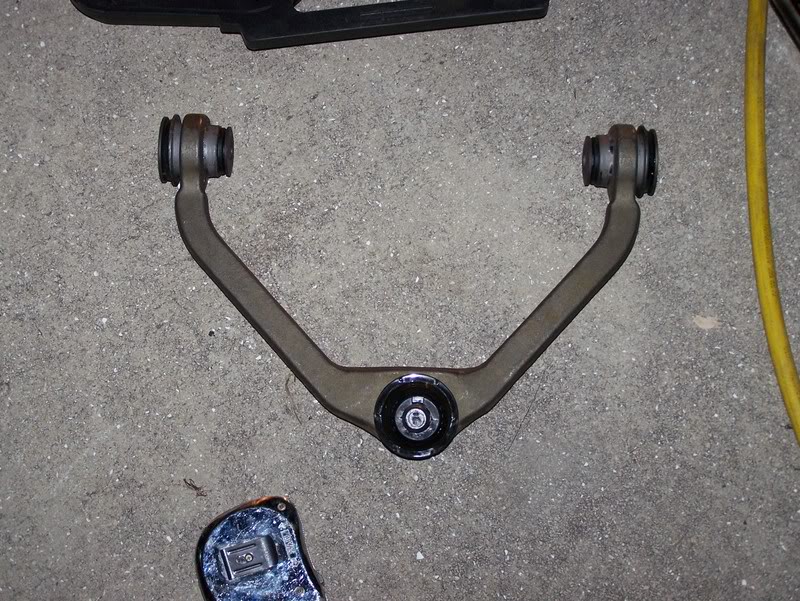

MOOG Part # K80068 is the right hand one
Name:  100_1899.jpg
Views: 10
Size:  161.3 KB
Reply With Quote
  #23
Old 04-13-2008
Member
Thread Starter

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
Quote:
Originally Posted by sounddeveloper View Post
you shouldnt have to undo that shock are those bolts losened on the top before you tried to but the ball joint in? sry if im asking so many questions im just trying to figuire out where your at and if you understand what im trying to say
Yes they are loosened
Reply With Quote
  #24
Old 04-13-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Yea....those are the wrong ones I believe..let me double check and I'll tell you for sure...
Reply With Quote
  #25
Old 04-13-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
MOOG K8708T is the correct ones.

https://www.ranger-forums.com/forum2...92&postcount=3

MOOG Part # K80068 {Control Arm w/Ball Joint}
Frt Susp; Upper; RH; 2WD; w/torsion bar susp.; 1 piece design; Incl. bushings
Frt Susp; Upper; RH; 4WD; 1 piece design; Incl. bushings

$101.79 $0.00 $101.79
Add to Cart
MOOG Part # K8708T More Info {Control Arm w/Ball Joint}
Frt Susp; Upper; LH; 2WD; w/torsion bar susp.; Problem Solver; Incl. bushings
Frt Susp; Upper; LH; 4WD; Problem Solver; Incl. bushings

Part Image
$105.79 $0.00 $105.79
Add to Cart



It looks like they sent you the wrong part?

8971F is definetly the 2wd coil spring one (matt used to have a 2wd coil spring...I did his ball joints with him...)
