Broken rear upper shock bracket

Like the title says, I have a broken shock bracket. Rusted through on one side and just gave in to the bending action. Called Ford, they said the bracket is not a servicable item, however, the tech said he would email Ford and see if they can help. LOL don't think I'm gonna get an answer from them anytime soon.

Are there any aftermarket brackets that can be used? Better off just welding the bracket back together with some steel and hope for the best? I drilled out the rivets and have the two pieces sitting on my bench.
Reply With Quote
  #2
Old 02-09-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Custom fab....or junkyard?
Reply With Quote
  #3
Old 02-09-2009
"Monster Truck"'s Avatar
Member

Join Date: Jan 2008
Location: Cedar Rapids, Ia
Posts: 203
Junk yard bolt it on or fab one up.
Reply With Quote
  #4
Old 02-09-2009
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
just drill it out and put a bolt in there. same thing.
Reply With Quote
  #5
Old 02-09-2009
Member
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
I have a replacement at work. Mine did the same thing. Did the bracket snap or the bolt that goes through the shock break. PM me your cell # and I'll take a pic of what I have and If you want I can mail you one or I'll give you the part # and you can get one from your local auto parts store.
Reply With Quote
  #6
Old 02-09-2009
lennymu's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Cleveland, OH
Posts: 24

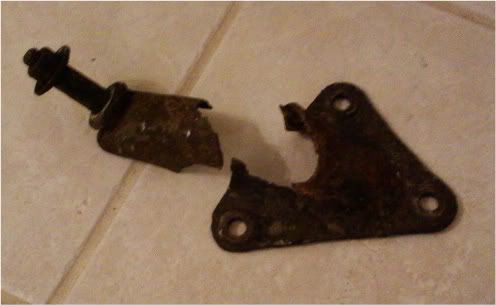

Pic of bracket

Name:  0209092231.jpg
Views: 5
Size:  21.5 KB
Reply With Quote
  #7
Old 02-09-2009
Member
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Ahh, Sorry man I can't get the bracket. I can get the stud though which doesn't help you.
Reply With Quote
  #8
Old 02-10-2009
lennymu's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Cleveland, OH
Posts: 24

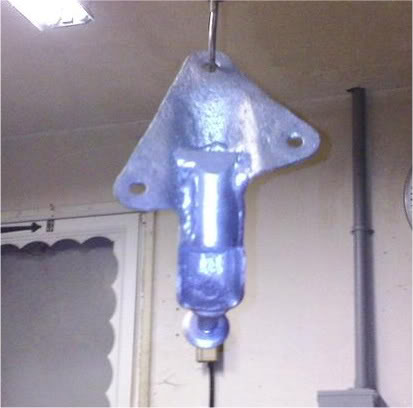

Well, had this puppy welded with some extras. Added a hunk a steel and welded it all back together.
Name:  0210091745.jpg
Views: 4
Size:  21.7 KB

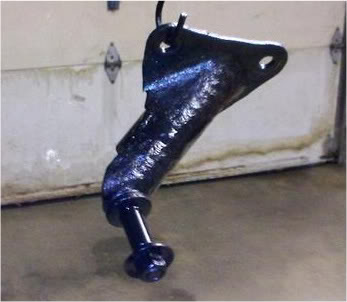

Then added some anti-rust paint, waiting for it to dry and I will install it tomorrow.
Name:  0210091756.jpg
Views: 5
Size:  18.0 KB
