  #51
Old 11-10-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
Do you have any idea what the compatibility issues are
Reply With Quote
  #52
Old 11-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by ridin434 View Post
Has anyone recently bought these? Just curious if they are still available? The custom coils I mean.

Does the lower shock mount need a spacer?
Why wouldnt it
You can still buy the coil-over's.

Both the upper and lower mounts need spacers. So you need a total of 8.

The spacers that go between the upper mount and shock bucket aren't related. You only need two of those and they are different.
Reply With Quote
  #53
Old 11-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by ridin434 View Post
Do you have any idea what the compatibility issues are
Had to do with the steering stop on 2wd's. The brackets were originally designed for 4x4's with a Superlift to make it like the more expensive and discontinued RCD suspension lift.
Reply With Quote
  #54
Old 11-10-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
Ok got it. This is all making sense now, sorry for so many obvious questions just trying to get the system figured so I can get it built
Reply With Quote
  #55
Old 11-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
They aren't obvious if you have never done a coil-over conversion before. The information is on this forum though. It's just buried in pages and pages of reading.
Reply With Quote
  #56
Old 11-10-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
All we need is a person to trace a set of brackets onto some posterboard. Then scan those drawings to post online. A few detailed measurements of certain surfaces of the parts would tell you what scale to print them at. The end user could then print them out out whatever scale was correct as indicated by the measurements. You'd then have exact templates to trace onto metal and cut out.

I might PM a member here and see if he'll let me "rent" his spare brackets..


GB :).
Reply With Quote
  #57
Old 11-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by Bird76Mojo View Post
All we need is a person to trace a set of brackets onto some posterboard. Then scan those drawings to post online. A few detailed measurements of certain surfaces of the parts would tell you what scale to print them at. The end user could then print them out out whatever scale was correct as indicated by the measurements. You'd then have exact templates to trace onto metal and cut out.

I might PM a member here and see if he'll let me "rent" his spare brackets..


GB :).
I'm doing just that for you guys. I'll have them done later this week.
Reply With Quote
  #58
Old 11-10-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
Well if you get the brackets to measure I will draw it in pro e and have a 3d model and the blueprint to be able to manufacture
Reply With Quote
  #59
Old 11-10-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
Ok thanks missed your post
Reply With Quote
  #60
Old 11-10-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
Quote:
Originally Posted by KLC View Post
I'm doing just that for you guys. I'll have them done later this week.
OH SNAPS! Thanks KLC. I wasn't aware you were taking it to that level. I think that method would be the easiest for people making their own brackets. Instead of trying to draw out certain measurements on metal and guessing angles, etc.. Just adjust the scale, then print and measure the TRACINGS. If they're not right then just re-scale and print again until they're right.

Excellent man...


GB :)
Reply With Quote
  #61
Old 11-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
When I get them done all you will have to do is print out the drawings and trace it on the material. They will be to scale and will include measurements and angles.
Reply With Quote
  #62
Old 11-10-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
Thanks klc that will be great.

If while your drawing these to scale you could add all dimensions that would be greatly appreciated.
Reply With Quote
  #63
Old 11-10-2010
PAShooter's Avatar
Member

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
Could after we get all this figured out maybe sticky the dimensions and the info. I think thatd be helpful and people wouldnt have to search through tons of threads
Reply With Quote
  #64
Old 11-10-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
I agree that wAs my idea for this thread. We should get a detail drawing for the brackets, spacer design, coil over specs, and hardwRe.

I hope we can get this all in one threAd
Reply With Quote
  #65
Old 11-11-2010
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by KLC View Post
There are also two machined aluminum spacers that are used for the top coil-over mounts. The stock shock buckets aren't flat at the top. These spacers give you a flat mounting surface as they go between the mount and the bracket.
Exactly...the aluminum spacers I listed the RCD part numbers for in my previous post were referring to these that go on the top...not the "side-to-side" ones.
Reply With Quote
  #66
Old 11-11-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
Quote:
Originally Posted by logan03CO View Post
Exactly...the aluminum spacers I listed the RCD part numbers for in my previous post were referring to these that go on the top...not the "side-to-side" ones.


In case it will help...you can still order the gussets and the aluminum upper shock mount spacers directly from RCD...I just ordered and received them last week.

Gussets 20-52498-17 = Qty of 4
Spacers 20-833167 = Qty of 2

Total with shipping was like a whole $32.00


For that price..it wasn't worth trying to cut my own!
Thought I'd put all of that in one quote to make things easier to find for everyone..


GB :)
Reply With Quote
  #67
Old 11-11-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
These are some pics I have found that seem to show important details. If someone doesn't want their pictures, let me know and I will take them down.

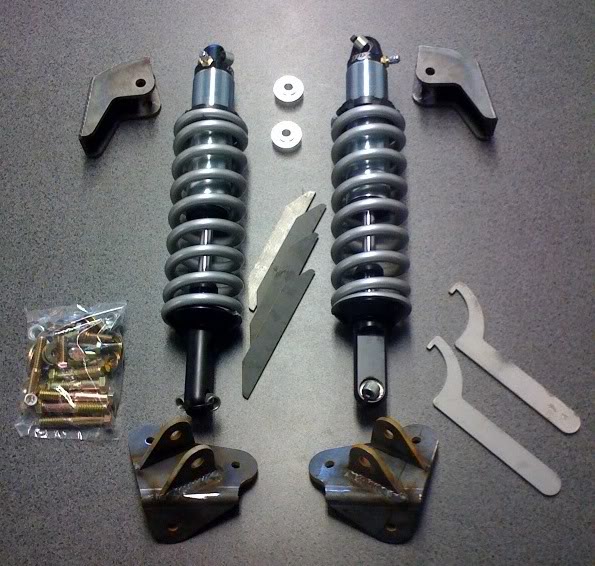

These are the pieces to the kit that was offered by ORW
Name:  RangerCOkit.jpg
Views: 58
Size:  87.3 KB

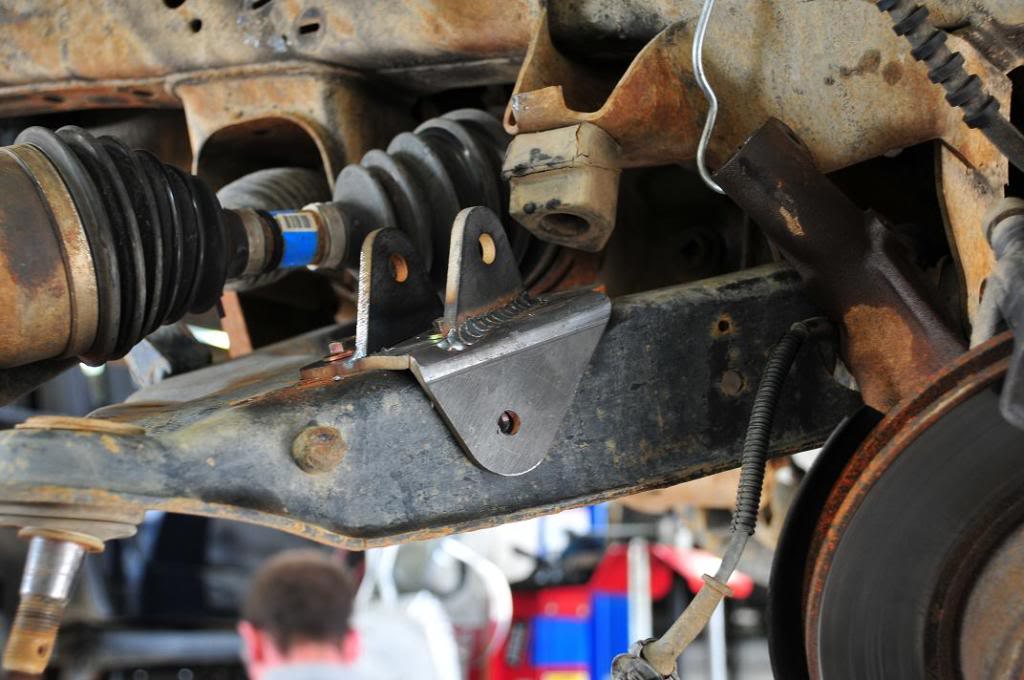

Brackets used in ORW kit
Name:  DSC_1805.jpg
Views: 53
Size:  10.1 KB
Name:  DSC_1804.jpg
Views: 50
Size:  9.6 KB
Name:  DSC_1935.jpg
Views: 52
Size:  130.5 KB

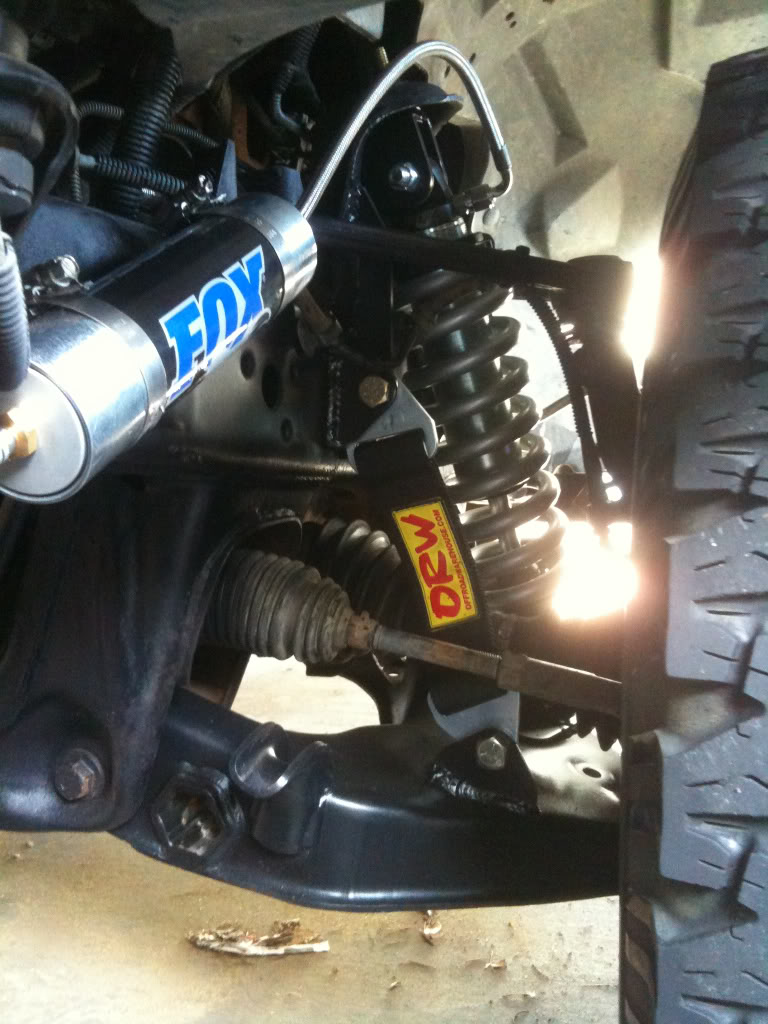

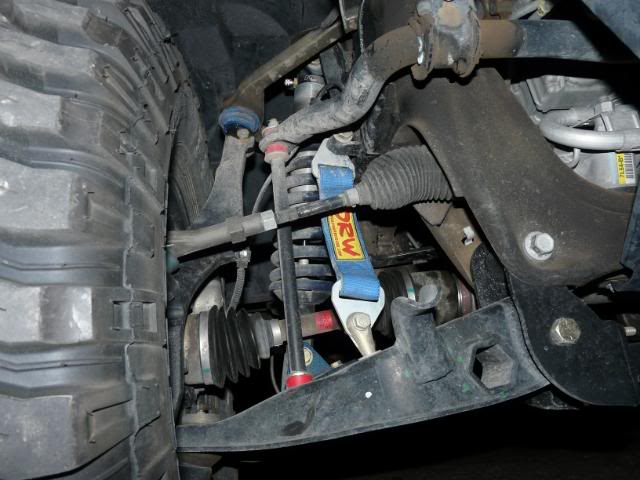

Limiting straps to prevent over extending coil overs
Name:  b84e52b8.jpg
Views: 83
Size:  120.8 KB
Name:  012.jpg
Views: 58
Size:  59.1 KB

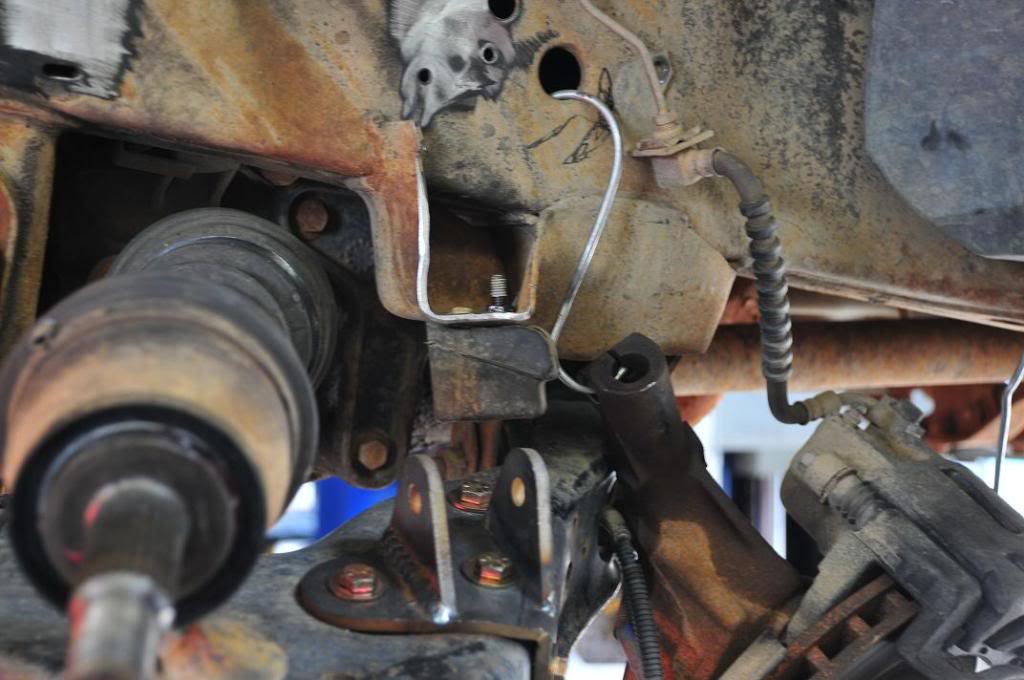

Cutting of the bump stops
Name:  001-1.jpg
Views: 52
Size:  26.8 KB
Name:  DSC_1949.jpg
Views: 55
Size:  122.1 KB

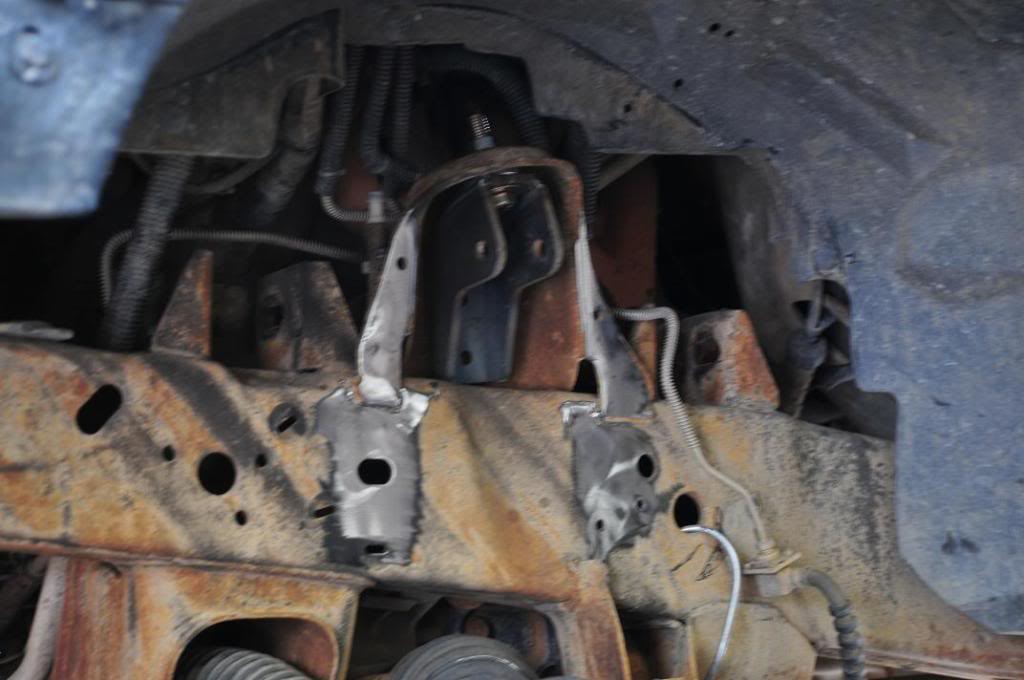

Upper coil-over mount
Name:  DSC_1941.jpg
Views: 55
Size:  109.9 KB

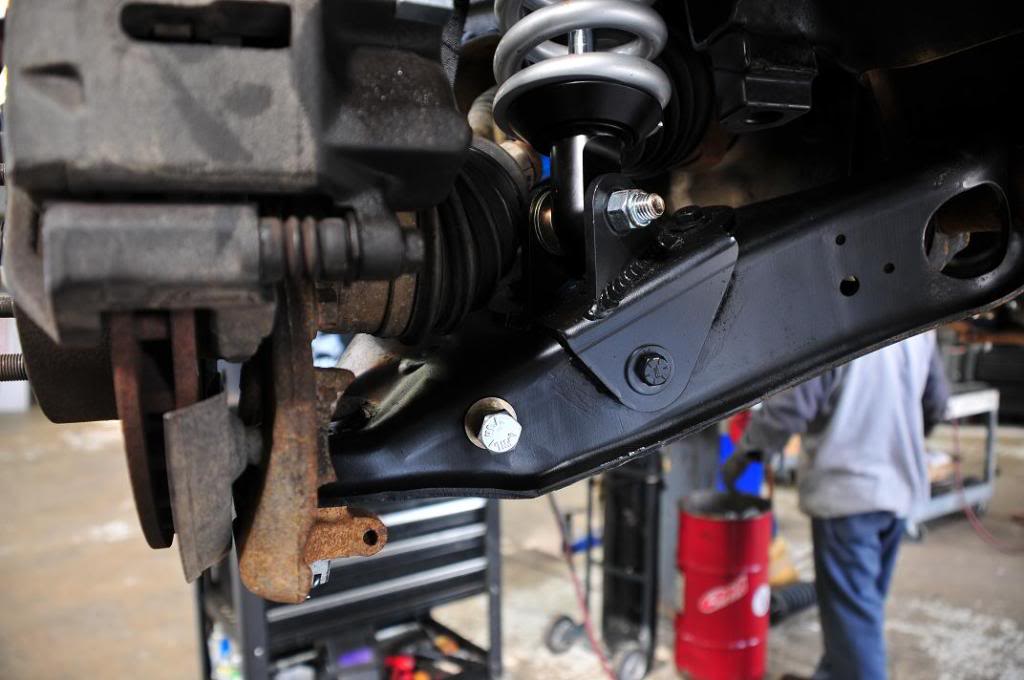

Steering stop that seems needed on some trucks
Name:  DSC_1969.jpg
Views: 52
Size:  113.6 KB

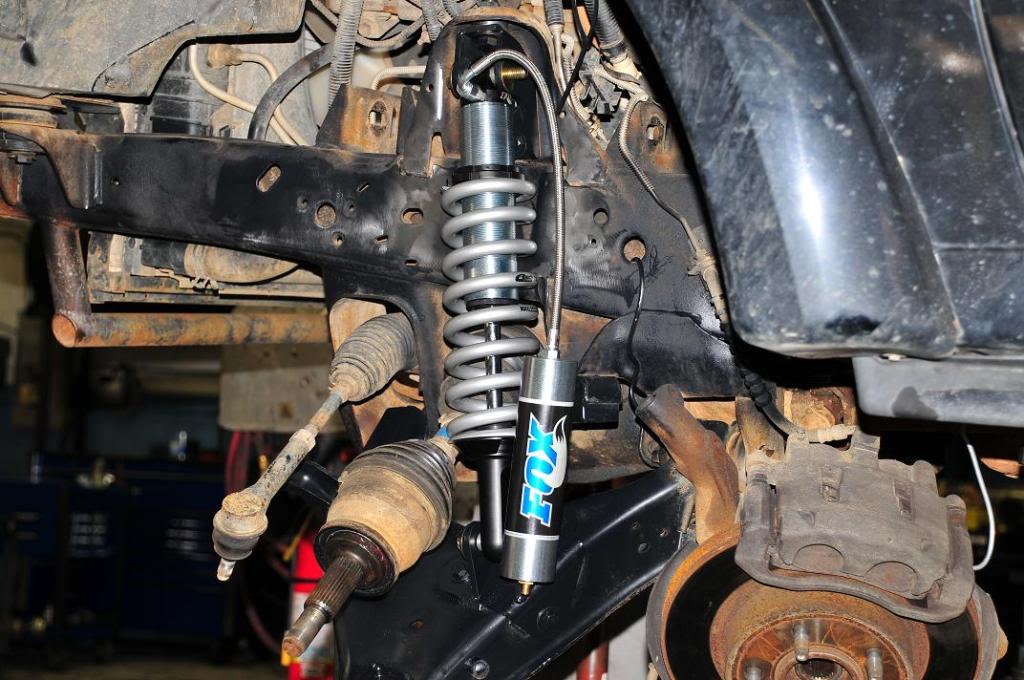

How the coil should be placed
Name:  DSC_1957.jpg
Views: 51
Size:  155.8 KB


I will add more to these sections as I find them.

Last edited by ridin434; 11-11-2010 at 08:55 AM. Reason: Adding too many more pictures
Reply With Quote
  #68
Old 11-11-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
In the pics I have seen,most dont have a front sway bar. What is the reason for removing this? I still have mine, just thought it would handle poorly on the road without it.
Reply With Quote
  #69
Old 11-11-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
To KLC:

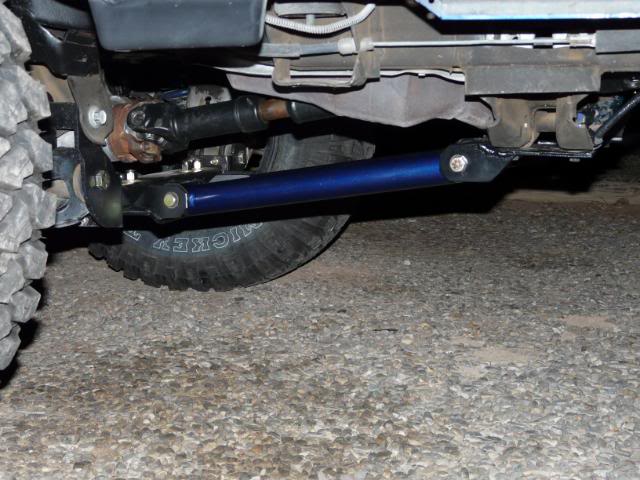

What is the reason for adding this? Has there been strength issues?
Name:  004-2.jpg
Views: 52
Size:  68.6 KB
Reply With Quote
  #70
Old 11-11-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
KLC, can this information be organized into a sticky?
Reply With Quote
  #71
Old 11-11-2010
VH5150's Avatar
Level III Supporter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
KLC had a Superlift in his--those are support rods to help stiffen up the drop-down brackets for the lower control arms. IIRC, they are similar to the ones that Dixon Bros had. I miss seeing that truck on here badly-it's super [email protected]
MikeR
Reply With Quote
  #72
Old 11-11-2010
VH5150's Avatar
Level III Supporter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
Glad to see that there is interest in these brackets again--I tried to order a kit from OWR like a week after they sold their last one. MISSED IT BY THAT MUCH!
MikeR
Reply With Quote
  #73
Old 11-11-2010
PAShooter's Avatar
Member

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
Are there any cheaper alternatives to fox coil overs? Id like to do this but I dont think I can afford fox shocks. Maybe some without a reservoir?
Reply With Quote
  #74
Old 11-11-2010
ridin434's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: St. Cloud, MN
Posts: 87
I am wondering about this also, it's not that I don't want fox, but it would be nice to see what else is in spec for our set ups. From what I have heard the Fox shocks were custom built, but I would imagine there are shocks out there that fit our specs.
Reply With Quote
  #75
Old 11-11-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by ridin434 View Post
To KLC:

What is the reason for adding this? Has there been strength issues?
Quote:
Originally Posted by VH5150 View Post
KLC had a Superlift in his--those are support rods to help stiffen up the drop-down brackets for the lower control arms. IIRC, they are similar to the ones that Dixon Bros had. I miss seeing that truck on here badly-it's super [email protected]
MikeR
Yeah, those were used with a Superlift. Most don't use them, but they add bracing to the crossmembers.
Reply With Quote
