Confirm RCD Lift

Im just about ready to start buying everything to lift up my Ranger, I would like to confirm everything with everyone just to be sure that im doing it correctly and I haven’t missed anything to avoid any future problems. Here is everything that I have concluded:

2006 Ford Ranger FX4
V6 4.0L 4x4 8.8" Rear Axle


RCD 5” Lift (11-42498)
U- Bolt Kit

11.25” Rotors

Reinforce the drop Diff. Bracket

9636 Superlift Front Drive Shaft

12” Hypercoils 750lbs Coil Springs

Skyjacker Softride Lift Leaf Springs 6” (FR36S)

Will these fit correctly on the 2006 Ranger with the RCD Front lift? Will it be level? I don’t mind if the back end is up a little for when I load up the box. Also any advice for installing these would be great.

Thanks Guys

Last edited by Ranger06Fx4; 01-18-2009 at 05:58 PM.
Reply With Quote
  #2
Old 01-18-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
need a new front drive shaft too
Reply With Quote
  #3
Old 01-18-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584

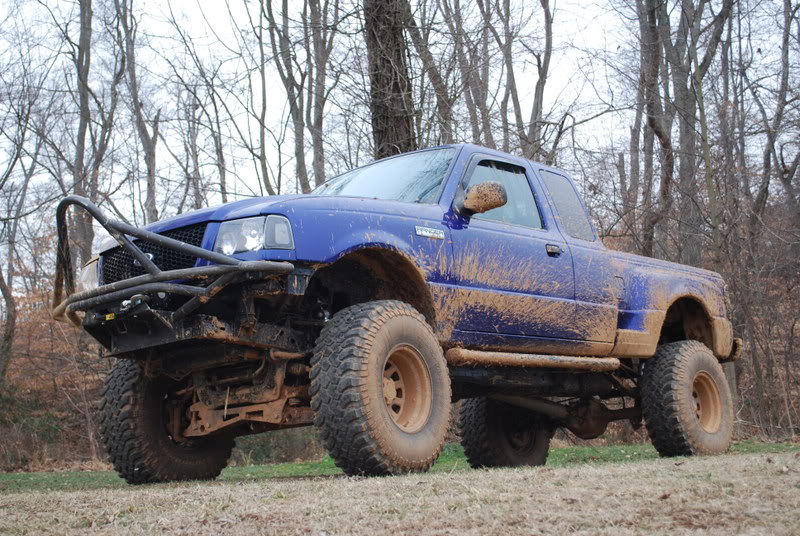

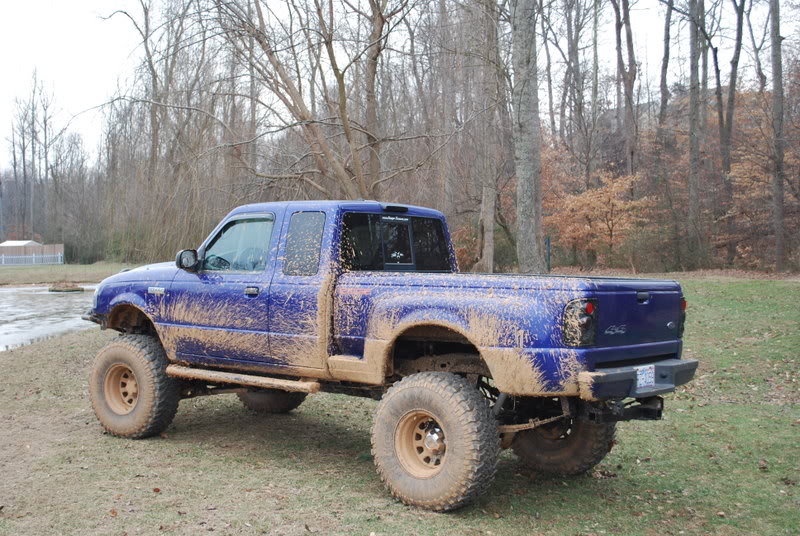

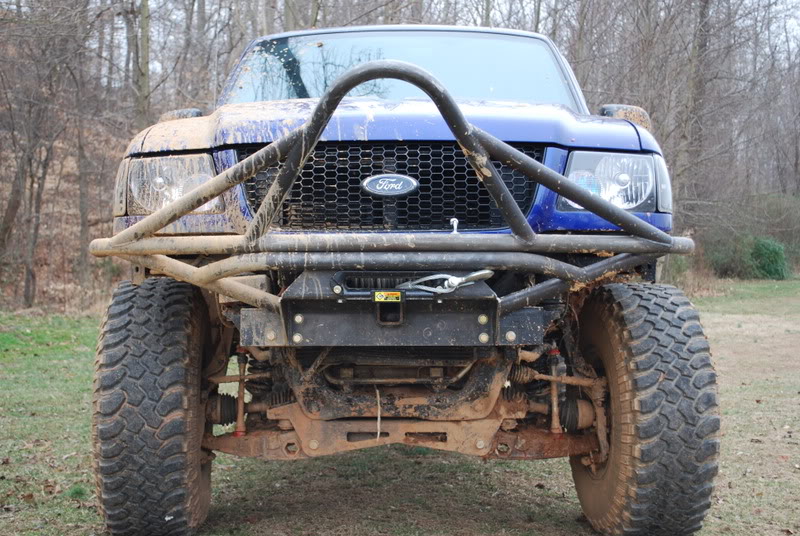

That exactly what I did with my truck. I love it. The back end will sit a coule inches higher then the front. But it's not bad.

Name:  DSC_0015.jpg
Views: 19
Size:  153.7 KB

Name:  DSC_0013.jpg
Views: 12
Size:  163.3 KB

Name:  DSC_0021-1.jpg
Views: 36
Size:  152.1 KB
Reply With Quote
  #4
Old 01-18-2009
Ranger06Fx4's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Quebec,QC
Posts: 67
Thank you,
9636 Superlift Front Drive Shaft
Reply With Quote
  #5
Old 01-18-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
hey matt next time you get a chance can you get me a meaurement from the top of the fenders to the ground i wanna see how much bigger i am then an RCD
Reply With Quote
  #6
Old 01-18-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by HighRollerII View Post
hey matt next time you get a chance can you get me a meaurement from the top of the fenders to the ground i wanna see how much bigger i am then an RCD
Rear.

48" to the wheel well.



Front.

45 1/2" to the wheel well.



79" to the roof.



That was when I finished the install.

BTW thanks for the emblems. You didn't say anything about the edge stickers. Gotta love unexpected freebies. Thanks.
Reply With Quote
  #7
Old 01-18-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
haha well i made Jusnes Modifed the edge stickers so i threw em on there when they were on the truck -- sorry for the hi jacking!
Reply With Quote
  #8
Old 01-18-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
I thought you can no longer get the RCD kit? Was it not discontinued?
Reply With Quote
  #9
Old 01-18-2009
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Yeah I think it has been discontinued..but I am sure you can still find some places with 'em
Reply With Quote
  #10
Old 01-18-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
He is buying all the parts and putting his own together. That is why he wants to confirm everything. At least thats the way I took it.
Reply With Quote
  #11
Old 01-18-2009
Ranger06Fx4's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Quebec,QC
Posts: 67
Yeah, i got a place that is still able to get me the kit im just not sure about the rear, the skyjacker 6" leafs, if they will fit on the 2006?
Reply With Quote
  #12
Old 01-18-2009
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
Quote:
Originally Posted by Ranger06Fx4 View Post
Yeah, i got a place that is still able to get me the kit im just not sure about the rear, the skyjacker 6" leafs, if they will fit on the 2006?
yes
Reply With Quote
  #13
Old 01-18-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Matt, I like the new bumper!
Reply With Quote
  #14
Old 01-20-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Ranger06Fx4 View Post
Yeah, i got a place that is still able to get me the kit im just not sure about the rear, the skyjacker 6" leafs, if they will fit on the 2006?
I think they would, they fit my 03 great. I don't think they've changed anything since.

Quote:
Matt, I like the new bumper!
Thanks.
Reply With Quote
