Front end clunk

I have had this since August 2011. Happens when moving while turning on gravel roads, weird bumps and off road. Now the LCA on flat level ground looks awfully close to the bump stop I'll have pics whe it's day time. But today i slapped some grease on the bump stop to see if its hitting and the LCA is slapping the CRAP out of it. But also when I turn the wheel on ashphalt i can feel a pop in the front.

Parts in the last year
Hubs
Outter Tie Rods
Lower Ball Joints
UCA and Joints

What i noticed the DS lower ball joint wont take grease (will change zerk)
Never done inner tie rods ever
Reply With Quote
  #2
Old 06-22-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Posting up some photos could help. The LCA shouldnt be hitting the bumpstop on level ground over small bumps.
Reply With Quote
  #3
Old 06-24-2012
04RangerDave's Avatar
JDM> RANGER

Thread Starter
iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030

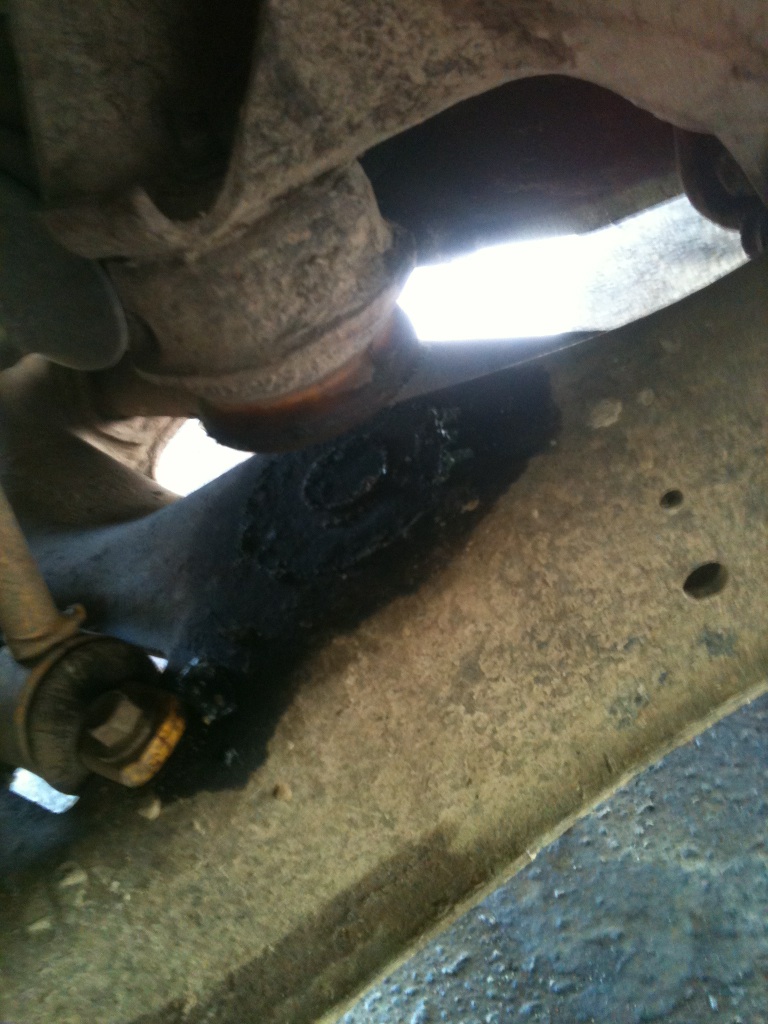

here is a pic
Attached Thumbnails
Front end clunk-img_4592.jpg
Reply With Quote
  #4
Old 06-24-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Your LCA shouldn't be hitting that unless your going over something big.
I don't understand why it is so close to the stop already. If anything, it should be farther because of the over size tires.
Reply With Quote
  #5
Old 06-24-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
The size of your tires has no relation to the distance between your lca and bump stop. Your t-bars is what will determine the static distance between the two.
Reply With Quote
  #6
Old 06-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Pretty sure mine's about that distance away too... looks about the same.
Reply With Quote
  #7
Old 06-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Do you still have sway bar links or did you take them off?
Reply With Quote
  #8
Old 06-24-2012
04RangerDave's Avatar
JDM> RANGER

Thread Starter
iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by FULLSCALE View Post
Do you still have sway bar links or did you take them off?
Sway Bar is gone. I thought it was the endlinks clunking away. PC things the shocks blown and I'm just riding around on the Tbar
Quote:
Originally Posted by StxDangerRanger View Post
Your LCA shouldn't be hitting that unless your going over something big.
I don't understand why it is so close to the stop already. If anything, it should be farther because of the over size tires.
It's slapping the LCA going over bumps down the road, Making tons of noise. That pic is on a Flat level surface
Reply With Quote
  #9
Old 06-25-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Put your sway bar links back in. Im almost sure that's your problem.
Reply With Quote
  #10
Old 06-25-2012
blue_oval's Avatar
Member

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
Let me drive it next time your up, drive mine too because i think i have the same noise but thought it was from my tires
Reply With Quote
  #11
Old 06-25-2012
04RangerDave's Avatar
JDM> RANGER

Thread Starter
iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by brinker88 View Post
Put your sway bar links back in. Im almost sure that's your problem.
It done it before
Reply With Quote
  #12
Old 06-27-2012
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Thats normal for the bumpstops. I even hit them on logging roads.

have someone move your steering wheel back and forth while you look at the tie rods. If there is a knocking sound and the outer looks solid then change the inner tie rod. I just had to do mine

btw you wont find loose balljoints unless you jack the truck up with the tire off the ground
Reply With Quote
  #13
Old 07-01-2012
04RangerDave's Avatar
JDM> RANGER

Thread Starter
iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Its straight SLAPPING the Bump Stop on the road, TRE are good and I did the inners today and they were fine but still did them anyways. Made a Go Pro vid ill upload in the morning
