FRONT SWAY BAR SIZE

Have 2007 sport 2wd 3.0l and want to put the energy suspension greasable sway bar bushing but dont know which ones to order? Thanks
Reply With Quote
  #2
Old 05-27-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Wrap a strip of paper or a piece of string around the bar and mark it for circumference. Then flatten it out, measure the circumference with a ruler and divide by 3.14 to get the diameter.

For many years, depending on options, the Ranger has had either 1.06" (1 1/16") or 1.14" (1 1/8") diameter sway bar. In metric, these correspond to roughly 27mm or 29mm. One of these will probably be very close to the diameter that you found by measuring.
Reply With Quote
  #3
Old 05-27-2011
Member
Thread Starter

Join Date: Sep 2010
Location: NB Canada
Posts: 4
it is the 1.14 which is 29mm but energy only makes a 28.5 and a 30mm which would be better to use
Reply With Quote
  #4
Old 05-27-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
I'd get the 28.5mm.
Reply With Quote
  #5
Old 11-21-2013
Member

Join Date: Oct 2013
Location: Barre, MA
Posts: 1

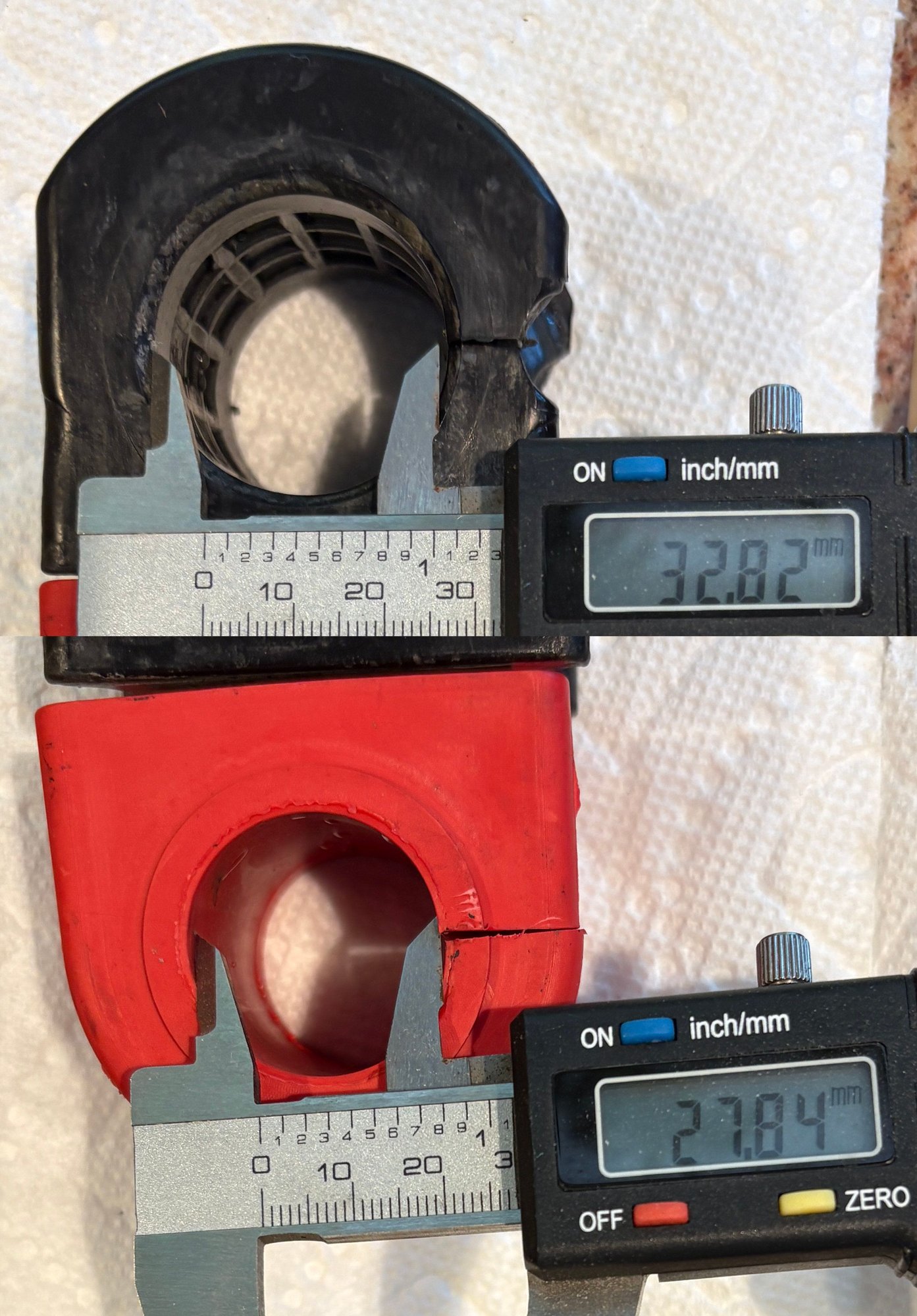

I recently bought my 2008 Ranger XLT 4.0 liter 4x4. The sway bar bushings started squeaking and groaning last week, so I checked them out. They appear to have been greased with a petroleum based lube, which I imagine is further deteriorating them. I want to swap to poly, so I looked them up on Rock Auto. This was where I learned of the 2 sizes... so I broke out my caliper, and it measures 33 mm. Whats that about? Is this an optional sway bar?
Reply With Quote
  #6
Old 11-21-2013
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Some Explorers had heavier front bars like that. I've never seen one on a Ranger though.
Reply With Quote
  #7
Old 09-16-2015
Member

Join Date: May 2014
Location: Kelowna, BC
Posts: 9
Quote:
Originally Posted by OrangeCrushCJ7 View Post
I recently bought my 2008 Ranger XLT 4.0 liter 4x4. The sway bar bushings started squeaking and groaning last week, so I checked them out. They appear to have been greased with a petroleum based lube, which I imagine is further deteriorating them. I want to swap to poly, so I looked them up on Rock Auto. This was where I learned of the 2 sizes... so I broke out my caliper, and it measures 33 mm. Whats that about? Is this an optional sway bar?
Sorry for posting on this old thread but I cant find anyone else that has had this problem. I got 33mm when i measured my sway bar on my 2008 FX4 and it seems like a very uncommon size. Am i measuring it wrong or did some rangers just randomly come with huge sway bars?
Reply With Quote
  #8
Old 03-20-2016
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694

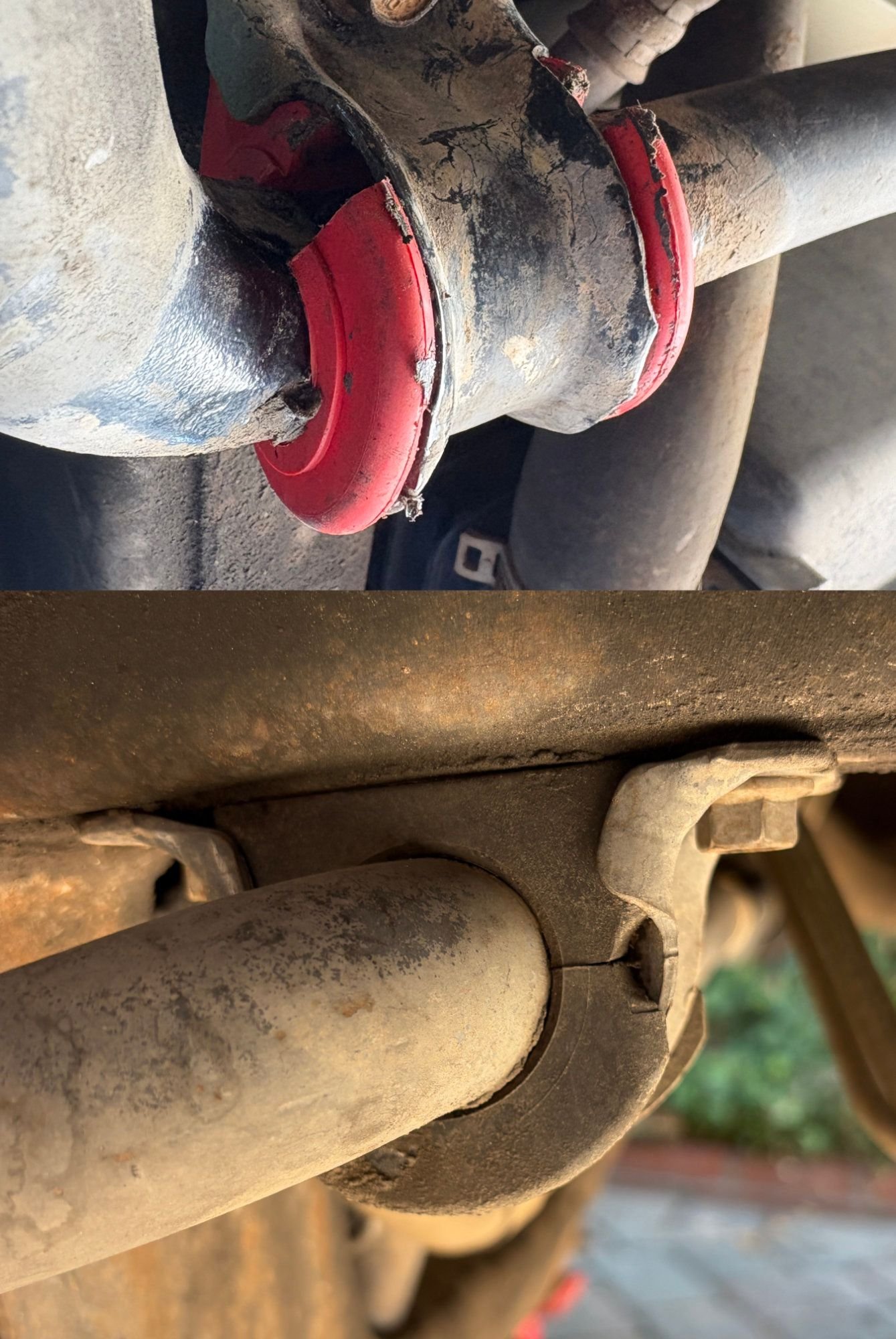

further adding to the zombie thread, but I just wanted to mention, that I did my sway bar links yesterday and wanted to do the bushings too so I got the biggest bushings partsource had (29mm) and they were waaaay too small. my 2008 sport 2wd also has a 33mm sway bar. is this one of those random new things that they just added to use up older stock?
Reply With Quote
  #9
Old 03-28-2016
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
FWIW, Hollander Exchange shows that the 98~01 Explorer/Mountaineer sway bars are interchangeable with 2008~2011 torsion bar Rangers. You could look into the possibility of using the bushings for those Ex/Mounty years assuming that the metal mounting brackets are the same for both.
Reply With Quote
  #10
Old 04-25-2016
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
Quote:
Originally Posted by OrangeCrushCJ7 View Post
I recently bought my 2008 Ranger XLT 4.0 liter 4x4. so I broke out my caliper, and it measures 33 mm. Whats that about? Is this an optional sway bar?
My 2011 measures 33 mm too.
