FX4 Level II Superlift question

Getting ready to do my lift just waiting on the kit to get here, Now I am checking things out to see what other mods I am going to have to make, Has anyone who has done the lift on a FX 4 level II modified there front stock skid plate so the it will work with the superlift
and if so do you have any pictures you can post please I think it can be done by stretching out the top of the factory plate just not sure how it will attach at lower cross member after the raise if anyone has done this can you give me some ideas not that my own wont work but yours might be easier and or better than mine thanks
Reply With Quote
  #2
Old 11-08-2009
reader585's Avatar
Member

Join Date: Nov 2008
Location: Oromocto New brunswick
Posts: 791
I own the normal FX4. Just buy the super lift skid plate. It mounts right to the new cross members and goes right in to the old skid plate.
Reply With Quote
  #3
Old 11-08-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
You have pics
Superlift already has enough of my money I think
Plus I like to fabricate
If I can make it my self that would be better for me
Let me know on pics Thanks
Reply With Quote
  #4
Old 11-08-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
The stock skid will work for the superlift if I recall. Where it mounts, is still fully exposed and away from the LCA drops. I know I've seen a few SL'd trucks with the stock skid still there.

Or...do what I'm gonna do....full custom that'll wrap under the SL crossmembers. The superlift skid is stupid, dumb, ugly, and way overpriced.


Here's a pic of the superlift setup down below.
Reply With Quote
  #5
Old 11-08-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Level II with super lift and body lift and stock skid plate bolted to stock spot



Reply With Quote
  #6
Old 11-08-2009
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047
Rangers factory skid plate is def not a skid plate at all its a splash shield lol
Reply With Quote
  #7
Old 11-08-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
to all

Wannabe= Thanks for the pic gives me some idea


Redneckstone = Nice ride What size wheels you running 10 X15's any rub problems
want to run 10 X 15 my self like a deep wheel just not planning on a BL at this time and really don't want to be rubbing plan is to run 33's

Rangerextreme = Point well taken I meant the splash deflector shield

I was just womdering I already had thought in my mind that I was going to have to Fabricate something up was just fishing for ideas
Thanks to all
Reply With Quote
  #8
Old 11-08-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Redneckstone View Post
Level II with super lift and body lift and stock skid plate bolted to stock spot



THAT'S RIGHT!! It was Bill's truck I was stalking a few weeks back!
Reply With Quote
  #9
Old 11-08-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by squrll View Post
Wannabe= Thanks for the pic gives me some idea


Redneckstone = Nice ride What size wheels you running 10 X15's any rub problems
want to run 10 X 15 my self like a deep wheel just not planning on a BL at this time and really don't want to be rubbing plan is to run 33's
No prob.


Truck pictured is an old member's truck, not who posted the pic. It was Superlift + bodylift on 15x10 wheels and 35x12.50 tires.

With the setup you want to run, you'll be perfectly fine with 33's. TONS run that exact setup.
Reply With Quote
  #10
Old 11-09-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
Cool thanks I thought they where 15X10
yeah really not planning on BL just SL
and running 15 X 10 with 33 12's
thanks for the input
Reply With Quote
  #11
Old 11-10-2009
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408

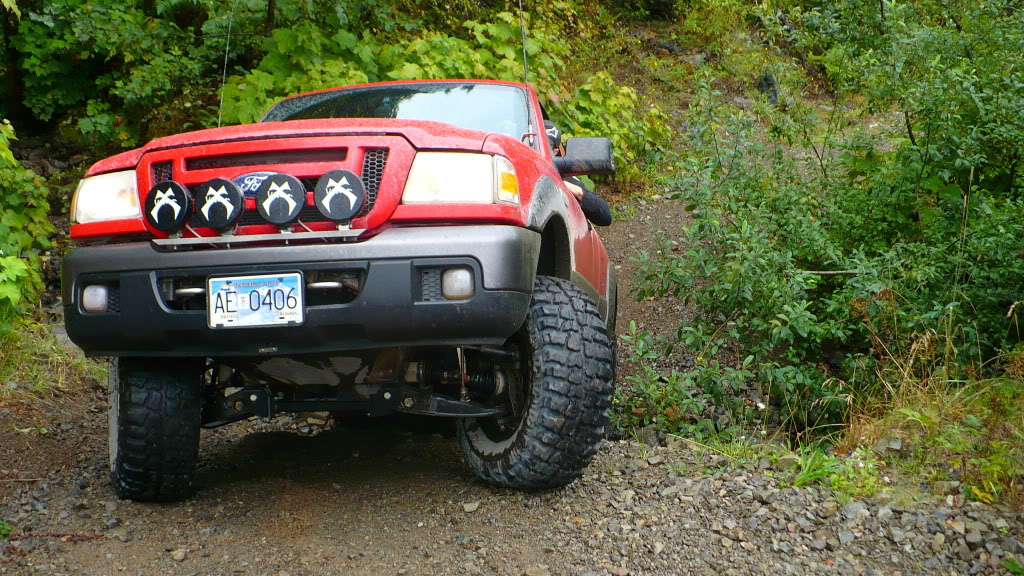

no modding to front skid. this is the best pic that shows how the factory skid bolts up with sl kit. if you want the skid to go down to the sl cross members you have to make one, or buy the superlift skid to go with the factory one.

Name:  P1020566.jpg
Views: 141
Size:  255.4 KB
Reply With Quote
  #12
Old 11-10-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
oh yeah...you too. lol.
Reply With Quote
  #13
Old 11-10-2009
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
im likeing the idea of a custom one that wraps under the superlift shane. i too have thought of doing the same thing
Reply With Quote
  #14
Old 11-13-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Since the frame/suspension cross members are static, I would think a piece of Aluminum Diamond Plate 1/8 or 3/16" will do, cut it to fit allow for mounting tabs; mounted on a framework made out of either angle stock or square tubing.
The alum will allow the skip to slide if it makes contact with a rock or other piece of nature, the framework will give it the strength.

I agree about the SL Skid, over priced for what you get, NWI.
