Leveling '97 Mazda B4000 - Ranger-Forums - The Ultimate Ford Ranger Resource


Suspension Tech General discussion of suspension for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 10-03-2007
Thomas's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Castlegar, B.C.
Posts: 43
Leveling '97 Mazda B4000

I have been doing a lot of reading and can't find anything about leveling my truck. i have i-beam 4x4, so do just need coil spacers? would i need new shocks?

any and all advice is appreciated,

Thomas
Reply With Quote
  #2
Old 10-03-2007
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
you can use coil spaces for a small lift yes and no i dont think you need new shocks.... Redneckstone has is 93 lifted with spacers so hopefully hell give his real life experience with it
Reply With Quote
  #3
Old 10-03-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
actually....you have a Twin Traction Beam (TTB) front suspension. Coil spacers are your answer.
Reply With Quote
  #4
Old 10-05-2007
Thomas's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Castlegar, B.C.
Posts: 43
How much would coil spacers be about and how hard would they be to install myself? I don't believe that i need new shocks ... is that correct?

Thanks
Reply With Quote
  #5
Old 10-05-2007
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
There's this magical search engine called www.google.com

If you type in "97 Ranger coil spacers", it will send data through a series of tubes called the internets. In mere seconds it will give you links to sites that sell these goods for Rangers!

Oh, and they *should* be hella easy to install.
Reply With Quote
  #6
Old 10-05-2007
Thomas's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Castlegar, B.C.
Posts: 43
haha, thanks man
Reply With Quote
  #7
Old 10-05-2007
Member

Join Date: Nov 2006
Location: Richmond, ME
Posts: 12
I'm not sure if it is common knowledge around here like it is over at explorerforum but the stock spring seats out of an early 90s f150 are a perfect 1-1/4" spring spacer/seat. I had them on for a while before I went bigger. Do a search for the partnumber, you can pick them up at your local ford dealership for under $50 for the set I think. One thing no one has mentioned yetis that your alignment will be off and you will most likely need higher degree caster/camber bushings. This will add about $100 to a standard alignment, but you can guess and install them yourself ahead of time to save the labor. These are about $15 per side at your local parts store. Probably the biggest ones they stock or 1 step down...I think like 2 degree should work.
"
Reply With Quote
  #8
Old 10-06-2007
Thomas's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Castlegar, B.C.
Posts: 43
I was shopping around a little and it seems that coil spacers are going to run me about $300 cdn ... a little on the high side for me!! But I like the idea of new springs ... especially if they are going to be cheaper then the spacers and will give me a better ride.
Reply With Quote
  #9
Old 10-07-2007
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
I ran new springs on my 97' and got new shocks only because the top stud broke off when I tried to remove the nut, and they were from 1997. I spent $70 on the alignment which used 2.25 degree cams. Total was around $260 US for all of the parts and I was happy with the outcome.
Reply With Quote
  #10
Old 10-07-2007
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Reply With Quote
  #11
Old 10-07-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
installed about 3 coil spacers. honestly i would recommended lift coils. and new longer shocks.. the coils are 10x faster to install... and the stud extenders i dont trust.. i did longer grade 10 bolts.. man was that a *****...
Reply With Quote
  #12
Old 10-07-2007
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
or this,if not i tried"btw if i read it correctly 97 b-4000 4x4"this should be the correct one

http://cgi.ebay.com/ebaymotors/Ford-...spagenameZWDVW
Reply With Quote
  #13
Old 10-07-2007
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by Redneckstone
installed about 3 coil spacers. honestly i would recommended lift coils. and new longer shocks.. the coils are 10x faster to install... and the stud extenders i dont trust.. i did longer grade 10 bolts.. man was that a *****...
coils are the correct way to lift it
Reply With Quote
  #14
Old 10-07-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
im with stone

i would get two 2.50 cams or something close to that.

leveling coils and 2" lift shocks are the way i would go, i have coil spacers and i don't like em.
but i think i have the wrong ones, oh well they will get replaced sooner or later when i do the SAS.

i had one of my stud extenders break when i was installing it, but i made two that are 10x stronger out of nuts, bolts, chopsaw and a welder.
Reply With Quote
  #15
Old 10-07-2007
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Reply With Quote
  #16
Old 10-07-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by 5speedin2.3
im with stone

i would get two 2.50 cams or something close to that.
thats the cams that are in my truck... ya no one mentioned but daniel you WILL need alignment cams and an alignment.. thats for sure lol.. otherwise you look like a SCORE prerunner truck lol
Reply With Quote
  #17
Old 10-07-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by Redneckstone
thats the cams that are in my truck... ya no one mentioned but daniel you WILL need alignment cams and an alignment.. thats for sure lol.. otherwise you look like a SCORE prerunner truck lol

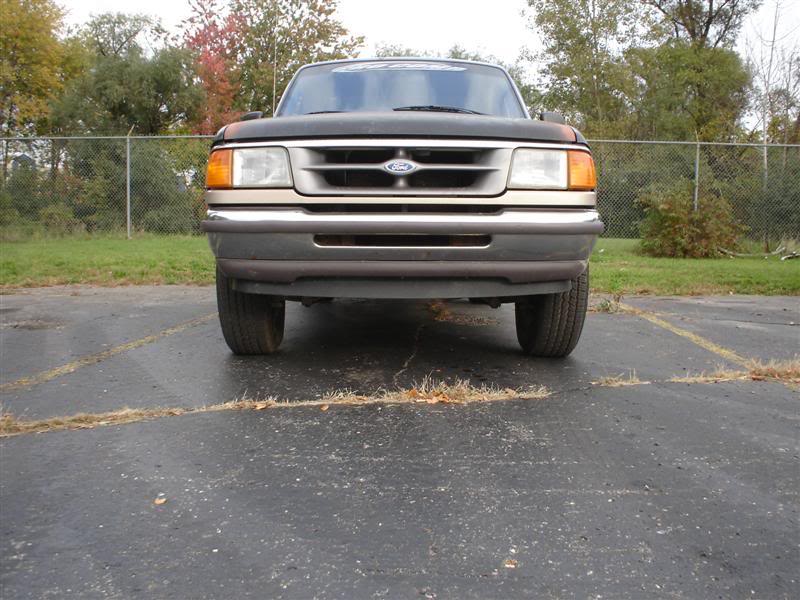

haha yeah, heres a pic, its old but w/e.
sad thing is, thats only a 1" spacer in that picture.
Name:  101.jpg
Views: 21
Size:  85.6 KB
Reply With Quote
  #18
Old 10-07-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
oh, about the shocks cole posted from summit, i wouldn't go with a hydraulic shock, i would go with a gas shock, preferably skyjacker.

edit: nvm i just looked again and they are skyjackers.
go with the stuff he said to get.
Reply With Quote
  #19
Old 10-07-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
i have skyjackers hydro's they work fine ride like a caddy
Reply With Quote
  #20
Old 10-08-2007
AgPete139's Avatar
Member

Join Date: Aug 2007
Location: Houston
Posts: 408
I have the cheap coil spacer lift on my TIB. Dpending on your work speed, it could take a couple hours just to do that. Get large inside and outside diameter washers (1-1/8" ID minimum) and do the lift that way. They work fine, and never had any problems. Since you have a 4.0L, you are able to fit about 1" - 1.5" of spacer to get a 2-3" front lift...at this height, there should be no camber adjustment for you and you won't need an alignment.

However, replacement lift coils for about $120 shipped is "better." Depends...

You won't need new shock either...

.
Reply With Quote
  #21
Old 10-08-2007
04 EDGE
Unregistered User

Posts: n/a
pete i hate to correct you but

any time you alter ride height on a ford TTB/TIB suspension you WILL need different alignment cams.

seems that superlift offered leveling coils at one time for rangers
Reply With Quote
  #22
Old 10-08-2007
Thomas's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Castlegar, B.C.
Posts: 43
I just bought new pro comp shocks about 4 months ago so i do not want to have to get new shocks. So I would be able to get new coils and alignment cams and still run my stock length shocks?
Reply With Quote
  #23
Old 10-08-2007
AgPete139's Avatar
Member

Join Date: Aug 2007
Location: Houston
Posts: 408
Quote:
Originally Posted by 04 EDGE
pete i hate to correct you but

any time you alter ride height on a ford TTB/TIB suspension you WILL need different alignment cams.

seems that superlift offered leveling coils at one time for rangers
Don't be so patronizing, you pompous twit. You favor the idea of "correcting" anybody on R-F...

But overall, I understand what you are trying to say...if you change the height, the camber changes. But you, the user, is to stay away from vast amounts of correction. The spacer lift is to be within reason...if you stay within 1.5" of lift, the camber is negliable and you barely change within the required degree change. You return to the original height of the vehicle...

If his springs are saggy (which they tend to do over time and use...especially with a decade-old truck), chances are that he ALREADY HAS SLIGHT NEGATIVE CAMBER...(leaning in towards the top)...

Obviously if you go an put 3" of spacer in there, you are going to have problems.

What's the difference between adding washers or adding FORD FACTORY or aftermarket spacers? Nothing at all...

Also, you obviously cannot go more than about 1.75" of spacer since you run out of thread on the bolt for the retaining nut on the upper seat of the spring.

Besides 04_Edge, how would you even know? ASE certified? Who cares...unless you have worked on a TIB and actually done this, you can't talk. I have, and it fixed my saggy springs. It's an I-beam, not the IFS you have on your truck. I have a 1997 4.0L as well...

Your track record for information is not the best on these forums...have a seat and sit this one out...


Peter


.
Reply With Quote
  #24
Old 10-08-2007
AgPete139's Avatar
Member

Join Date: Aug 2007
Location: Houston
Posts: 408
Quote:
Originally Posted by Thomas
I just bought new pro comp shocks about 4 months ago so i do not want to have to get new shocks. So I would be able to get new coils and alignment cams and still run my stock length shocks?

The Pro Comp shocks are fine...you will not need new shocks with spacers. You will be fine with 2" lift coils and the same shocks. If are not offroading anything hardcore where you will require major articulation with...
Reply With Quote
  #25
Old 10-09-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
you are wrong, if he lifts the truck with coils or coil spacers he will need an alignment, look at the picture of my truck with JUST a 1" spacer and tell me that looks "correct".

take pete's advice if you like buying new tires becuase they wear out super fast.
Reply With Quote
