Lift setup

What's up guys! Was just wondering if I could get some people to post pictures if they have this set up..

T-bar crank or new index keys
AAL or shackles
WITH
3" body lift
33x12.5x15 with 3.75 BACKSPACING

Just wanna see what it actually looks like.

Thanks.
Reply With Quote
  #2
Old 03-29-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
search!!! there are soooo many trucks on here running this exact setup and sooo many threads about it already!! in fact, the THIRD thread in the suspension section has all the info you need to lift your truck
Reply With Quote
  #3
Old 03-29-2013
ZWilson07's Avatar
Member
iTrader: (1)

Join Date: Apr 2010
Location: Louisville, Kentucky
Posts: 870
Quote:
Originally Posted by Josh4481 View Post
What's up guys! Was just wondering if I could get some people to post pictures if they have this set up..

T-bar crank or new index keys
AAL or shackles
WITH
3" body lift
33x12.5x15 with 3.75 BACKSPACING

Just wanna see what it actually looks like.

Thanks.
The best thing I could show you off the top of my head is 3 inch body lift, with 33x12.5 and 3.65 backspacing which I like a little better as sticks out a little more in a 15x8 but not to wide such as the 15x10 is.

Almost everyone that ive seen that went as far as to max out the front bars and shackles in the rear moved up to 35's. I think there is one guy with a white ranger off the top of my head but you will have to give me a minute to search him down.
Reply With Quote
  #4
Old 03-29-2013
jeffboulard's Avatar
Member

Join Date: Jul 2010
Location: ontario
Posts: 53

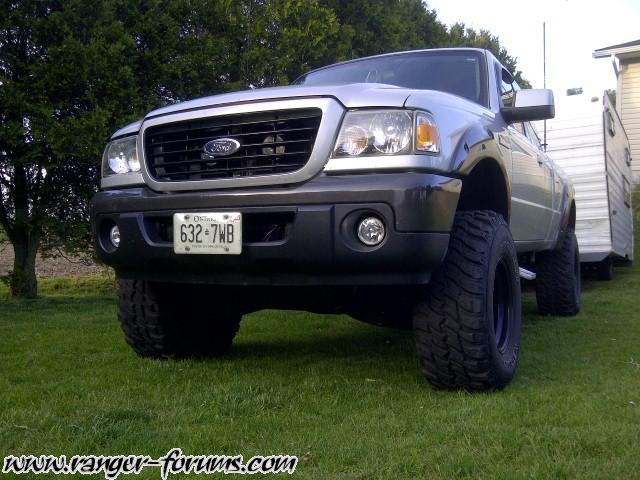

That's everything to spec. If you want diff angles let me know i can take a few pictures tomorrow
Attached Thumbnails
Lift setup-jeffboulard-25306-albums-truck-33-12-50-15-s-2277-picture-norfolk-county0-20120506-00132-small-1.jpg
Reply With Quote
  #5
Old 04-19-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Portsmouth nh
Posts: 6
Thanks Jeff if possible I'd like to see the side view also. Do you have any rubbing issues? Btw truck looks good man!
Reply With Quote
  #6
Old 04-21-2013
jeffboulard's Avatar
Member

Join Date: Jul 2010
Location: ontario
Posts: 53

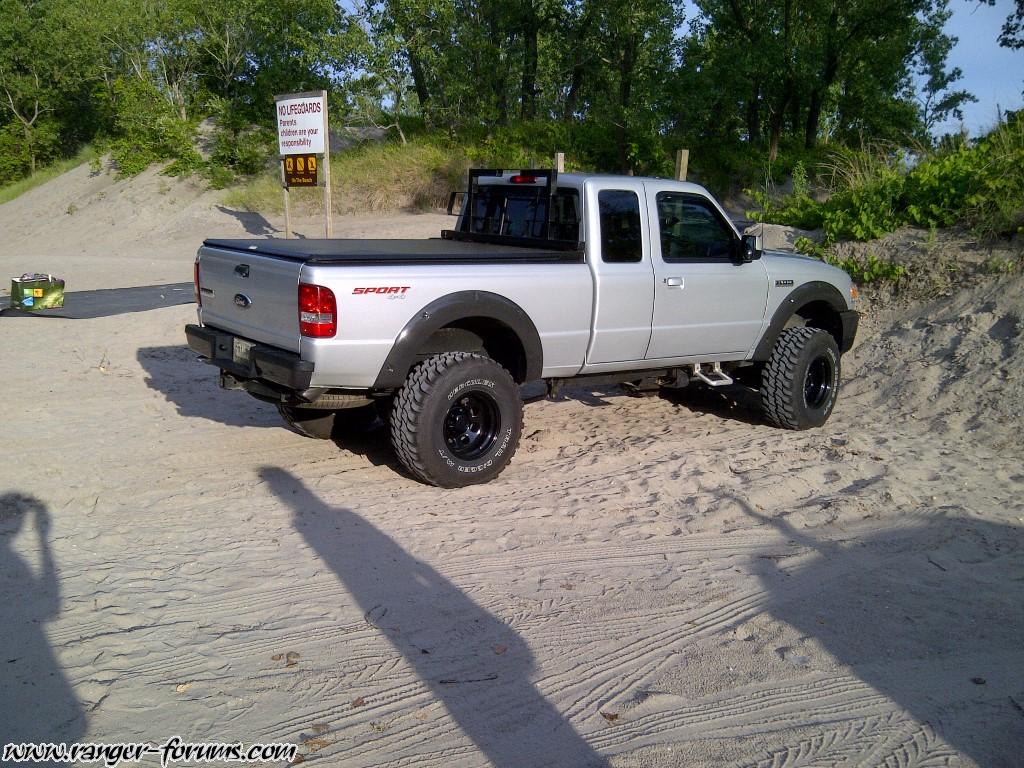

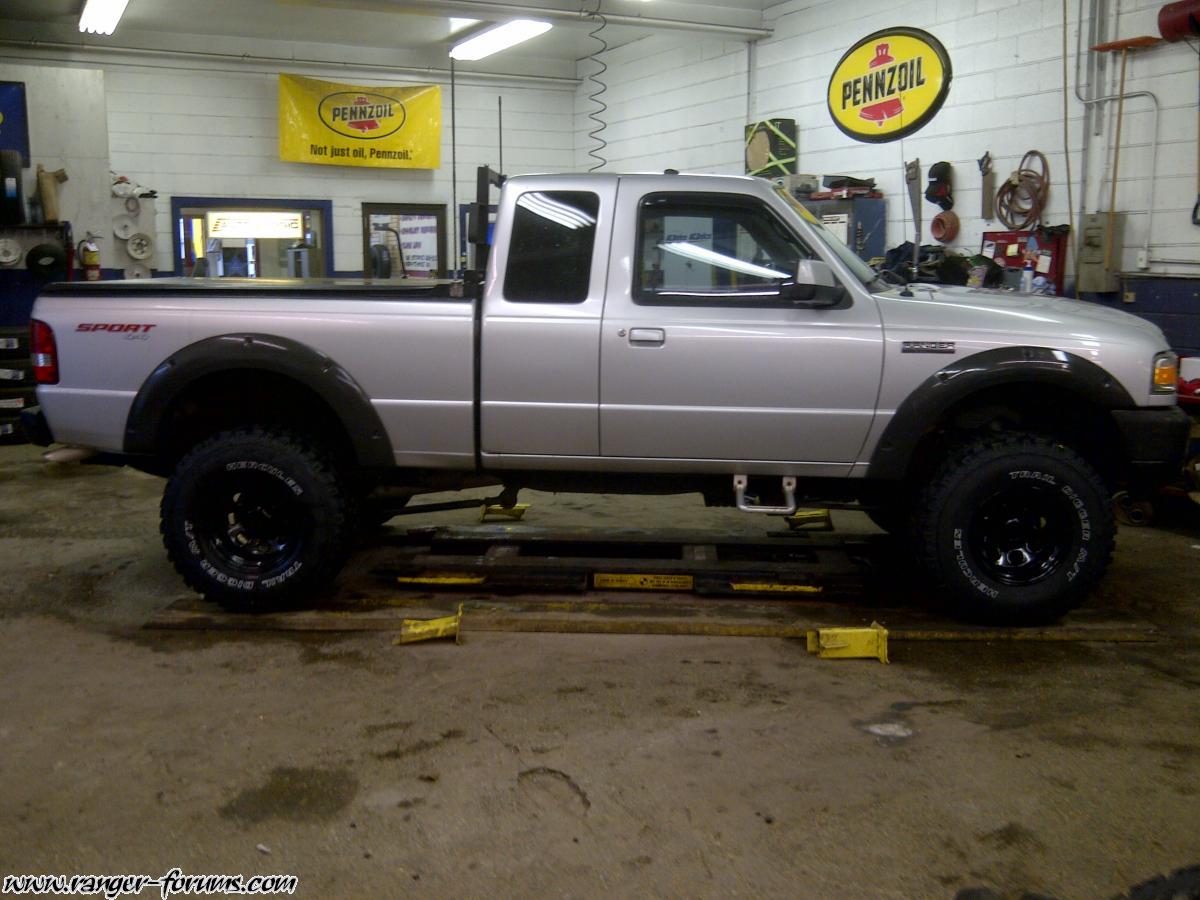

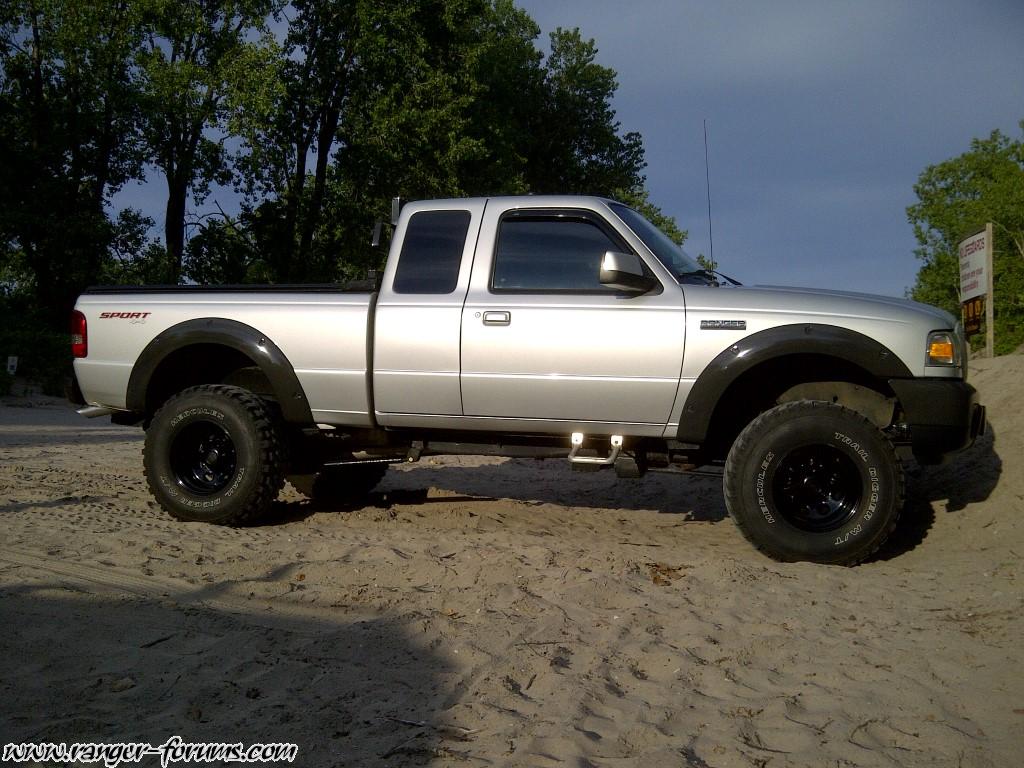

Here ya go

Attached Thumbnails
Lift setup-jeffboulard-25306-albums-truck-33-12-50-15-s-2277-picture-cleaned-up-beach-14895.jpg   Lift setup-jeffboulard-25306-albums-truck-33-12-50-15-s-2277-picture-cleaned-up-beach-14896.jpg   Lift setup-jeffboulard-25306-albums-truck-33-12-50-15-s-2277-picture-new-rims-tires-14894.jpg
Reply With Quote
  #7
Old 04-21-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Portsmouth nh
Posts: 6

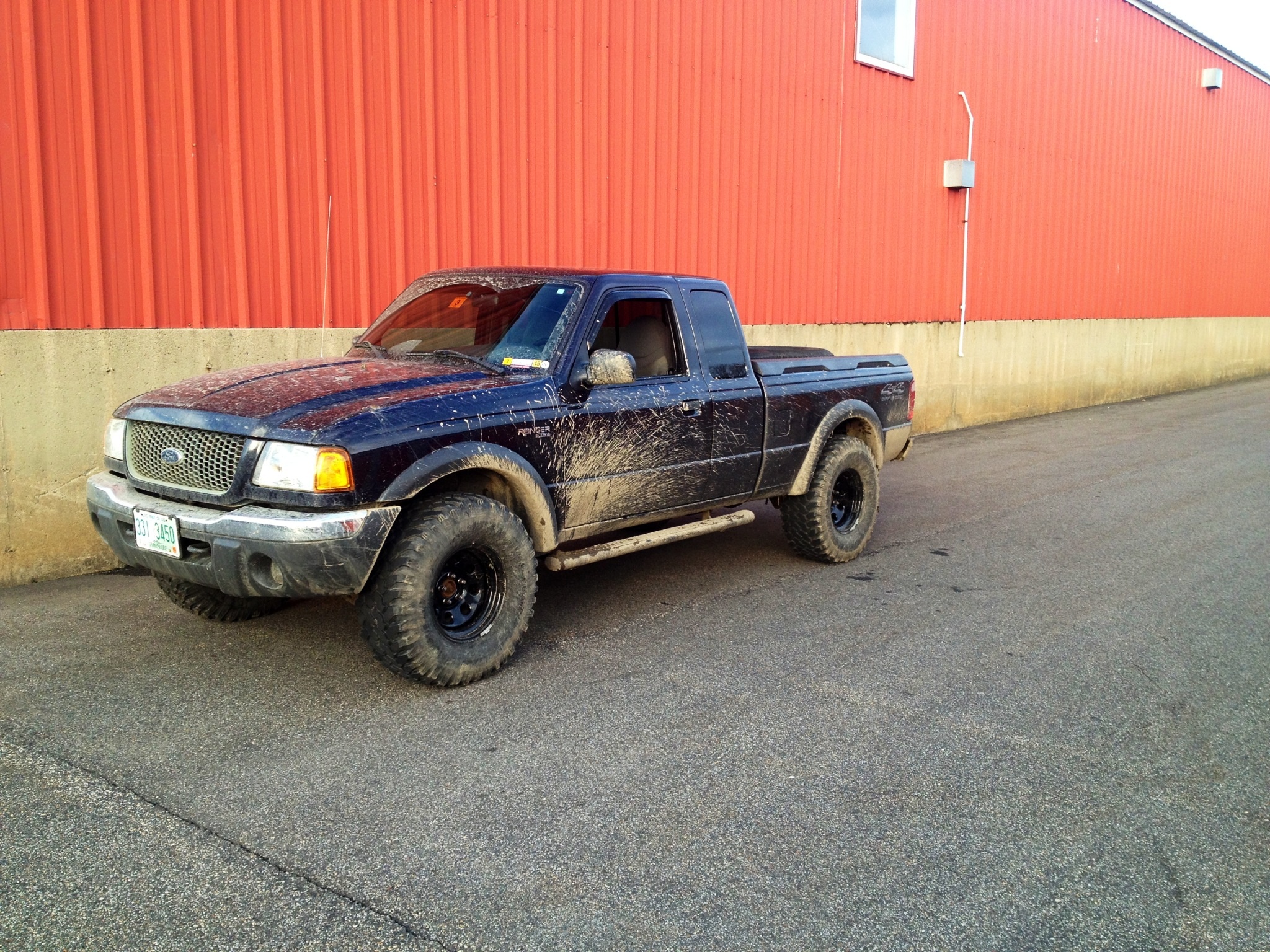

Man that's a good looking ranger. I got bored sitting in the shop the other day and was Curious if my 33's would fit on my truck with just a slight torsion crank. And they did with no real rubbing issues @ all.. Plan on putting the shackles, shocks, and all on next week. Anyways I noticed you have traction bars in the rear.. What brand and style are they? Where'd you get them from?


Attached Thumbnails
Lift setup-image.jpg
Reply With Quote
  #8
Old 04-21-2013
jeffboulard's Avatar
Member

Join Date: Jul 2010
Location: ontario
Posts: 53
Thank you. I built them my self. I started with rubber bushings which was a bad idea. Later switched to heim joints (rod ends) and they work a lot better. I am the only one that has ever turned a wrench on my truck. 33's will never rub with my setup. I had 35's on it for a year or so with no rubbing at all. Minor off roading. I went down to 33's because of the 4.10 gearing and manual trans. I tow way to much with this little truck.
Reply With Quote
  #9
Old 07-30-2013
Member

Join Date: Jul 2011
Location: myakka
Posts: 8
jeffboulard do you have any pics of your truck on the 35s? and love the traction bars! ive been thinking and scetching some ideas out for that for a while now, you got it perfect with the length and all nice job
Reply With Quote
  #10
Old 07-31-2013
jeffboulard's Avatar
Member

Join Date: Jul 2010
Location: ontario
Posts: 53

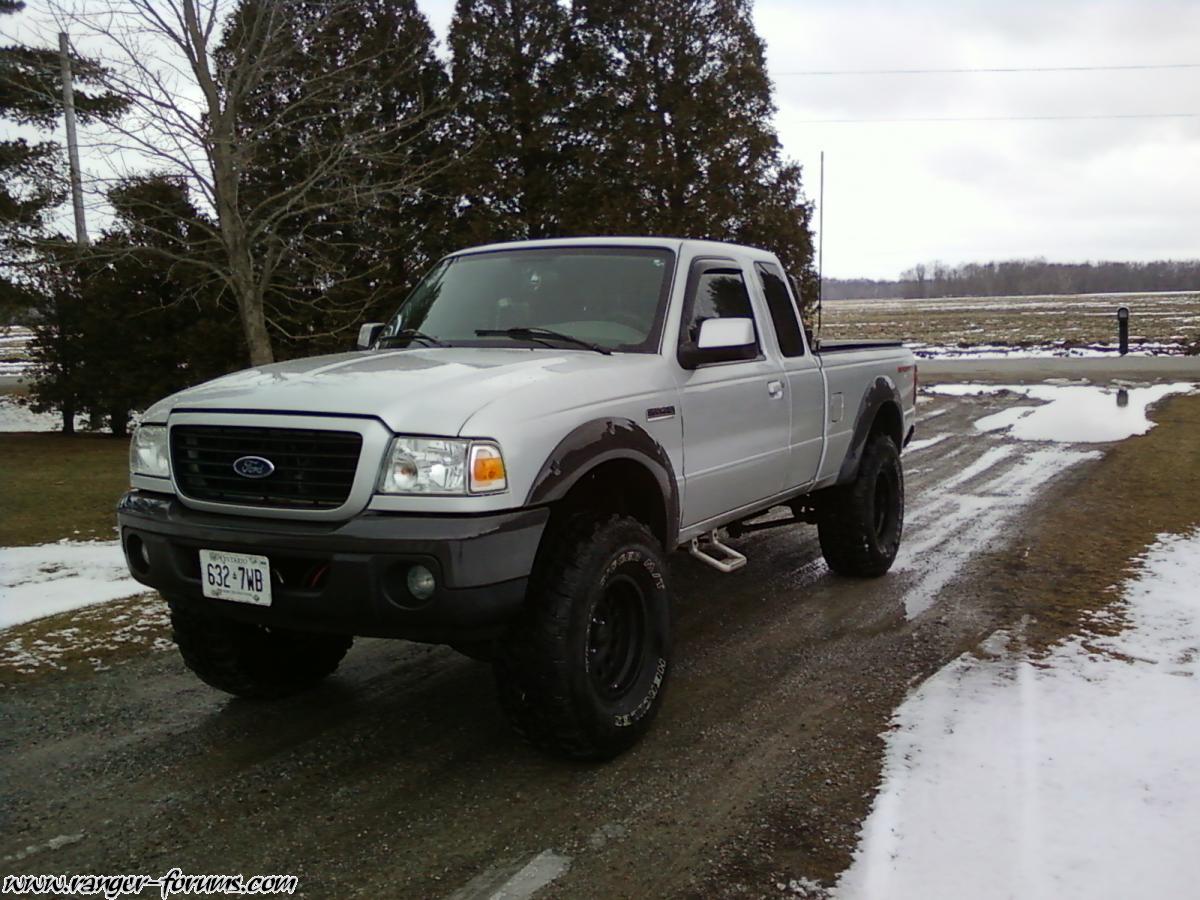

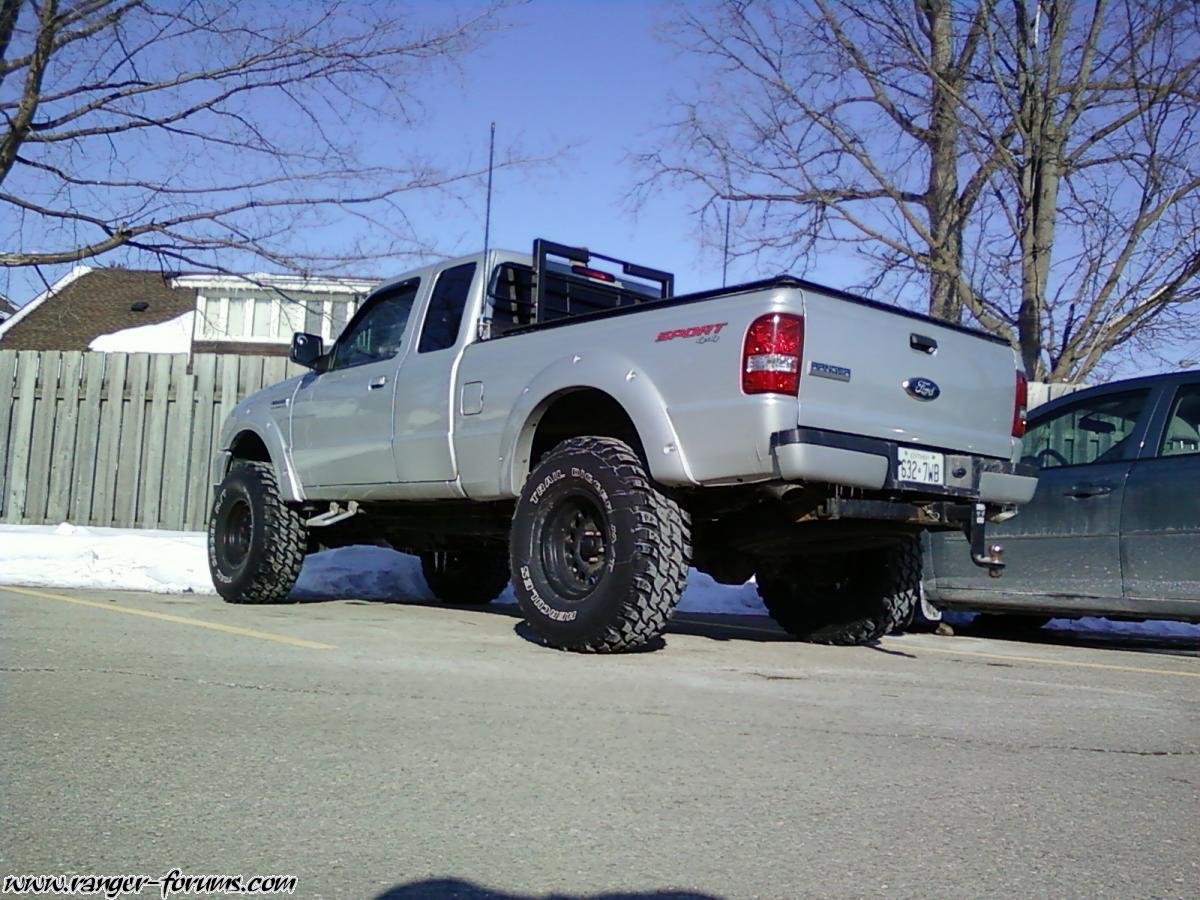

This is with 35"s



Attached Thumbnails
Lift setup-jeffboulard-25306-albums-2008-4-0l-sport-4x4-315-s-keys-aal-body-lift-much-more-1273-picture-35s.jpg   Lift setup-jeffboulard-25306-albums-2008-4-0l-sport-4x4-315-s-keys-aal-body-lift-much-more-1273-picture-pai.jpg
Reply With Quote
