My prerunner Mid-travel front end. (Pics)

So for those of you who dont know, im building my truck to be a 1450 class prerunner and im working my way up from small to big. Heres my new front end set up and this is as far as im going with it until i save up for my long travel front end. Camburg was too expensive, so i went with fabtech and it rides and handles awesome.

Front end specs:
Fabtech 5.5 kit (uppers, spindle, coils)
2.0 Shock upgrade (Done by BTF fab)
2.0 x 8" Fox racing reservoir shocks
Upper a arm gussets for added strength (done by BTF fab)
8" limit straps to prevent damage from happening (Done by BTF fab)

My front end is now worth equal to if not more than my whole truck haha. Currently i have the truck strapped at 10" of travel. This was a big upgrade from my previous set up (just a fabtech spindle)

Full front end:
Name:  100_5965.jpg
Views: 849
Size:  65.8 KB

Upper a arm mounts gussets and the 2.0 shock upgrade:
Name:  100_5969.jpg
Views: 471
Size:  58.9 KB

New front end ride height: (rear end is stock, im working on that next)
Name:  100_5954.jpg
Views: 409
Size:  68.9 KB
Reply With Quote
  #2
Old 02-14-2009
S10Killer's Avatar
Member

Join Date: Apr 2008
Location: SO CAL
Posts: 381
I like it!!

Nice fab work
Reply With Quote
  #3
Old 02-14-2009
3.0Backfire's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: So-Cal
Posts: 357
I wish i could take credit for those awesome welds haha, but mine arent anywhere that great and i dont trust my welds yet to hold up a limit strap, so i had Brandon down at BTF Fabrication weld on all the that needed to be welded (the gussets, the shock mounts, and the limit strap tabs) He does great work and is a pretty cool guy.
Reply With Quote
  #4
Old 02-14-2009
Djt1994's Avatar
Member

Join Date: Mar 2008
Location: Niagara Falls, New York
Posts: 59
Looks great they did some good work.
Reply With Quote
  #5
Old 02-14-2009
The_Punisher's Avatar
Member

Join Date: Feb 2009
Location: Chino Hills, CA
Posts: 438
I love it
Reply With Quote
  #6
Old 02-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
looks great...but....shouldn't something be done about those stock sway bar links??? I dont get whats keeping that strap bolted up top....

i want your wheels. thanks. lol.

Last edited by Fx4wannabe01; 02-14-2009 at 06:55 AM.
Reply With Quote
  #7
Old 02-14-2009
black-n-blue's Avatar
Member

Join Date: May 2005
Location: Garner, NC
Posts: 810
i would be careful beating on it with that setup.. the main difference between fabtech and camburg besides travel is just strength, the main difference is the balljoints and spindle.. theres been a lot of people who had their spindle shafts snap on them
Reply With Quote
  #8
Old 02-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by black-n-blue View Post
i would be careful beating on it with that setup.. the main difference between fabtech and camburg besides travel is just strength, the main difference is the balljoints and spindle.. theres been a lot of people who had their spindle shafts snap on them

Fabtech... (notice the snapped spindle)
Reply With Quote
  #9
Old 02-14-2009
t_schloesser's Avatar
Member

Join Date: Jun 2007
Location: Palm Beach, FL
Posts: 739
BOTH FABTECH:


Name:  TinyTank2.jpg
Views: 498
Size:  57.3 KB
Name:  11-10-08_1742.jpg
Views: 402
Size:  23.9 KB
Name:  DSC01020.jpg
Views: 386
Size:  155.8 KB

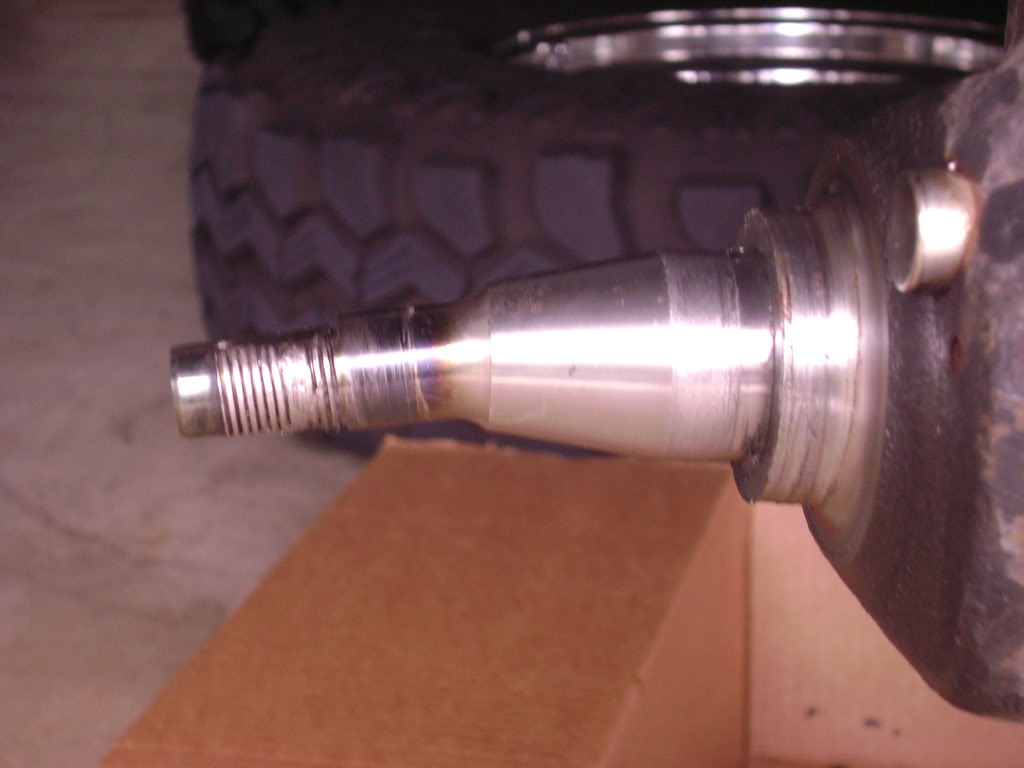

Name:  DSC01017.jpg
Views: 444
Size:  65.6 KB
Reply With Quote
  #10
Old 02-14-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
i don't get. Why the FagTech? Why not go out and buy a good kit and install yourself? Save lots of money!!

But hey! I like your truck!
Reply With Quote
  #11
Old 02-14-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yeah the camburg is like $2,000. Would have been better IMO.

Although I do beat the **** out of my fagtech and it is fine. But I do not jump it.
Reply With Quote
  #12
Old 02-14-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
sweet truck i would sell your fab tech stuff and buy something else b4 you go any farther might save money in the long ru
Reply With Quote
  #13
Old 02-14-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Ah just wait for it to break then go Camburg. lol
Reply With Quote
  #14
Old 02-14-2009
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
Budget guys! This will hold up for what he wants to do. When he gets the money saved hes going long travel.
Reply With Quote
  #15
Old 02-14-2009
t_schloesser's Avatar
Member

Join Date: Jun 2007
Location: Palm Beach, FL
Posts: 739
you'll save money with fabtech but spend a whole LOT of time. you need to CONSTANTLY check your bearings and repack them with grease. that seems to be why the spindle shafts break.

and when you do break the fabtech and switch to camburg, it will be WELL worth it.
Reply With Quote
  #16
Old 02-14-2009
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
looks great man cant wait to see what you do with the back
Reply With Quote
  #17
Old 02-14-2009
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
he is also coil sprung and all the pics of broken spindles are on edge trucks, idk if the 5.5 kit uses stock spindles or not. just pointing it out.
Reply With Quote
  #18
Old 02-14-2009
black-n-blue's Avatar
Member

Join Date: May 2005
Location: Garner, NC
Posts: 810
Quote:
Originally Posted by fordlife View Post
he is also coil sprung and all the pics of broken spindles are on edge trucks, idk if the 5.5 kit uses stock spindles or not. just pointing it out.
the edge kit doesn't use stock spindles.. i think the edge kit is shown more because there are more people that run them
Reply With Quote
  #19
Old 02-14-2009
3.0Backfire's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: So-Cal
Posts: 357
My 5.5 kit has fabtech coils, uppers, and spindles. and the limit strap is bolted up to a tab thats welded on the frame and its purpose is to LIMIT my down travel which is what mostly kills these spindles, hence why i got them. I installed everything myself on this truck except the welded on parts.

Buying the camburg kit didnt really make any sense to me, why would i pay 2,000 for a mid travel kit right now, when for 1,000 more i can have a full long travel kit?

And just FYI, the camburg and fabtech spindles are the EXACT SAME pressed in snout, the two companies just make thier own snout housings.
Reply With Quote
  #20
Old 02-14-2009
3.0Backfire's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: So-Cal
Posts: 357
Quote:
Originally Posted by t_schloesser View Post
BOTH FABTECH:






The first pic is (White truck) one i remember the bearing went out, bearings are always going to go out no matter what kit your running, its user error that the driver doesnt maintain his kit, not fabtechs.

The second pic (black truck) is an edge, so that kit is different from mine and that truck probably had cranked torsion bars which lead to more stress on the suspension, thats user error, not fabtechs.


Fabtech isnt the greatest company, but its not made out of cardboard lol. It handles and holds up for the beating most people give it if you know how to check and maintain it before you smash on it. Bad fabtech kit's are usually just a scapegoat for when things break so people can have something to blame it on :-P

Last edited by 3.0Backfire; 02-14-2009 at 01:40 PM.
Reply With Quote
  #21
Old 02-14-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Well fagtech markets like their sh*t is the best offroad parts you can buy.

Oh, and fagtech uses CAST spindles, Camburg uses actual fabricated spindles.
Where do you get the long travel kit at?
Reply With Quote
  #22
Old 02-14-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
Quote:
Originally Posted by Dangerranger01 View Post
Well fagtech markets like their sh*t is the best offroad parts you can buy.

Oh, and fagtech uses CAST spindles, Camburg uses actual fabricated spindles.
Where do you get the long travel kit at?
but if fabtech switches to fabricated spindles, it wouldnt fix the snout problem though.....i have no room to talk though i got doestch spindles to hold me over till an lt kit....
Reply With Quote
  #23
Old 02-14-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
My friend works at Fagtech. He says he would only trust the Jeep stuff. He want's Burg for his truck.

Last edited by whippersnapper02; 02-15-2009 at 12:38 PM.
Reply With Quote
  #24
Old 02-14-2009
CamburgRanger714's Avatar
Member

Join Date: Mar 2008
Location: Yorba Linda,CA
Posts: 184
Well in times like this a man will get what he can. Lance's truck is really coming along nicely. I remember the day he pulled up to my house and wanted to build a bumper. I was wondering why he wanted a bumper with no suspension but I spoke too soon. We are going to have to wait till the rear suspension is finished to really see how his kit handles. Who cares what kind of lift a guy has. If he loves his truck and loves to mod it, a real enthusiast would give him credit for doing anything besides keeping it stock.
Reply With Quote
  #25
Old 02-14-2009
jmg99ranger's Avatar
Member

Join Date: Jul 2006
Location: Anahiem Hills CA
Posts: 92
Setup looks good Lance. How much did it cost you?
You testing it out next weekend?
