Photo request.......RCD gussets

Jared's old pics of his shock tower and gussets is a red x.

Anyone wanna get pics of the gussets welded in place for me?














I'm up to no good, but nothing you guys didn't already know about.
Reply With Quote
  #2
Old 06-25-2007
DerangedPony's Avatar
Member

Join Date: Apr 2006
Location: New Berlin, WI
Posts: 351
Have to wait until I get home if someone else doesnt post before that.

Last edited by DerangedPony; 06-25-2007 at 11:34 AM.
Reply With Quote
  #3
Old 06-25-2007
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
hmm... never welded mine on.
Reply With Quote
  #4
Old 06-25-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by ranger
hmm... never welded mine on.
Scott D. (big04ranger) never welded his in......when he sold his kit to Gumby, he gave Gumby the gussets a couple weeks before he took the lift off his truck
Reply With Quote
  #5
Old 06-25-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15


not the best angle but these were from my truck when I had the RCD, you can see one of them next to the coilover, the other one is in the same place just on the backside of the coilover so you cant see it.
Reply With Quote
  #6
Old 06-25-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
any particular reason you were runnin the shocks upside down, andrew?

p.s. my gussets are welded in, but ive got no good pics of it. lemme know if youre lookin for sumthin specific, and ill grab a couple for ya.
Reply With Quote
  #7
Old 06-25-2007
DerangedPony's Avatar
Member

Join Date: Apr 2006
Location: New Berlin, WI
Posts: 351
Quote:
Originally Posted by gumby
any particular reason you were runnin the shocks upside down, andrew?

p.s. my gussets are welded in, but ive got no good pics of it. lemme know if youre lookin for sumthin specific, and ill grab a couple for ya.
isnt the sway bar end link also upside down?
Reply With Quote
  #8
Old 06-25-2007
Lefty04LevelII's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: DFW
Posts: 1,447
Quote:
Originally Posted by gumby
any particular reason you were runnin the shocks upside down, andrew?

p.s. my gussets are welded in, but ive got no good pics of it. lemme know if youre lookin for sumthin specific, and ill grab a couple for ya.
I'm just looking for a good reference shot of the shock tower and gussets for welding time.
Reply With Quote
  #9
Old 06-25-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by gumby
any particular reason you were runnin the shocks upside down, andrew?

p.s. my gussets are welded in, but ive got no good pics of it. lemme know if youre lookin for sumthin specific, and ill grab a couple for ya.
thats what I get for just starting to mod the truck and not knowing what I was doing, so a shop installed it. I never even thought about it till I disasemmbled the lift and noticed they were upside down.
Reply With Quote
  #10
Old 06-25-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581

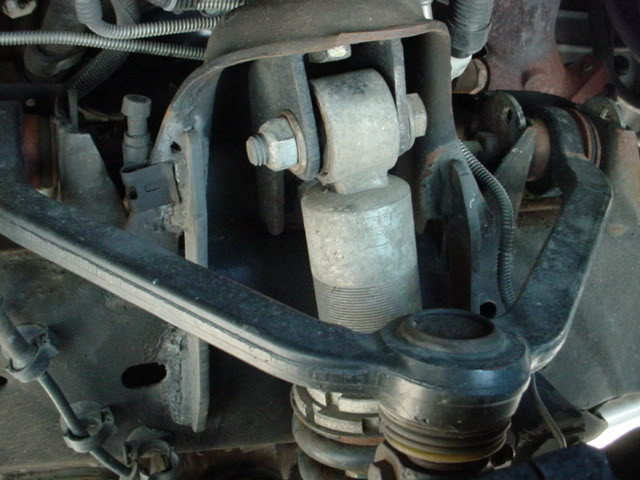

Name:  a96607ff.jpg
Views: 5
Size:  51.3 KB

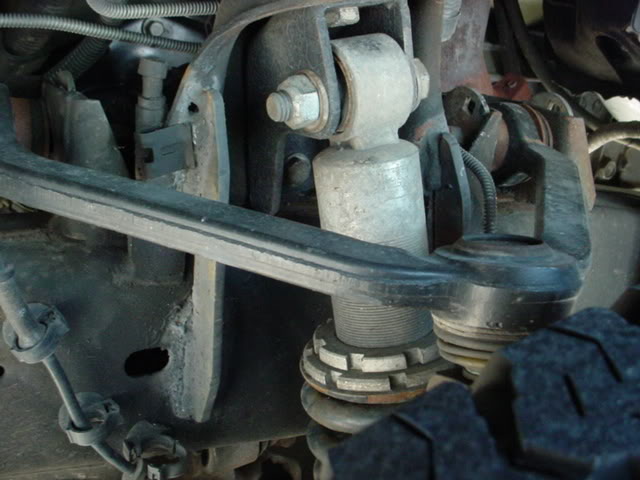

Name:  5b9a7fa3.jpg
Views: 6
Size:  50.0 KB
Reply With Quote
  #11
Old 06-25-2007
Lefty04LevelII's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: DFW
Posts: 1,447
thanks gumby
Reply With Quote
